MID49 Upper Cage with AB-4 Audio Breakout for Canon C80

MID49 Upper Cage with AB-4 Audio Breakout for Canon C80

€525.00 excl. BTW

Upper Cage Supports Original C80 Handle
AB-4 2 Mini XLR to 3-Pin XLR Breakout
1/4"-20 & 3/8"-16 with Anti-Twist Divots
Top & Bottom Arca-Type Dovetail Slots
Breakout Cable Length: 12"
Integrated HDMI Cable Clamp

External warehouse, approximately 10 days or more

EAN: 641837956612 SKU: M49-CAG-CAN-C80AB Category: For Canon

Description

Overview

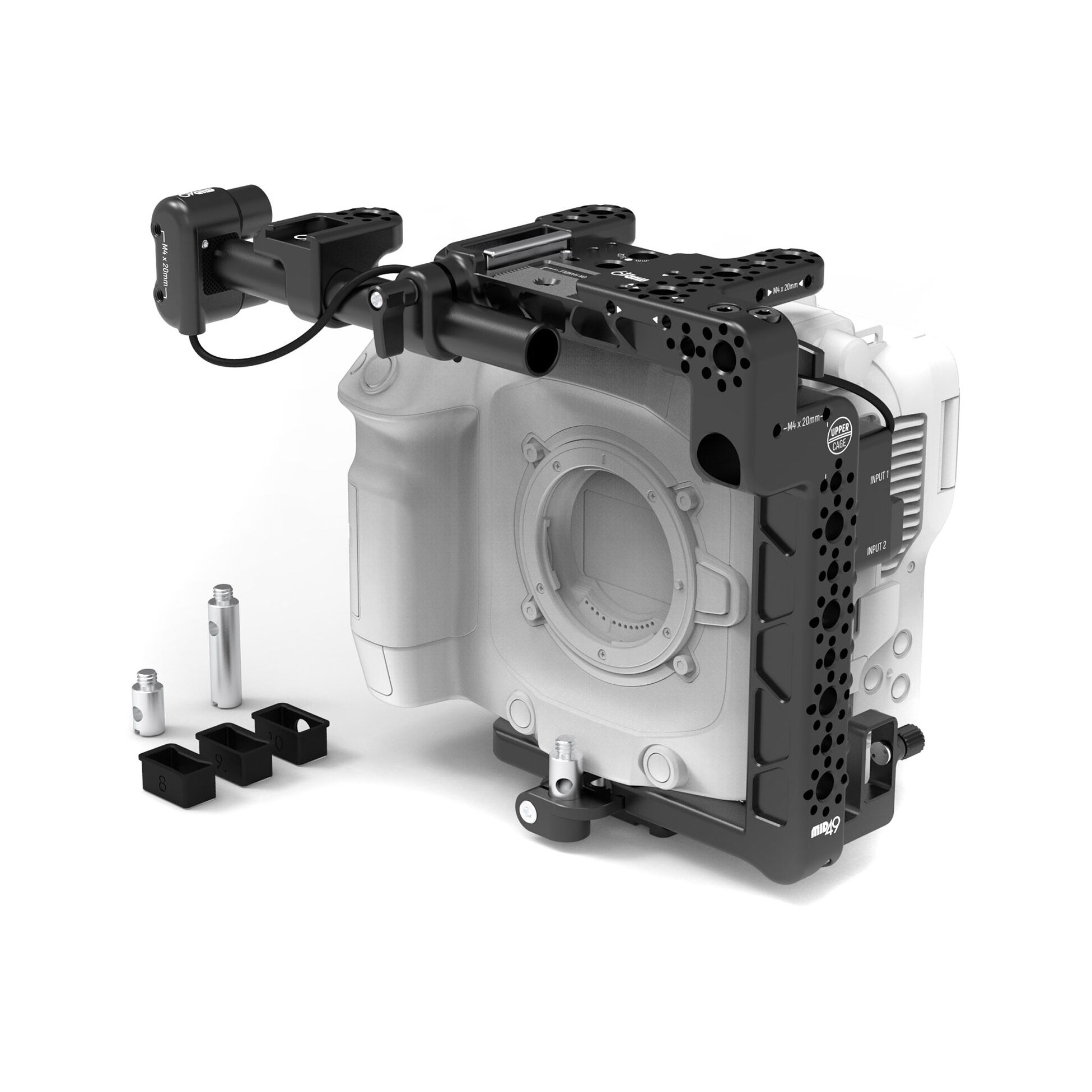

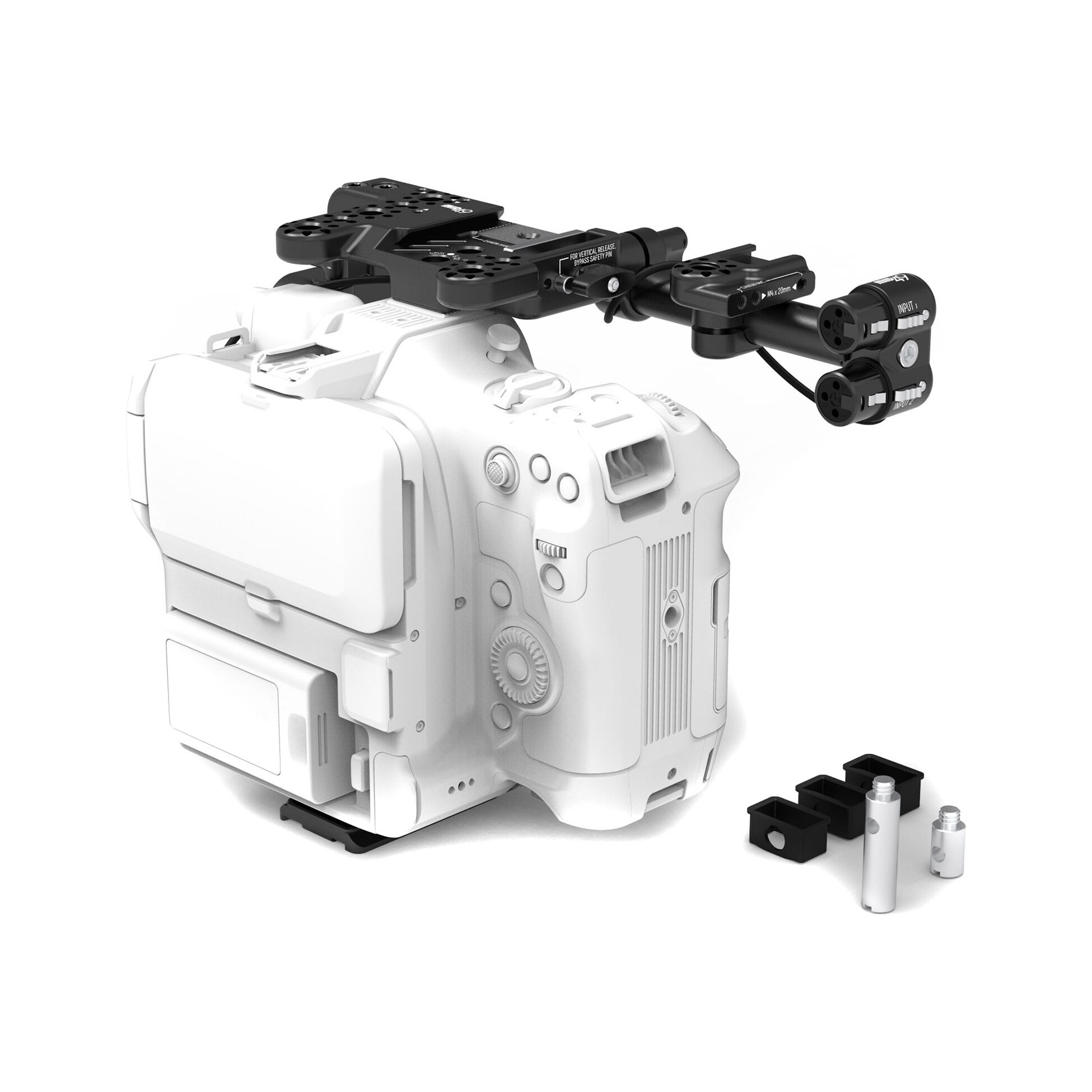

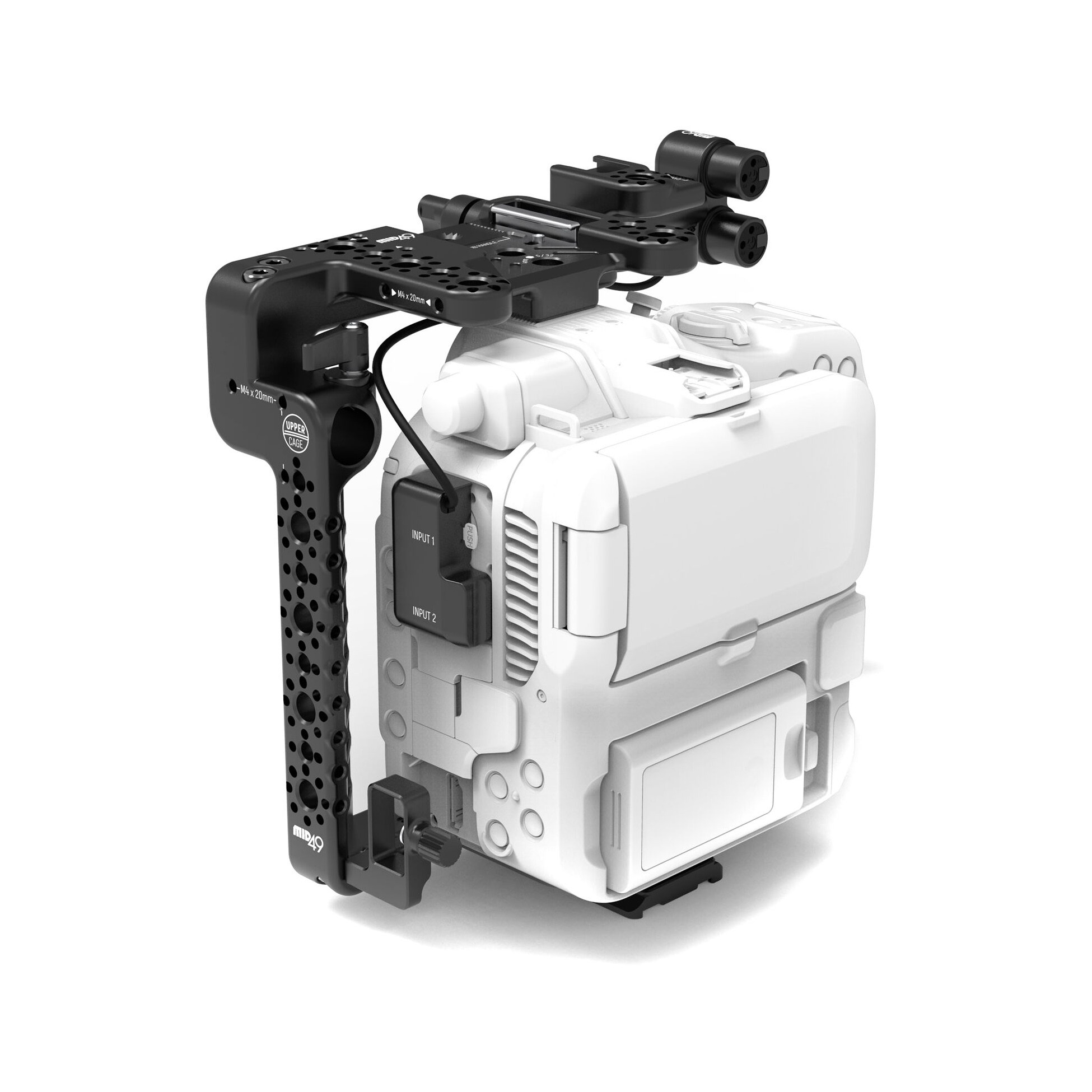

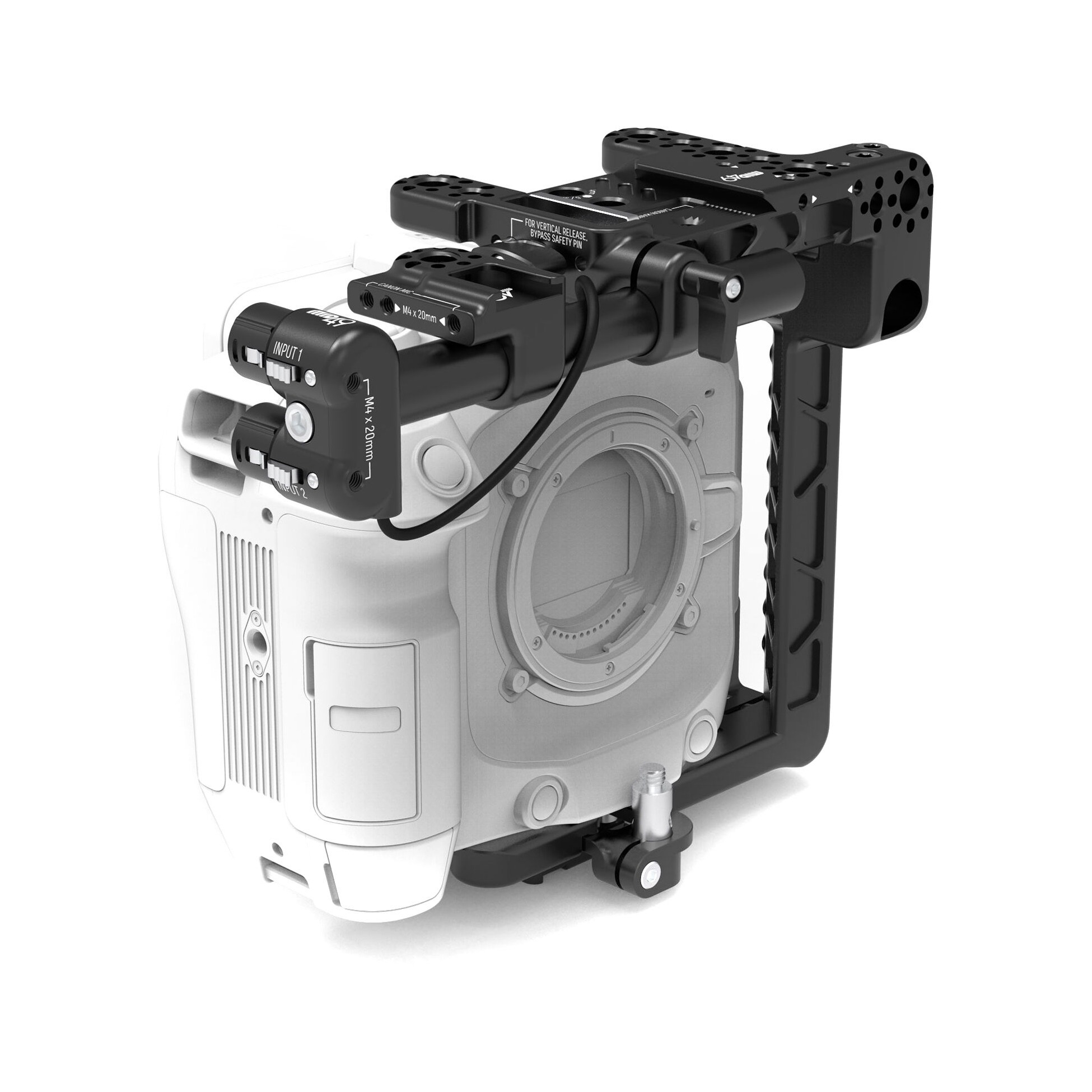

The MID49 Upper Cage with AB-4 Audio Breakout for Canon C80 combines a three-sided, form-fitting camera cage with an audio breakout cable. The cage supports the original C80 handle and features a 15 mm rod port, cold shoe, integrated HDMI cable clamp, lens support mount, Arca-type mounts, and multiple threaded mounting points.

The included MID49 AB-4 audio breakout cable has a 12" length and connects two Mini-XLR 3-Pin Male Right Angle connectors to two XLR 3-Pin Right Angle connectors.

Features

Three-sided cage for the Canon EOS C80
Includes a top accessory rod
Front 3x 15 mm rod port
Built-in Arca-type plate for tripod mounting
Cold shoe mounting point
Lens adapter support components included
M4 x 20 mm ARRI-spaced threads
AB-4 cable for connecting the camera to 3-pin XLR microphones

Included

MID49 Upper Cage for Canon C80
Top Accessory Rod
Hot Shoe/Accessory Thread/Rosette Adapter
2 x Lens Adapter Support
3 x Rubber Cap
MID49 Audio Breakout AB-4 for Canon C70 & C80

Specifications

MID49 Upper Cage for Canon C80

Support Type	Cage
Grip Type	No
Camera Compatibility	Canon EOS C80
Included Rods	Yes
Battery Plate Type	No
Accessory Mounting	Top 3x Anti-Twist 1/4"-20 Female Thread 5x Anti-Twist 3/8"-16 Female Thread Side 4x Anti-Twist 1/4"-20 Female Thread 4x Anti-Twist 3/8"-16 Female Thread 5x M4 Female Thread Front 1x Anti-Twist 1/4"-20 Female Thread 1x Anti-Twist 3/8"-16 Female Thread 2x M4 Female Thread
Camera Mounting	3/8"-16 Male Screw
Tripod Mounting	Built-In Arca-Type Plate
Rod Ports	Front 3x 15 mm Rod Port
Shoe Mounting	1x Cold Shoe
Cable Clamp	1x HDMI Clamp
Package Weight	1.265 lb / 0.57 kg
Box Dimensions (LxWxH)	8 x 7.45 x 2.35" / 20.32 x 18.92 x 5.97 cm

MID49 Audio Breakout AB-4 for Canon C70 & C80

Connector 1	2x Mini-XLR 3-Pin Male Right Angle
Connector 2	2x XLR 3-Pin Right Angle
Cable Length	12" / 30.5 cm
Package Weight	0.155 lb / 0.07 kg
Box Dimensions (LxWxH)	3.75 x 3.7 x 1.15" / 9.53 x 9.40 x 2.92 cm
