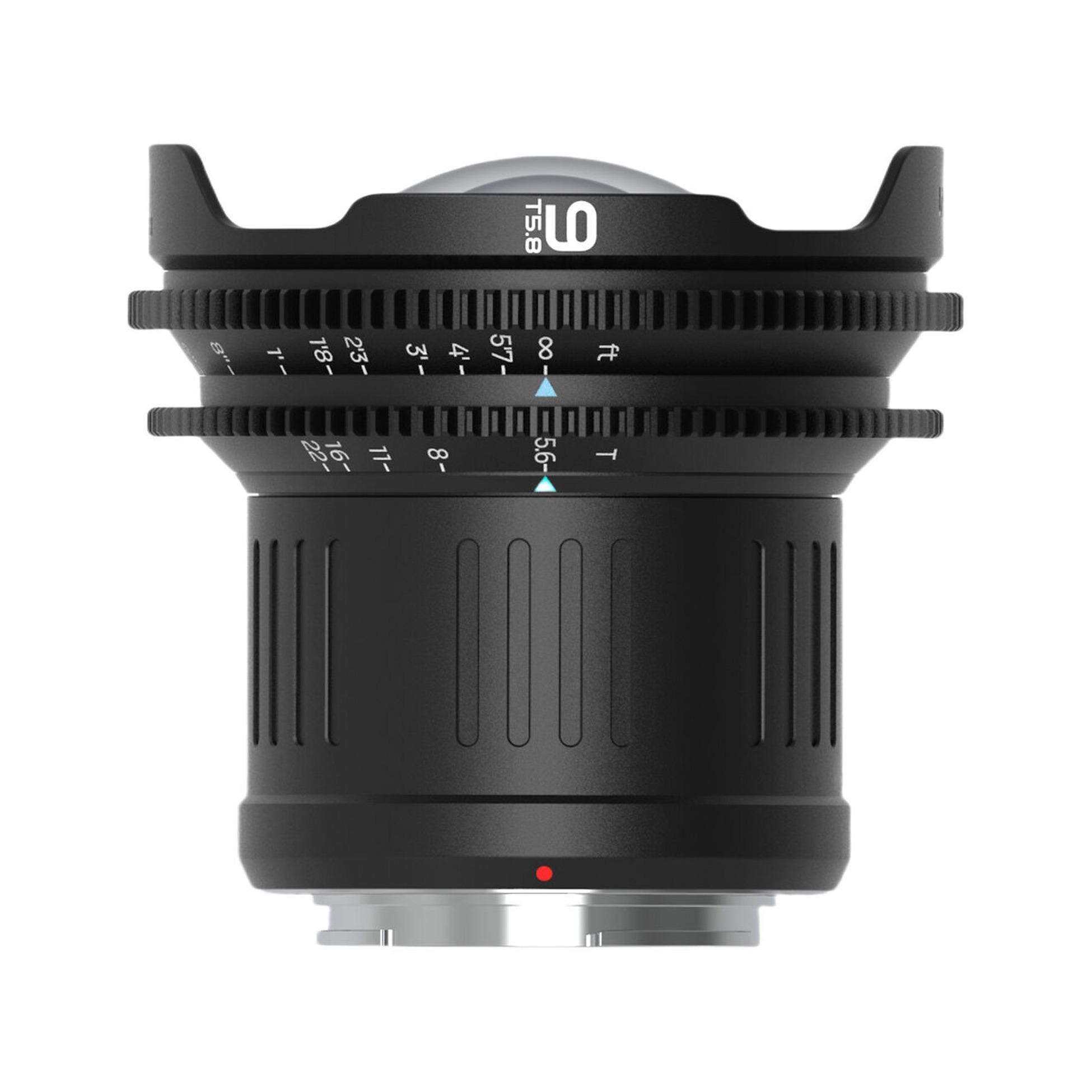

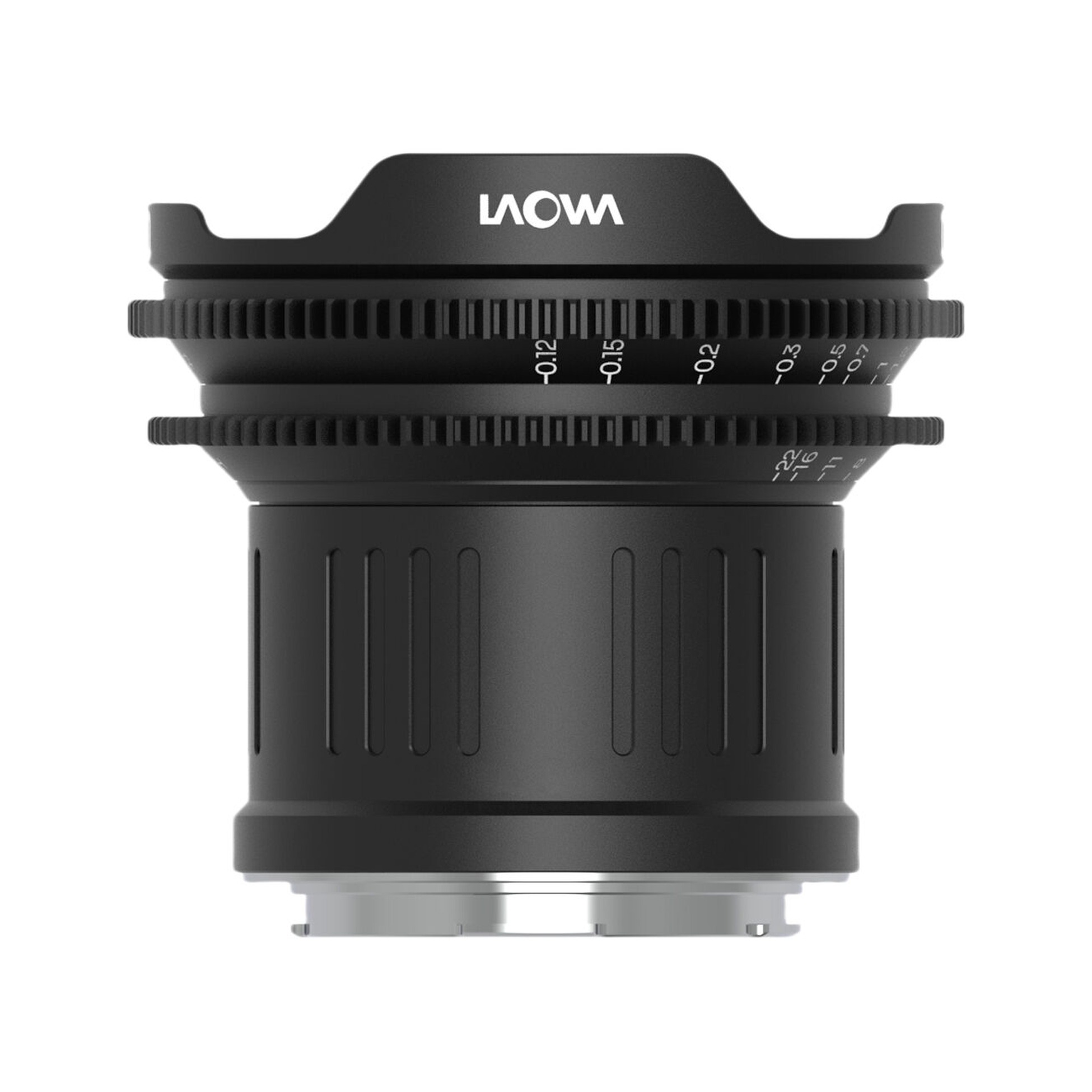

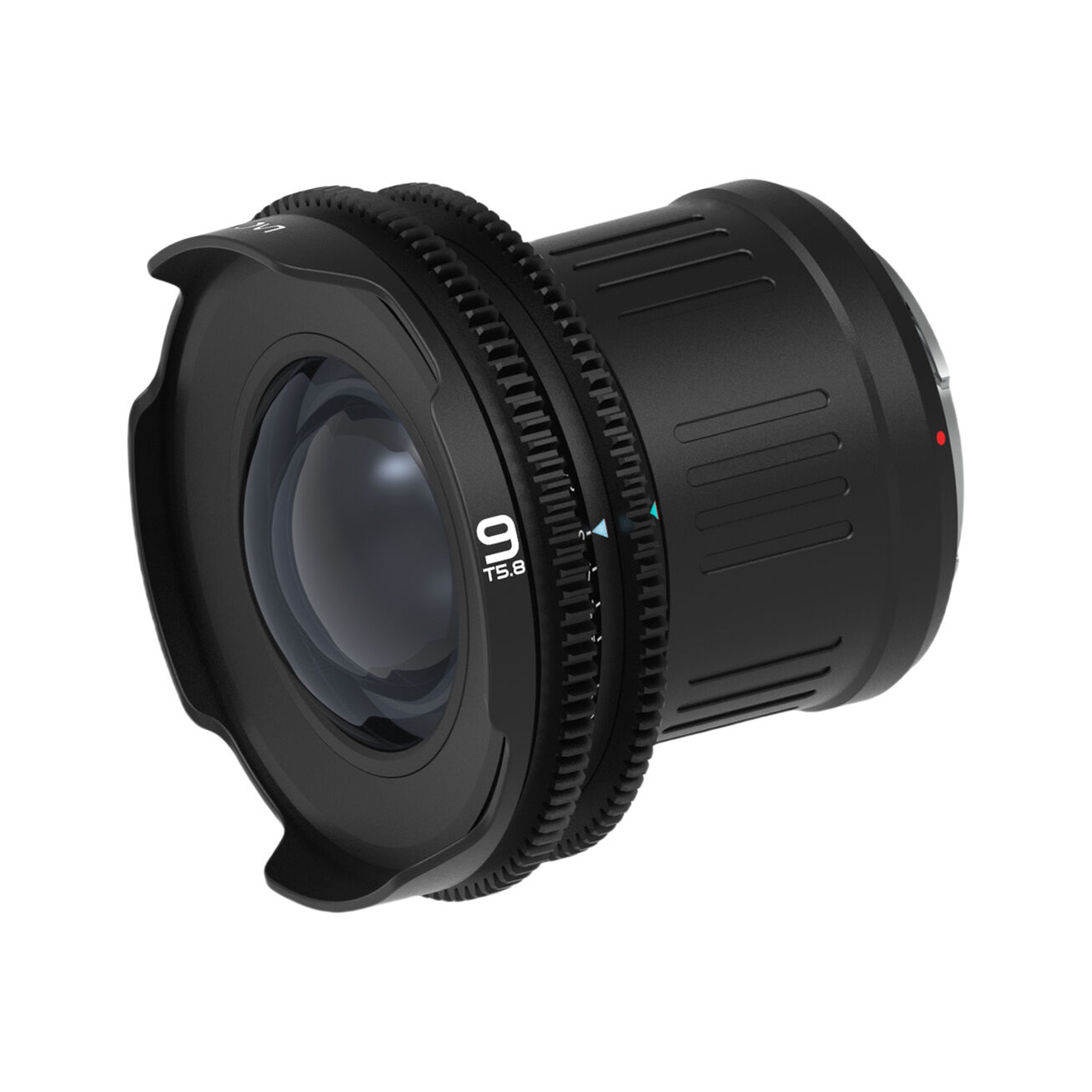

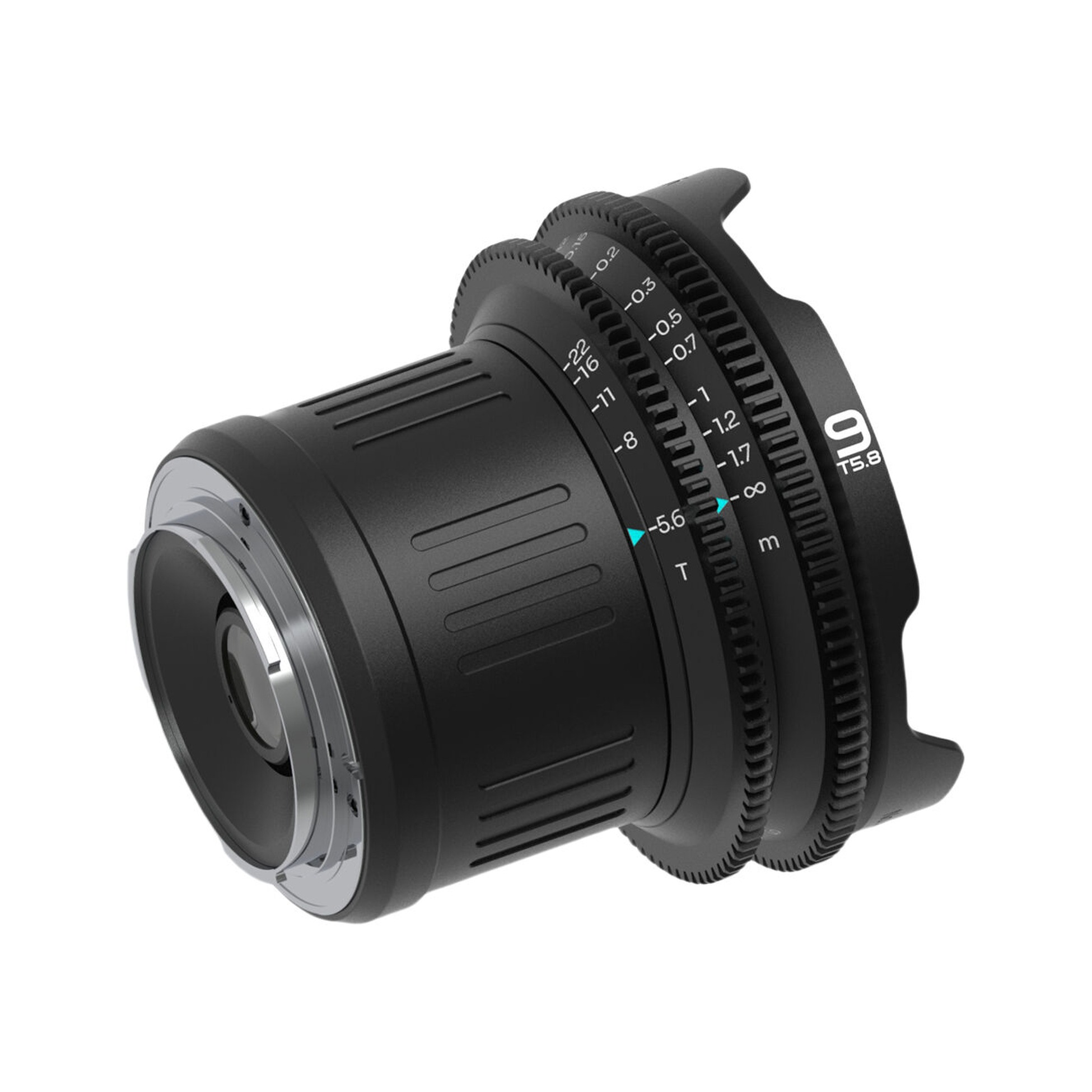

Laowa 9mm T5.8 VV Cine Lens – Nikon Z (VE958MLNZ)
€1,554.00 excl. BTW
- Full Frame & VV | T5.8 to T22 Aperture
- Zero-D Design, Low-Distortion Optics
- 134.8° FOV, 14-Blade Aperture
- 14 Elements in 10 Groups
- 4.7" Minimum Focusing Distance
- 80mm Front Diameter
External warehouse, approximately 10 days or more
The Laowa 9mm T5.8 VV Cine Lens for Nikon Z is designed for wide-angle shooting with a gimbal, drone, or handheld camera rig. It supports Nikon Z mount cameras with full-frame or VistaVision image sensors, including the RED RAPTOR 8K VV and ARRI ALEXA LF Open Gate cine cameras.
The lens features a 14-element, 10-group optical design, a 14-blade aperture, and an aperture range of T5.8 to T22.
Features
- Nikon Z lens mount
- Zero-D design with low-distortion optics
- 14-blade aperture
- Metric and imperial focus scales
- 80 mm front diameter
Included
- Venus Optics Laowa 9mm T5.8 Zero-D VV Cine Lens (Nikon Z)
- Shim Set
- Hard Case
Specifications
| Focal Length | 9mm |
|---|---|
| Maximum Aperture | T5.8 |
| Lens Mount | Nikon Z |
| Lens Format Coverage | VistaVision (43.2 mm Image Circle) |
| Filter Thread | No |
| Image Stabilization | No |
| Electronic Communication | No |
| Minimum Aperture | T22 |
| Angle of View | Full Frame Horizontal: 134.8° |
| Focus Scales | Metric, Imperial |
| Optical Design | 14 Elements in 10 Groups |
| Minimum Focus Distance | 4.7" / 12 cm |
| Magnification | 1:4.7 Macro Reproduction Ratio 0.21x Magnification |
| Aperture/Iris Blades | 14 |
| Lens Mounting | No |
| Gear Rotation | Focus: 90° Iris: 43.6° |
| Diameter | Front: 3.1" / 80 mm |
| Length | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 5.63 lb / 2.55 kg |
| Box Dimensions (LxWxH) | 12.8 x 10.4 x 8.2" / 32.51 x 26.42 x 20.83 cm |
