Laowa 9mm T5.8 VV Cine Lens - ARRI PL (VE958MLPL)

Laowa 9mm T5.8 VV Cine Lens – ARRI PL (VE958MLPL)

€1,554.00 excl. BTW

Full Frame & VV | T5.8 to T22 Aperture
Zero-D Design, Low-Distortion Optics
134.8° FOV, 14-Blade Aperture
14 Elements in 10 Groups
4.7" Minimum Focusing Distance
80mm Front Diameter

External warehouse, approximately 10 days or more

EAN: 6940486709780 SKU: 29LAOCIN0958PL Categories: PL Mount Cine Lens, Wide Angle Cine Lens

Description

Overview

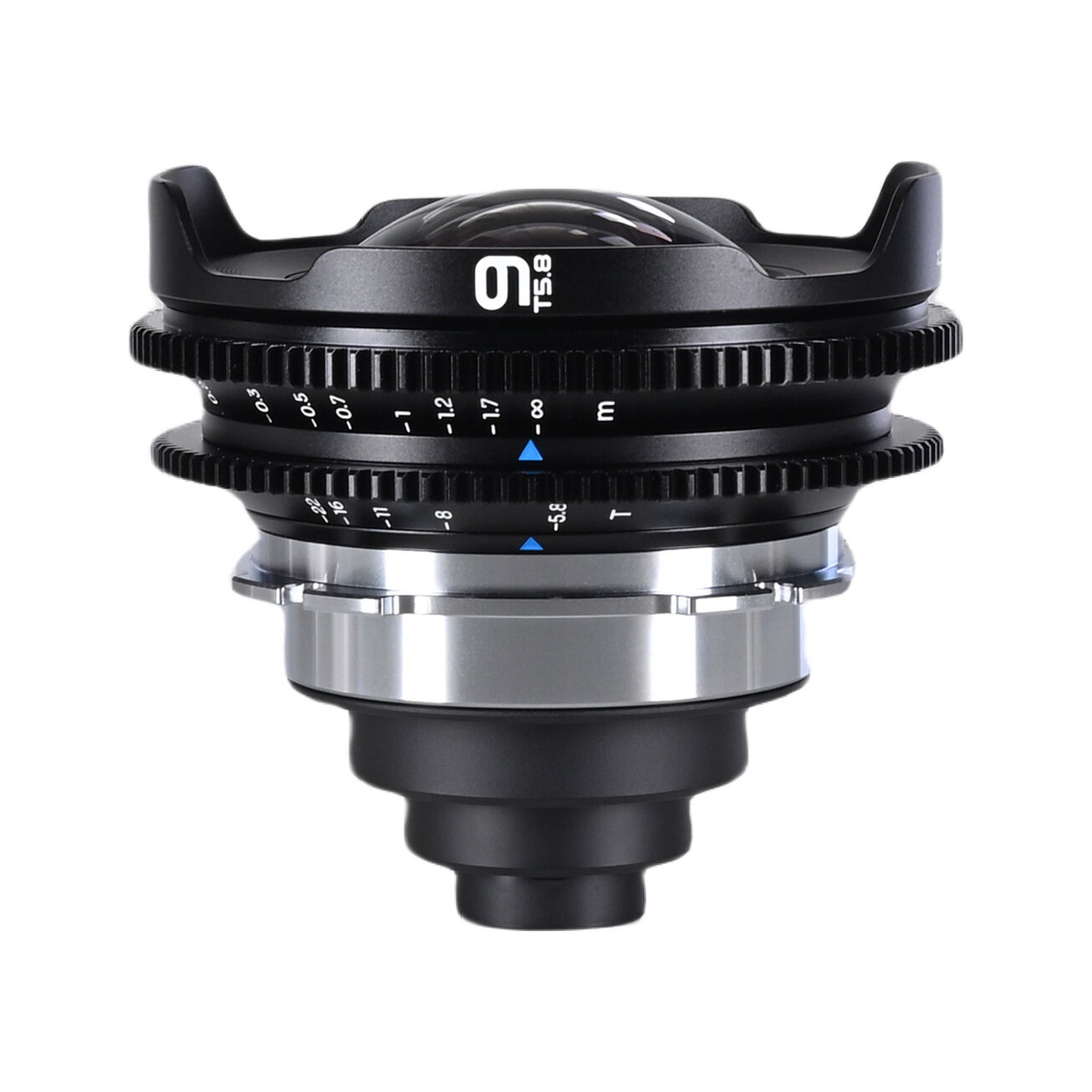

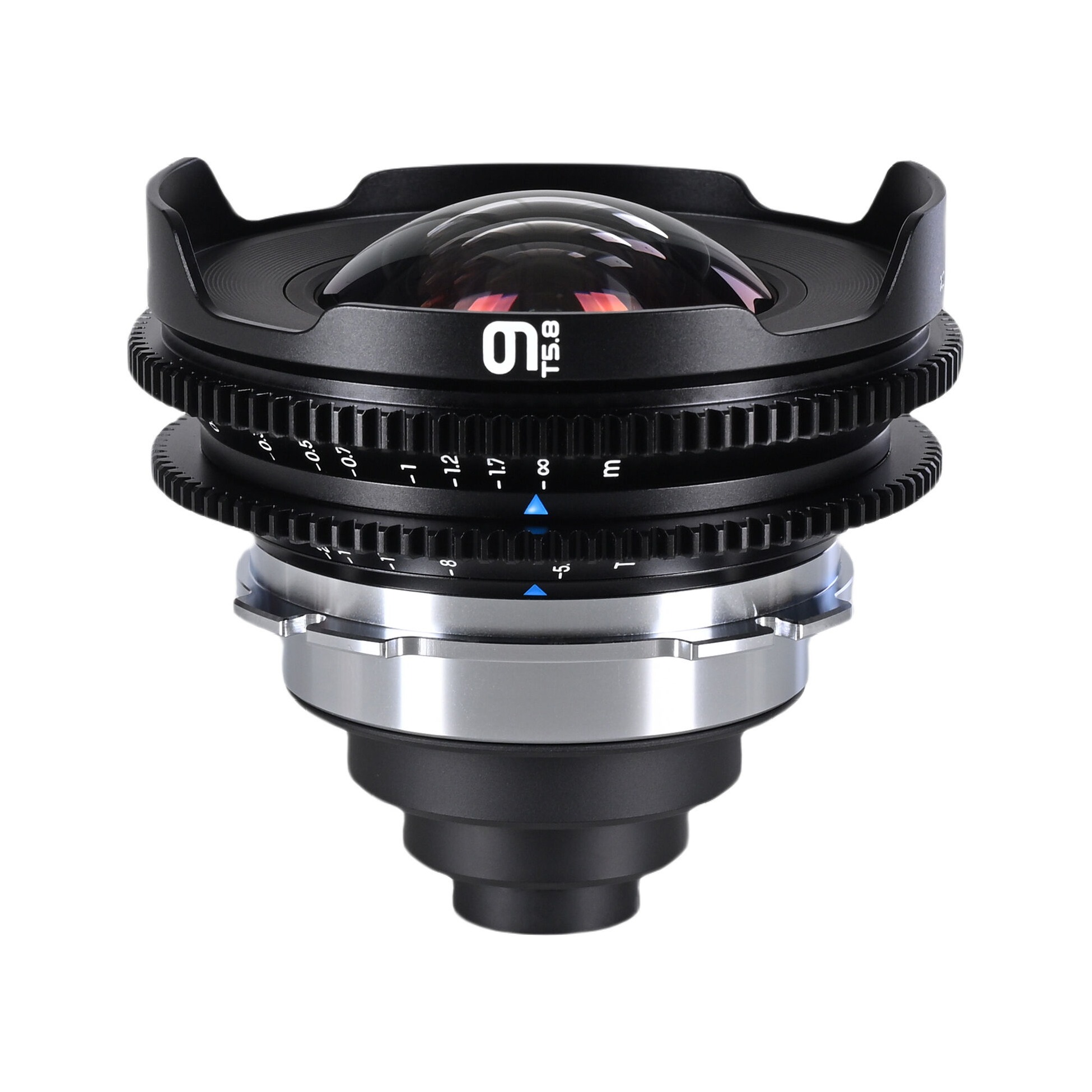

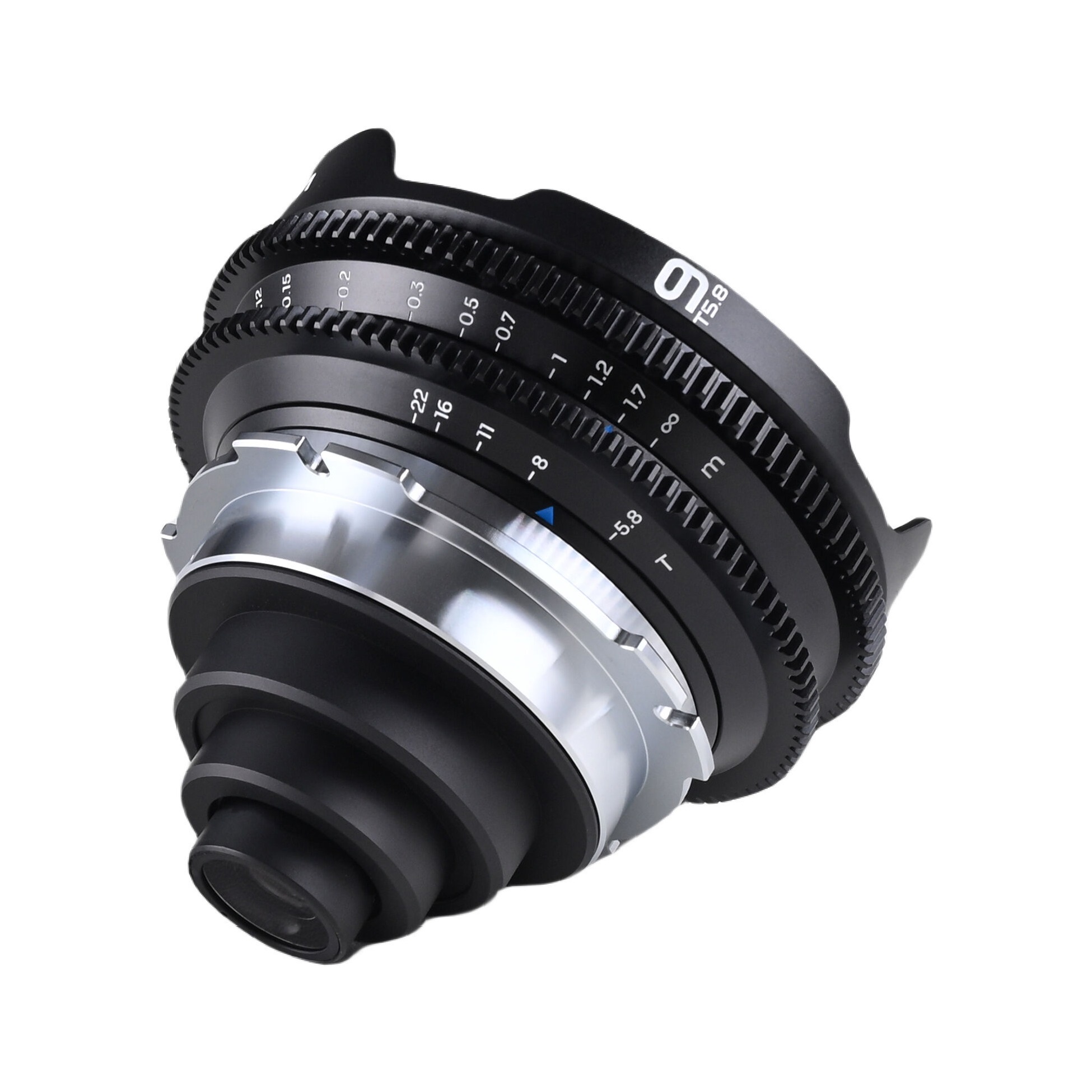

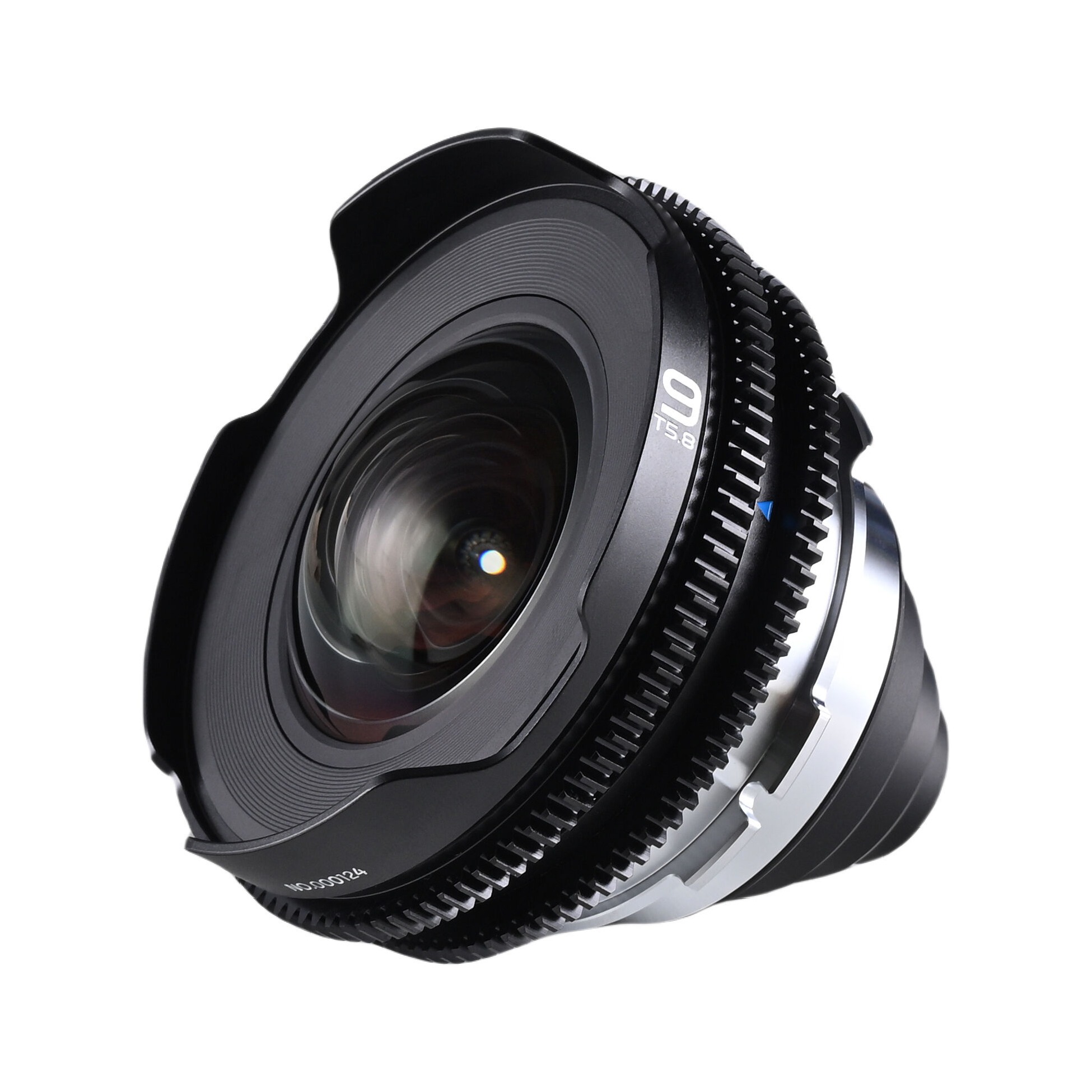

The Laowa 9mm T5.8 Zero-D VV Cine Lens features an ARRI PL mount and supports full-frame and VistaVision image sensors. Its 134.8° full-frame horizontal angle of view is suited to wide-angle cinematography.

The lens has a T5.8 to T22 aperture range, a 14-blade aperture, and an optical design comprising 14 elements in 10 groups. It can be used with gimbal, drone, and handheld camera rigs.

Features

ARRI PL lens mount
VistaVision coverage with a 43.2 mm image circle
14-blade aperture
Metric and imperial focus scales
80 mm front diameter

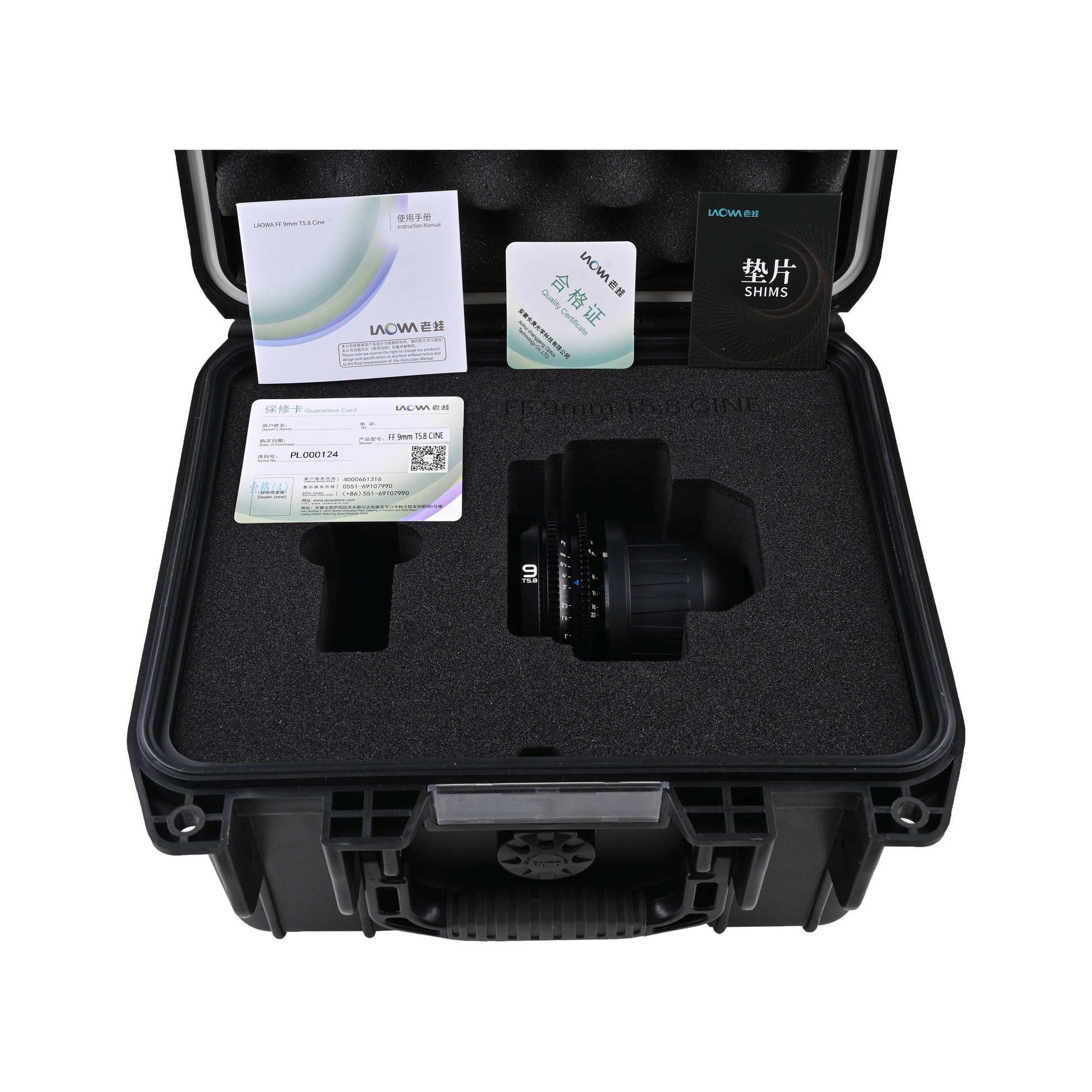

Included

Venus Optics Laowa 9mm T5.8 Zero-D VV Cine Lens (ARRI PL)
Shim Set
Hard Case

Specifications

Focal Length	9mm
Maximum Aperture	T5.8
Lens Mount	ARRI PL
Lens Format Coverage	VistaVision (43.2 mm Image Circle)
Filter Thread	No
Image Stabilization	No
Electronic Communication	No
Minimum Aperture	T22
Angle of View	Full Frame Horizontal: 134.8°
Focus Scales	Metric, Imperial
Optical Design	14 Elements in 10 Groups
Minimum Focus Distance	4.7" / 12 cm
Magnification	1:4.7 Macro Reproduction Ratio 0.21x Magnification
Aperture/Iris Blades	14
Lens Mounting	No
Gear Rotation	Focus: 90° Iris: 43.6°
Diameter	Front: 3.1" / 80 mm
Length	Not Specified by Manufacturer
Weight	Not Specified by Manufacturer
Package Weight	5.59 lb / 2.54 kg
Box Dimensions (LxWxH)	12.5 x 10.4 x 9" / 31.75 x 26.42 x 22.86 cm
