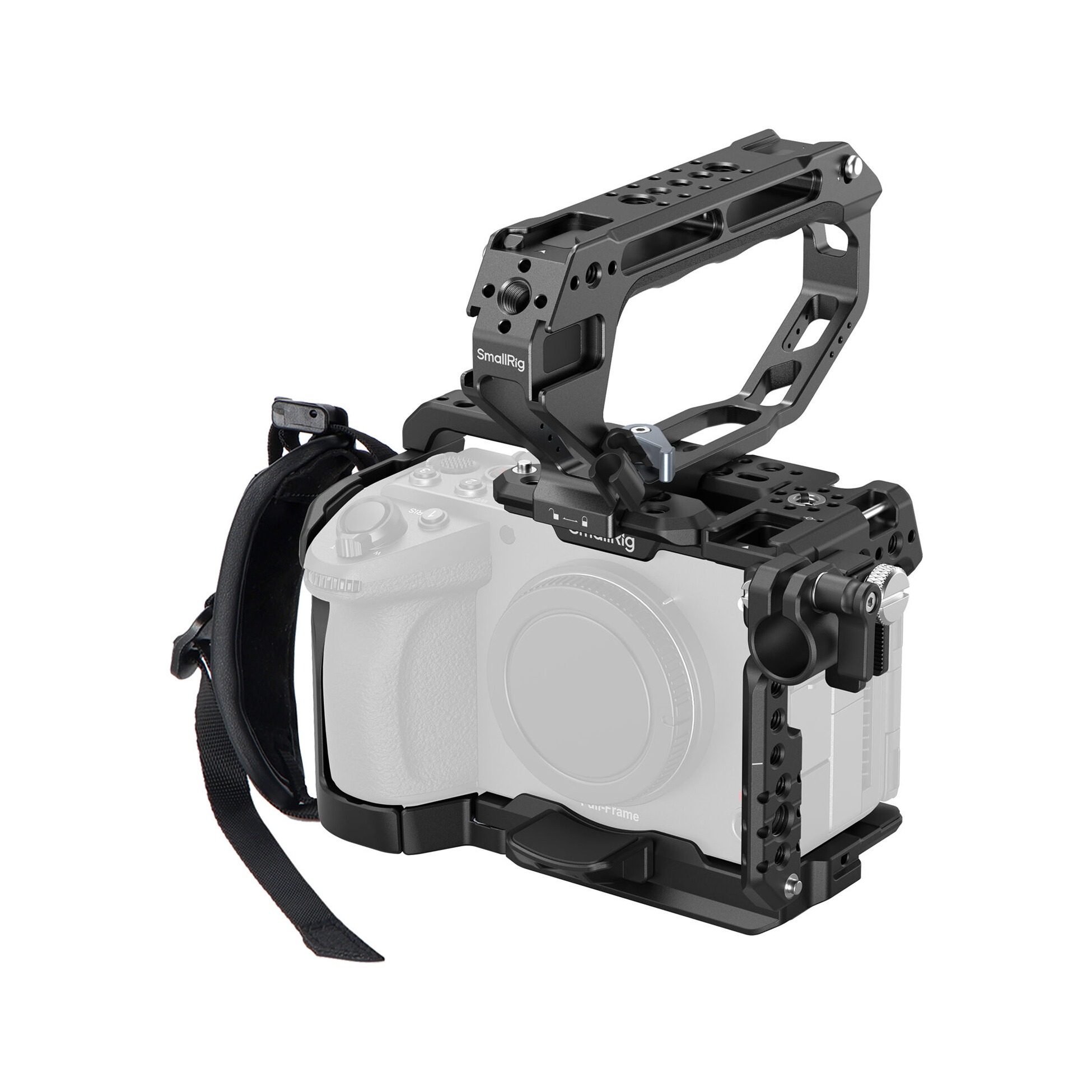

SmallRig 6775 Hawklock Cage Kit for Sony FX5 (Advanced Edition)

Overview

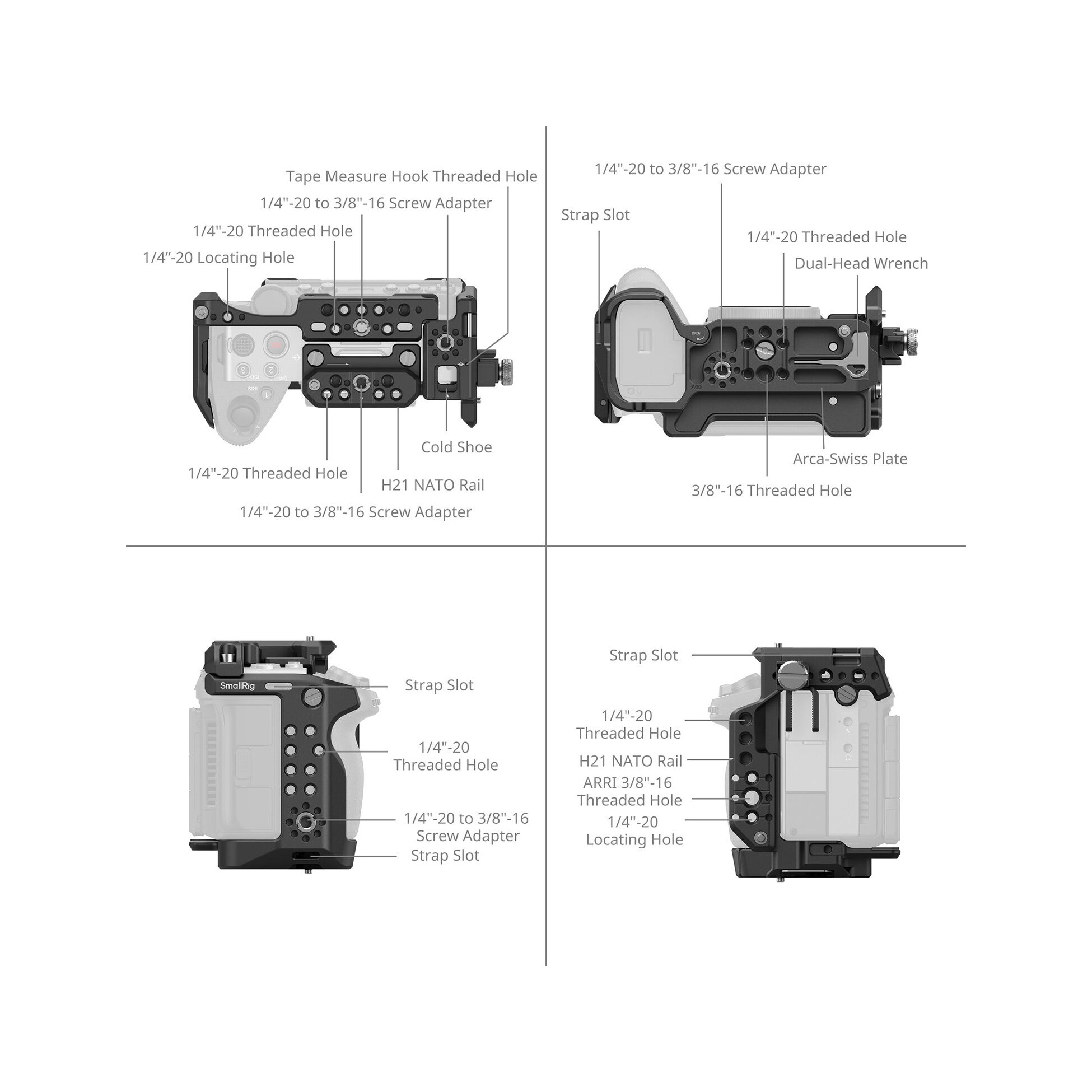

The SmallRig 6775 Hawklock Cage Kit for Sony FX5 (Advanced Edition) provides protection for the Sony FX5 camera while adding accessory mounting options. It features an integrated NATO rail, detachable Arca-type plates, dual anti-drop design, a top handle, and a 15mm rod mount.

The kit also includes a dedicated HDMI cable clamp, ergonomic hand strap, adapter support, M4 screws, and an Allen key.

Features

• Provides protection for the Sony FX5 camera.
• Supports stable, anti-twist mounting.

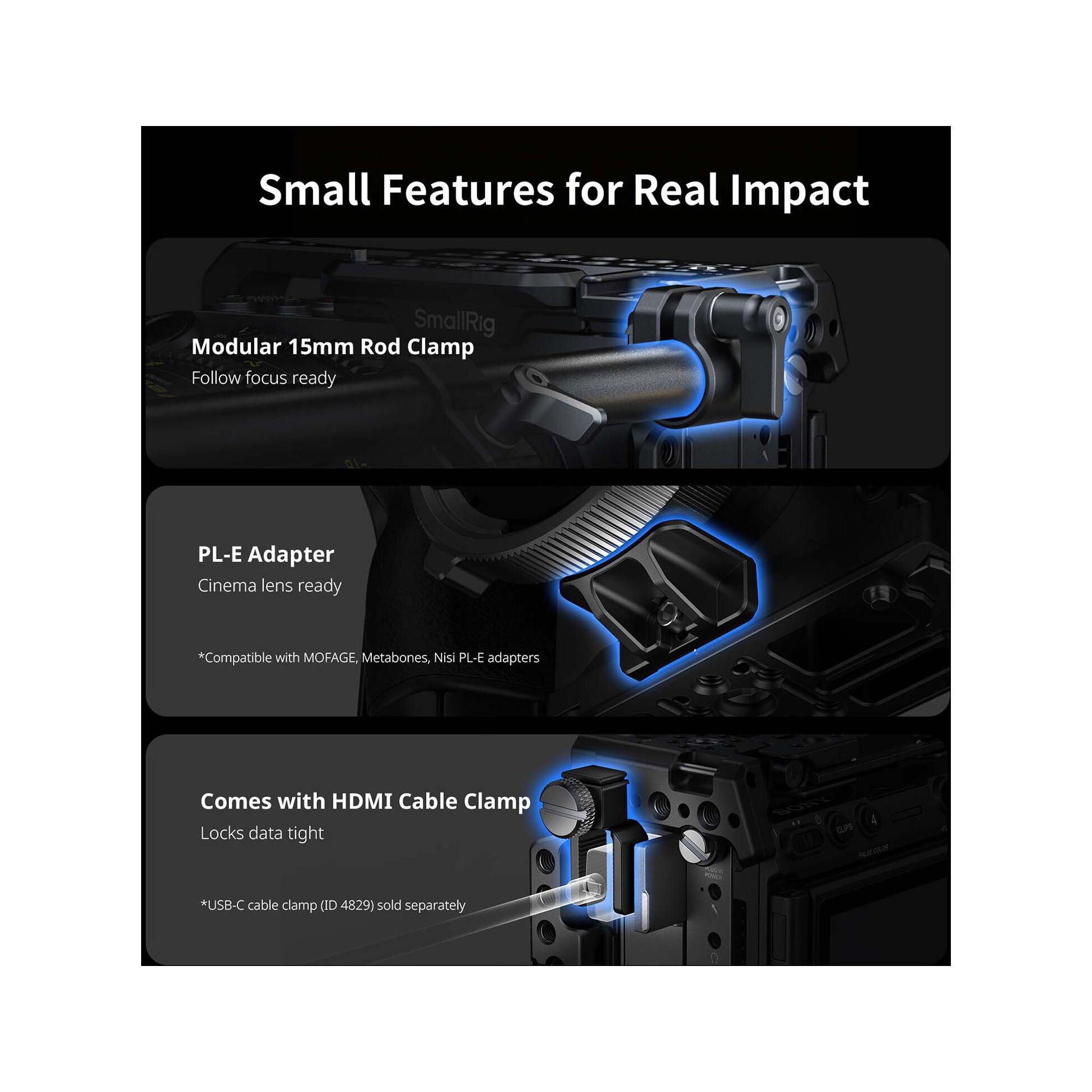

• Includes a top handle and 15mm rod mount.
• The dedicated HDMI cable clamp helps prevent accidental cable disconnection.
• Includes an ergonomic hand strap for transport.

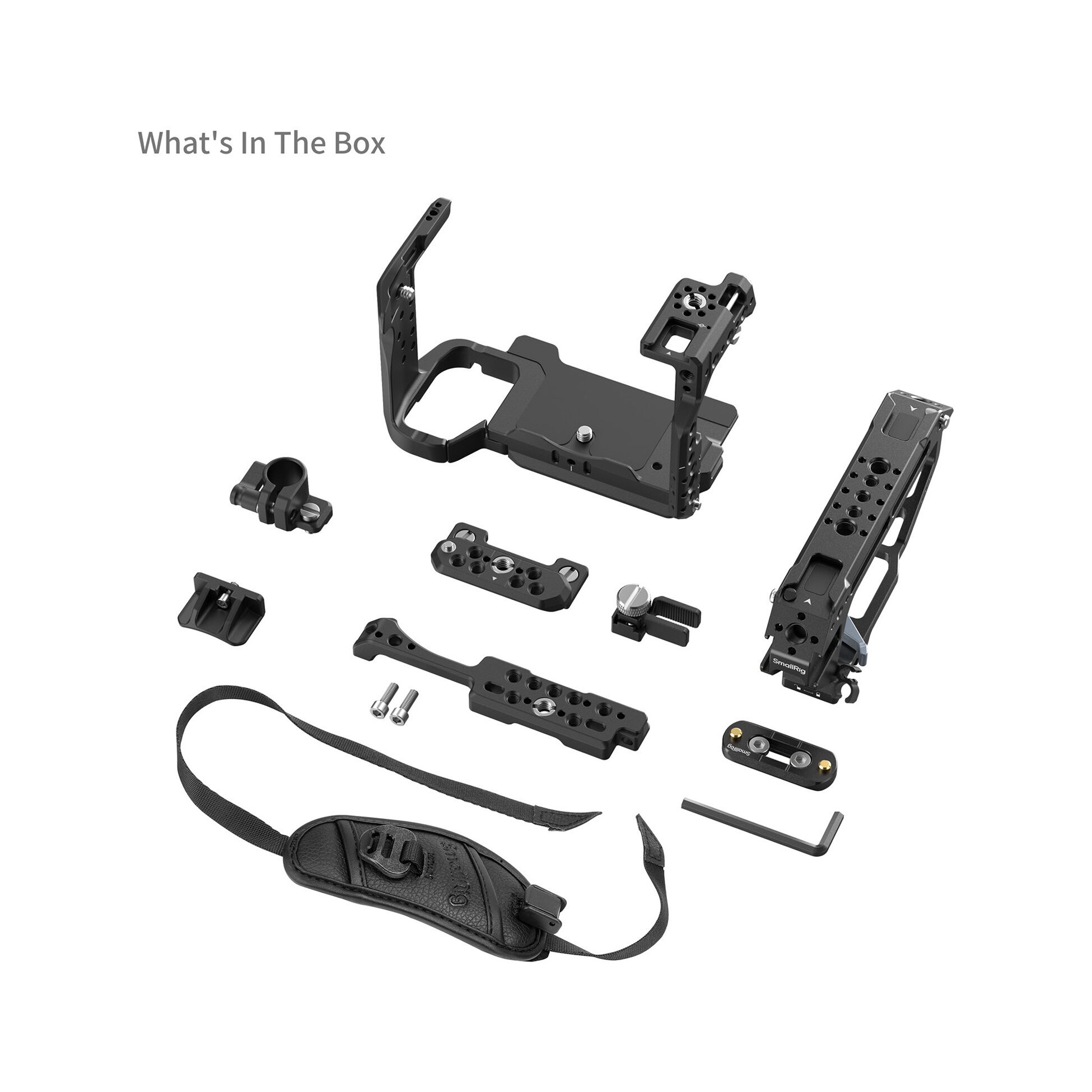

Included

• SmallRig HawkLock Cage Kit for Sony FX5 (Advanced Edition)
• 2 x Quick Release Top Plate
• Top Handle
• 15mm Rod Mount
• NATO Rail
• Hand Strap
• Adapter Support
• HDMI Cable Clamp
• 2 x M4 Screw
• Allen Key

Specifications

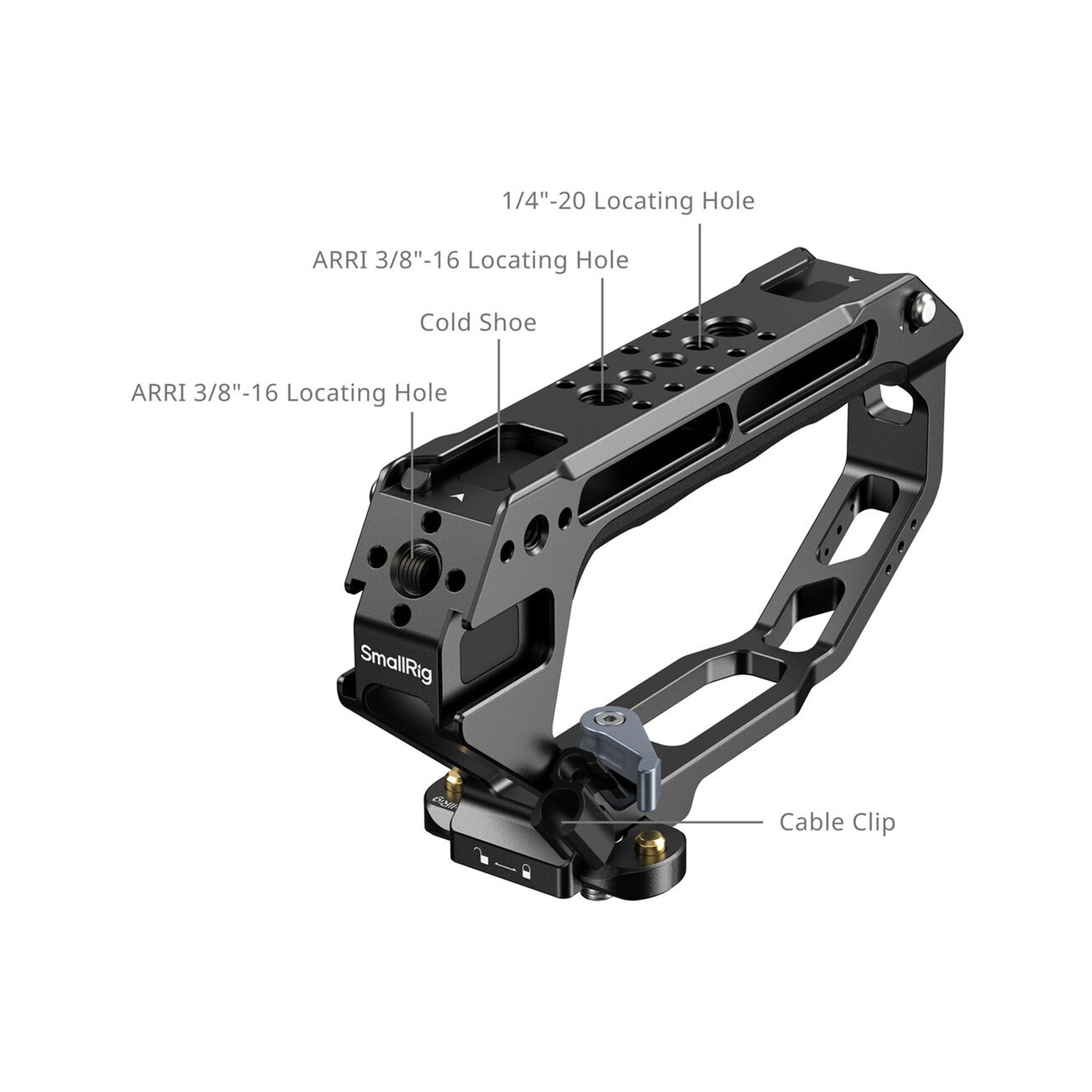

Top Handle

Item Type	1x Handgrip for Top Side
Rotation	No
Main Attachment	1x ARRI Anti-Twist 3/8"-16 Male Screw (Built-In)
Additional Mounting	Multiple 1/4"-20 Female Thread on Handgrip Shaft Multiple 3/8"-16 Female Thread on Handgrip Shaft Multiple ARRI Anti-Twist 3/8"-16 Female Thread on Handgrip Shaft 5x Cold Shoe (Built-In)
Load Capacity	22 lb / 10 kg
Materials	Aluminum, Silicone, Steel
Dimensions	5.3 x 2.9 x 1" / 135 x 74.3 x 24.5 mm
Weight	4.4 oz / 124 g
Package Weight	0.38 lb / 0.17 kg
Box Dimensions (LxWxH)	6.2 x 3.8 x 1.8" / 15.75 x 9.65 x 4.57 cm

15mm Rod Mount

Support Type	Baseplate
Grip Type	No
Rod Standard	15 mm LWS / 60 mm Spacing
Included Rods	2x 7.9" / 20 cm 15 mm Carbon Fiber Rod
Battery Plate Type	No
Accessory Mounting	No
Camera Mounting	1/4"-20 Female Thread, 3/8"-16 Female Thread
Tripod Mounting	1/4"-20 Female Thread, 3/8"-16 Female Thread
Rod Ports	2x 15 mm Rod Port
Shoe Mounting	No
Rosettes	No
Cable Clamp	No
Materials	Aluminum Alloy, Carbon Fiber, Silicone
Dimensions	7.9 x 4.2 x 1" / 200 x 106 x 26 mm
Weight	7.7 oz / 217.7 g
Package Weight	0.645 lb / 0.29 kg
Box Dimensions (LxWxH)	8.6 x 4.9 x 1.7" / 21.84 x 12.45 x 4.32 cm

NATO Rail

Length	1.6" / 4 cm
Package Weight	0.1 lb / 0.05 kg
Box Dimensions (LxWxH)	5.3 x 4.3 x 0.6" / 13.46 x 10.92 x 1.52 cm

Hand Strap

Item Type	1x Camera Hand Grip
Color	Black
Adjustable Strap	Yes
Attachment Method	To Camera: Lug Strap (Unspecified Width)
Materials	EVA/Microfiber/Nylon/Polyurethane
Weight	0.8 oz / 22 g
Package Weight	0.125 lb / 0.06 kg
Box Dimensions (LxWxH)	5.1 x 4 x 1.3" / 12.95 x 10.16 x 3.30 cm

HDMI Cable Clamp

Compatibility	SmallRig Cage for Canon EOS R5 C/R5/R6 2982B / "Black Mamba" Camera Cage for Canon EOS R5 / R6 / R5 C 3233 / Camera Cage for Canon EOS R5 / R6 / R5 C with BG-R10 Battery Grip 3464 / Cage for Canon EOS R6 Mark II 4159 Canon R5 C Camera / R5 Camera / R6 Camera / R6 Mark II Camera
Mounting	2x 1/4"-20 Screws 2x M3 Screws
Material of Construction	Aluminum
Dimensions	2.5 x 1.1 x 0.9" / 64 x 28 x 24 mm
Weight	0.7 oz / 20 g
Package Weight	0.085 lb / 0.04 kg
Box Dimensions (LxWxH)	3.05 x 2.65 x 1.65" / 7.75 x 6.73 x 4.19 cm
