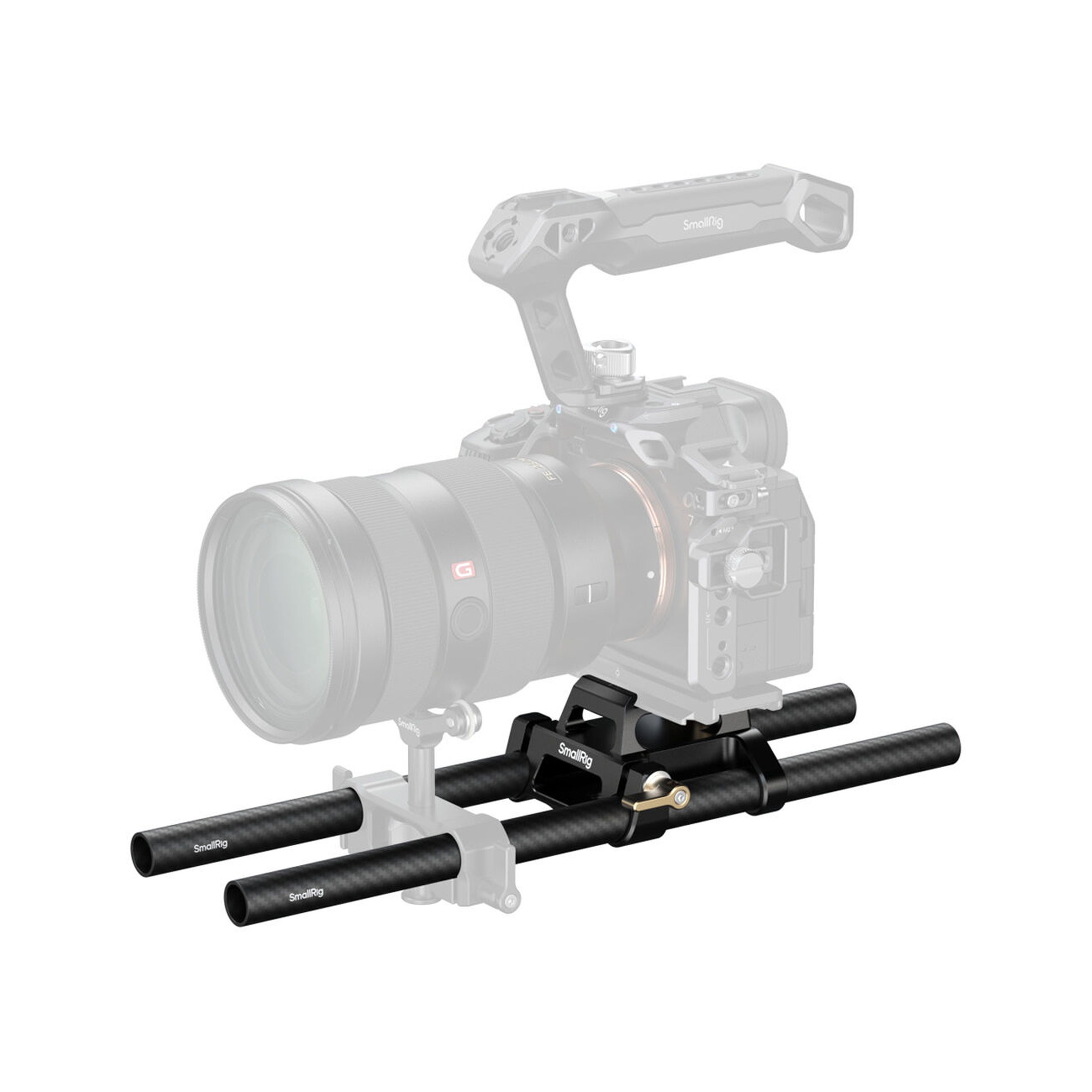

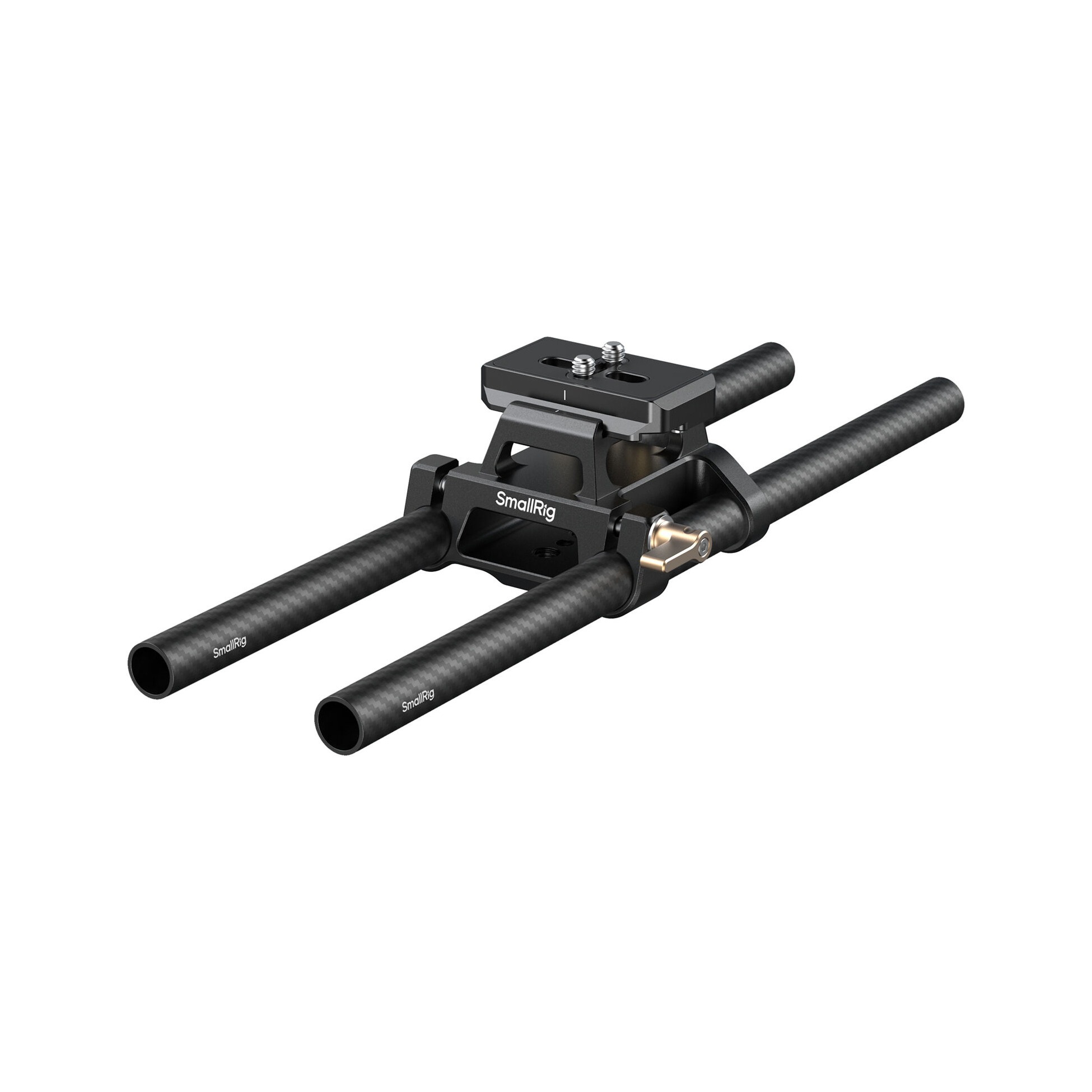

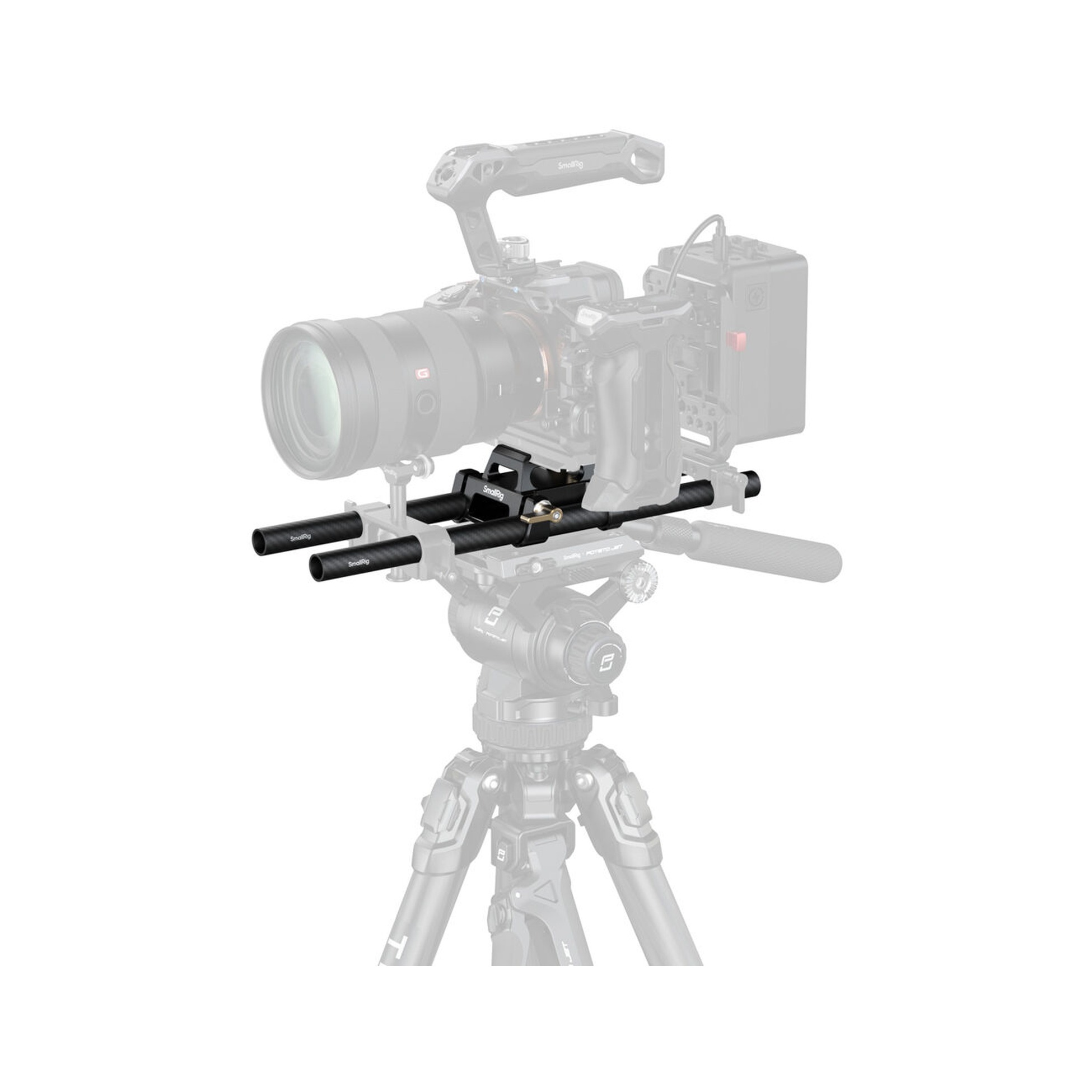

The SmallRig 6761 Arca-Type Mount Plate with 15mm Dual Rod Clamp is designed for rod-mounted camera configurations. It combines an Arca-type quick release system with a dual 15mm rod clamp and includes two 11.8" carbon fiber rods.

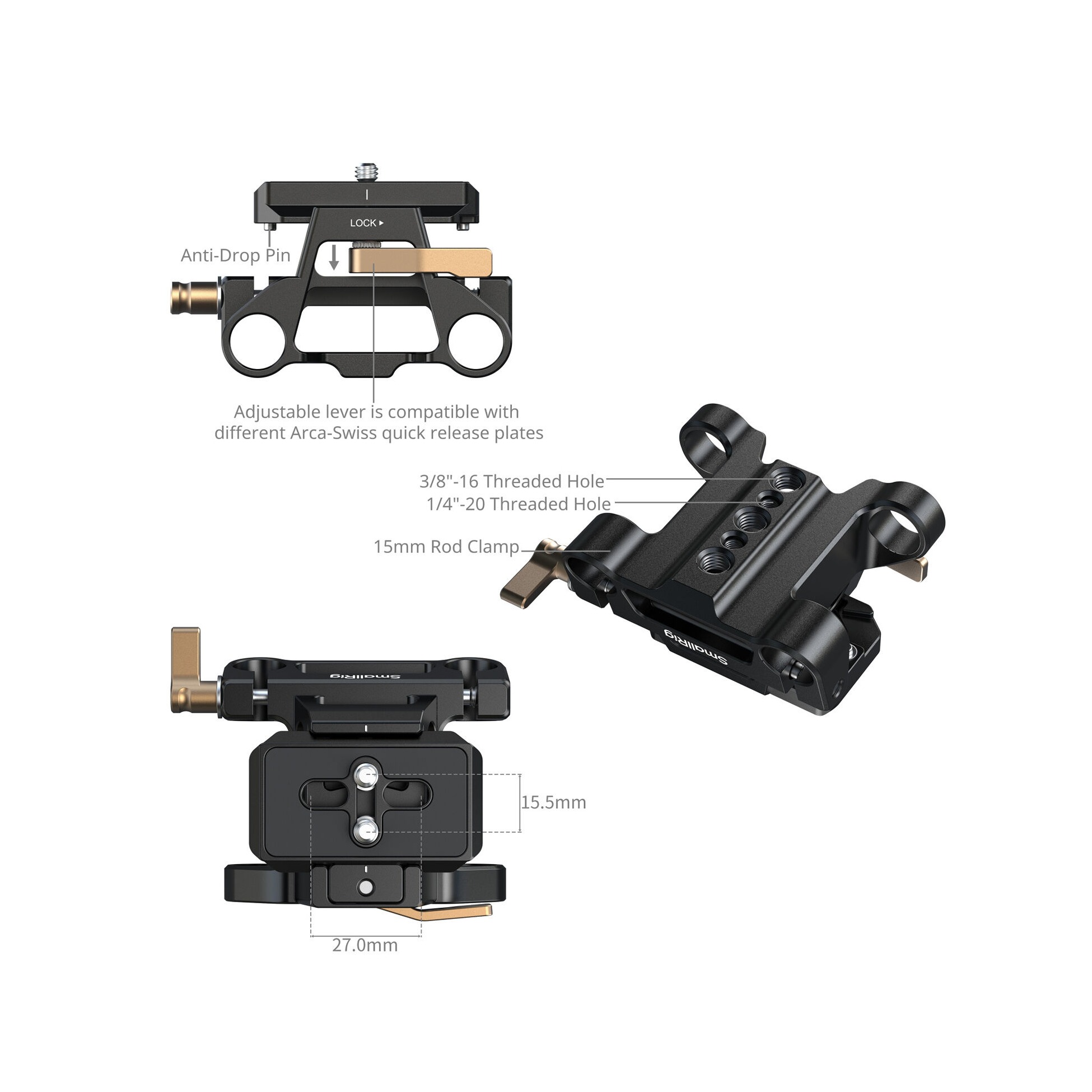

The plate features 1/4"-20 and 3/8"-16 threads for mounting accessories, while the flip-lever locking mechanism allows adjustment.
Features
- Supports 15 mm LWS rods with 60 mm spacing.
- Provides two 15 mm rod ports.
- Features an Arca-type plate with a 1/4"-20 male screw for camera mounting.
- Includes 2x 1/4"-20 female threads and 3x 3/8"-16 female threads for accessories.
- Constructed from aluminum alloy, carbon fiber, and silicone.

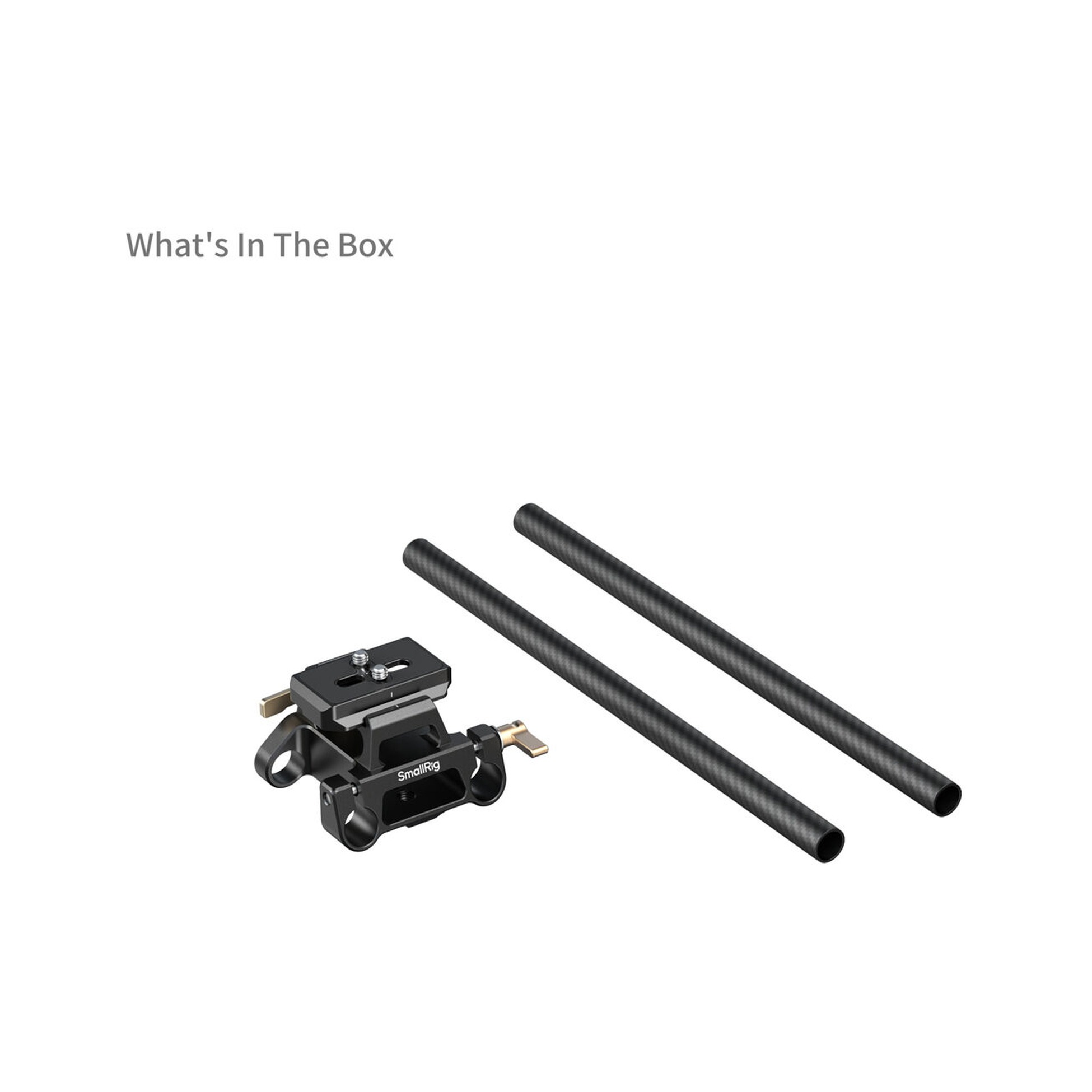

Included
- SmallRig Arca-Type Mount Plate with 15mm Dual Rod Clamp
- 2 x 15mm Carbon Fiber Rod (11.8")
Specifications
| Support Type | Baseplate, Rod Support System |
|---|---|
| Grip Type | No |
| Rod Standard | 15 mm LWS / 60 mm Spacing |
| Included Rods | 2x 11.8" / 30 cm 15 mm Carbon Fiber Rod |
| Battery Plate Type | No |
| Accessory Mounting | 2x 1/4"-20 Female Thread 3x 3/8"-16 Female Thread |
| Camera Mounting | Arca-Type Plate with 1/4"-20 Male Screw |
| Tripod Mounting | No |
| Rod Ports | 2x 15 mm Rod Port |
| Shoe Mounting | No |
| Rosettes | No |
| Materials | Aluminum Alloy, Carbon Fiber, Silicone |

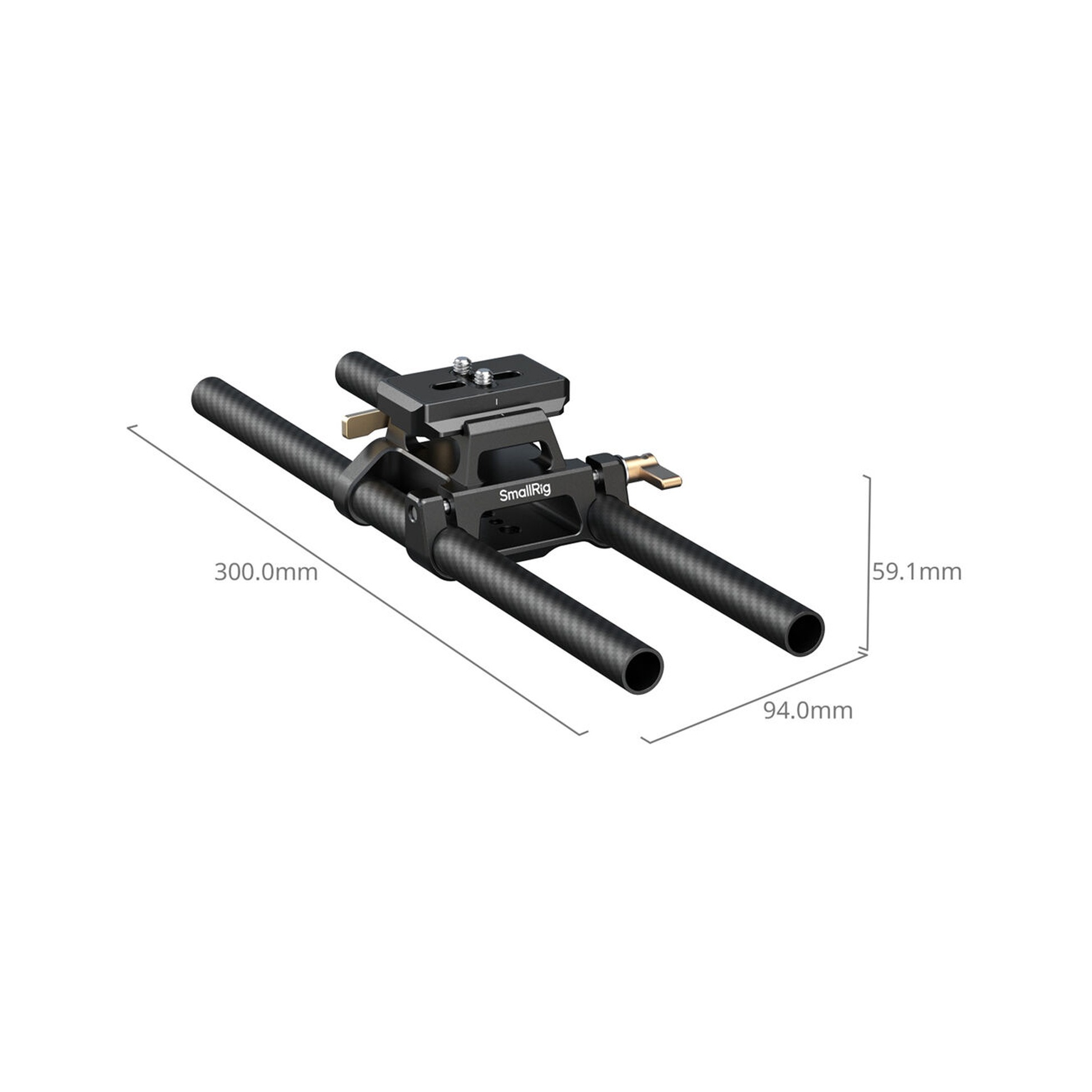

| Dimensions | 11.8 x 3.7 x 2.3" / 300 x 94 x 59.1 mm |
| Weight | 9.7 oz / 274 g |
| Package Weight | 0.77 lb / 0.35 kg |
| Box Dimensions (LxWxH) | 12.75 x 4.6 x 2.6" / 32.38 x 11.68 x 6.60 cm |
| Weight | 0.35 kg |
|---|---|
| Dimensions | 32.38 × 11.68 × 6.6 cm |
