Overview

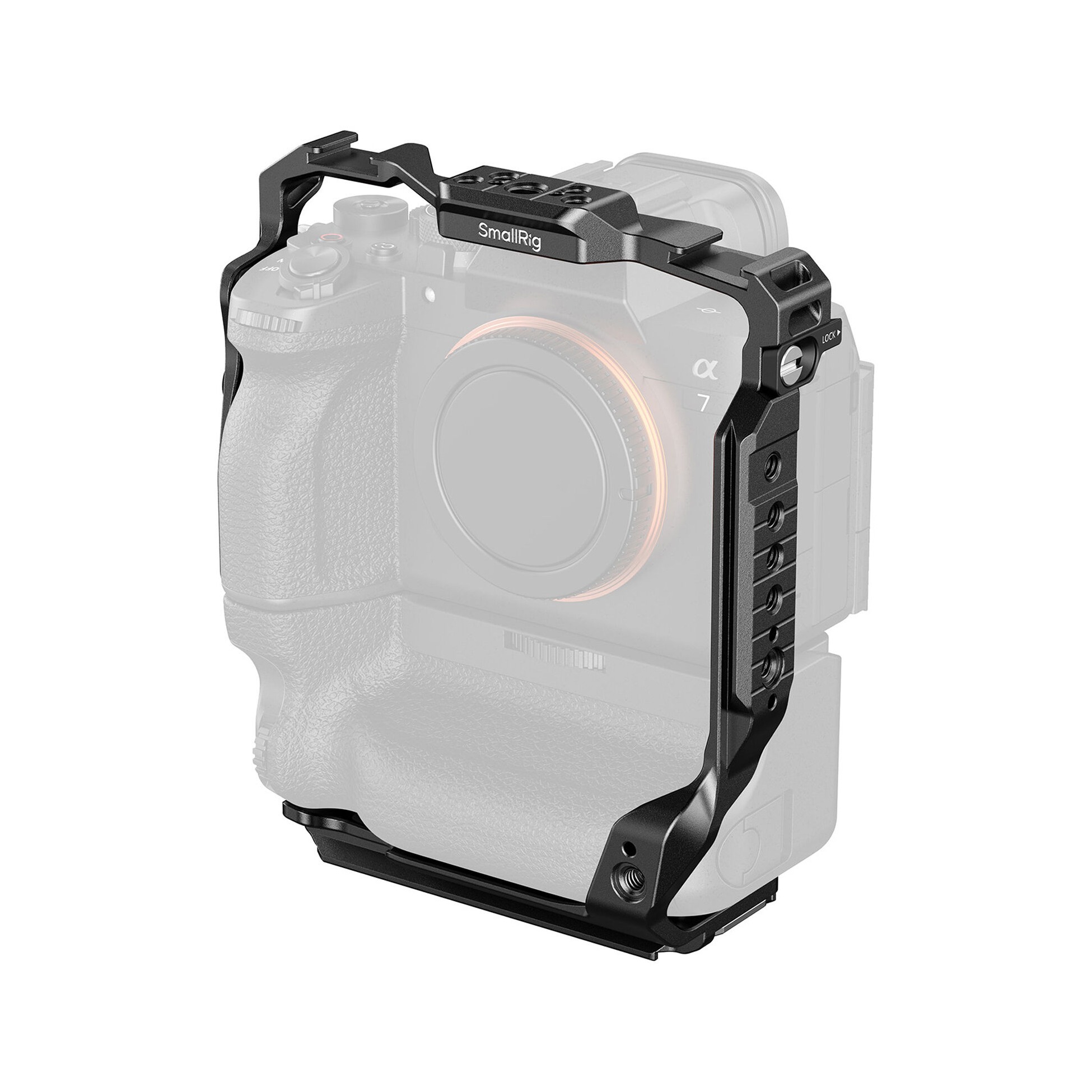

The SmallRig 6114 Cage is designed for select Sony Alpha cameras used with the VG-C4EM vertical grip. It provides camera protection and mounting points for accessories used in photo and video production.

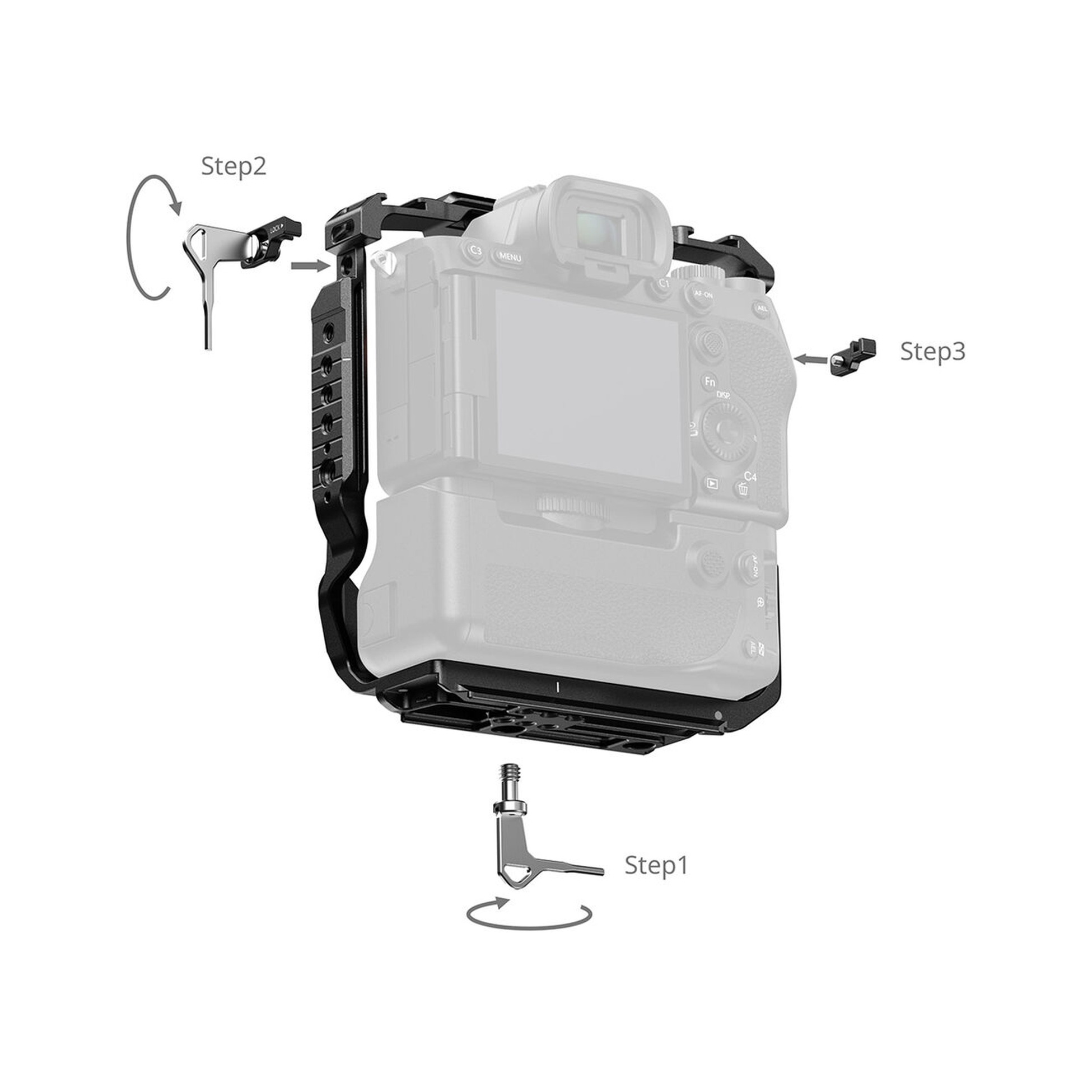

The cage maintains access to camera controls, media slots, the battery compartment, and ports. It features three-point camera locking, silicone anti-scratch pads, an integrated Arca-type plate, dual cold shoe mounts, ARRI locating accessory holes, 15mm rod clamp support, and DJI RS gimbal compatibility.
Features
- Supports Sony a1, Sony a7 IV, Sony a7 V, Sony a7R IV, Sony a7R V, and Sony a7S III cameras.
- Provides two cold shoe mounts and ARRI locating accessory holes.
- Includes top and side NATO rails for accessory mounting.
- Supports DJI RS gimbals and 15mm rod clamp mounting.
- Camera access is maintained for controls, media slots, the battery compartment, and ports.
- Includes a magnetic double-ended wrench.
Included
- SmallRig Cage for Select Sony Alpha Cameras with VG-C4EM Vertical Grip
- Magnetic Wrench
Specifications
| Support Type | Cage |
|---|---|
| Grip Type | No |
| Camera Compatibility | Sony a1 , Sony a7 IV , Sony a7 V , Sony a7R IV , Sony a7R V , Sony a7S III |
| Battery Plate Type | No |

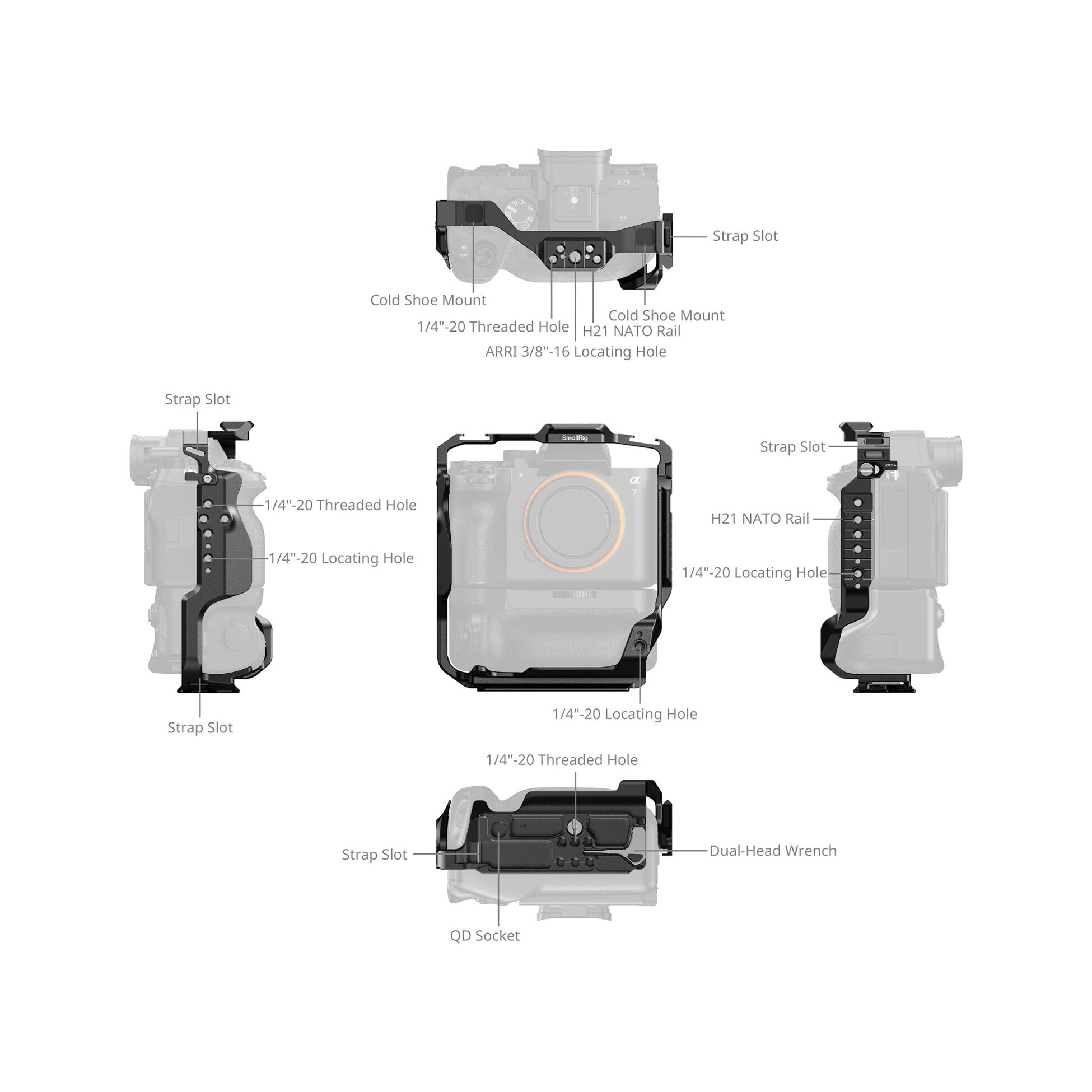

| Accessory Mounting | Front 1x Anti-Twist 1/4"-20 Female Thread Sides 2x Anti-Twist 1/4"-20 Female Thread 8x 1/4"-20 Female Thread Top 1x Anti-Twist 3/8"-16 Female Thread 4x 1/4"-20 Female Thread |
| Camera Mounting | 1/4"-20 Male Screw |
| Tripod Mounting | 1/4"-20 Female Thread, Built-In Arca-Type Plate |
| Shoe Mounting | Top 2x Cold Shoe |
| Rosettes | No |
| Rail Mounting | Top 1x NATO Rail Side 1x NATO Rail |
| Cable Clamp | No |
| Materials | Aluminum Alloy, Silicone, Stainless Steel |

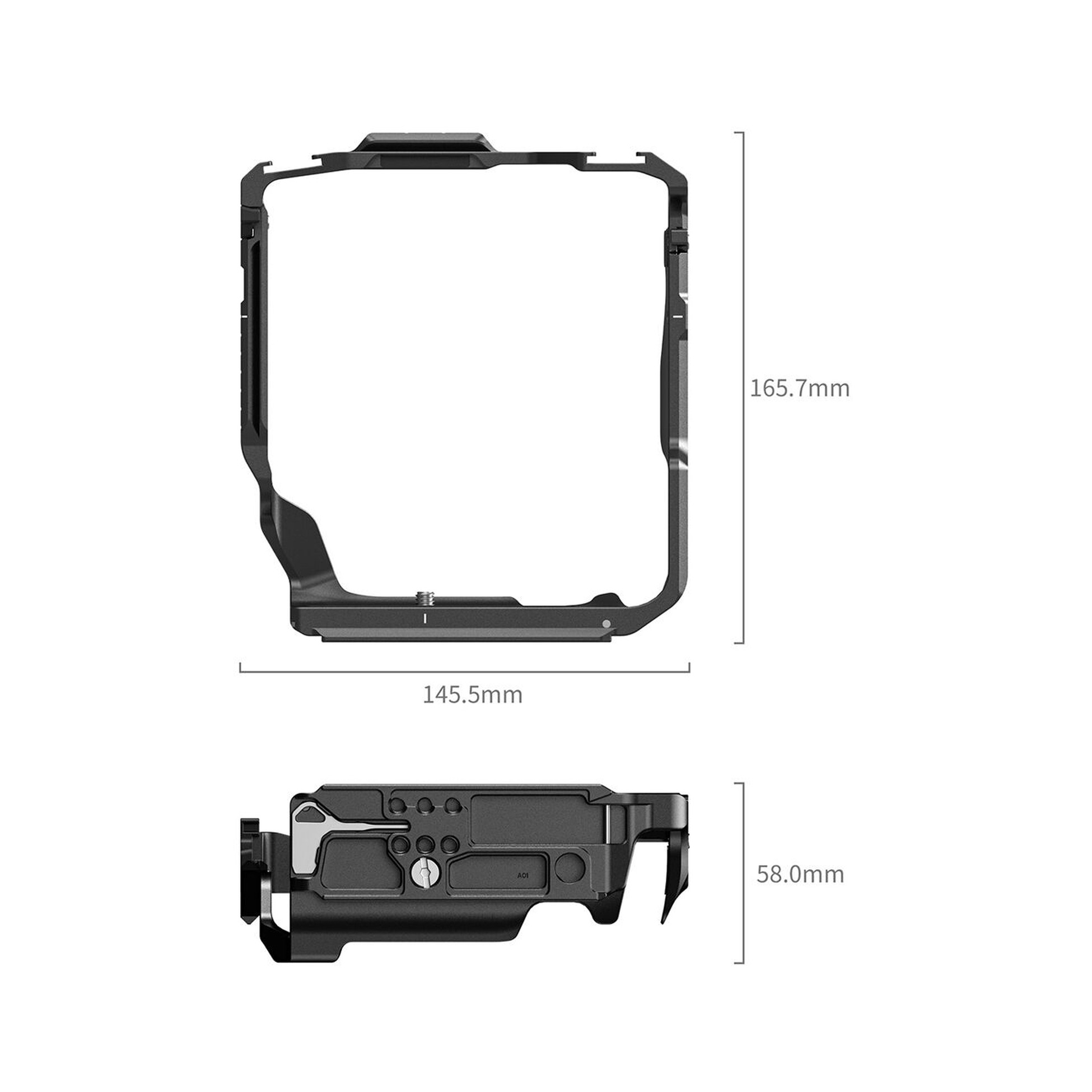

| Dimensions | 6.5 x 5.7 x 2.3" / 165.7 x 145.5 x 58 mm |
| Weight | 7.1 oz / 200 g |
| Package Weight | 0.76 lb / 0.34 kg |
| Box Dimensions (LxWxH) | 7.2 x 7.2 x 3.4" / 18.29 x 18.29 x 8.64 cm |
