MID49 ARRI Dovetail (24″, for OConnor 2060, 2560, 2575, 120EX)

Overview

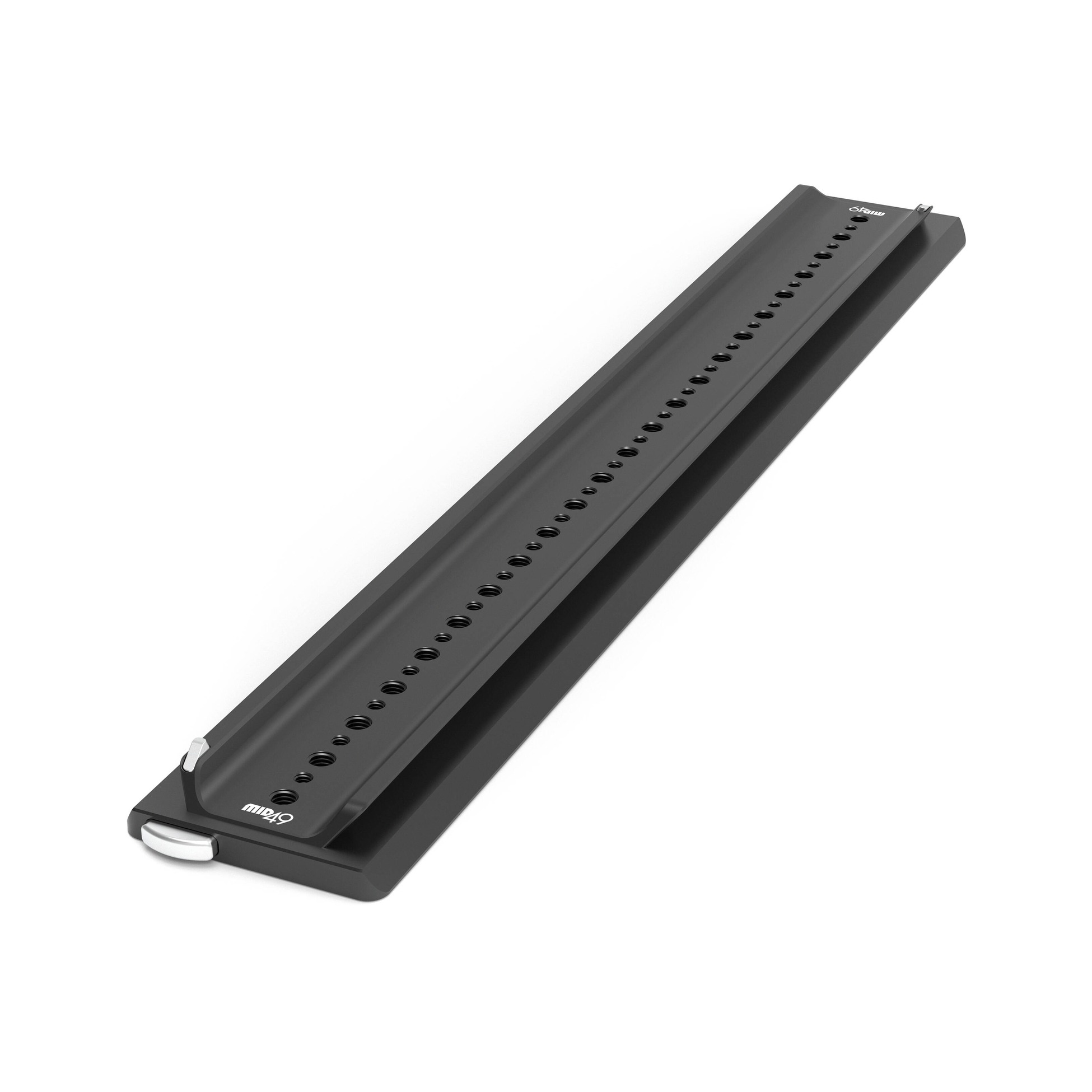

The MID49 ARRI Dovetail for OConnor Fluid Heads is a 24" plate with an ARRI-standard dovetail on top and an OConnor-standard dovetail on the bottom. It is compatible with OConnor 2060, 2560, 2575, and 120EX fluid heads.

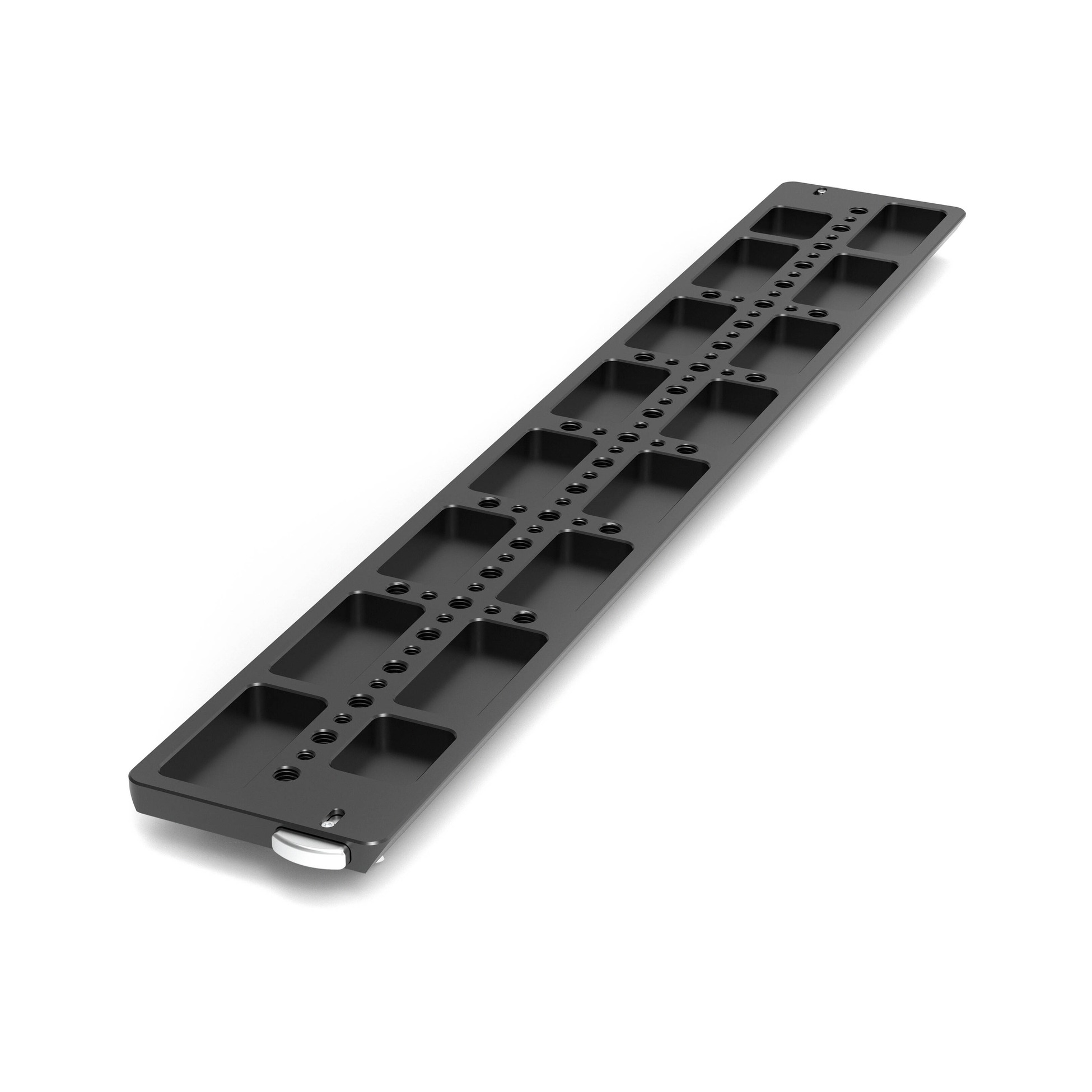

Center 1/4"-20 and 3/8"-16 threaded holes allow attachment to tripod plates, including Sachtler, Manfrotto, Ronford Baker, and Miller models. Safety stoppers and push-button release mechanisms are fitted at both ends.

Features

• Adapts an ARRI dovetail connection to an OConnor dovetail connection.
• Designed for current and legacy OConnor fluid heads, including the 2060, 2560, 2575, and 120EX.
• The center threaded holes support 1/4"-20 and 3/8"-16 tripod attachments.
• Compatible tripod plate examples include Sachtler, Manfrotto, Ronford Baker, and Miller.
• The top safety stoppers accommodate ARRI dovetail clamps, including thinner Baseline 15mm and Wooden Camera baseplates.

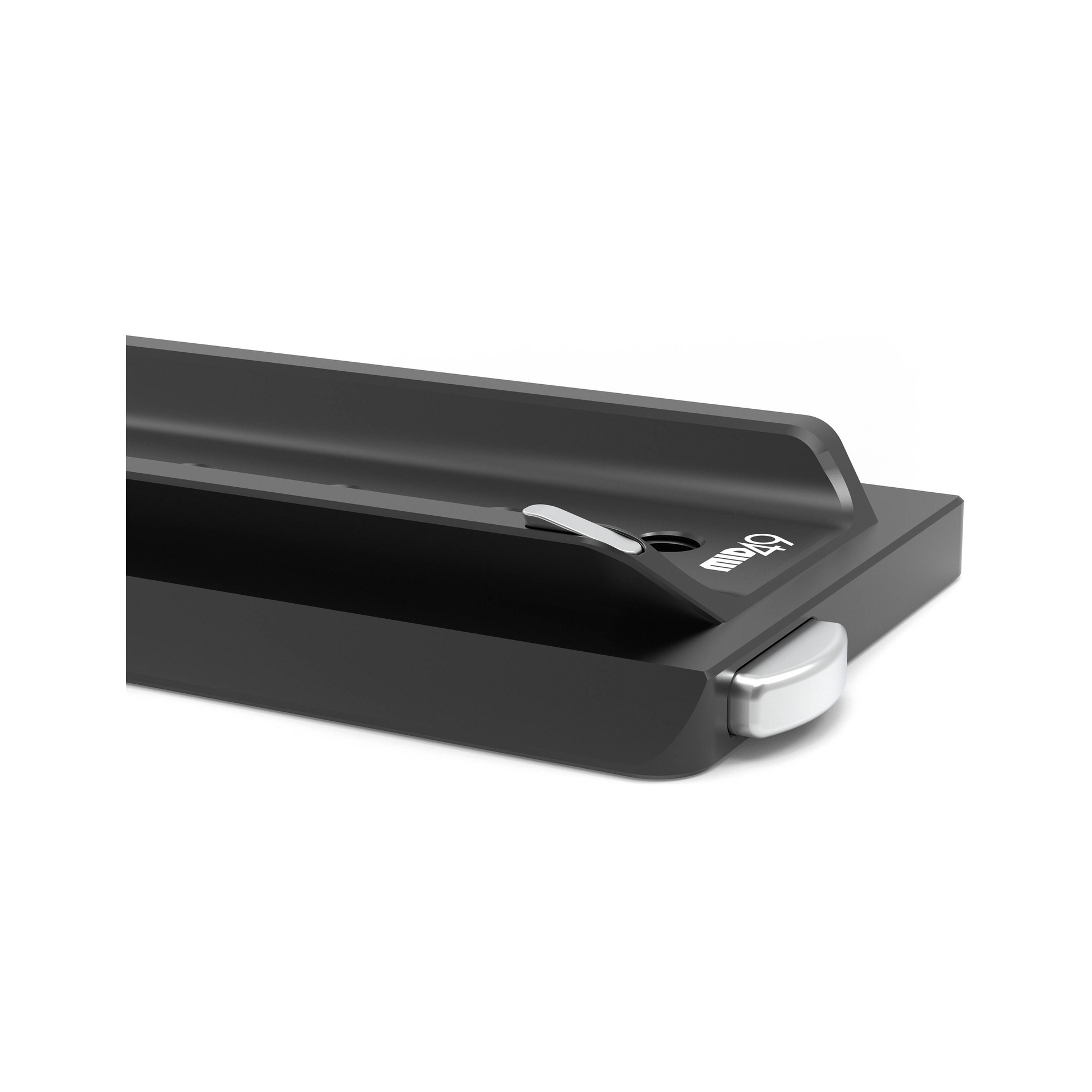

• Push-button release mechanisms and safety stoppers are positioned at both ends.

Included

• MID49 ARRI Dovetail for OConnor Fluid Heads (24")
