Overview

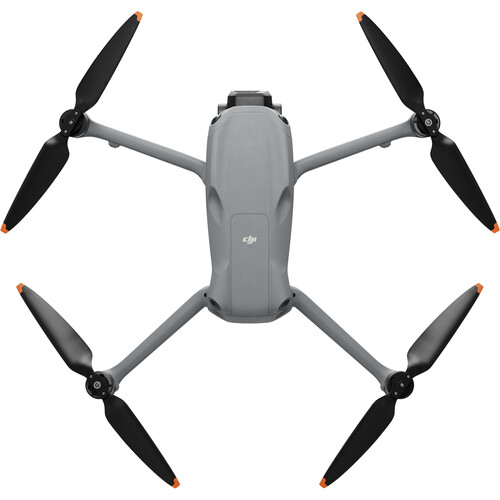

Introducing a new milestone in their camera drone lineup, the DJI Air 3S Drone is equipped with a forward-facing LiDAR sensor that significantly enhances its performance in low-light conditions. This sensor is integrated with the omnidirectional APAS obstacle avoidance system and the return-to-home feature, allowing the Air 3S to fly, capture footage, and return safely even at night. Like the Air 3, the Air 3S features a dual-camera setup—comprising a 24mm wide-angle lens and a 70mm telephoto lens—perfect for shooting landscapes and portraits. For added versatility, both cameras offer 2.7K vertical shooting and various creative modes, including subject tracking, automated flight paths, and complex maneuvers. With its compact, foldable design, the Air 3S is ready for virtually any adventure.

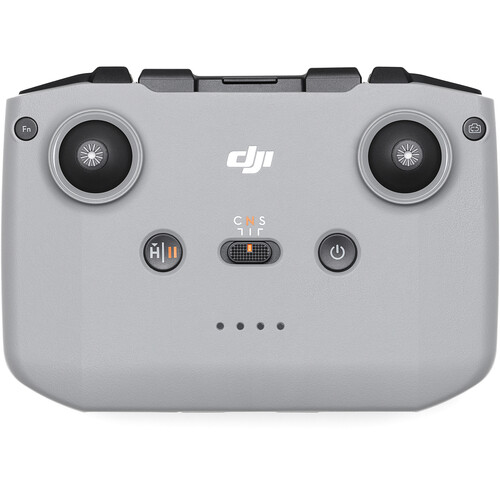

RC-N3 Remote Controller
The standard DJI Air 3S package comes complete with the RC-N3 remote controller and an intelligent flight battery, so you’re ready to take flight without needing any extra purchases. Simply add a compatible smartphone to the RC-N3, which supports devices up to 7.1″ in length, 3.4″ in width, and 0.4″ in thickness. With a full charge, you can fly for up to 3.5 hours, or if you choose to charge your phone using the RC-N3’s built-in battery, you can extend flight time to 1.5 hours.
Storage and Off-State QuickTransfer
Equipped with 42GB of built-in storage, the Air 3S allows you to capture a significant amount of footage without the need for an additional memory card. However, if you require more space, it supports optional V30/U3/A2 microSD cards with capacities of up to 512GB. For easy data transfer, the Off-State QuickTransfer feature lets you retrieve files even when the drone is powered off. Just connect a USB cable to the Air 3S, and you can quickly copy your footage to a mobile device or PC.
Features
- 10-bit O4 video transmission at 1080p60 up to 12.4 miles away
- 3x optical zoom on 70mm telephoto camera
- Up to 45 minutes of flight time
- Up to 47 mph flight speed
- Wind resistance of up to 27 mph
In The Box
DJI Air 3S Drone
RC-N3 Remote Controller
USB-C RC Cable
Lightning RC Cable
Intelligent Flight Battery
Extra Pair of Low-Noise Propellers
Gimbal Protector
USB-C PD Cable
Specifications
| Maximum Horizontal Speed |
47.0Â mph / 21Â m/s
|
| Maximum Ascent Speed |
22.4Â mph / 10Â m/s
|
| Maximum Descent Speed |
22.4Â mph / 10Â m/s
|
| Maximum Wind Resistance |
26.8Â mph / 12Â m/s
|
| Maximum Take-Off Altitude |
3.7Â Miles / 6000Â m
|
| Maximum Flight Time |
45 Minutes
|
| Maximum Hover Time |
41 Minutes
|
| Maximum Tilt Angle |
36°
|
| Hovering Accuracy |
Vision Positioning
Vertical: ±0.3′ / 0.1 m Horizontal: ±1.0′ / 0.3 m GNSS Vertical: ±1.6′ / 0.5 m Horizontal: ±1.6′ / 0.5 m |
| Rotor Configuration |
Quadcopter
|
| Remote ID |
No
|
| Built-In Video Light |
No
|
| Aircraft I/O |
1x USB-C Input/Output (Data, Power)
|
| Operating Conditions |
14 to 104°F / -10 to 40°C
|
| Number of Cameras |
2
|
| Camera System |
Wide
50 MP, 1″-Type CMOS Sensor with 24mm-Equivalent, f/1.8 Lens (84° FoV) Medium Telephoto 48 MP, 1/1.3″-Type CMOS Sensor with 70mm-Equivalent, f/2.8 Lens (35° FoV) |
| Digital Zoom |
Wide
1 to 2.9x Medium Telephoto 3 to 9x |
| Minimum Focus Distance |
Wide
1.6′ / 0.5Â m Medium Telephoto 9.8′ / 3Â m |
| ISO Sensitivity Range |
Wide
Photo: 100 to 6400 Video: 100 to 12,800 Medium Telephoto Photo: 100 to 6400 Video: 100 to 12,800 |
| Shutter Speed |
Wide
1/8000 to 2 Seconds (Photo) Medium Telephoto 1/16000 to 2 Seconds (Photo) |
| Maximum Video Resolution |
Wide
Up to UHD 4K at 120 fps / 1080p at 240 fps Medium Telephoto Up to UHD 4K at 120 fps / 1080p at 240 fps |
| Still Image Support |
Wide
Up to 50 MP (DNG / JPEG / Raw) Up to 12 MP (DNG / JPEG / Raw) Medium Telephoto Up to 48 MP (DNG / JPEG / Raw) Up to 12 MP (DNG / JPEG / Raw) |
| Photo Modes |
Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot
|
| Media/Memory Card Slot |
In Aircraft Body
microSD/microSDHC/microSDXC [512 GB Maximum / U3/V30 or Faster Recommended] |
| Internal Storage |
In Aircraft Body
42 GB |
| Number of Axes |
3: Pitch (Tilt), Roll, Yaw (Pan)
|
| Rotation Range |
Controllable Range
Yaw (Pan): 10° (-5 to 5°) Pitch (Tilt): 150° (-90 to 60°) Mechanical Range Yaw (Pan): 54° (-27 to 27°) Roll: 100° (-50 to 50°) Pitch (Tilt): 205° (-135 to 70°) |
| Follow Speed |
Tilt: 100°/s
|
| Stabilization Accuracy |
±0.0037°
|
| Sensing System |
Omnidirectional with LiDAR Enhancement
|
| Sensing System Capabilities |
Forward
Measurement Range: 1.6 to 59.1′ / 0.5 to 18 m Detection Range: 1.6 to 656.2′ / 0.5 to 200 m Max Speed: 33.6 mph / 15 m/s Field of View: 90° (Horizontal) / 72° (Vertical) Backward Measurement Range: 1.6 to 59.1′ / 0.5 to 18 m Max Speed: 31.3 mph / 14 m/s Field of View: 90° (Horizontal) / 72° (Vertical) Lateral Measurement Range: 1.6 to 98.4′ / 0.5 to 30 m Max Speed: 31.3 mph / 14 m/s Field of View: 90° (Horizontal) / 72° (Vertical) Upward Measurement Range: 1.6 to 59.1′ / 0.5 to 18 m Max Speed: 13.4 mph / 6 m/s Field of View: 72° (Front-to-Back) / 90° (Side-to-Side) Downward Measurement Range: 1.0 to 45.9′ / 0.3 to 14 m Max Speed: 13.4 mph / 6 m/s Field of View: 106° (Front-to-Back) / 90° (Side-to-Side) |
| Control Method |
Included Transmitter with Smartphone/Mobile Device
|
| Operating Frequency |
2.4 GHz (2.400 to 2.4835)
5.1 GHz (5.170 to 5.250) 5.8 GHz (5.725 to 5.850) |
| Maximum Operating Distance |
12.4Â Miles / 20Â km
|
| Transmitter Power |
2.4 G: 33 dBm (FCC), 20 dBm (CE, MIC, SRRC)
5.1 G: 23 dBm (CE) 5.8 G: 33 dBm (FCC), 14 dBm (CE), 30 dBm (SRRC) |
| Transmitter I/O |
1x Lightning Input/Output (Data, Power)
1x USB-C Input/Output (Data, Power) 1x Micro-USB Input/Output (Data, Power) |
| Clean Video Output |
Not Specified by Manufacturer
|
| Battery Type |
Built-In Lithium-Ion (2600 mAh)
|
| Mobile Device Compatibility |
Devices up to 7.1″ / 180Â mm Wide and 0.4″ / 10.2Â mm Thick
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Operating Temperature |
14 to 104°F / -10 to 40°C
|
| Battery Chemistry |
Lithium-Ion
|
| Battery Capacity |
4276 mAh / 62.5 Wh
|
| Battery Configuration |
4 S / 14.6 V
|
| Maximum Charging Power |
17.2 V
|
| Charging Temperature |
41 to 104°F / 5 to 40°C
|
| Weight |
8.7Â oz / 247Â g
|
| Charger Input Power |
5 to 20 VDC at 5 A
|
| Output Voltage |
5 V, 3 A
9 V, 5 A 12 V, 5 A 15 V, 5 A 17.2 V, 5 A 20 V, 4.1 A |
| GNSS Support |
GPS, BeiDou, Galileo
|
| Overall Dimensions |
4.0 x 3.5 x 8.4″ / 100.6 x 89.2 x 214.2Â mm (Folded)
12.8 x 4.2 x 10.5″ / 325.5 x 106.0 x 266.1Â mm (Unfolded) |
| Weight |
1.6Â lb / 724Â g (Takeoff)
|
