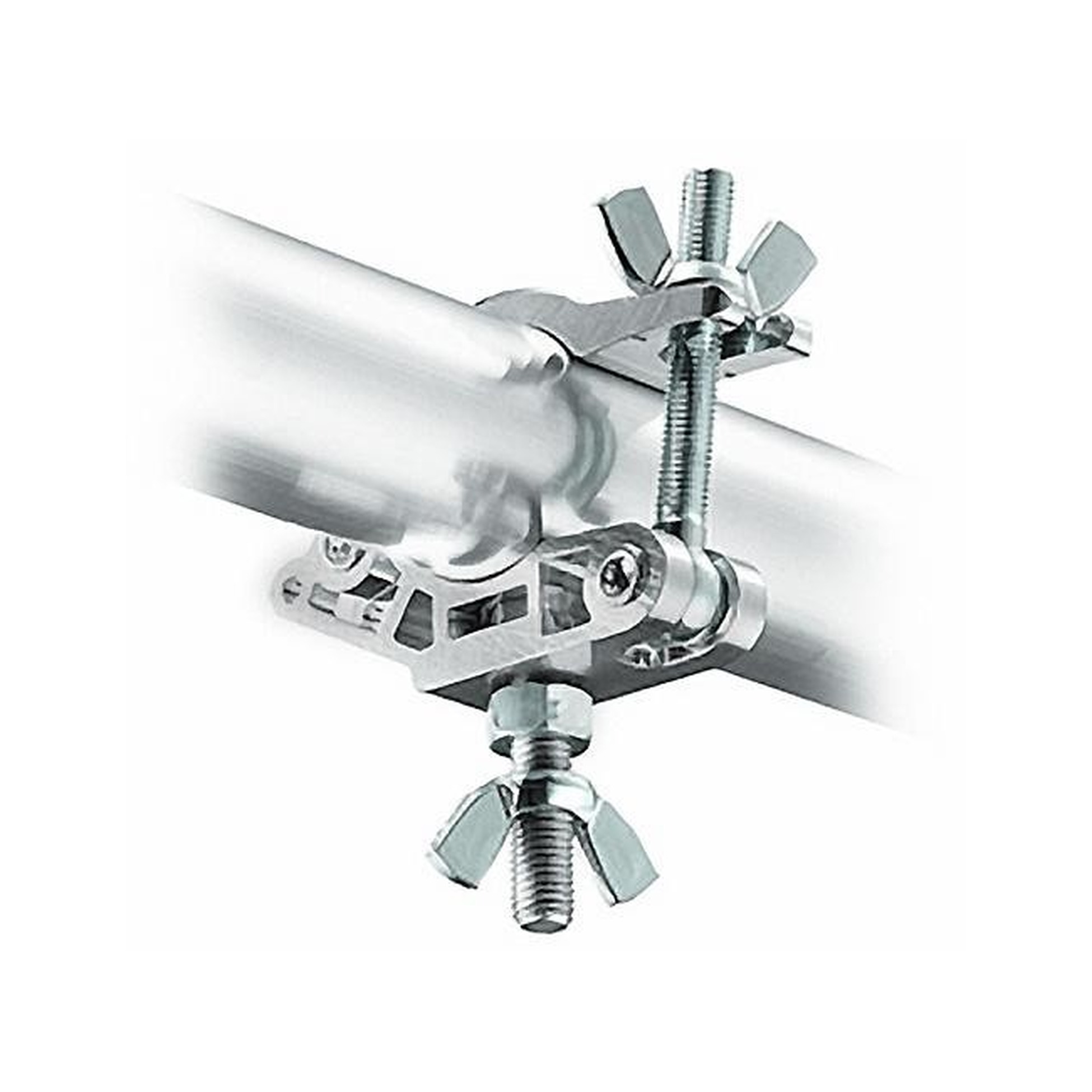

The Avenger C4564-1 MP Slim Eye Coupler is a clamp for use on pipe lengths or truss members. Its aluminum alloy construction tightens via a wing nut.
An M12 bolt and nut provide mounting for lights and other accessories. The coupler has a maximum load capacity of 660 lb / 300 kg and fits pipe diameters from 1.6 to 2.0" / 42 to 52 mm.
Features
- Clamp for pipe lengths or truss members
- Wing-nut tightening mechanism
- Mounting point for lights and other accessories
- 30 mm width
- 0.6 lb / 0.3 kg weight
Included
- Avenger C4564-1 MP Slim Eye Coupler with M12 Bolt and Nut
Specifications
| Construction | Aluminum Alloy |
|---|---|
| Attachment | M12 x 27 mm Bolt and Nut |
| Compatibility | Pipe Diameters: 1.6 to 2.0" / 42 to 52 mm |
| Certifications | TUV |
| Maximum Load | 660 lb / 300 kg |
| Width | 1.18" / 30 mm |
| Weight | 0.6 lb / 0.3 kg |
| Package Weight | 0.865 lb / 0.39 kg |
| Box Dimensions (LxWxH) | 6.95 x 6.3 x 1.9" |
