Overview

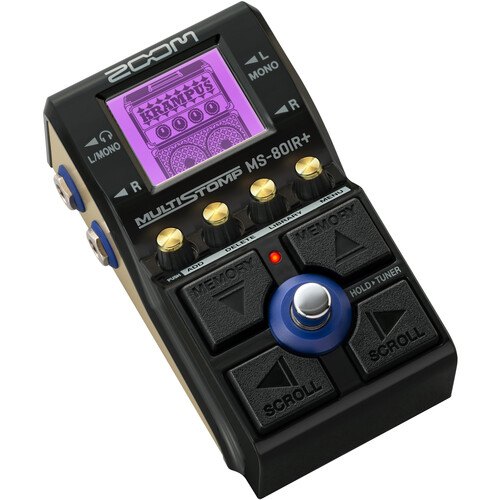

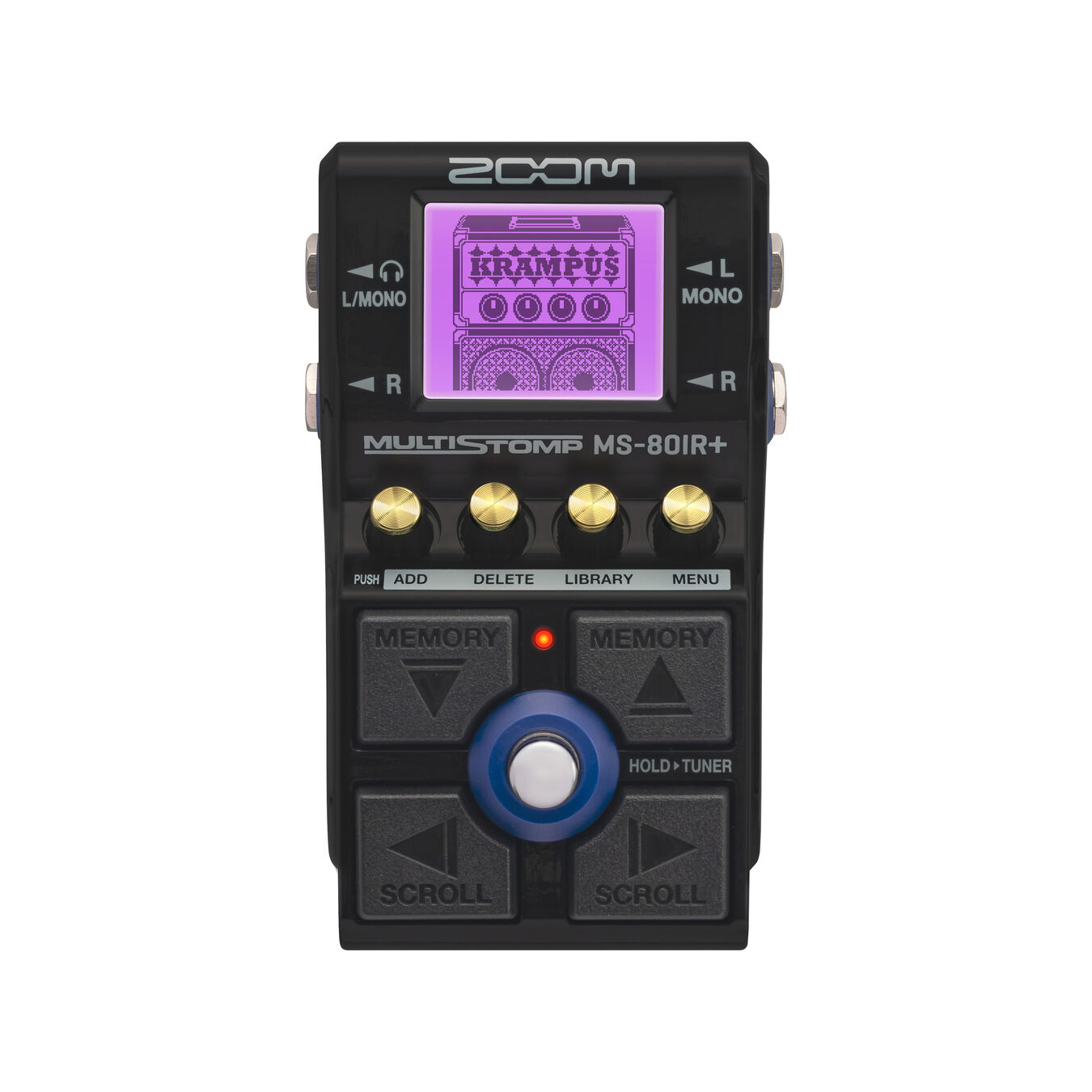

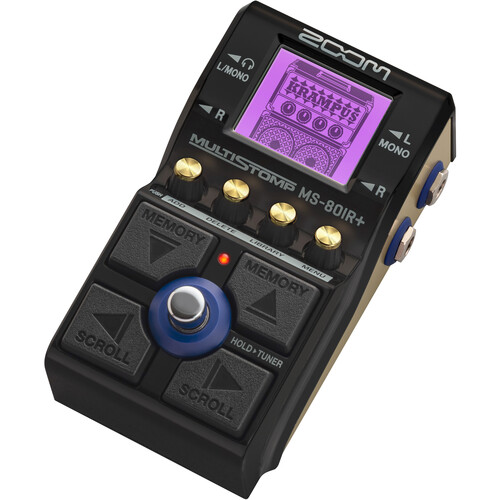

Experience the character and realism of 23 iconic and contemporary amp and cab models with the Zoom MS-80IR+, an IR modeling pedal driven by ultra-realistic Multi-Layer IR technology. With 17 onboard effects, up to 80 customizable patches, and flexible stereo I/O, it’s a powerful addition to any pedalboard.
USB-C connectivity allows the MS-80IR+ to function as an audio interface, support MIDI remote control, and integrate with the Guitar Lab app for loading custom IRs and fine-tuning your setup. A wide range of effects—reverbs, delays, gates, EQs, and more—lets you refine your tone with precision. Four encoder knobs and cross-key footswitches make it simple to navigate amps, effects, and patches hands-free. The built-in chromatic tuner provides clear visual feedback through color-changing backlighting and supports all standard, alternate, and drop tunings.
Specifications
| Audio Circuit Type |
Digital
|
| Sampling Rate |
24-Bit / 44.1 kHz
|
| DSP |
32 Bits
|
| Frequency Response |
20 Hz to 20 kHz (±0.5 dB)
|
| Signal to Noise Ratio |
122 dB
|
| Noise Floor |
-100 dBu
|
| Panel Type |
LCD
|
| Display Size |
Not Specified by Manufacturer
|
| Native Resolution |
160 x 128
|
| Touchscreen |
No
|
| USB I/O |
1 x USB-C 2.0 Female Input/Output
|

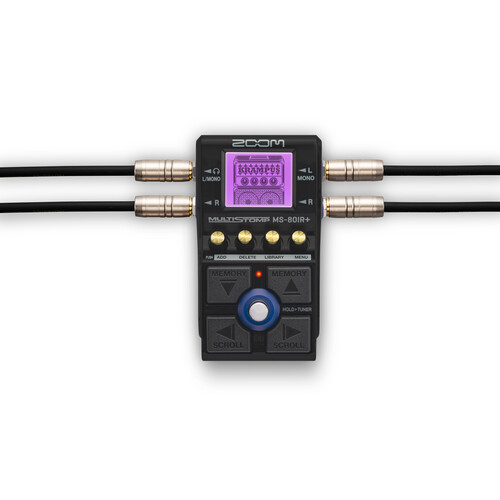

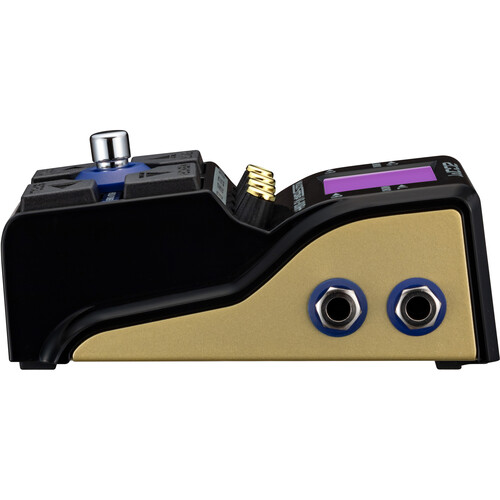

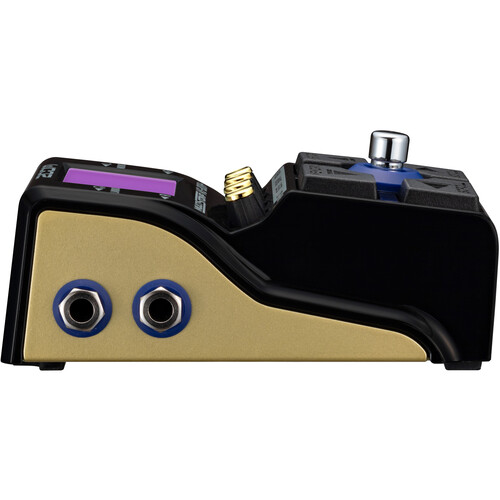

| Audio I/O |
2x 1/4″ TS Hi-Z/Instrument Input (1 Stereo Pair)
2x 1/4″ TS Line Output (1 Stereo Pair) |
| Mobile App Compatible |
Yes: iOS Only
App Name: Handy Guitar Lab |

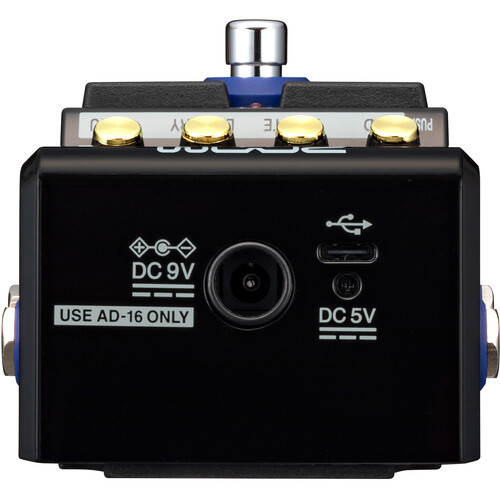

| Power Source |
AC Adapter with Power Brick, Battery
|

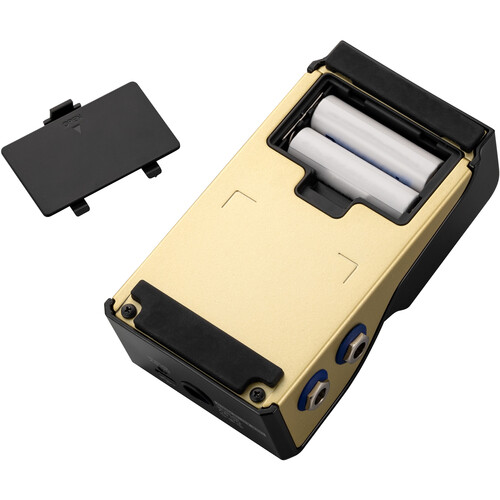

| Battery Type |
2x AA
|
| DC Input Power |
9 VDC
|
| Color |
Black
|
| Material of Construction |
Metal
|
| Dimensions |
5.2 x 3.1 x 2.4″ / 13.3 x 7.9 x 6.1 cm
|
| Weight |
14.7 oz / 416 g (Including Batteries)
|
| Package Weight |
0.995 lb
|
| Box Dimensions (LxWxH) |
6.1 x 4 x 2.6″
|
