Zoom L-6 LiveTrak Portable 6-Channel Digital Mixer & Multitrack Recorder
€310.00 excl. BTW
- Portable Multitracking Mixer/Recorder
- 2 XLR-1/4″ Mic/Line Inputs with +48V
- Multitrack Recording via microSD and USB
- 4 Assignable Sound Pads (Sample Player)
- Built-In Effects and 3-Band EQ
- Headphone/Monitor Output
- Eurorack Compatible
- 3 Scene Memory
- Powered via Battery or USB Power Supply
20 stock in external warehouse, usually ships 1-2 days.
Designed for keyboardists and synth-based setups, the Zoom LiveTrak L-6 is a compact, portable, battery-powered digital mixer and recorder that offers hands-on controls and straightforward operation—letting you launch into a recording session within minutes.
The L-6 provides two combo XLR-1/4″ mic/line inputs and four stereo 1/4″ line-input pairs, along with four sound pads, two aux sends, and five onboard send effects. Each channel includes its own channel strip with Level, Pan, Aux 1, Aux 2, and a 3-band EQ featuring an adjustable mid band. Whether you’re recording directly to an SD card, streaming via USB to a computer or iOS device, or doing both simultaneously, the LiveTrak L-6 supports up to 6 channels (10 inputs) of multitrack recording at once.
Features
- 10-channel ultra-compact digital mixer
- Two XLR/TRS combo inputs + 4 stereo inputs
- 12-track simultaneous recording
- MIDI in/out for mixer control and USB MIDI interface
- 3-scene memory for storing mixer and tempo settings
- 32-bit float multitrack recording to microSD card
- Five internal send effects
- Two aux send outputs
- Four assignable sound pads (sample player)
- 3-band EQ with mid freq control for each channel
- Headphone output + Master output
- Eurorack compatible
- 12-in / 4-out audio interface

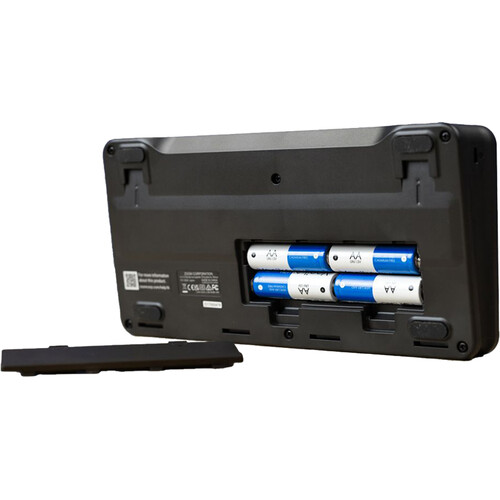

- Four AA battery power operation or USB power
Included
- Zoom LiveTrak L-6 Portable 6-Channel Digital Mixer and Multitrack Recorder
- USB Cable
- Limited 1-Year Manufacturer Warranty
Specifications
| Max I/O Capacity |
6x Input / 6x Output
|
| Number of Analog Input Channels |
6 (2 Mono / 4 Stereo)
|
| Number of Mic Preamps |
2
|
| Number of Analog Output Channels |
4
|
| Mix Routing |
2x Mono Aux Send
1x Stereo Main LRC |
| Presets |
3x Scene
|
| Faders & Level Adjustment |
6 Channel Knob
|
| Meters |
Main Meter:
2x 6-Segment LED |
| EQ |
3-Band EQ
|
| EQ Parameters |
1x HF Shelf:
±15 dB at 10 kHz 1x MF Peak: ±15 dB at 100 Hz to 8 kHz 1x LF Shelf: ±15 dB at 100 Hz |
| Graphic EQ |
No
|
| Solo/Mute |
Mute per Input Channel
|
| Built-In Effects |
5x Stereo Effect (Type Unspecified)
|
| Audio Delay |
No
|
| Automatic Mic Mixing |
No
|
| Sample Rates |
48 kHz
|
| Bit Depth |
Up to 32-Bit
|
| Frequency Response |
20 Hz to 20 kHz -1 dB
|
| Max Input Level |
Combo XLR-1/4″ Mic/Line Input:
+4 dB (Mic) +24 dB (Line) 1/4″ TS Line Input: +9 dB |
| Headphone Output Power |
50 mW per Channel into 63 Ohms (Max)
|
| I/O Impedance |
XLR Line/Mic Input:
3.8 Kilohms 1/4″ TRS Line Input: 39 Kilohms 1/4″ TRS Aux/Main Output: 147 Ohms 1/4″ TRS Monitor Output: 14.7 Ohms |
| Signal Generator |
No
|
| Analog Inputs |
2x Combo XLR-1/4″ TRS Balanced/Unbalanced Mic/Line Input
8x 1/4″ TS Balanced/Unbalanced Line Input (4 Stereo Pairs) |
| Analog Outputs |
2x 1/4″ TRS Balanced/Unbalanced Aux Send
2x 1/4″ TRS Balanced/Unbalanced Stereo Main Output (1 Stereo Pair) 1x 1/4″ TRS Unbalanced Stereo Headphone Output |
| Phantom Power |
+48 V
|
| Digital I/O |
No
|
| MIDI I/O |
No
|
| USB I/O |
1x USB-C 2.0 (Host Connection)
|
| USB I/O Capacity |
12x Input / 4x Output
|
| Expansion Ports |
No
|
| Wireless |
No
|
| External Display I/O |
No
|
| Max Multitrack Recording |
12 Tracks
|
| Media Support |
SDHC
|
| Input Power |
5 VDC
|
| Rack Mountable |
Yes
|
| Dimensions |
8.8 x 1.8 x 4.5″ / 22.3 x 4.6 x 11.4 cm
|
| Weight |
1.3 lb / 0.6 kg
|
| Package Weight |
1.815 lb
|
| Box Dimensions (LxWxH) |
11.6 x 6.4 x 2.9″
|
