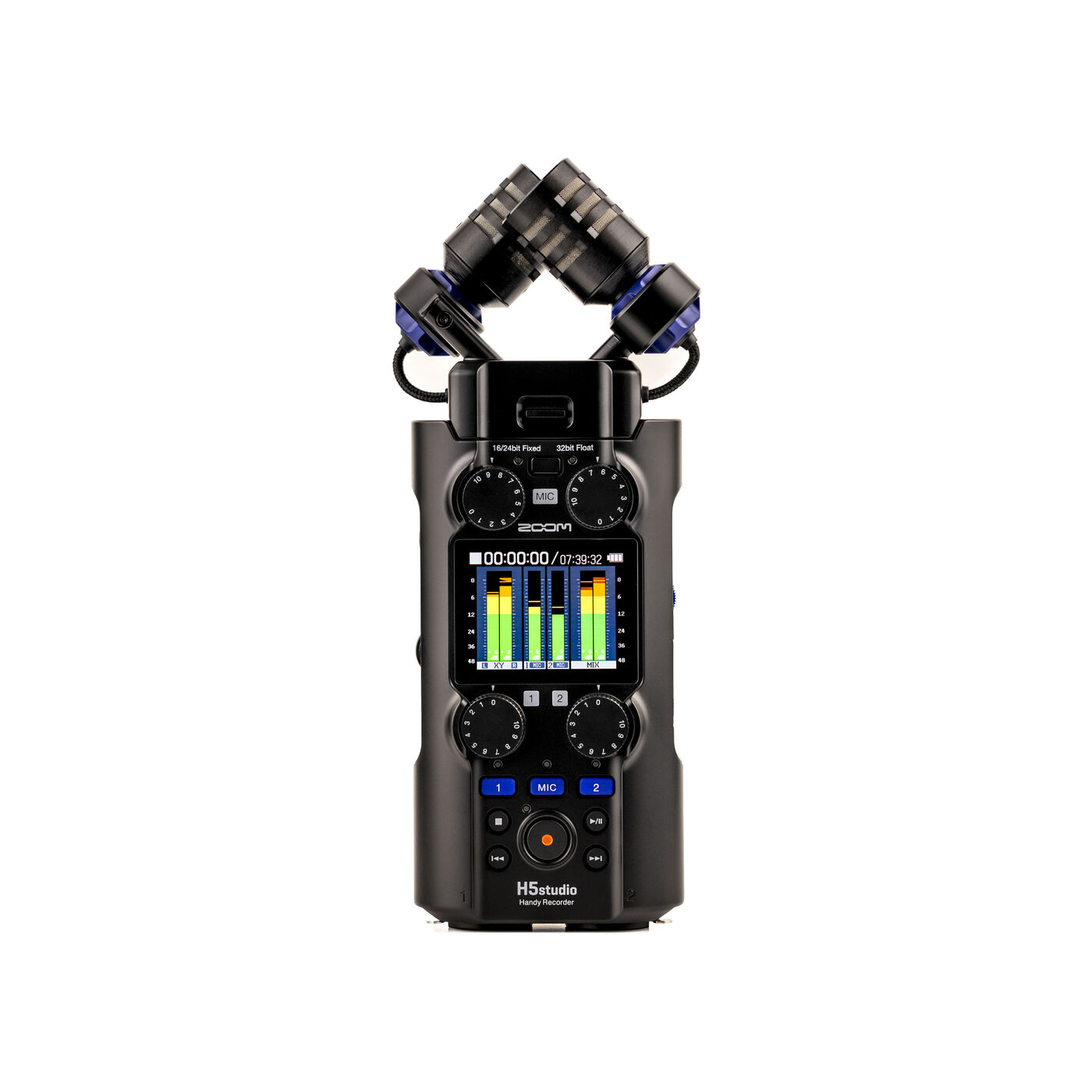

Zoom H5STUDIO 4-Track Handy Recorder
€329.00 excl. BTW

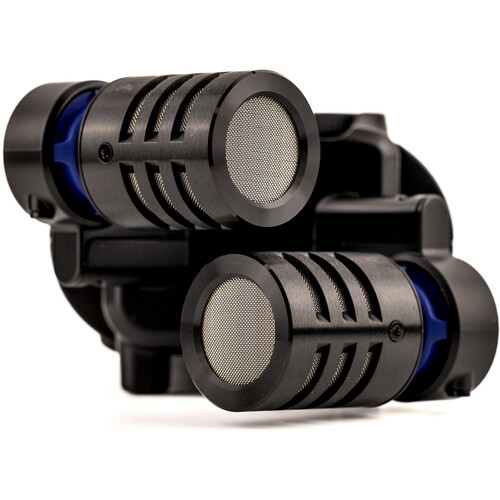

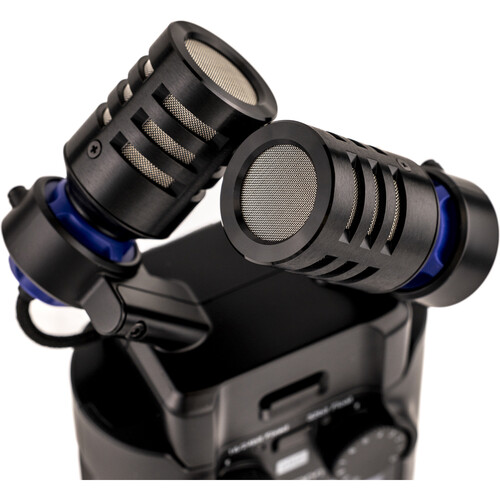

- Large-Diameter X/Y Stereo Microphone
- 32-Bit Float and 16-/24-Bit Modes
- Record 4-Tracks + Stereo Mix
- F-Series Preamps with -127 dB EIN
- Rates up to 192 kHz, Color LCD Screen
- 2 XLR/TRS Combo Inputs with 48V Phantom
- 4-In / 2-Out USB Audio Interface
- Compatible with Zoom Capsule System 3.0

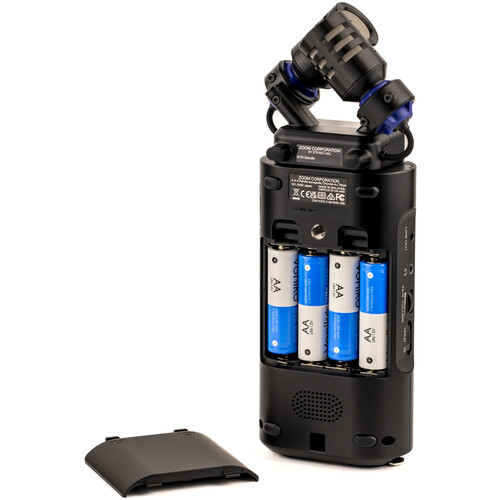

- 9 Hours on 2 AA Batteries, USB-C Power
20 stock in external warehouse, usually ships 1-2 days.
The Zoom H5studio Handy Recorder is a 4-track portable recording solution designed for videographers and content creators who need high-quality audio capture on the go. Featuring 32-bit float recording and an X/Y stereo microphone array with large 19.4mm capsules, the H5studio delivers an extended frequency response for detailed, natural sound reproduction.
Included
- Zoom H5STUDIO 4-Track Handy Recorder
- Limited 1-Year Manufacturer Warranty
Specifications
| Form Factor |
Handheld Recorder
|
| Number of Tracks |
6 (4 Inputs + Stereo Mix)
|
| Number of Input Channels |
4 (4 x Mono)
|
| Maximum Sampling Rate |
192 kHz / 32-Bit Float
|
| Microphone |
Interchangeable Cardioid
|
| Number of Microphone Inputs |
2
|
| Built-In Speaker |
Yes
|
| Display |
2″ / LCD
|
| Memory Card Support |
microSDHC, microSDXC (2 TB)
|
| Internal Storage |
No
|
| Special Features |
Slate Function
|
| Audio File Formats |
WAV
|
| Sample Rates |
192 kHz
|
| Bit Depth |
Up to 32-Bit (Floating Point)
|
| Signal Processing & FX |
Speed Change
|
| Timecode Support |
Yes
|
| Recording Time |
15 Hrs
|
| Included Software |
No
|
| Analog I/O |

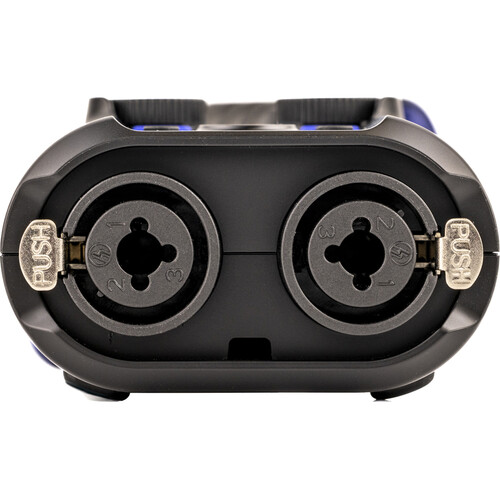

2x Combo XLR-1/4″ 3-Pin Input
1x 1/8″ / 3.5 mm TRS Mic Input |
| Digital I/O |
No
|
| Phantom Power |
+48 V
|
| Plug-In Power |
Yes
|
| System Connection |
USB-C
|
| Audio Interface Capability |
Multi-Track
|
| Wireless |
Bluetooth
*Via Optional Adapter |
| Mobile App Compatible |
Yes: Android & iOS
|
| Gain/Trim Range |
0 to +60 dB
|
| Max Input Level |
1/8″ / 3.5 mm Mic Inputs:
+4 dBu 1/8″ / 3.5 mm Line Inputs: +24 dBu |
| Max Output Level |
Line Outputs:
+1 dBu |
| Headphone Output Power |
20 mW per Channel
|
| Impedance |
Mic/Line Inputs:
≥3 Kilohms |
| Microphone Sensitivity |
-40 dB/Pa
|
| Microphone Max SPL |
140 dB SPL
|
| Power Options |
Battery, USB Bus Power
|
| Battery Type |
4x AA
|
| Approximate Battery Life |
15 Hours
|
| AC/DC Power Adapter |
5 VDC (Not Included)
|
| Included Accessories |
No
|
| Mounting Options |
1/4″-20 Female
|
| Dimensions |
3.4 x 2.1 x 8.1″ / 86 x 54.6 x 206 mm
|
| Weight |
14.5 oz / 410 g (with Batteries)
|
| Package Weight |
1.05 lb
|
| Box Dimensions (LxWxH) |
9.5 x 4 x 2.6″
|
