Overview

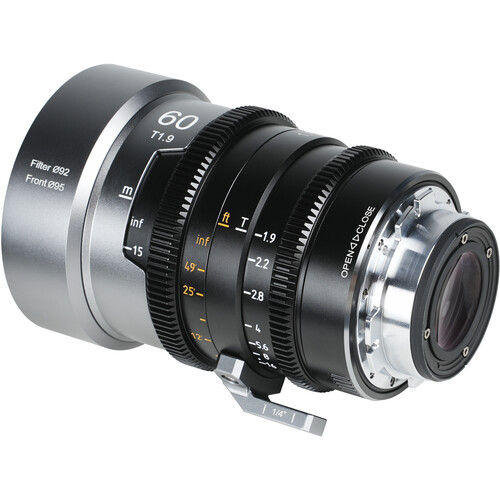

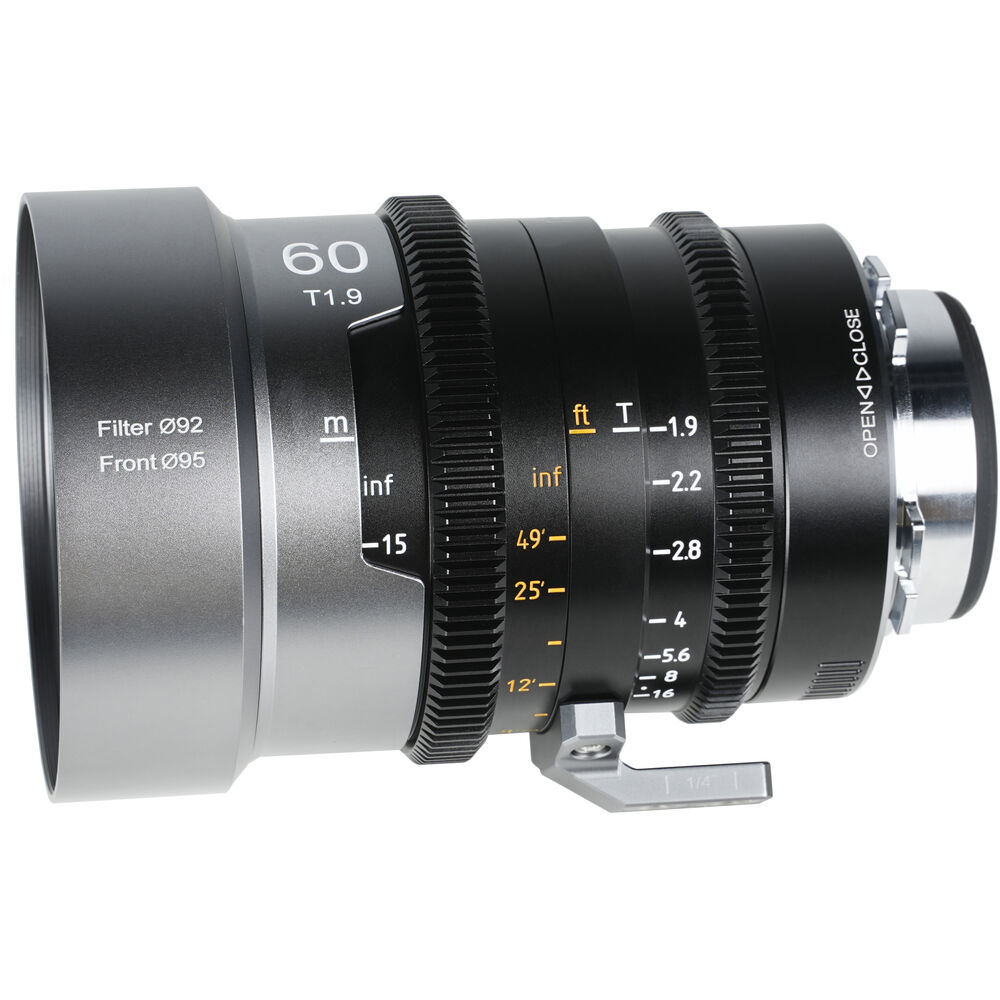

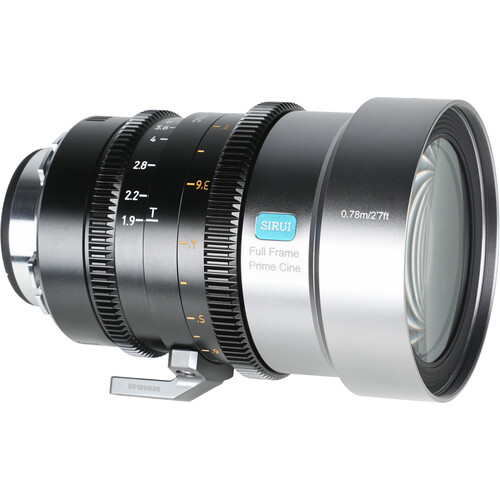

The IronStar Series 60mm Anamorphic 1.5x Lens from Sirui. Equipped with an interchangeable EF/PL mount, the lens offers a maximum aperture of T1.9 for low-light image capturing and shallow depth of field and a minimum aperture of T16. The expansive 46mm image circle ensures edge-to-edge sharpness and optimal coverage without vignetting, and the optical design is crafted with 19 elements in 14 groups. It can be focused manually, offering a minimum focus distance of 2.5′, and its compact design has a maximum diameter of 5.3″.
Features
- This lens creates a 1.5x squeeze ratio and unique oval bokeh.
- Optical design enhances subject separation and depth.
- Horizontally equivalent to 30mm on a full-frame sensor.
- Sirui’s IronStar prime lenses come with both an ARRI PL and Canon EF mount, letting you use them with a variety of cine-style, mirrorless, and DSLR cameras.
- This 45mm IronStar lens features a 95mm front outside diameter, and its 0.8 MOD focus and iris gears are compatible with most standard matte boxes, follow focus units, and lens control systems.
- The 270° focus barrel rotation lets you precisely pull focus.

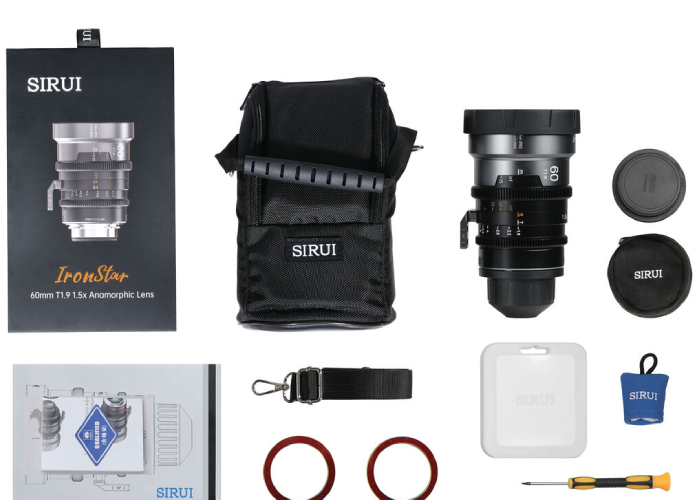

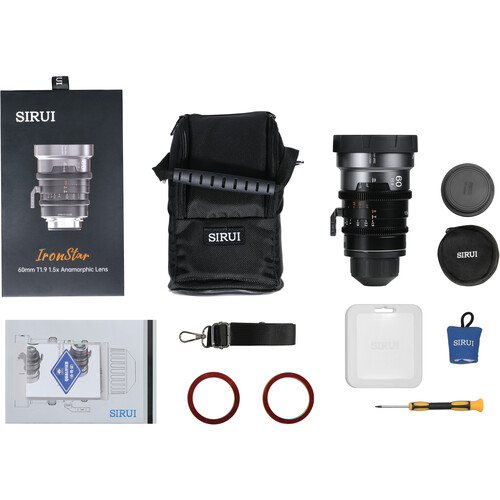

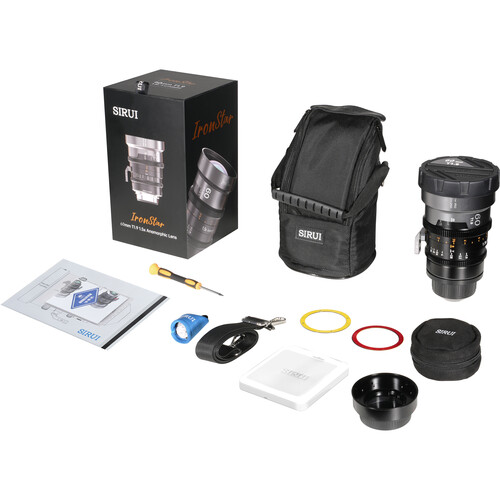

Included
- Sirui IronStar 60mm T1.9 Anamorphic Full Frame Cine Lens
- Front Lens Cap
- Rear Lens Cap
- ARRI PL Mount
- Canon EF Mount
- Lens Support Foot with Two 1/4″-20 Threads
- Tool Kit
- Pouch
- Limited 3-Year Manufacturer Warranty
Specifications
| Maximum Aperture |
T1.9
|
| Minimum Aperture |
T16
|
| Lens Mount |
Interchangeable Mount with Included ARRI PL/Canon EF
|
| Interchangeable Mount |
Yes
|
| Horizontal Squeeze (Anamorphic) |
1.5x
|
| Flare Color |
Blue / Neutral
|
| Lens Format Coverage |
Full-Frame (46 mm Image Circle)
|
| Angle of View |
Vertical: 23.59°
Horizontal: 50.63° Diagonal: 53.82° |
| Focus Scales |
No
|
| Optical Design |
19 Elements in 14 Groups
|
| Filter Thread |
92 mm
|
| Minimum Focus Distance |
2.56′ / 0.78Â m
|
| Magnification |
1:17.86 Macro Reproduction Ratio
0.05x Magnification |
| Aperture/Iris Blades |
16
|
| Image Stabilization |
No
|
| Gear Rotation |
Focus: 270° (Manual Only)
|
| Electronic Communication |
No
|
| Diameter |
3.7″ / 95Â mm
|
| Length |
5.6″ / 142Â mm (EF Mount)
5.3″ / 134Â mm (PL Mount) |
| Weight |
2.3Â lb / 1023Â g
2.3Â lb / 1044Â g |
| Package Weight |
4.995 lb
|
| Box Dimensions (LxWxH) |
10.8 x 6.5 x 6.3″
|
