Overview

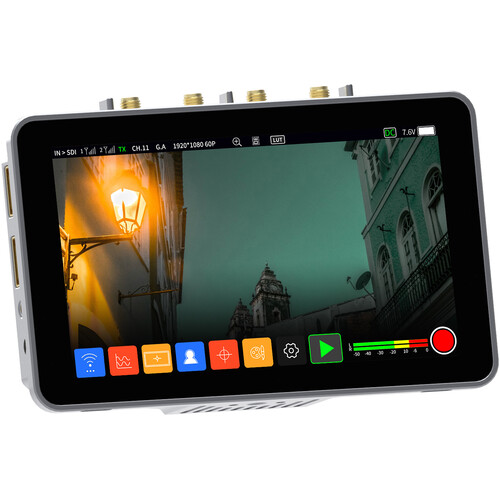

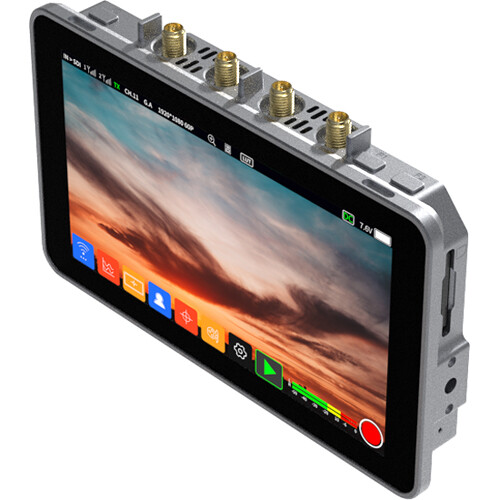

The Shimbol ZO600MS 5.5″ 3G-SDI & HDMI Touchscreen Recorder/Monitor offers advanced capabilities for viewing and recording up to 1080p60 video with integrated 3D LUT support. Designed for versatility, this monitor functions as both a transmitter and receiver, seamlessly integrating with Shimbol wireless transmission systems. It can also stream video directly to your iPhone or iPad. Featuring a 5.5″ touchscreen with a 1920 x 1080 resolution, the monitor supports 1080p60 input and includes both 3G-SDI and HDMI inputs and outputs. With an impressive 2000 cd/m² brightness and a 1200:1 contrast ratio, it delivers exceptional visibility, even in bright daylight conditions.

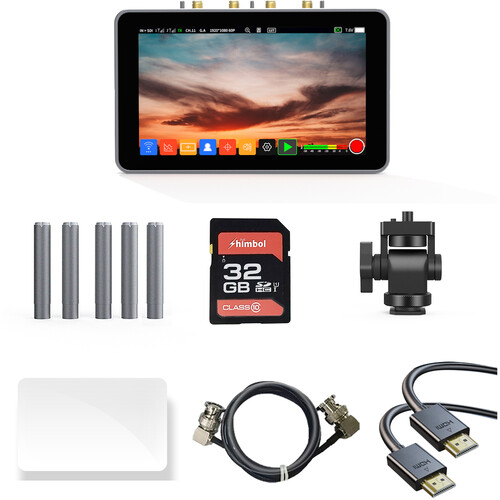

In The Box
Shimbol ZO600MS 5.5″ 1080p60 Wireless 3G-SDI & HDMI Touchscreen Recorder/Monitor

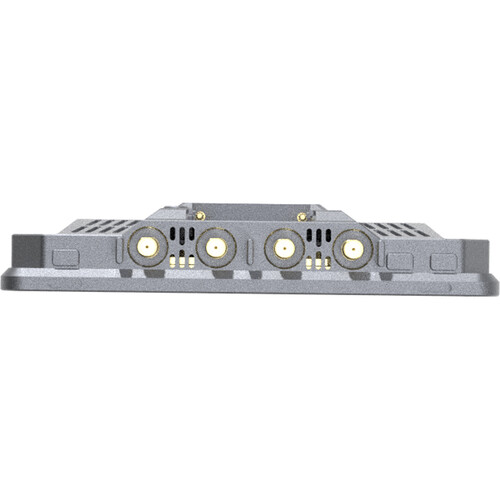

4 x Antenna
SD Card
Tempered Screen Protector
HDMI Cable
SDI Cable
Tilting Shoe Mount
Limited 14-Month Manufacturer Warranty
Specifications
| Panel Type |
LCD
|
| Display Size |
5.5″ / 14.0 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 178°
Vertical: 178° |
| Touchscreen |
Yes
|
| Maximum Brightness |
2000 nits / cd/m2
|
| Contrast Ratio |
1200:1
|
| HDR Support |
Yes, Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
500 ppi
|

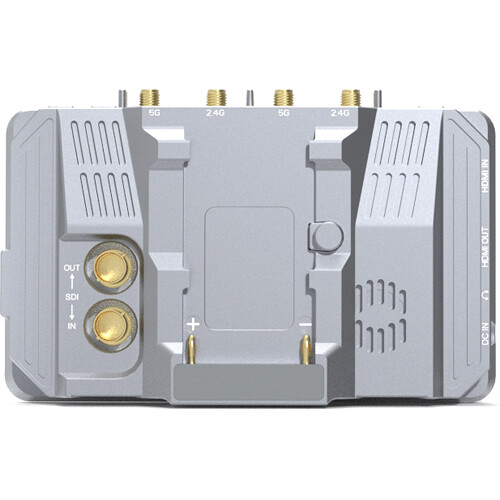

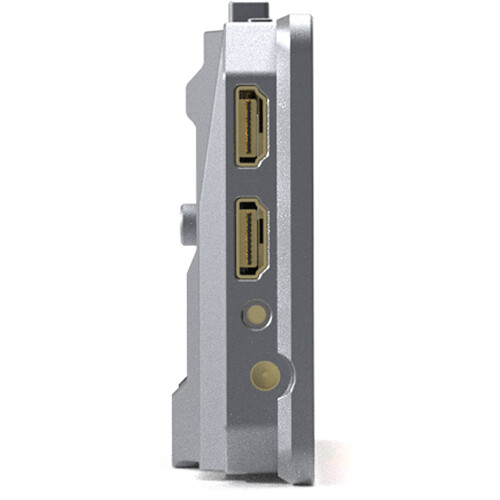

| Video I/O |
1x HDMI Input
1x HDMI Output 1x BNC Input 1x BNC Output |
| Wireless Range |
984.3′ / 300 m
|
| Channel Bandwidth |
20 MHz
|
| Latency |
0.08 sec
|
| RF Power |
17 dBm
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Input Power |
6.5 to 16.8 VDC
|
| Built-In Battery |
No
|
| Battery Type |
1x L-Series
|
| Power Consumption |
13 W (Maximum)
|
