Overview

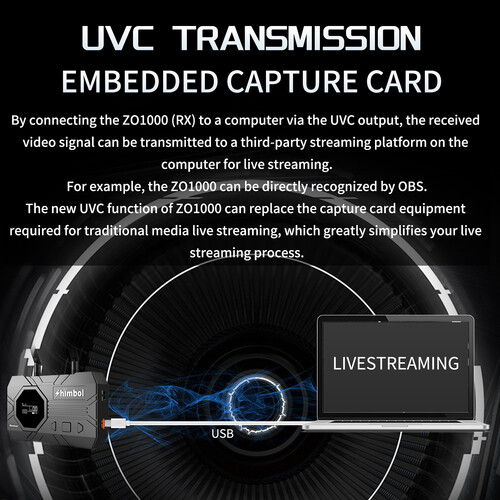

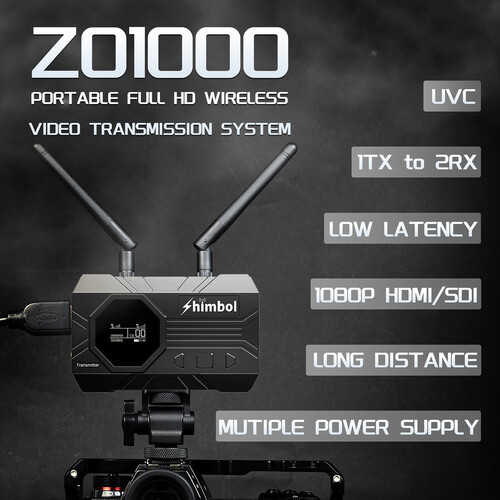

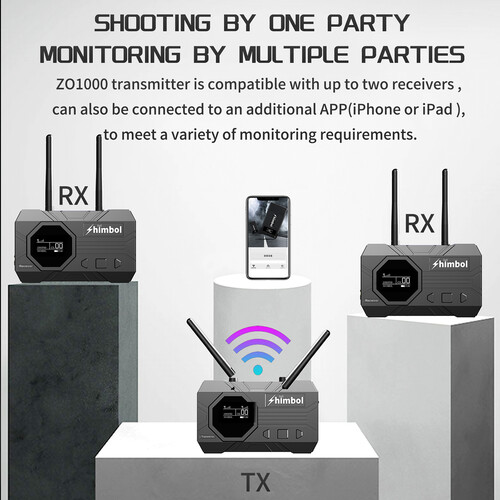

Experience up to 1080p60 wireless video transmission with the Shimbol ZO1000 SDI/HDMI Wireless Video System, designed for use with gimbals, mirrorless cameras, or DSLR rigs. This versatile system includes a transmitter with both HDMI and SDI inputs and a receiver equipped with SDI, HDMI, and USB-C UVC outputs. Offering a line-of-sight range of up to 1000′ and low latency of just 80ms, the system ensures seamless video transmission with embedded audio and AES encryption for added security. The transmitter supports a second optional receiver or can connect to an iOS device, while the receiver’s USB-C port enables direct live streaming to your computer via third-party platforms.
Features
- WPA-128-Bit AES encryption for keeping your transmission secure.
- 2-channel, 48KHz embedded audio transmission.
- Low 80ms latency.
In The Box
ZO1000 Transmitter
ZO1000 Receiver
5 x Antenna
USB-C Power Cable
Limited 14-Month Manufacturer Warranty
Specifications
| Antenna I/O |
Transmitter/Receiver: 2x RP-SMA
|

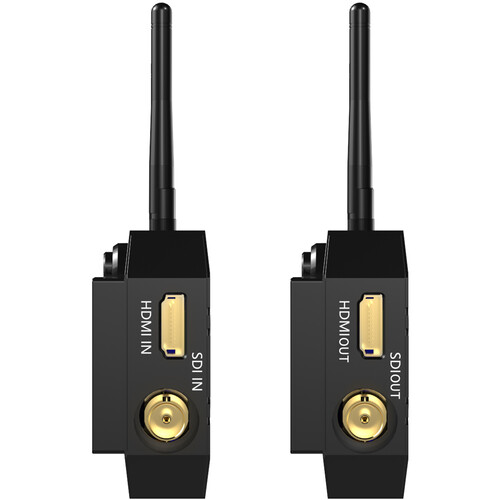

| Video I/O |

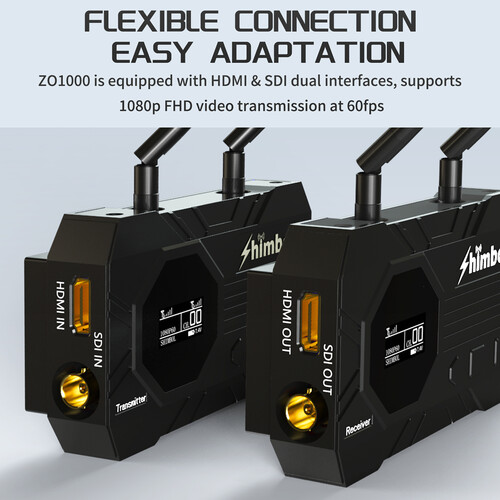

Transmitter: 1x HDMI (Unspecified Signal) Input
Transmitter: 1x BNC (3G-SDI) Input Receiver: 1x HDMI (Unspecified Signal) Output Receiver: 1x BNC (3G-SDI) Output |
| Audio I/O |
No
|
| Power I/O |

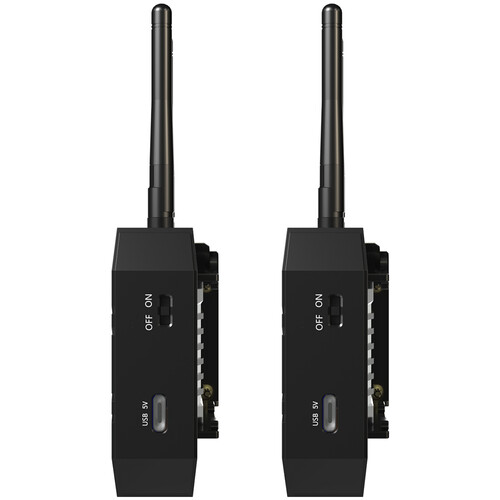

Transmitter: 1x USB-C (2 A / 5 VDC) Input
Receiver: 1x USB-C (2 A / 5 VDC) Input |
| Encryption |
Yes, 128-Bit AES
|
| Wireless Range |
1000′ / 304.8Â m
|
| Frequency Range |
5.1 to 5.8 GHz
|
| Latency |
80 ms
|
| RF Power |
17 dBm
|
| RF Sensitivity |
-80 dBm
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
Yes: iOS Only
App Name: Shimbol |
| Cellular Support |
No
|
| Video Format |
HDMI
1080p: 60/50/30/25/24 1080i: 60/50 720p: 60/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/50 USB 1080p: 60/50/30/25/24Â |
| Audio Format |
2-Channel 48 kHz
|
| Timecode Support |
No
|
| Input Power |
5 VDC at 2 A
|
| Battery Type |

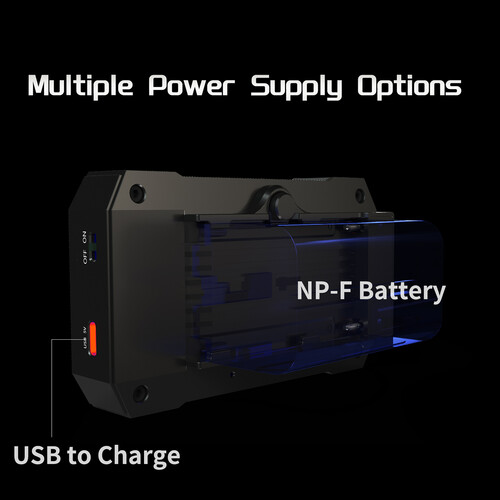

Transmitter/Receiver: 1x L-Series
|
| Power Consumption |
Transmitter/Receiver: 4 W (Maximum)
|
| Mounting |

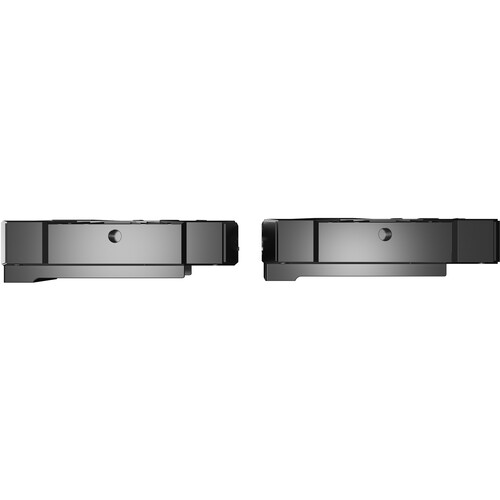

Transmitter/Receiver: 1x 1/4″-20 Female (Bottom)
|
| Status Display |
Transmitter/Receiver: OLED
|
| Environmental Resistance |
No
|
| Certifications |
FCC, CE, UKCA, RoHS
|
| Storage Conditions |
-4 to 140°F / -20 to 60°CÂ
|

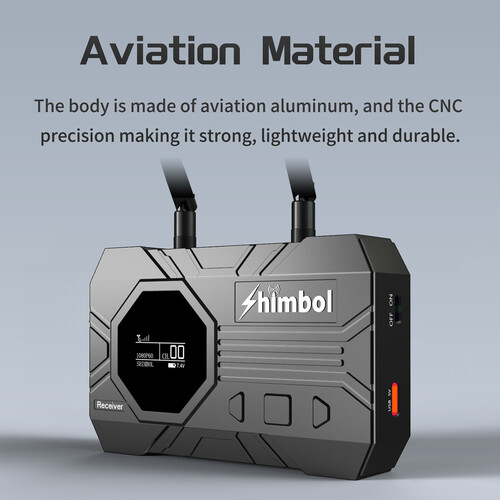

| Material of Construction |
Aluminum
|
| Dimensions |
Transmitter/Receiver: 4.3 x 2.6 x 1.2″ / 110 x 66.5 x 29.5Â mm
|
| Weight |
Transmitter/Receiver: 5.93Â oz / 168.00Â g
|
