Shimbol M7 7″ Touchscreen 4K HDMI/3G-SDI Video Monitor with 3D LUT Output
€389.00 excl. BTW
- 7″ HDMI 1920 x 1080 Touchscreen
- Up to 4K30 Video Input via HDMI
- 2000 cd/m² Brightness, 3D LUT Support
- 3G-SDI & HDMI Input/Output
- SDI to HDMI Cross Conversion
- HDR Support, Built-In Monitoring Tools
- Dual L-Series Battery Plate
- Durable All-Aluminum Chassis
External warehouse, approximately 10 days or more
Overview

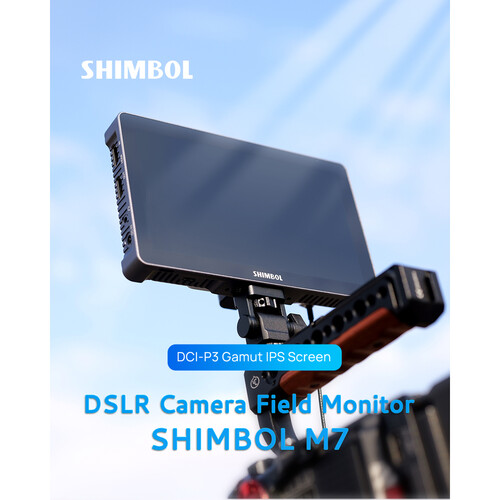

Elevate your camera setup with professional monitoring tools by integrating the M7 7″ Touchscreen 4K HDMI/3G-SDI Video Monitor with 3D LUT Output from Shimbol. This ultra-bright, 7-inch touchscreen display delivers a 1920 x 1080 resolution with a remarkable 2000 cd/m² brightness, ensuring clear visibility in any lighting condition. It supports UHD 4K30 video input and output via HDMI, or up to 1080p via 3G-SDI. Built with a durable all-aluminum chassis, this monitor is engineered to withstand the rigors of both studio environments and on-location shoots.
In The Box
Shimbol M7 7″ Touchscreen 4K HDMI/3G-SDI Video Monitor with 3D LUT Output
Tempered Screen Protector
HDMI Cable
SDI Cable
Tilting Shoe Mount
SD Card
Cleaning Cloth
Carry Case
Limited 1-Year Manufacturer Warranty
Specifications
| Panel Type |
LCD
|
| Display Size |
7.0″ / 17.8 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Viewing Angle |
Horizontal: 170° (85/85)
Vertical: 170° (85/85) |
| Touchscreen |
Yes
|
| Maximum Brightness |
2000 nits / cd/m2
|
| Contrast Ratio |
1800:1
|
| Color Support |
1.07 Billion Colors (8-Bit+FRC)
|
| HDR Support |
Yes, HDR10/Hybrid Log Gamma
|
| Pixels Per Inch (ppi) |
314 ppi
|
| Color Gamut |
100% DCI-P3
|

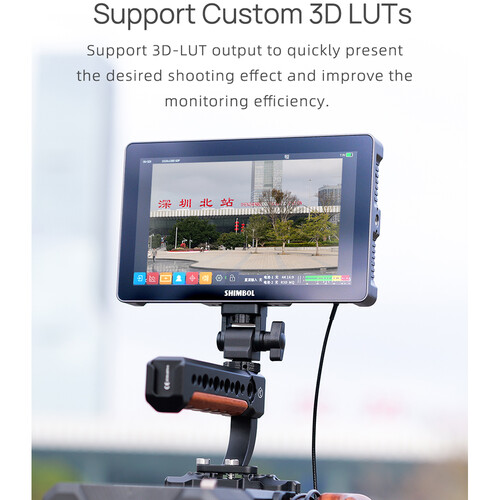

| LUT Support |
Yes
|
| Image Controls |

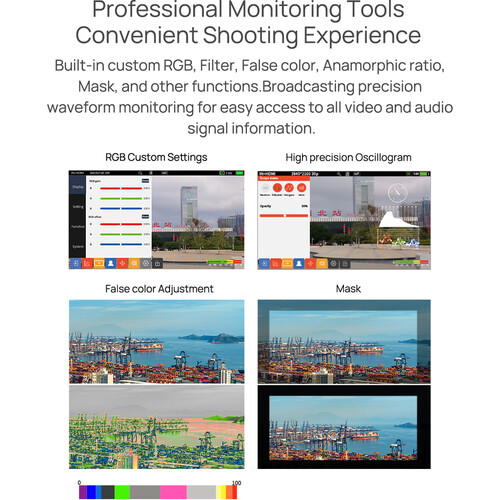

Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra
|

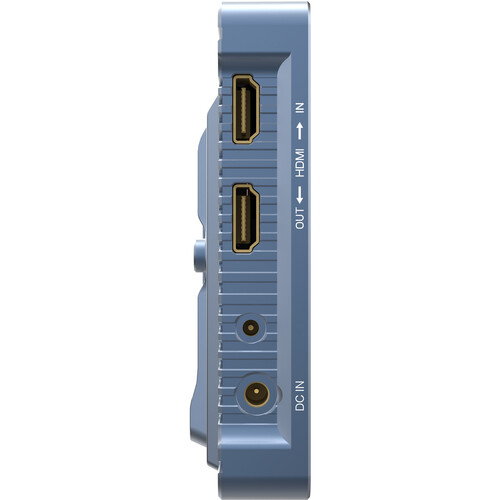

| Video I/O |
1x HDMI (Unspecified Signal) Input
1x HDMI (Unspecified Signal) Output 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 1/8″ / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (16 VDC) Input
|

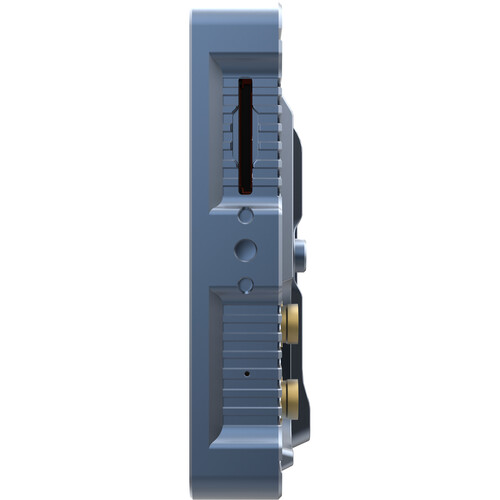

| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type)
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
DCI 4K: 25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Input Power |
7 to 16 VDC
|
| Battery Type |
2x L-Series
|
| Power Consumption |
10 W
|
| Mounting |
1x 1/4″-20 Female
|
| Environmental Resistance |
No
|
| Material of Construction |
Plastic
|
| Dimensions |
7 x 4.4 x 0.8″ / 178.8 x 110.8 x 20.3 mm
|
| Weight |
16.05 oz / 455.00 g
|
