Overview
Raise your voice. High flexibility for those willing to go a step further. XS Wireless 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions. The XS Wireless 2 Vocal Set is an easy to use all-in-one Wireless system for singers and presenters featuring Sennheiser’s renowned evolution microphone capsule e835 (superior dynamic, cardioid) to perform under pressure. True Diversity receiver in a metal housing and rackmount kit included.
Features
- Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules
- True diversity receiver with metal housing
- External antennas
- Automatic frequency management and synchronization via
- remote channel for easy setup
- Fully tunable over a wide range of UHF frequencies
- Rackmount kit included
- Up to 12 compatible channels
In The Box

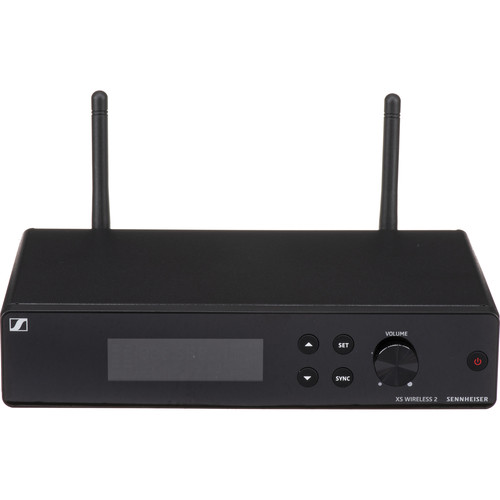

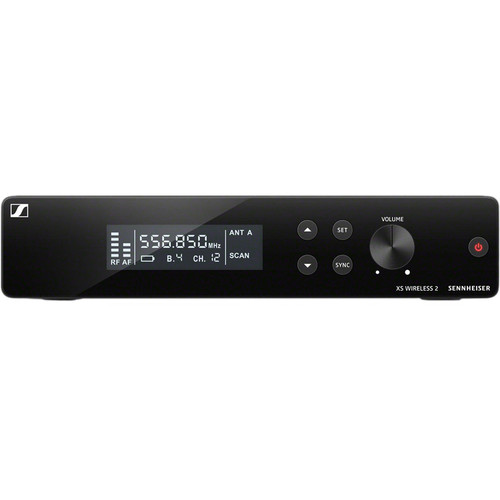

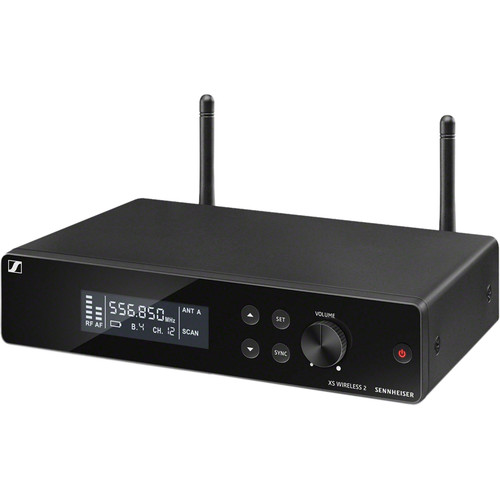

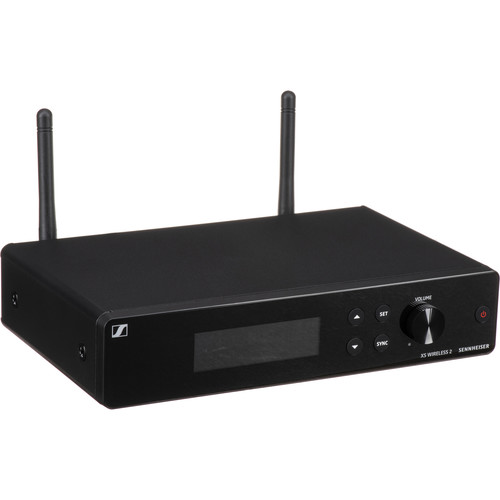

EM-XSW 2 Receiver

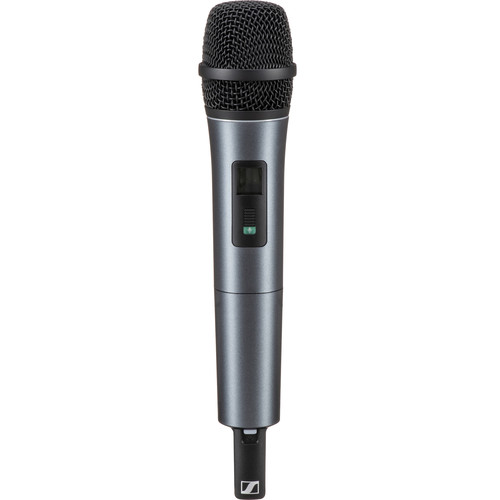

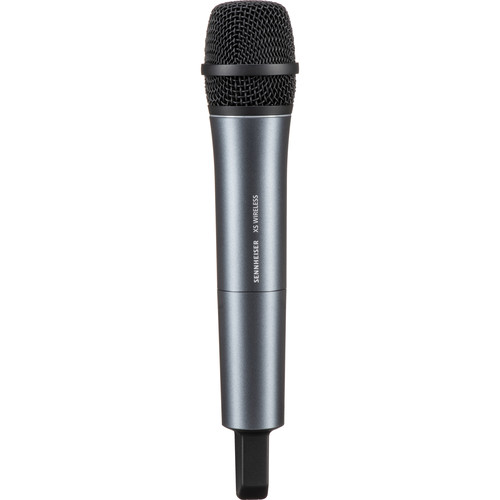

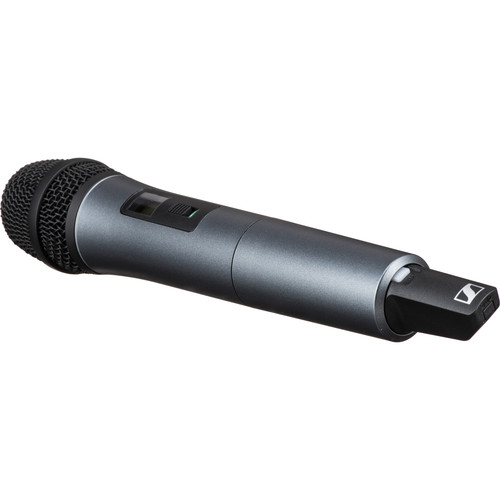

SKM 835-XSW Handheld Transmitter
Sennheiser MZQ1 Microphone Clamp
NT 12-5 CW Power Supply
Rackmount Kit
Protective Pouch
2 x AA Batteries
Limited 2-Year Manufacturer Warranty
Specifications
| Wireless Technology |
Analog UHF
|
| Included Transmitters |
1x Handheld
|
| Diversity |
Yes, True Diversity
|
| RF Frequency Band |
A:Â 548 to 572 MHz
|
| RF Bandwidth |
24 MHz
|
| Frequency Step Size |
25 kHz
|
| RF Channel Scanning |
Auto-Scan
|
| Max Operating Range |
100′ / 30.5Â m (Line of Sight)
|
| Max Transmitters per Band |
12
|
| Built-In Recorder |
No
|
| Timecode Support |
No
|
| Mobile App Compatible |
No
|
| Encryption |
No
|
| Modulation |
Wideband FM
|
| Receiver Type |
Tabletop / Rackmount
|
| Mounting Options |
Rackmount (with Included Hardware)
|
| Rackmount Size |
1 RU (1/2 Rack)
|
| Antenna |
2x Detachable BNC External (Rear-Mount)
|
| Number of Audio Channels |
1
|
| Audio I/O |
1x XLR 3-Pin Male Balanced Mic Output
1x 1/4″ TS Female Unbalanced Output |
| Gain Range |
40 dB (5 dB Steps)
|
| Frequency Response |
50 Hz to 16 kHz
|
| Network I/O |
No
|
| Word Clock I/O |
No
|
| USB/Lightning Connectivity |
No
|
| USB Class-Compliant |
No USB Connectivity
|
| Power Requirements |
AC/DC Power Adapter
|
| AC/DC Power Adapter |
VDC Included
|
| DC Input Power |
12 VDC at 300mA
|
| Display & Indicators |
1x LCD (AF Level, Frequency, Group, Level)
|
| Housing |
Metal
|
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Dimensions |
7.9 x 1.7 x 5″ / 200 x 42 x 127Â mm
|
| Weight |
24Â oz / 680Â g
|
| Transmitter Type |
Handheld
|
| RF Output Power |
10 mW
|
| Audio I/O |
No
|
| Pad |
No
|
| Muting |
Off/On Switch
|
| Auto-Level/Gain |
No
|
| Frequency Response |
80 Hz to 16 kHz
|
| Sync Method |
2.4 GHz QPSK
|
| Antenna |
1x Internal
|
| Approximate RF Sensitivity |
1.5 mV/PA
|
| Power Requirements |
Battery
|
| Battery Type |
2x AA (Included)
|
| Display & Indicators |
1x LCD (Battery Status, Channel, Power)
|
| Housing |
ABS
|
| Microphone Type |
Handheld
|
| Color |
Black
|
| Sound Field |
Mono
|
| Capsule |
Dynamic
|
| Polar Pattern |
Cardioid
|
| Frequency Range |
80 Hz to 14 kHz
|
| Sensitivity |
1.5 mV/Pa
|
| Length |
10.2″ / 260Â mm
|
| Diameter |
2.0″ / 50Â mm
|
| Weight |
8.6Â oz / 245Â g
|
