Sennheiser EW-DP ENG Set (R1-6) – Camera-Mount Digital Wireless Combo Microphone System
€742.00 excl. BTW
- Creators, Videographers, Newsgatherers
- ME 2 Omni Lav Mic/Bodypack Transmitter
- Plug-On Transmitter/Recorder, +48V
- True-Diversity Camera-Mount Receiver
- Pro Features with Fast & Easy Setup
- 134 dB of Dynamic Range, 24-Bit Audio
- 56 MHz Bandwidth, Equidistant Grid
- Setup/Operate from Phone via Bluetooth
- Battery: 12-Hr Transmitter/7-Hr Receiver
- Expandable to 58 Mic Channels/330′ Range
External warehouse, approximately 10 days or more
Overview
Using the stable and reliable UHF connection, the EW-DP digital wireless microphone system gives filmmakers professional quality audio without the complexity. It’s the perfect choice for those looking to upgrade to a portable wireless system that offers superior range and more reliable connectivity than 2.4 GHz systems. Building on Sennheiser’s extensive knowledge amassed from decades of wireless audio excellence, EW-DP features an industry-leading 134 dB dynamic range, allowing you to capture detailed, realistic, and distortion-free audio. EW-DP puts time on your side. With up to 56 MHz bandwidth, it’s quick and easy to find a clean and interference-free channel. The long-lasting, exchangeable batteries allow for extended, worry-free filming sessions, and the screen shows remaining operating time for peace of mind. Plus, the thoughtfully engineered cheese plate allows for versatile attachment to your camera via cold shoe or mounting bolts. And mounting the receiver to the cheese plate takes less than a second. Simply place the receiver onto the cheese plate and magnets hold it securely in place. The EW-DP ENG Set includes both the SK bodypack transmitter with an ME 2 omnidirectional lavalier as well as the SKP plug-on transmitter for the most flexibility of any EW-DP system.
In The Box

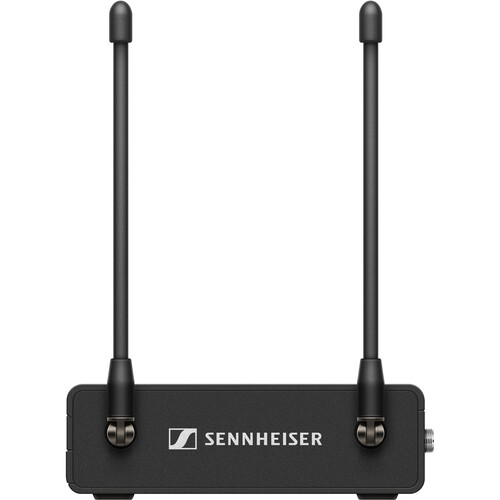

Sennheiser EW-DP EK Camera-Mount Digital Wireless Receiver (R1-6: 520 to 576 MHz)

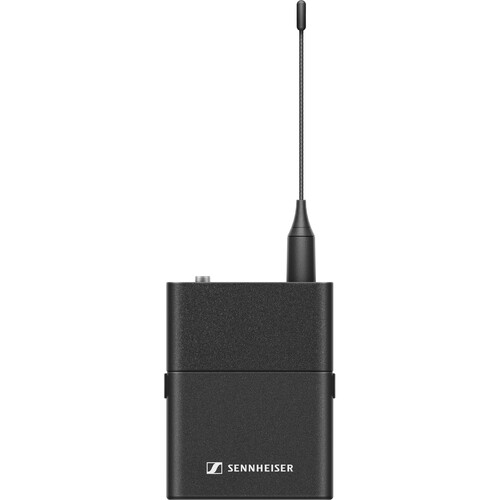

Sennheiser EW-D SK Digital Wireless Bodypack Transmitter (R1-6: 520 to 576 MHz)

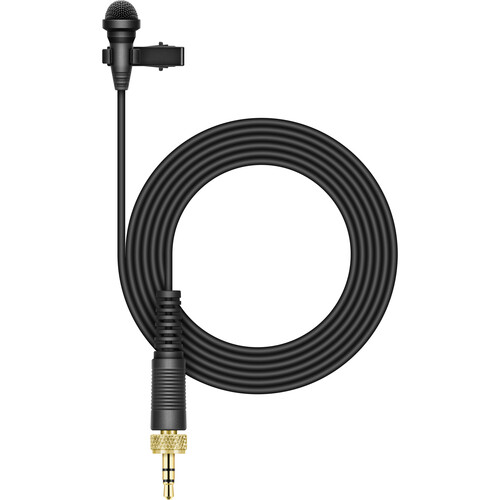

Sennheiser ME 2 Omnidirectional Lavalier Microphone with Locking 3.5mm Connector (Black)

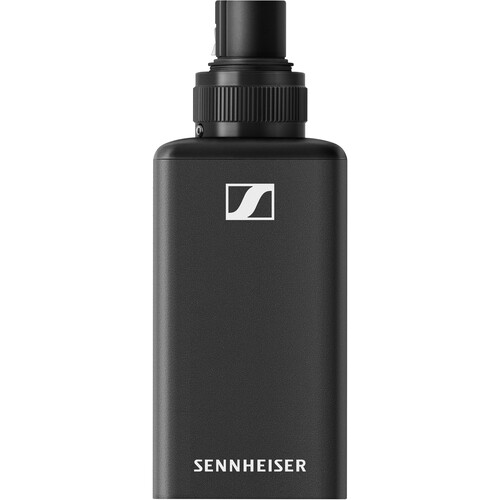

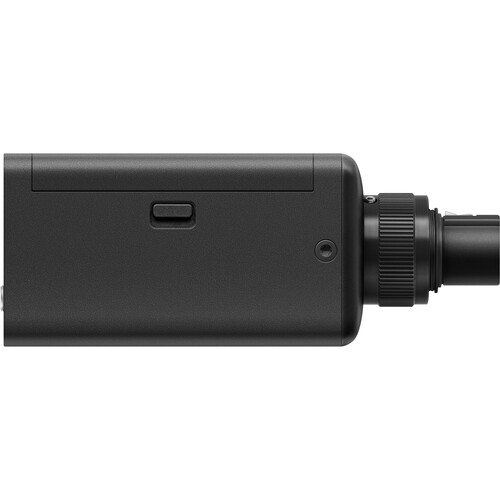

Sennheiser EW-DP SKP Digital Plug-On Wireless Transmitter/Recorder (R1-6: 520 to 576 MHz)

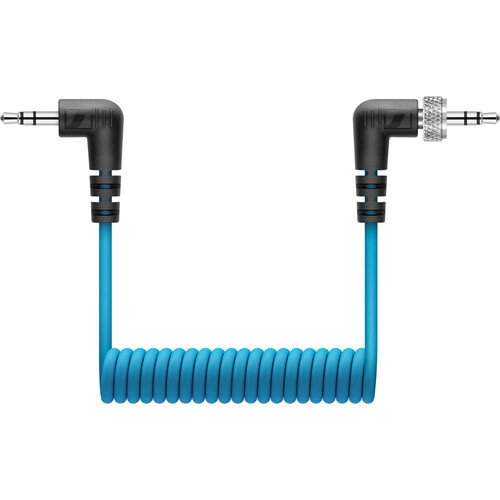

Sennheiser CL 35 TRS Locking 3.5mm TRS to 3.5mm TRS Coiled Cable

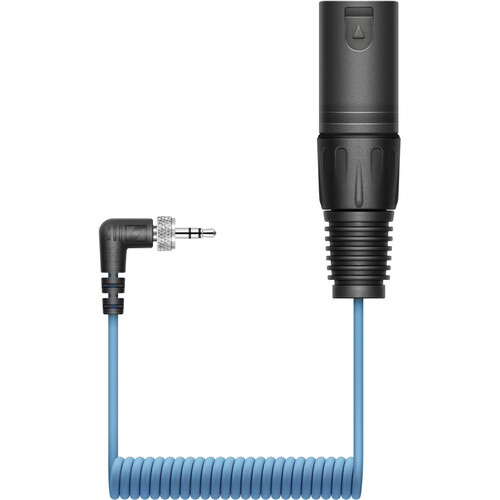

Sennheiser CL 35-XLR Right-Angle Locking 3.5mm TRS to XLR Male Coiled Output Cable

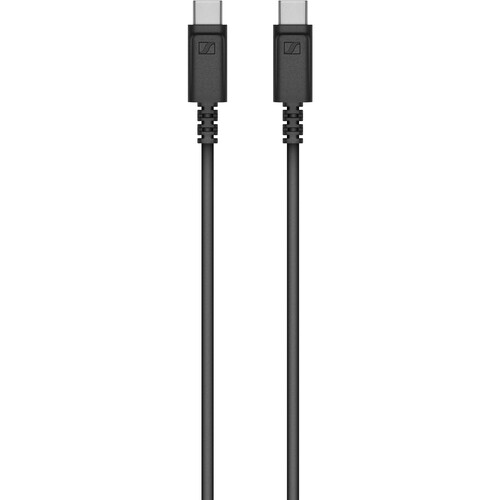

USB-C Charging Cable

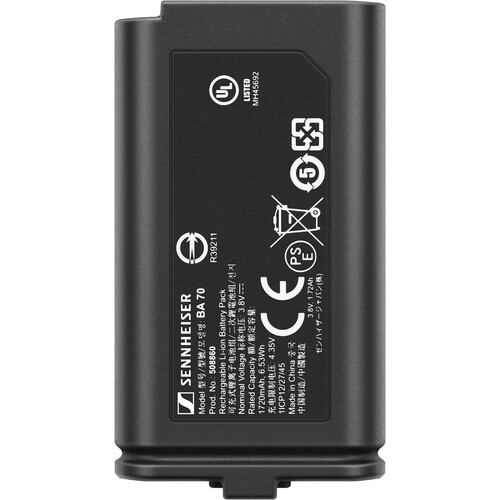

Sennheiser BA 70 Rechargeable Battery Pack for EW-D Bodypack and Handheld Transmitters
2 x AA Battery

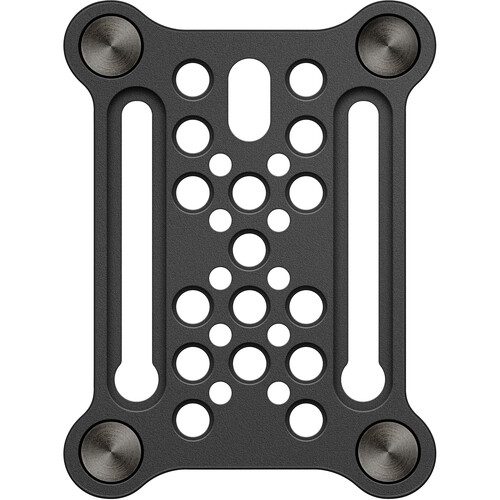

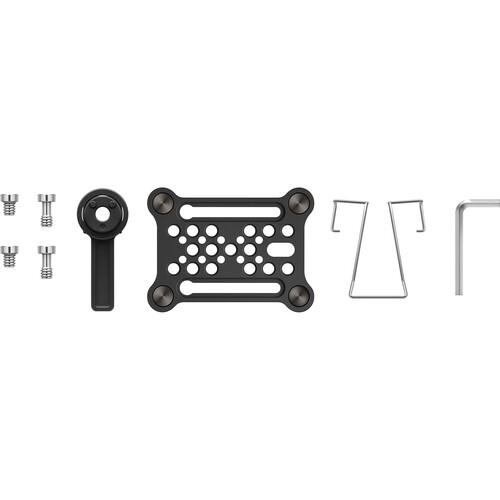

Mounting Kit (Cheeseplate, Cold Shoe, Beltclip, Screws)
Specifications
| Diversity |
Diversity
|
| RF Frequency Band |
520 to 576 MHz
|
| Number of RF Channel Frequencies |
2240
|
| RF Channel Scanning |
Auto-Scan
|
| Max Operating Range |
328.1′ / 100Â m (Line of Sight)
|
| Max Transmitters per Band |
58
|
| Dynamic Range |
134 dB
|
| Latency |
1.9 ms
|
| Encryption |
No
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Sennheiser Smart Assist Functionality: Adjust Settings, Remote Control, Setup |
| Antenna |
2x Fixed 1/4 Wave Rod
|
| Number of Audio Channels |
1
|
| Network I/O |
No
|
| Word Clock I/O |
No
|
| USB/Lightning Connectivity |
1x USB-C Female (Bus Power, Charging)
|
| USB Class-Compliant |
No
|
| Frequency Response |
20 Hz to 20 kHz ±3 dB
|
| Power Requirements |
Battery, Bus Power (USB)
|
| Included Transmitters |
1x Bodypack
1x Plug-On |
| RF Output Power |
10 mW (ERP)
Up to 10 mW (EIRP) |
| Muting |
Mute Switch
|
| Auto-Level/Gain |
No
|
| Frequency Response |
20 Hz to 20 kHz
|
| Sync Method |
Bluetooth
|
| Cable Length |
5.2′ / 1.6Â m
|
| Color |
Black
|
| Receiver Battery Life |
7 Hours
|
| Transmitter Battery Life |
8 Hours (Alkaline)
12 Hours (Sennheiser Battery Pack) |
