Overview

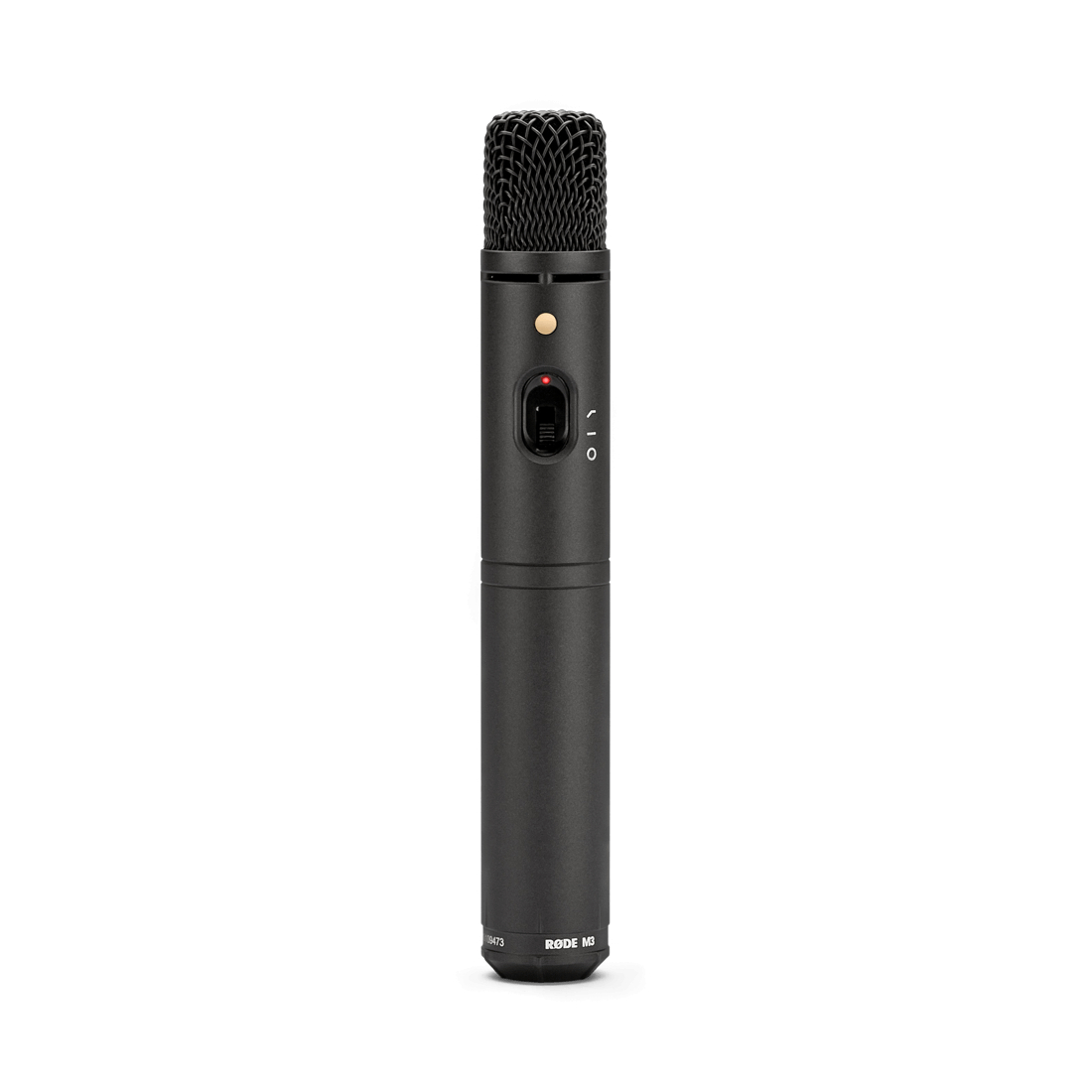

The M3 highly versatile end-address condenser microphone is designed to excel in a wide variety of recording situations in the studio, on stage or on location. Featuring an internally shock-mounted 1/2-inch condenser capsule, the M3 can either be powered by P48 phantom power or an internal 9V battery. It offers the versatility of a selectable pad (-10dB, -20dB) and high-pass filter (80Hz), making it ideal for recording everything from electric guitar to vocals to drums.
Features
- Versatile end-address condenser microphone
- Cardioid polar pattern
- Robust, all-metal body
- Selectable pad (-10dB, -20dB) and high-pass filter (80Hz)
Included
- RODE M3 Versatile End-Address Condenser Microphone
- RODE Stand Mount for NT3, 4, and Other Condenser Microphones

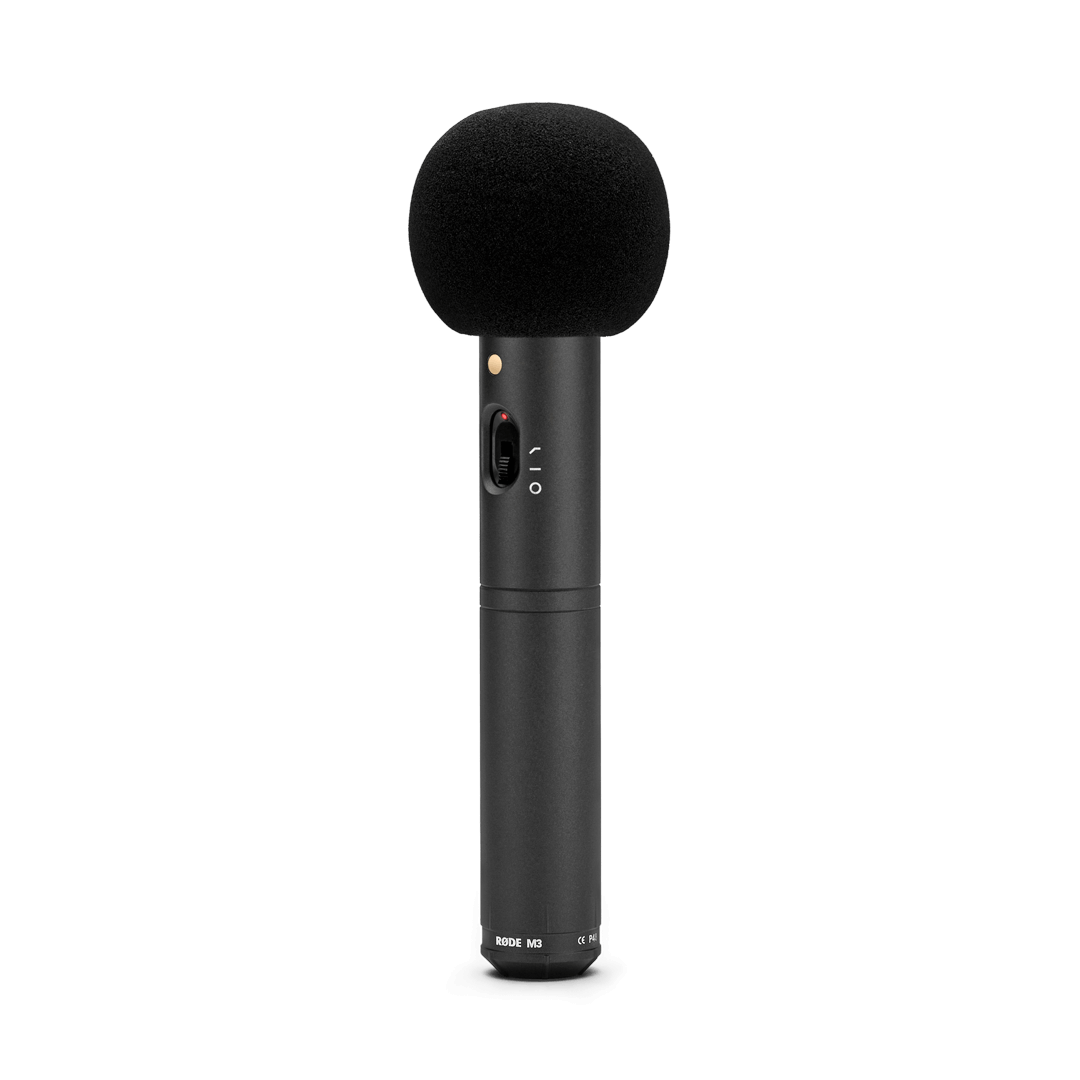

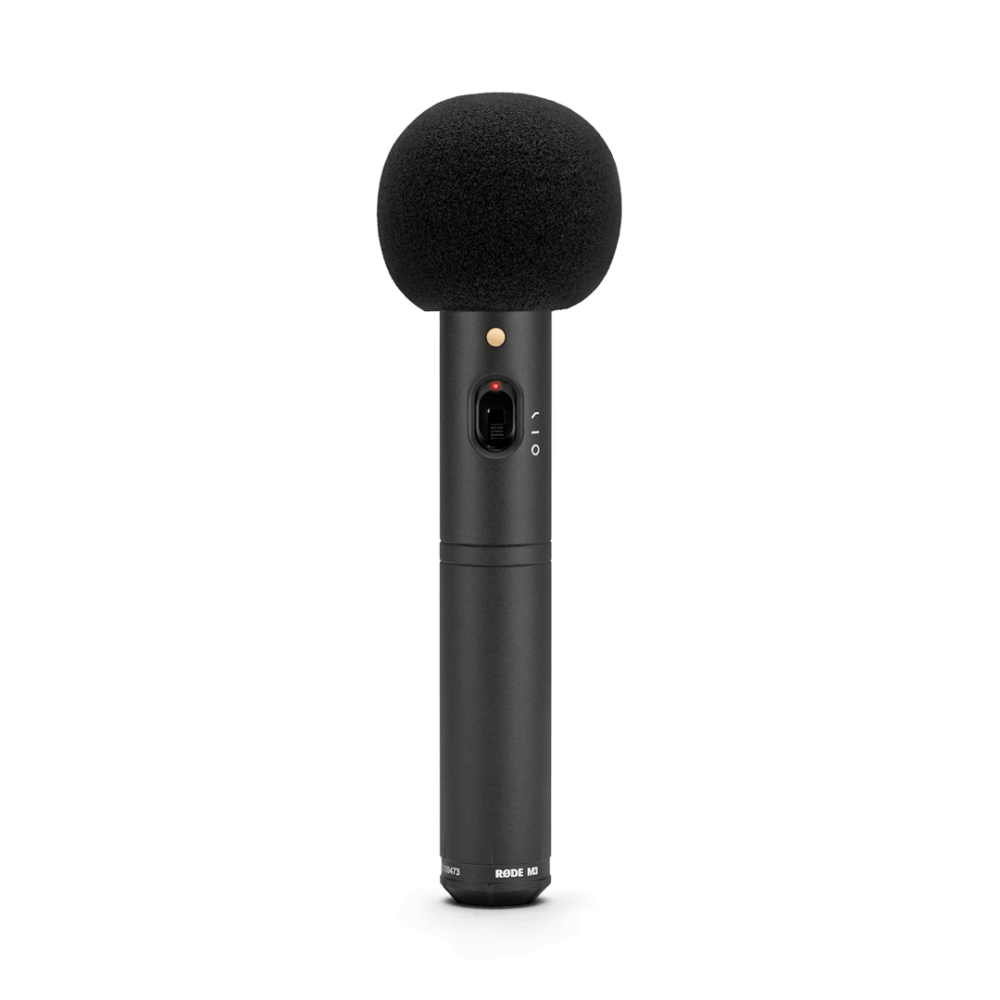

- WSM3 Windscreen
- RODE ZP1 Zip Pouch
- Limited 10-Year Manufacturer Warranty
Specifications
| Microphone Type |
Small Diaphragm
|
| Polar Pattern |
Cardioid
|
| Element Type |
Condenser
|
| Sound Field |
Mono
|
| Diaphragm |
0.5″ / 12.7 mm
|
| Orientation |
End Address
|
| Controls |
Low Cut/HPF
|
| Pad |
-10 dB
-20 dB |
| Filter & EQ |
Low-Cut Filter: 80 Hz
|
| Circuitry |
Solid-State
|
| Frequency Response |
40 Hz to 20 kHz
|
| Maximum SPL |
142 dB
|
| Sensitivity |
-40 dB
|
| Equivalent Noise Level |
21 dB (A-Weighted)
|
| Analog Output |
1x XLR 3-Pin
|
| Power Sources |
Battery / Phantom Power
|
| Operating Voltage |
24 to 48 V (Phantom Power)
V () |
| Color |
Black
|
| Dimensions |
ø: 1.3 x L: 8.86″ / ø: 33 x L: 225 mm
|
| Weight |
0.86 lb / 390 g
|
| Package Weight |
1.56 lb
|
| Box Dimensions (LxWxH) |
10.9 x 5.2 x 3.05″
|
