Full Metal Shell | No Black Borders | Classic Polaroid Orientation
The existing NIB-H1 is a plug-and-play alternative to the original Hasselblad film magazine.
H1P + NONS Viewfinder Frame Spacer + NONS Focus Range Converter
NVFS is essential, NFRC is optional. Without the NFRC, the lens cannot focus to infinity but is ideal for portraits (see Appendix for distances).
Important: Your existing focusing screen must be removed and installed into the NVFS. The focusing screen is not supplied.
NFRC mount tip: Check the rear of your lens cap or message us via the chat icon (bottom right).
Both NVFS and NFRC are sold separately.
Confirmed available models:
- 500CM
- 501C, 501CM
- 503CX, 503CXi, 503CW
- 2000 FCM
Confirmed NOT available models:
- SWC, SWC/M, 903SWC
- EL series, including 500ELM, 553ELX
- Flexbody
- Prism Finders, including NC2, PME5, PME51 Finder
Other models are not confirmed. We cannot guarantee the availability.
Specifications
- Mechanical dimension: 124 x 117 x 50 mm (width x height x depth)
- Weight: 550 g
- Power supply: 1800 mAh Li-Poly battery (To maintain battery health during storage, we strongly recommend fully charging the product at least once every three months)
- Input: DC 5V, 1A
- Film: Fujifilm instax square film, ISO 800
- Film size: 72 x 86 mm (width x height)
- Picture size: 62 x 62 mm (width x height)
- NFRC filter size: B60, 67 mm; B50, 62 mm
In the box
- NONS Instant Back – H1P (NIB-H1P)
- Stainless Dark Slide for H1P
- USB Type-A to Type-C cable
- NONS Viewfinder Frame Spacer (NVFS)
- NONS Focus Range Converter (NFRC)
Appendix
- Kiev 88 – not available

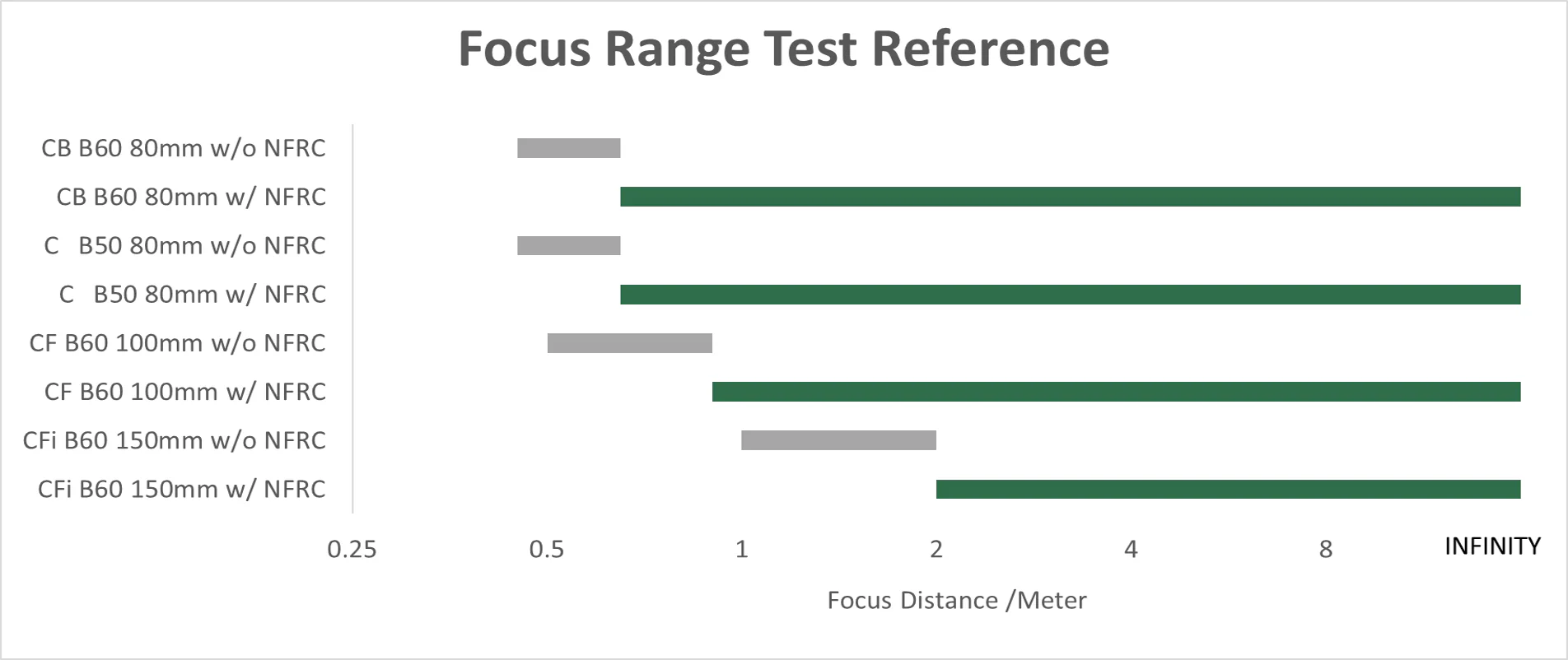

- Focus Range of specific lenses. The Focus Range Test Reference contains manually measured values intended for reference purposes only. Accuracy is not guaranteed.
*For example, the first row indicates the focus range of a CB 80mm lens. It shows the closest and farthest focus distance is from about 0.45 to 0.65 meter (grey bar).
The second row indicates the same lens mounted the NFRC then it can focus from about 0.65 meter to the infinity (green bar).
