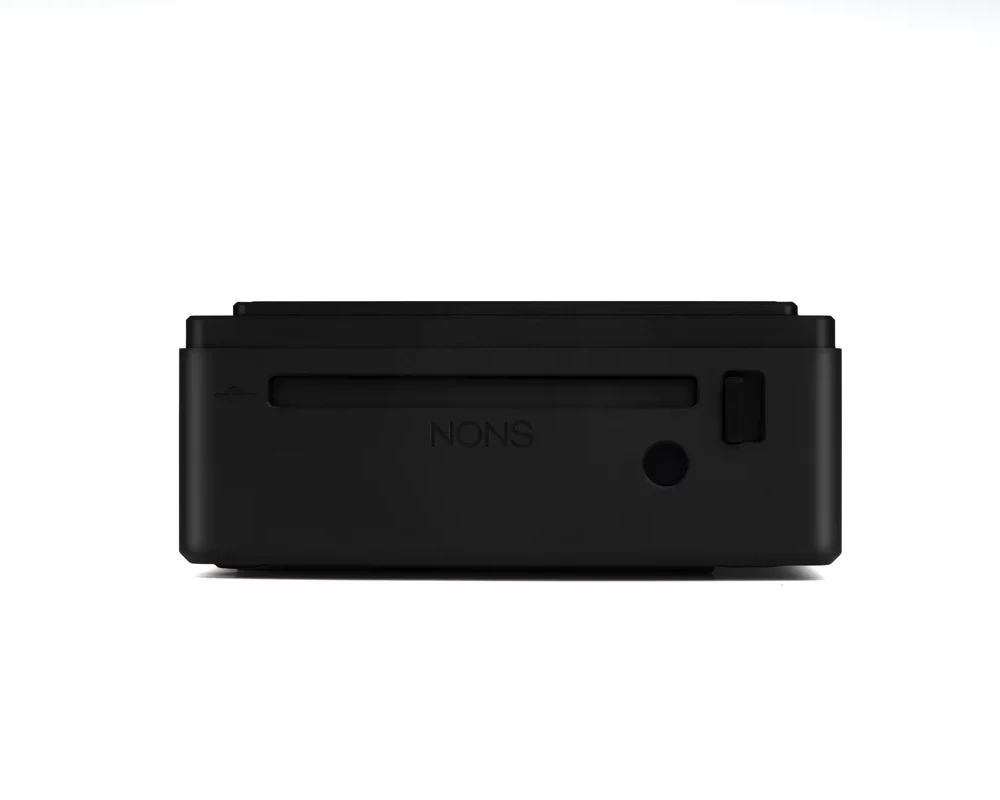

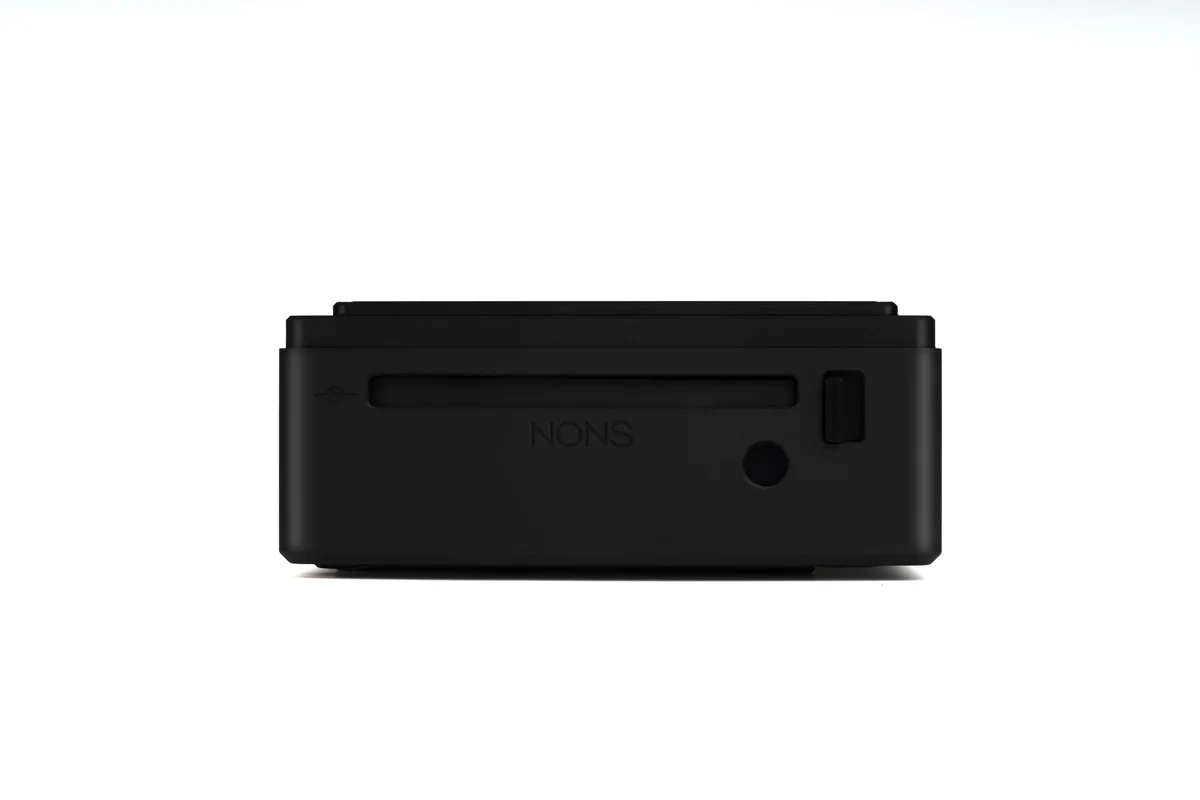

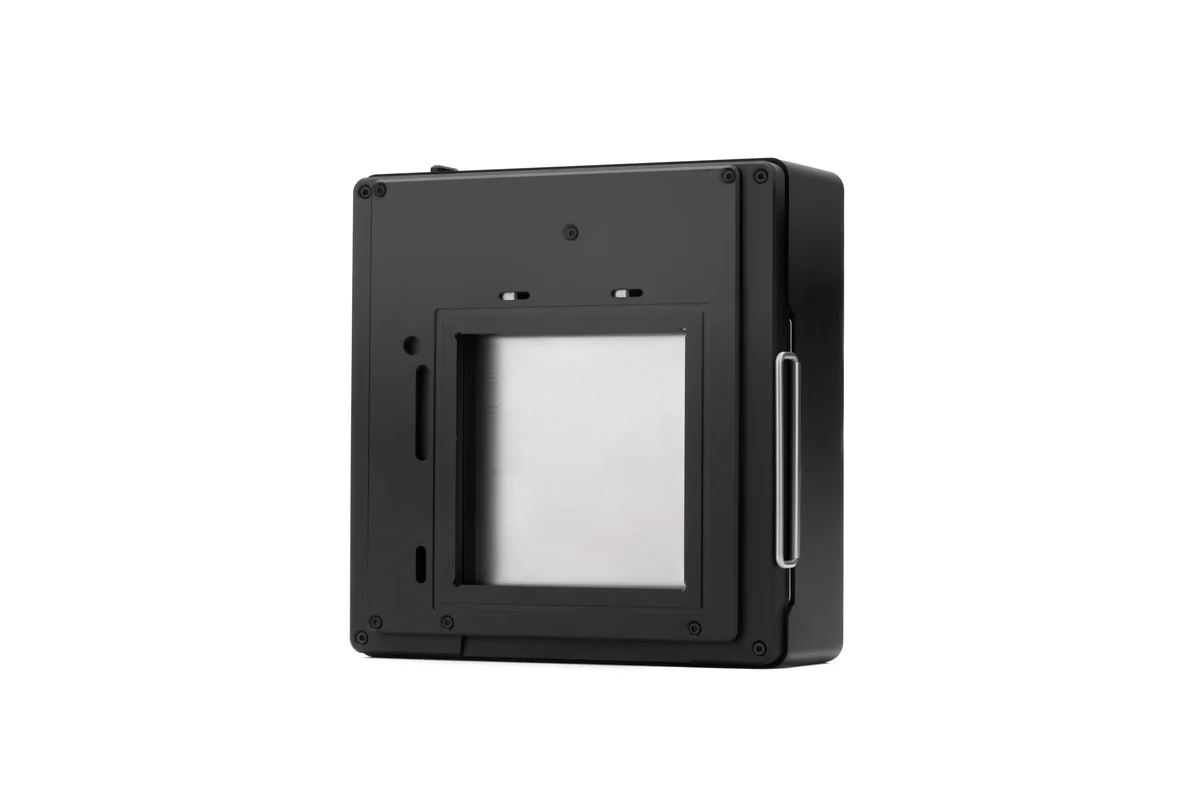

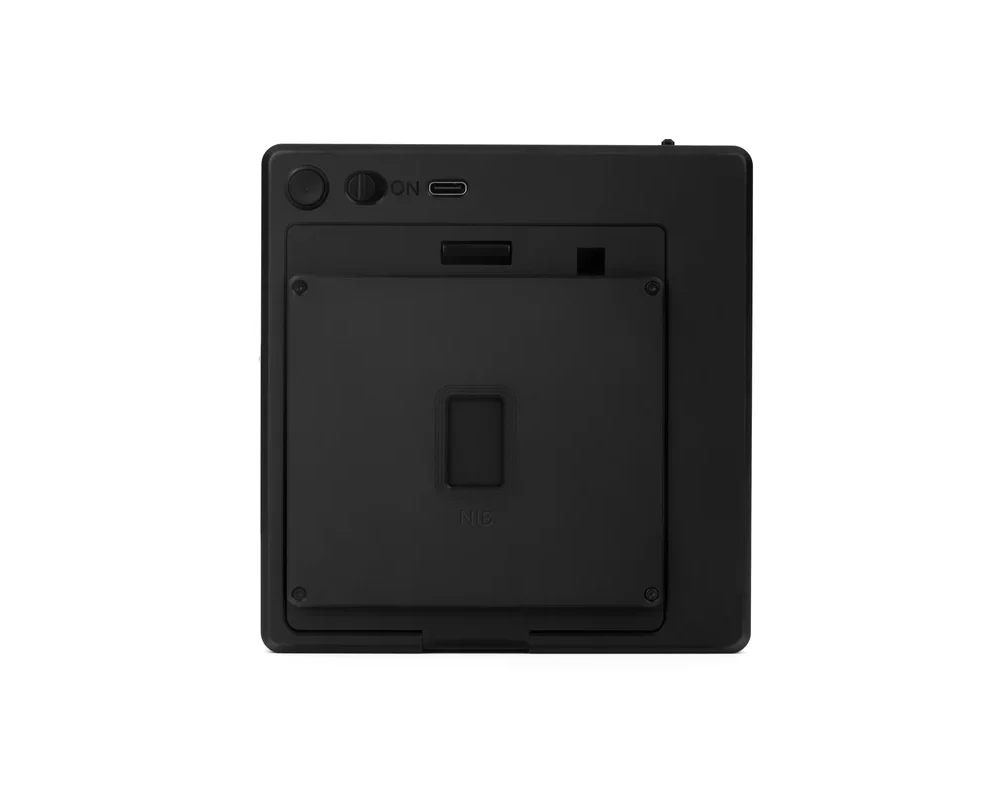

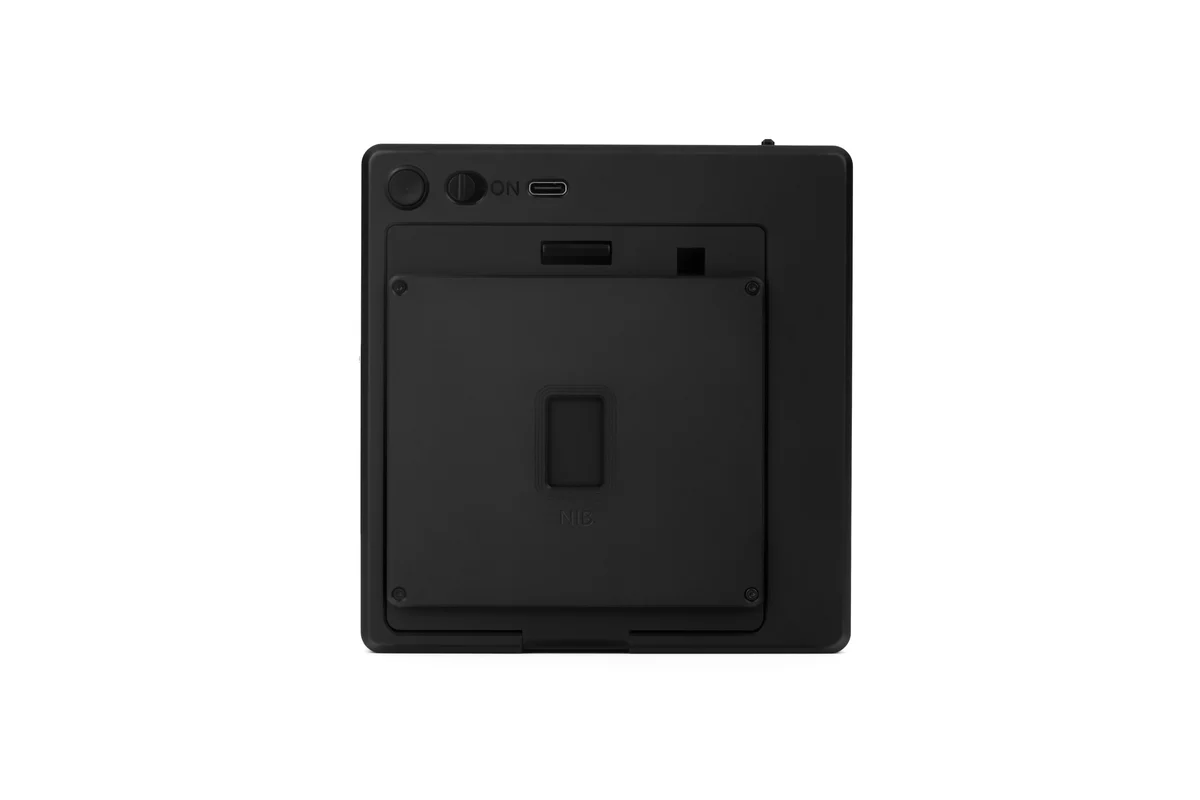

NONS Instant Back – H1P for Lens Front Mount for B50 Lens Front

Full Metal Shell | No Black Borders | Classic Polaroid Orientation

The existing NIB-H1 is a plug-and-play alternative to the original Hasselblad film magazine.

Important: Your existing focusing screen must be removed and installed into the NVFS. The focusing screen is not supplied.

NFRC mount tip: Check the rear of your lens cap or message us via the chat icon (bottom right).

Both NVFS and NFRC are sold separately.

Confirmed available models:

• 500CM
• 501C, 501CM
• 503CX, 503CXi, 503CW
• 2000 FCM

Confirmed NOT available models:

• SWC, SWC/M, 903SWC
• EL series, including 500ELM, 553ELX
• Flexbody
• Prism Finders, including NC2, PME5, PME51 Finder

Other models are not confirmed. We cannot guarantee the availability.

Specifications

• Mechanical dimension: 124 x 117 x 50 mm (width x height x depth)
• Weight: 550 g
• Power supply: 1800 mAh Li-Poly battery (To maintain battery health during storage, we strongly recommend fully charging the product at least once every three months)
• Input: DC 5V, 1A
• Film: Fujifilm instax square film, ISO 800
• Film size: 72 x 86 mm (width x height)
• Picture size: 62 x 62 mm (width x height)
• NFRC filter size: B60, 67 mm; B50, 62 mm

In the box

• NONS Instant Back – H1P (NIB-H1P)
• Stainless Dark Slide for H1P
• USB Type-A to Type-C cable

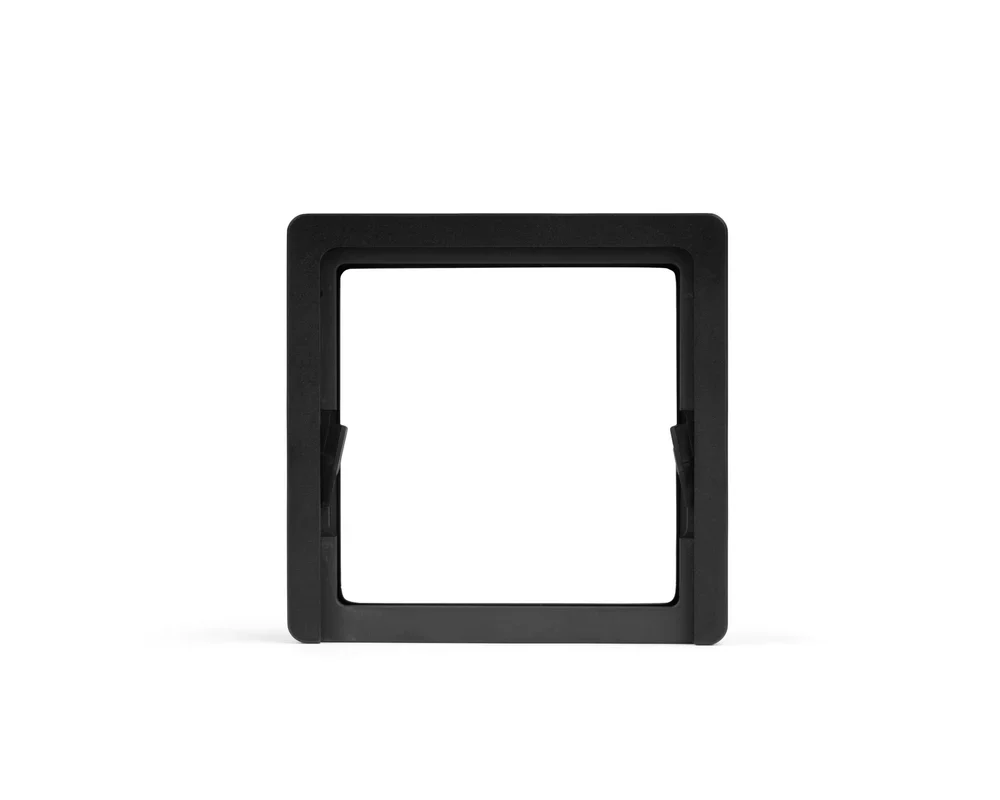

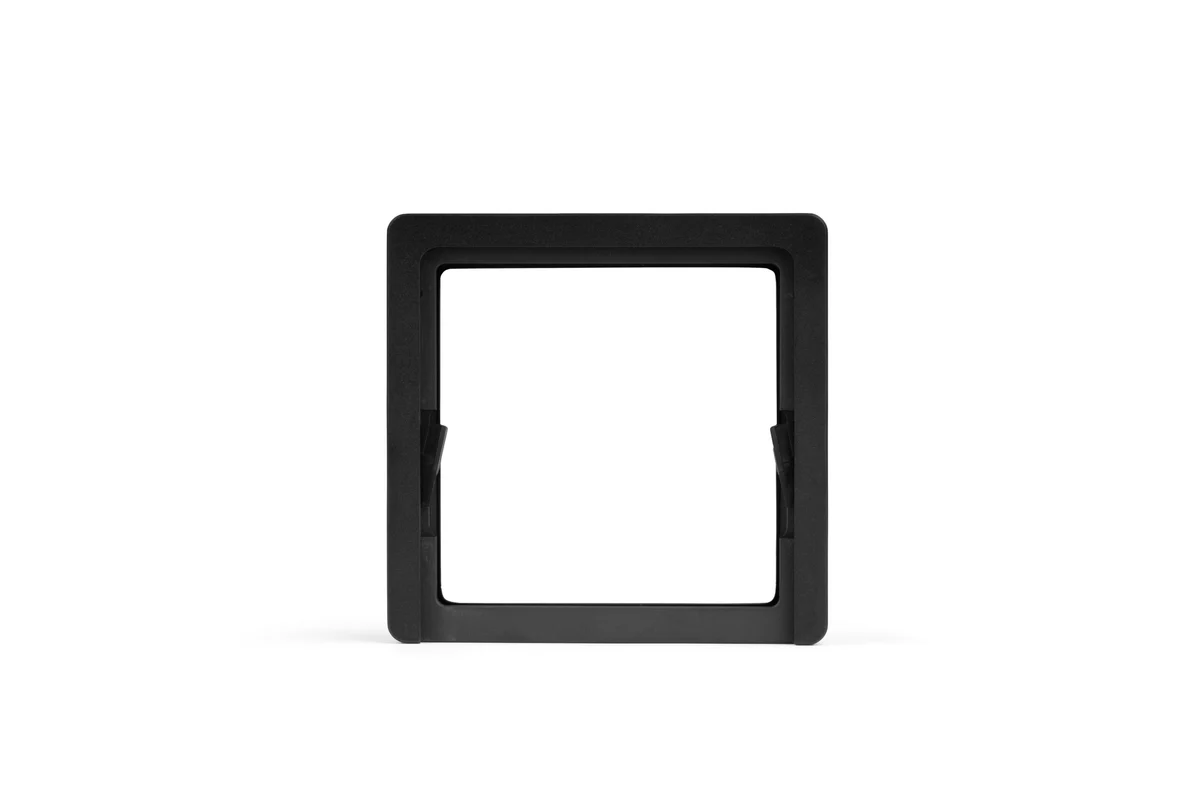

• NONS Viewfinder Frame Spacer (NVFS)

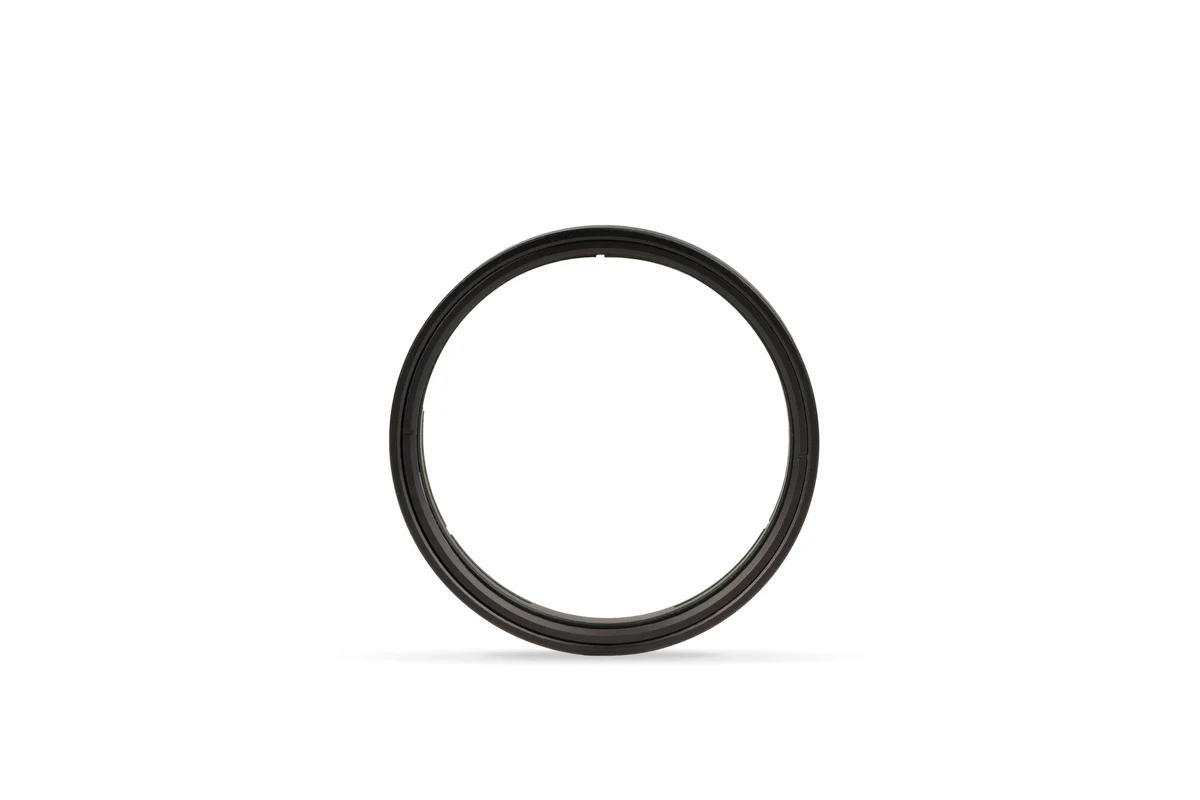

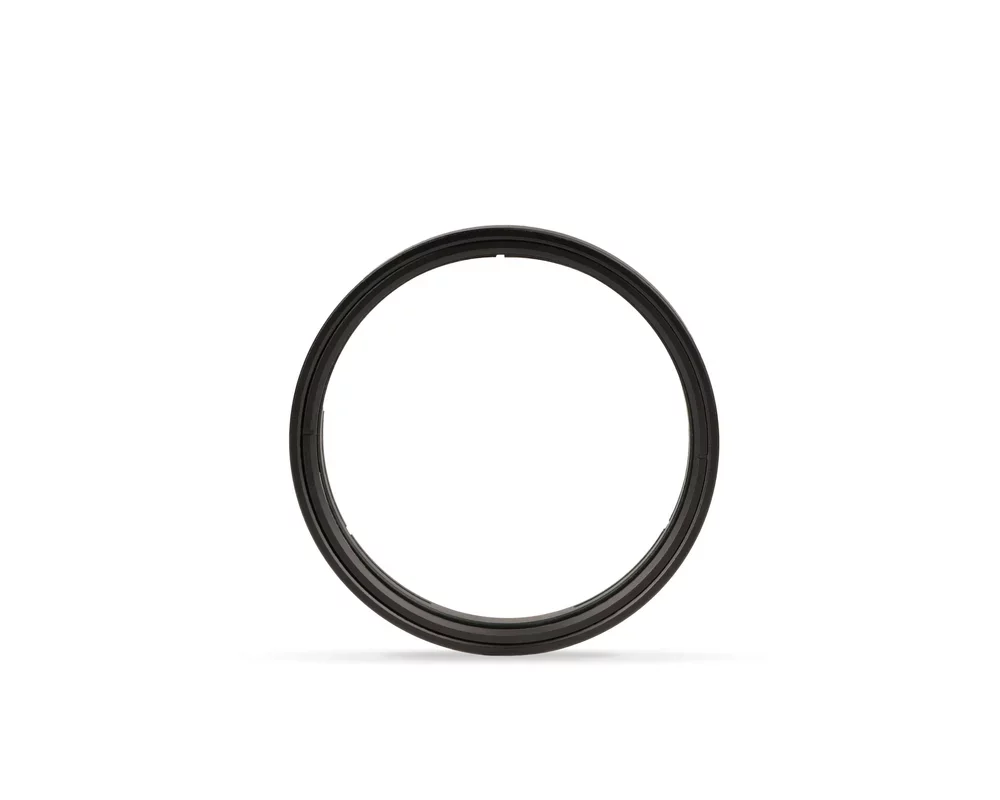

• NONS Focus Range Converter (NFRC)

Appendix

• Kiev 88 – not available
• Focus Range of specific lenses. The Focus Range Test Reference contains manually measured values intended for reference purposes only. Accuracy is not guaranteed.
