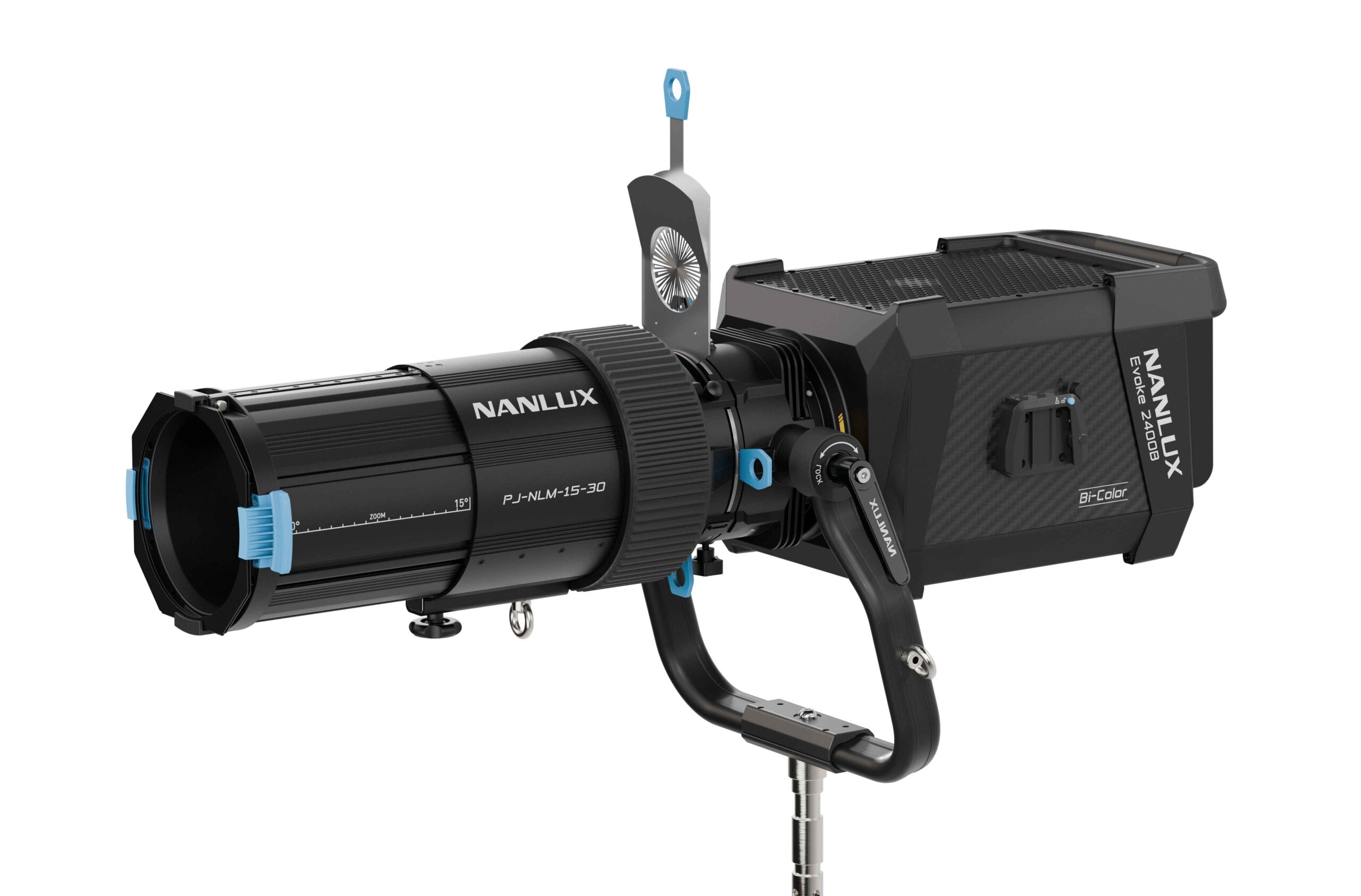

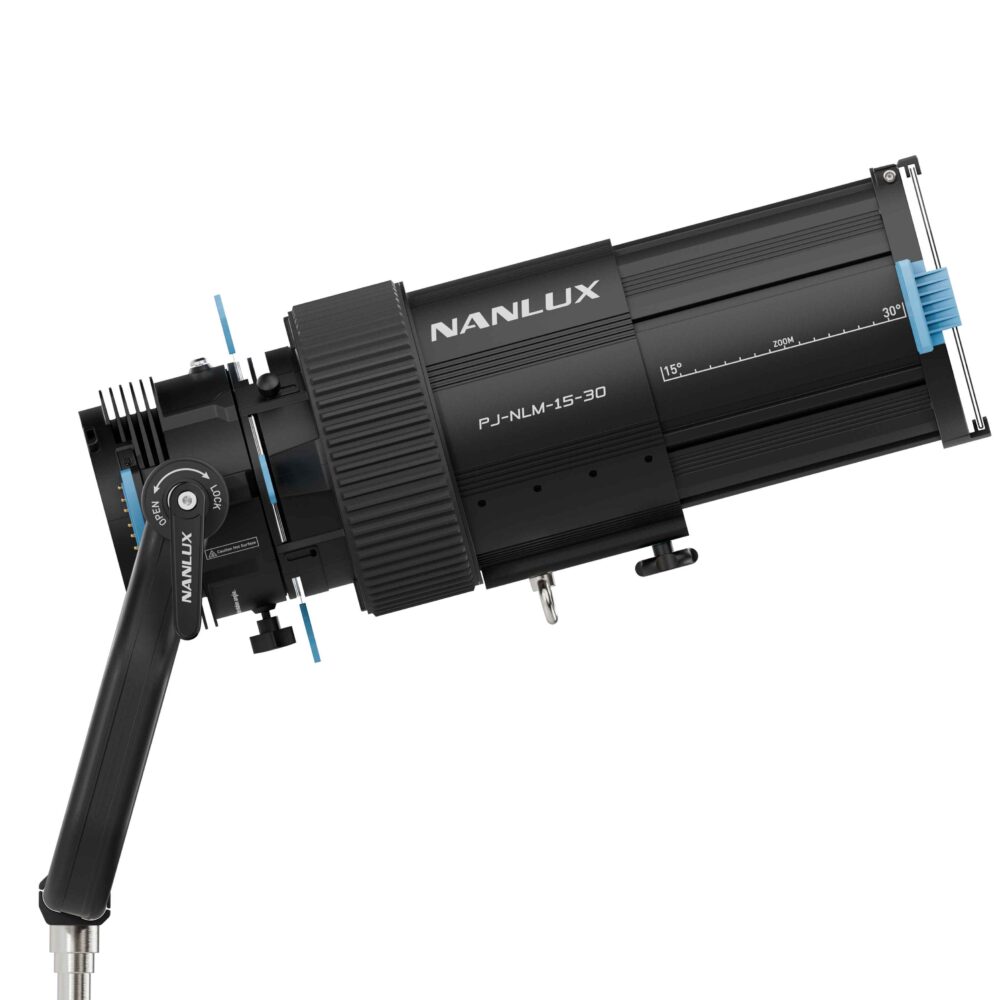

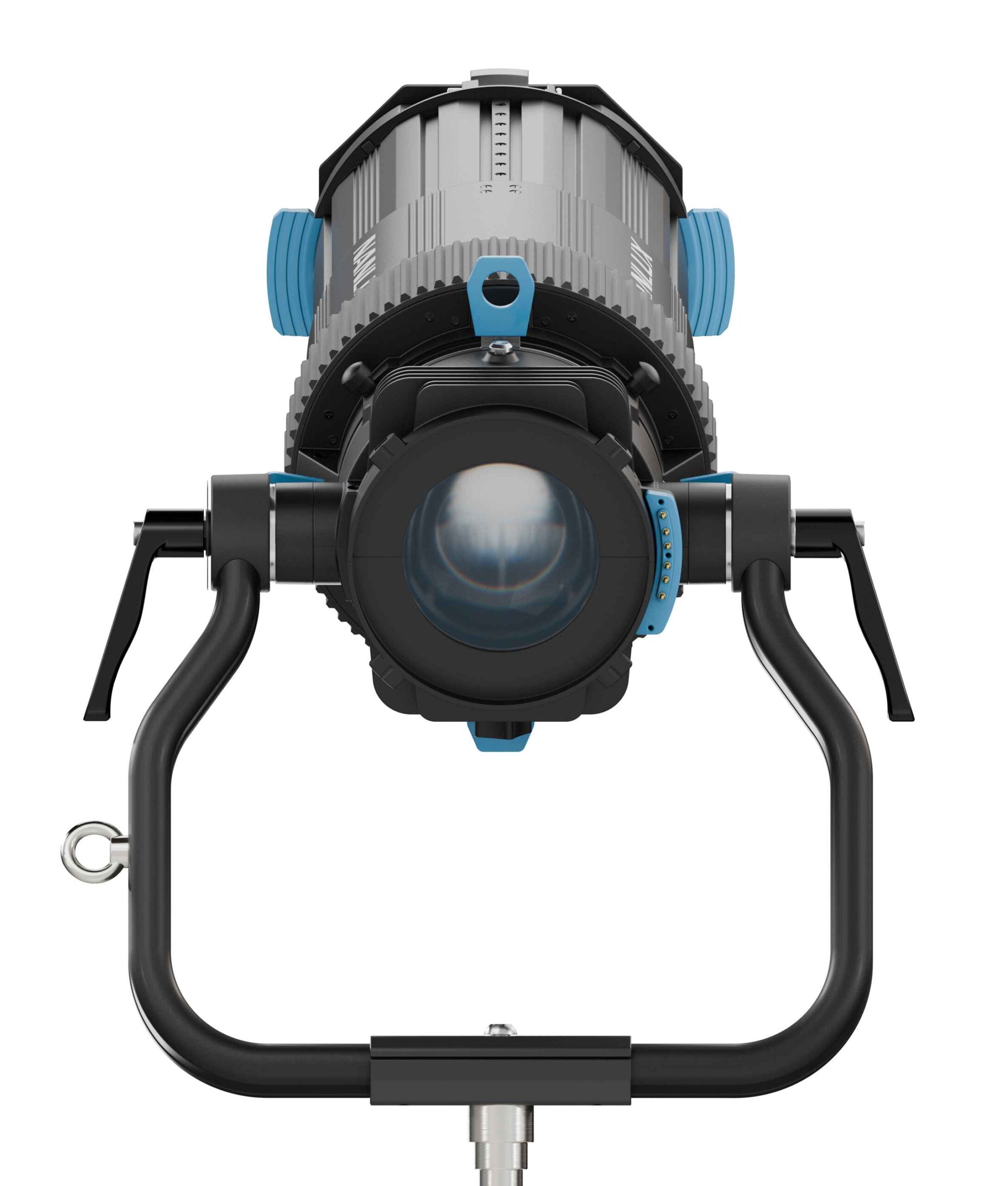

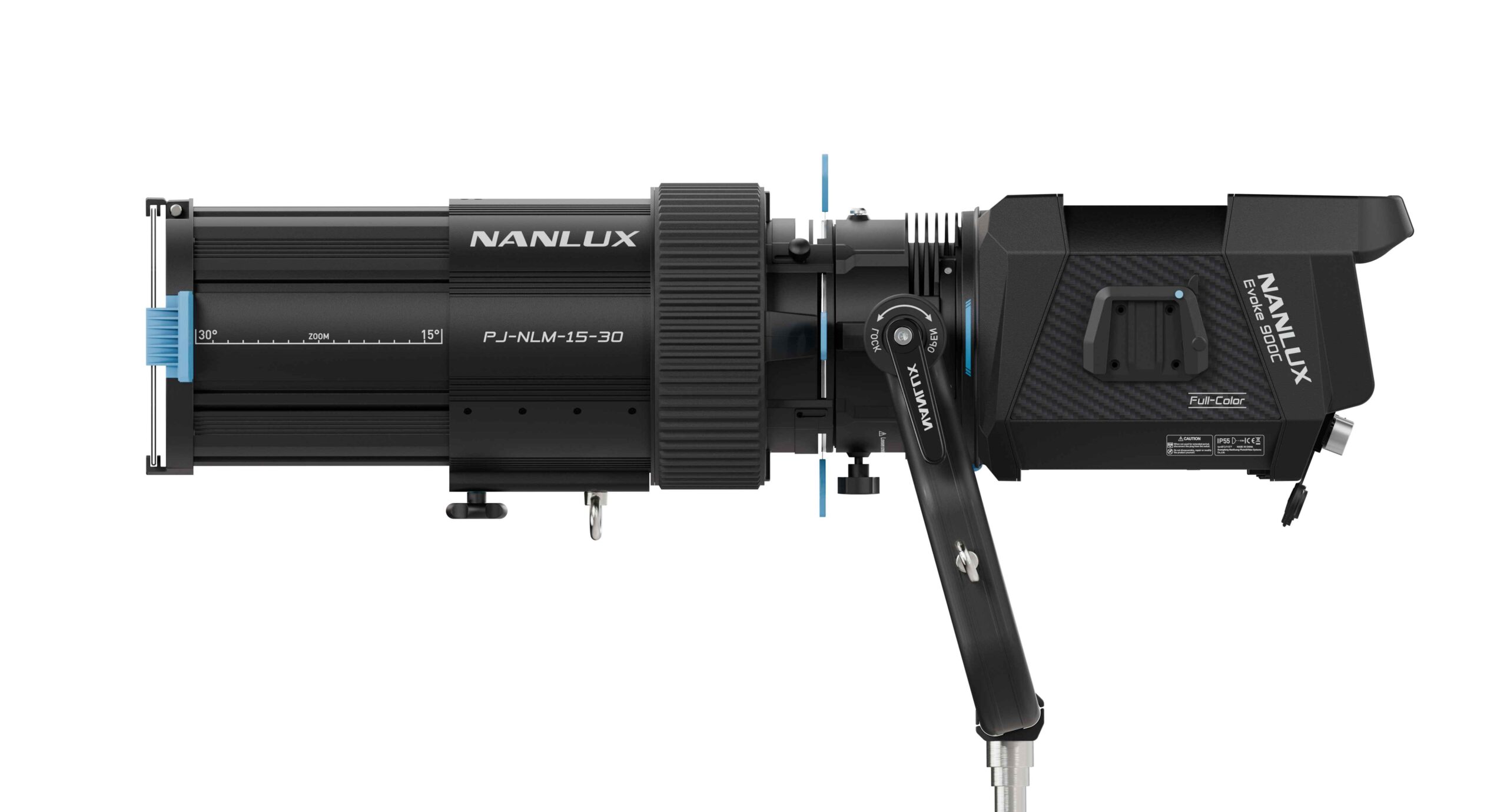

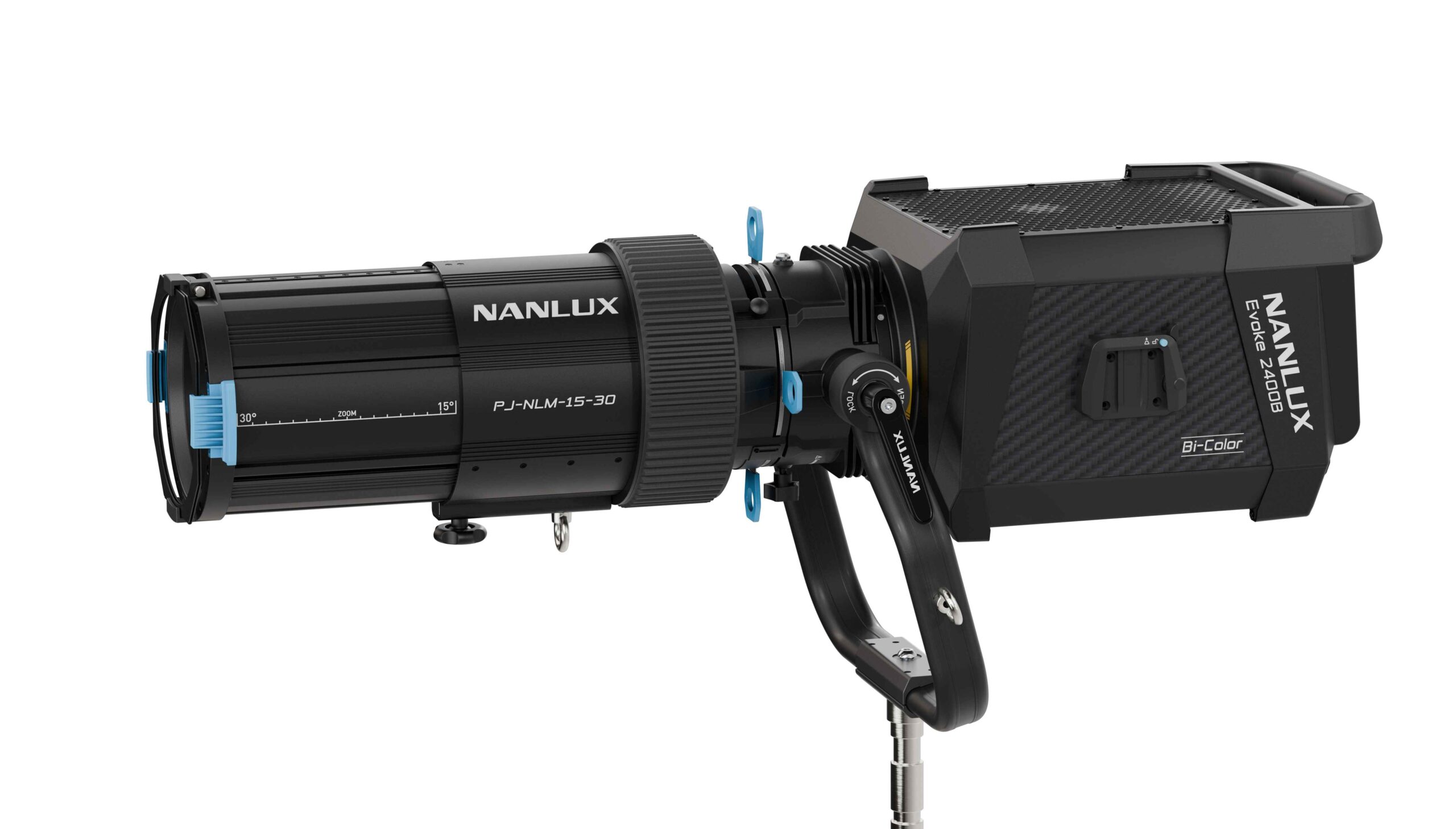

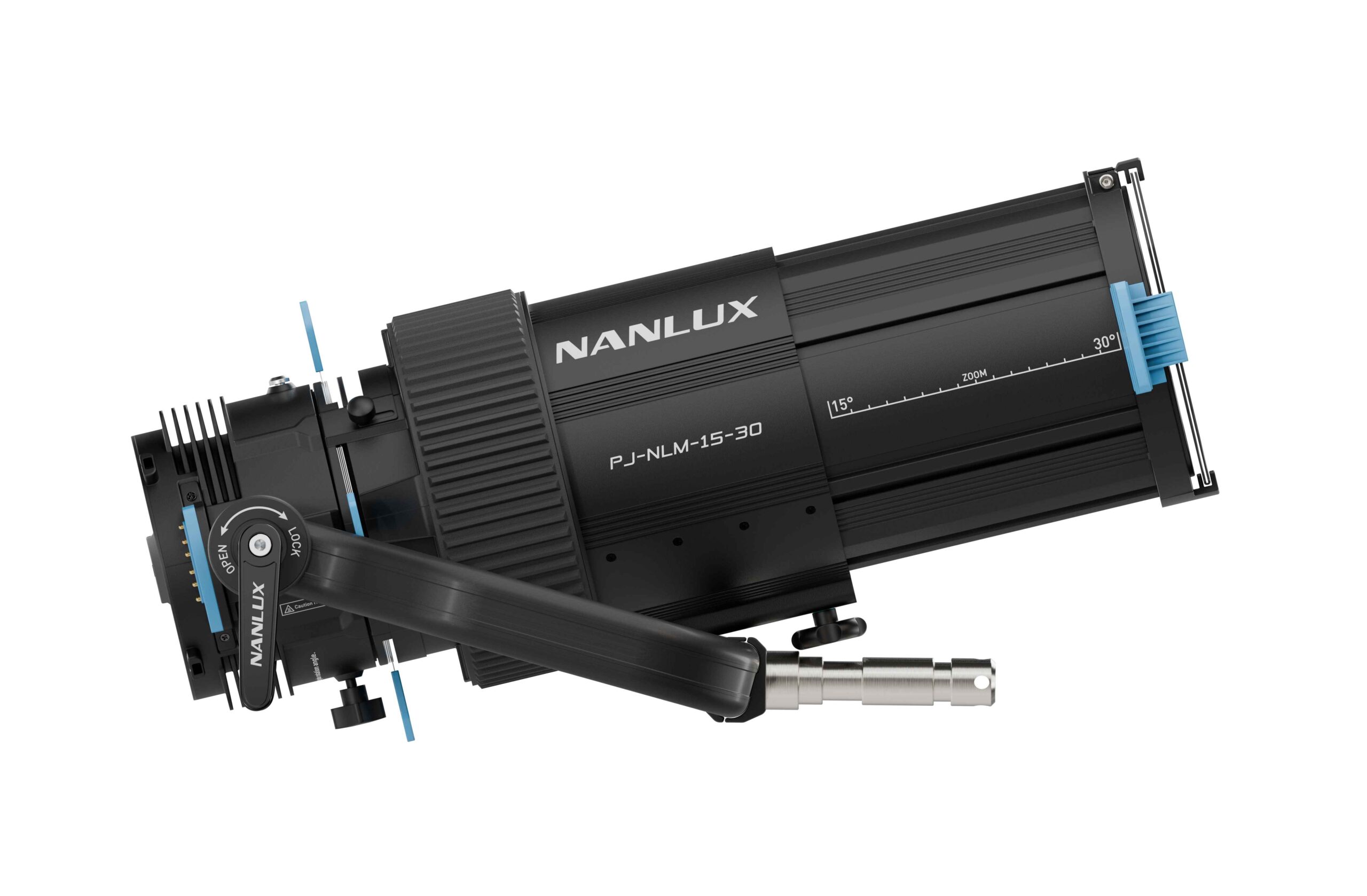

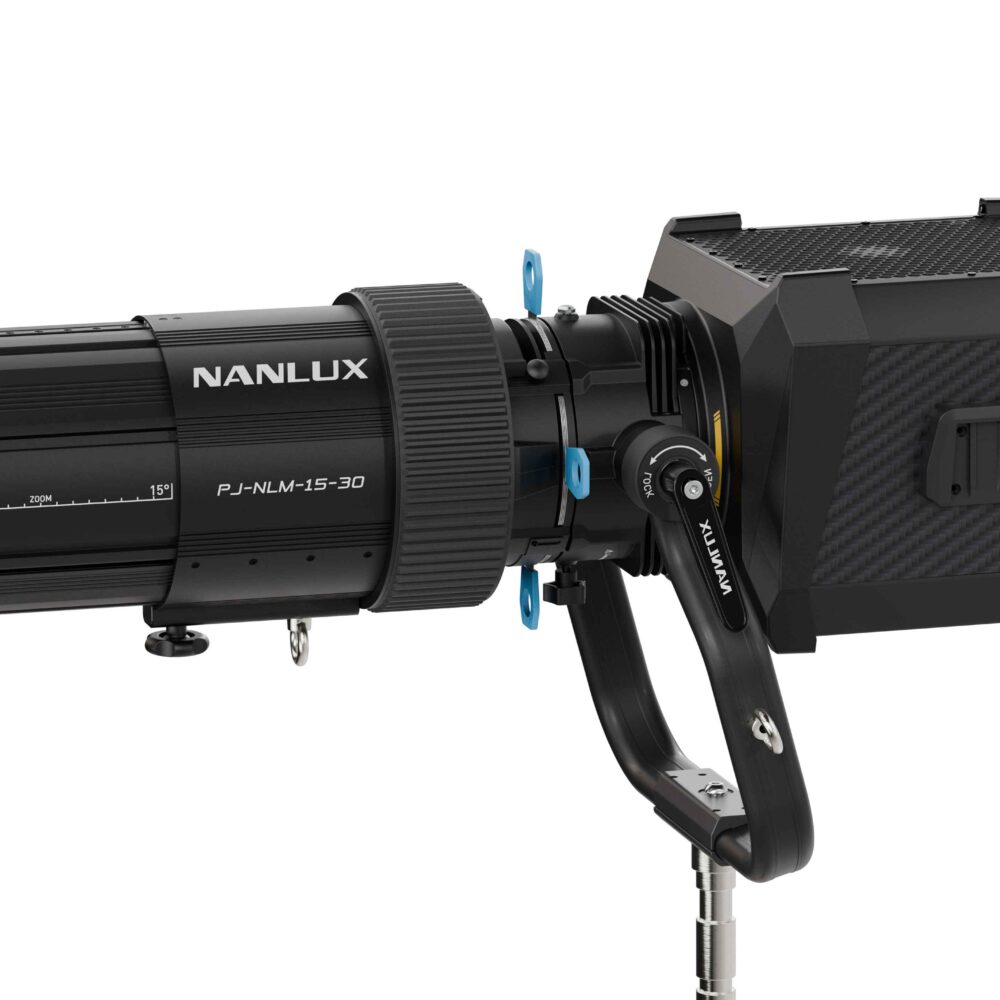

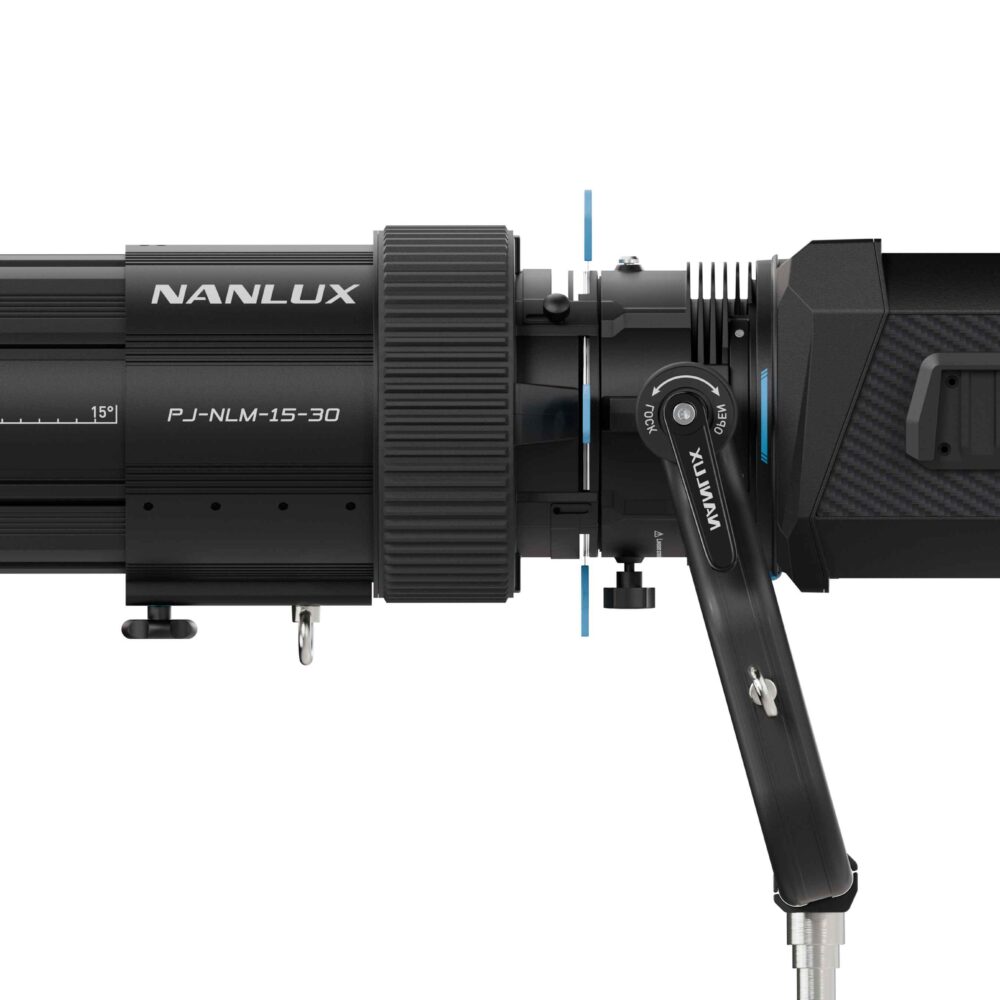

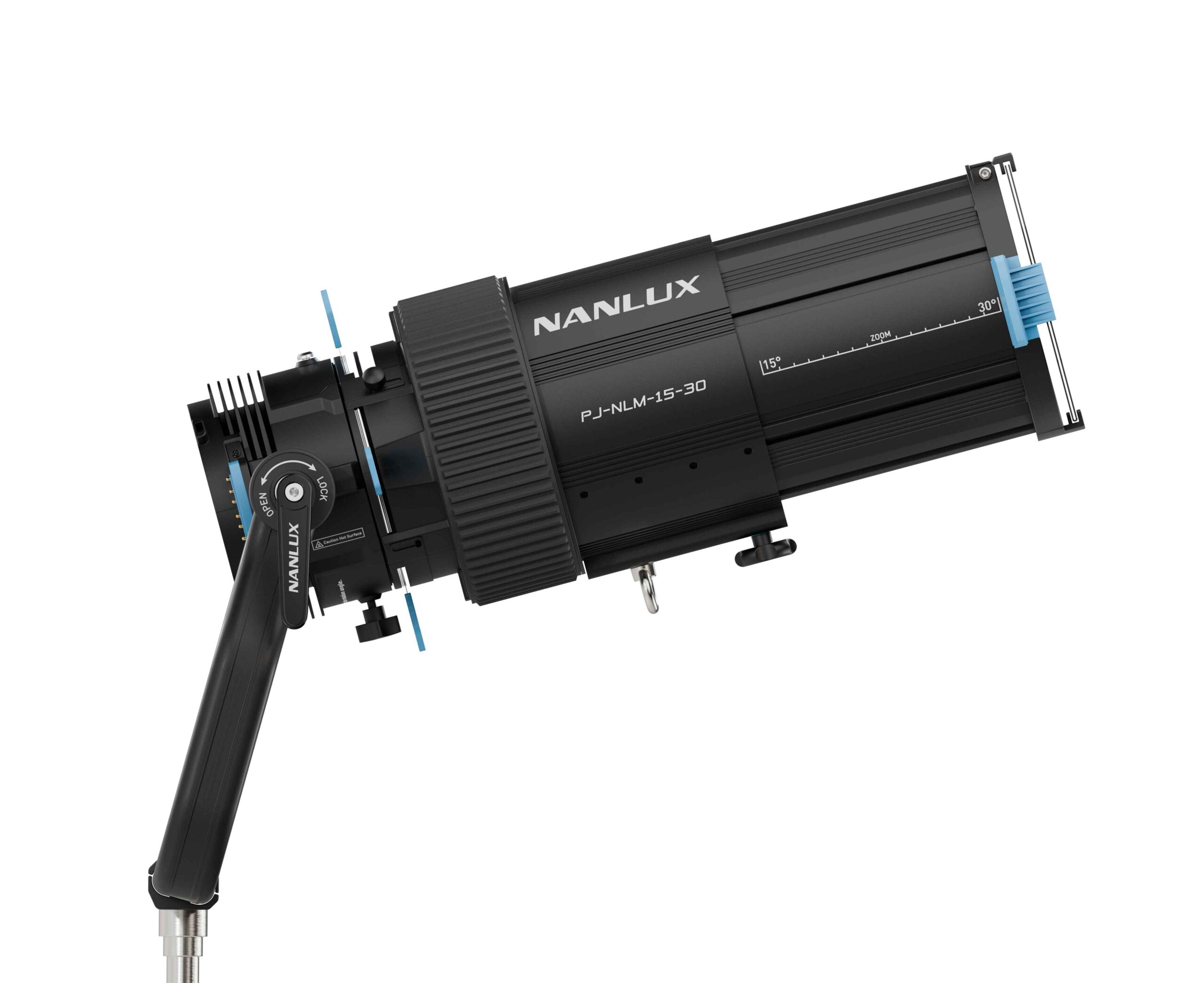

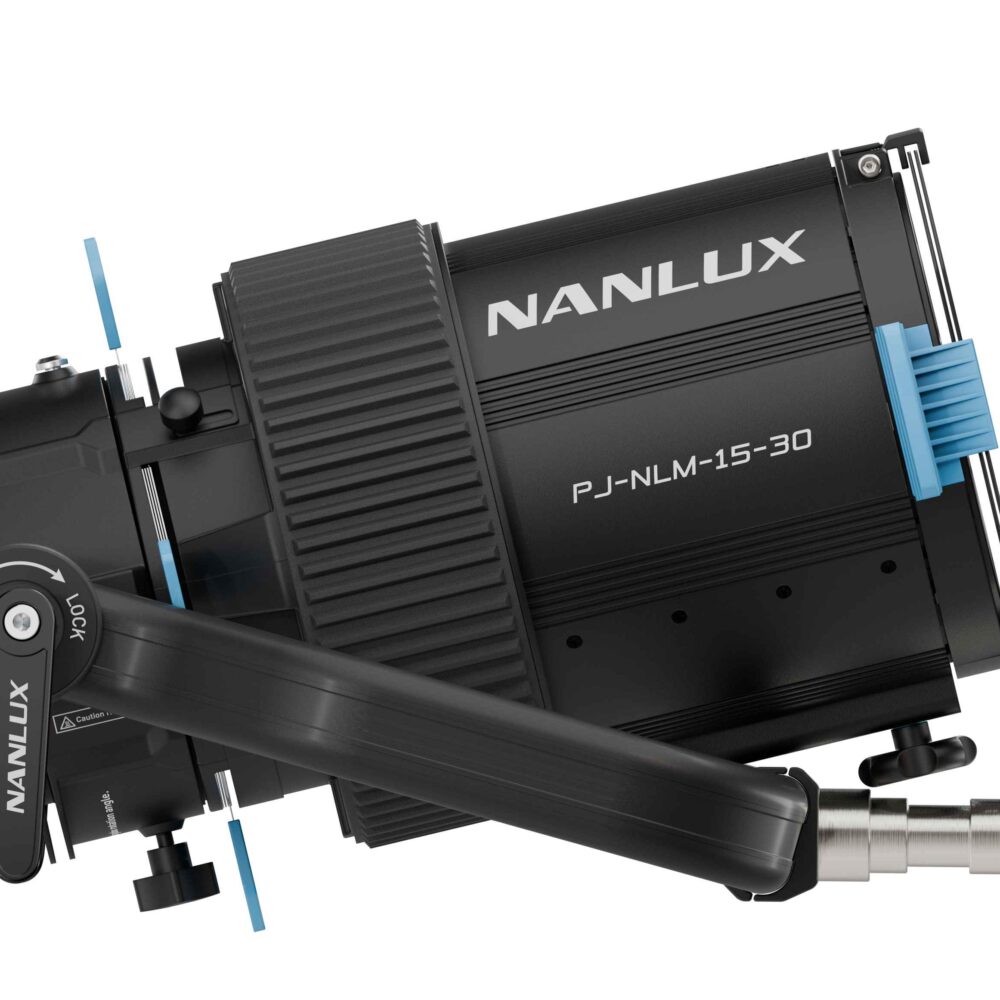

Nanlux NL Mount Projection Attachment 15-30° for Evoke Series
€1,484.00 excl. BTW
- For 900C, 1200/1200B & 2400B LED Lights
- For Precise Lighting & Increased Output
- 15-30° Zoom Range

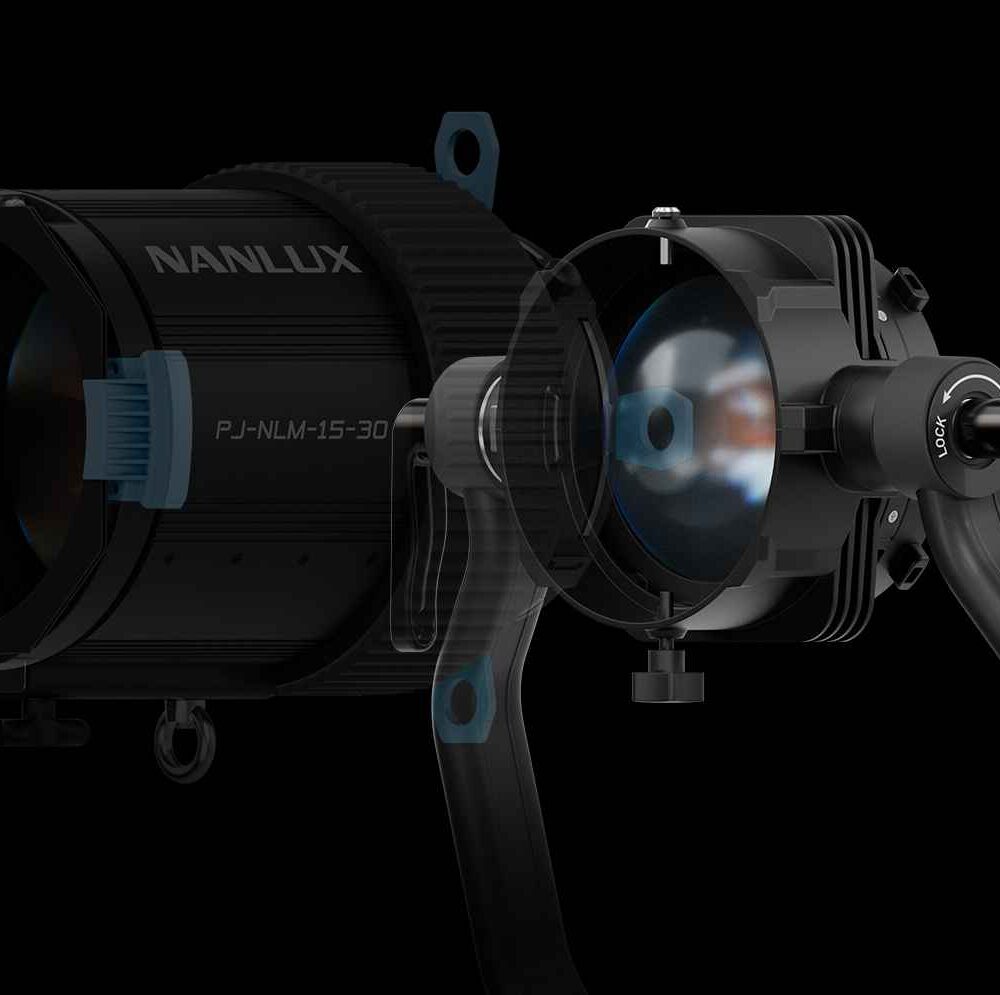

- Aspherical Optical Lens, 90° Rotation
- Cutting Shutters, Optional 18-Blade Iris

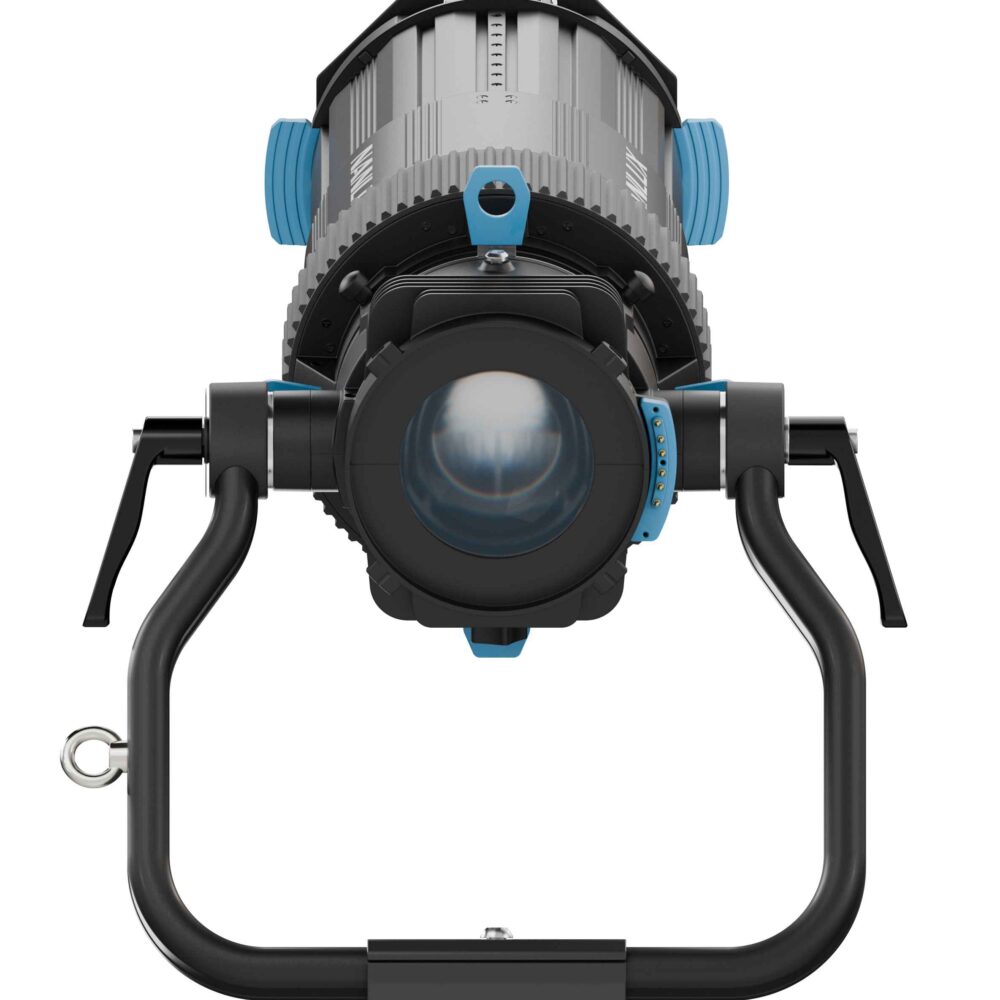

- Integrated Yoke
- Aluminum Construction, Portable
- Optimized Heat Dissipation
- Includes Four Gobos, Holder & Gel Frame

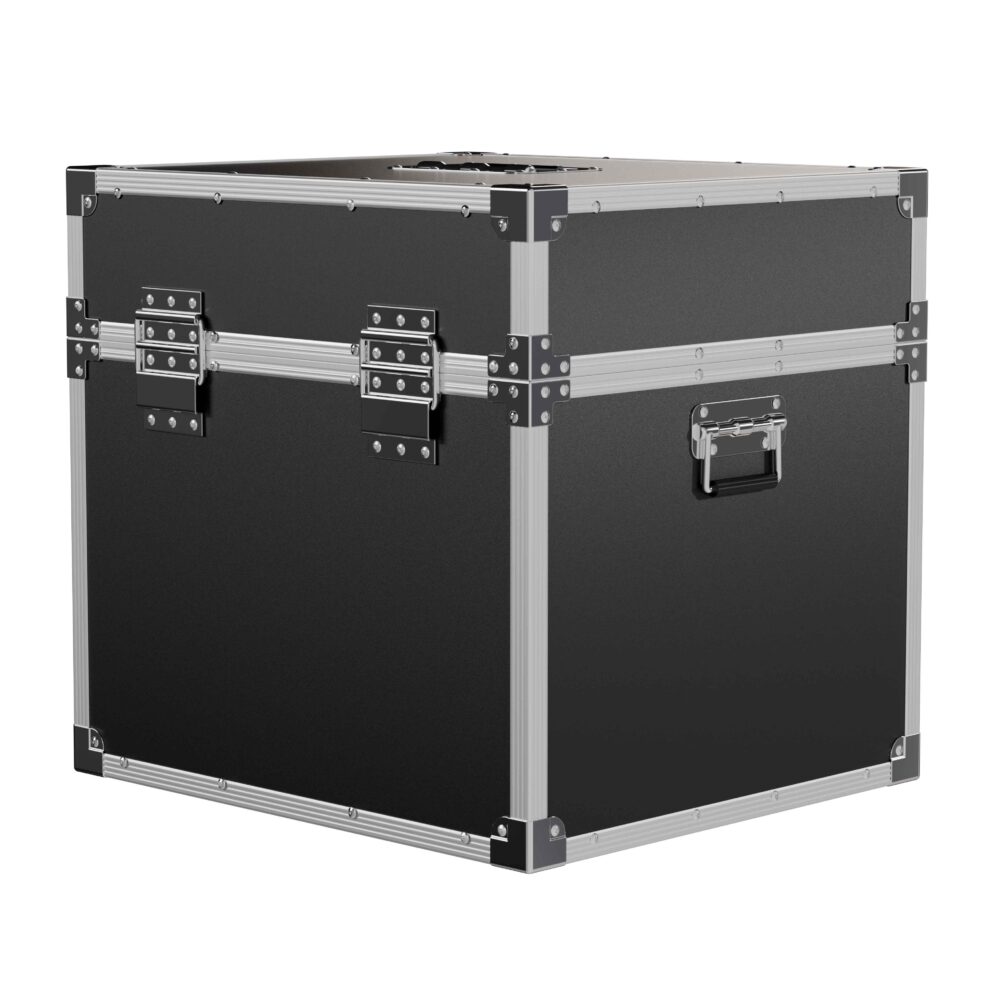

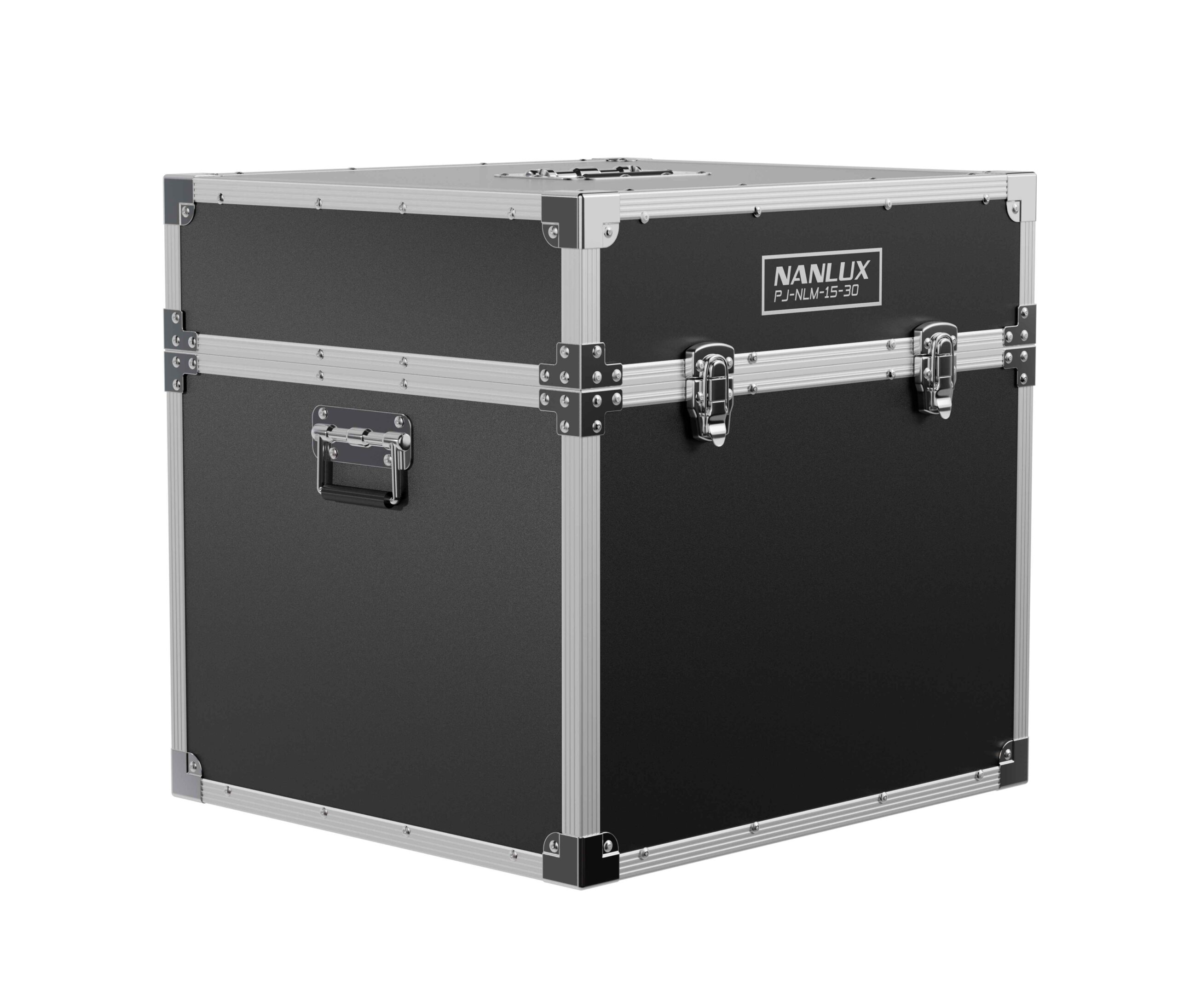

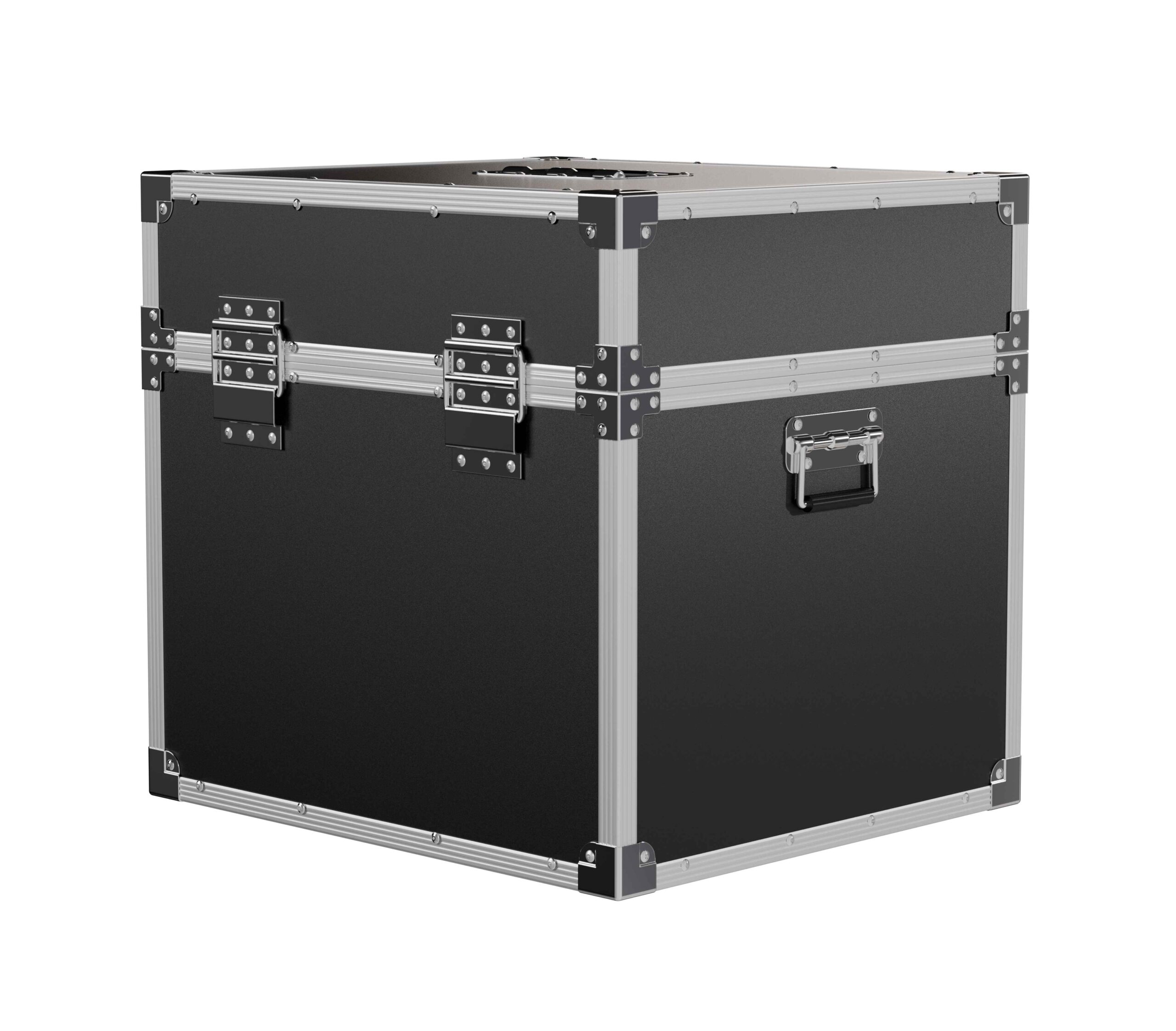

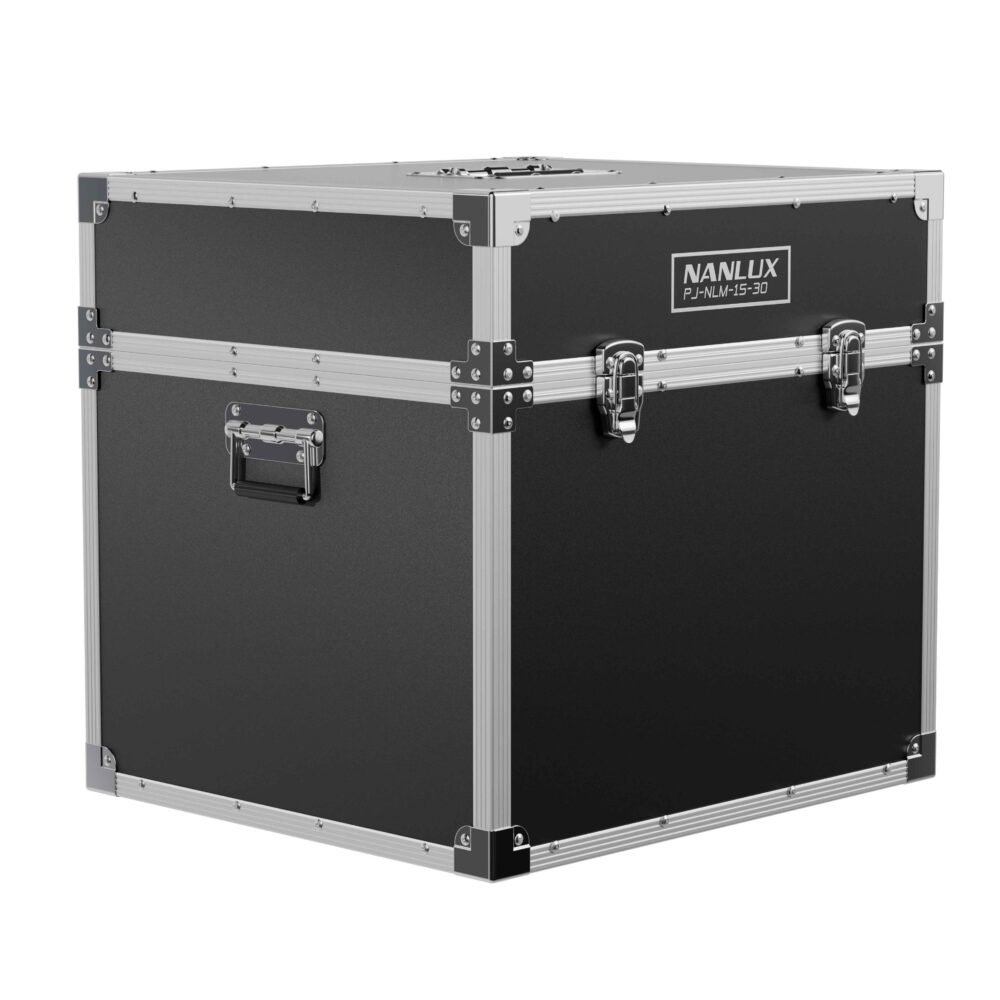

- Includes Flight Case
7 stock in external warehouse, usually ships 1-2 days.
Overview

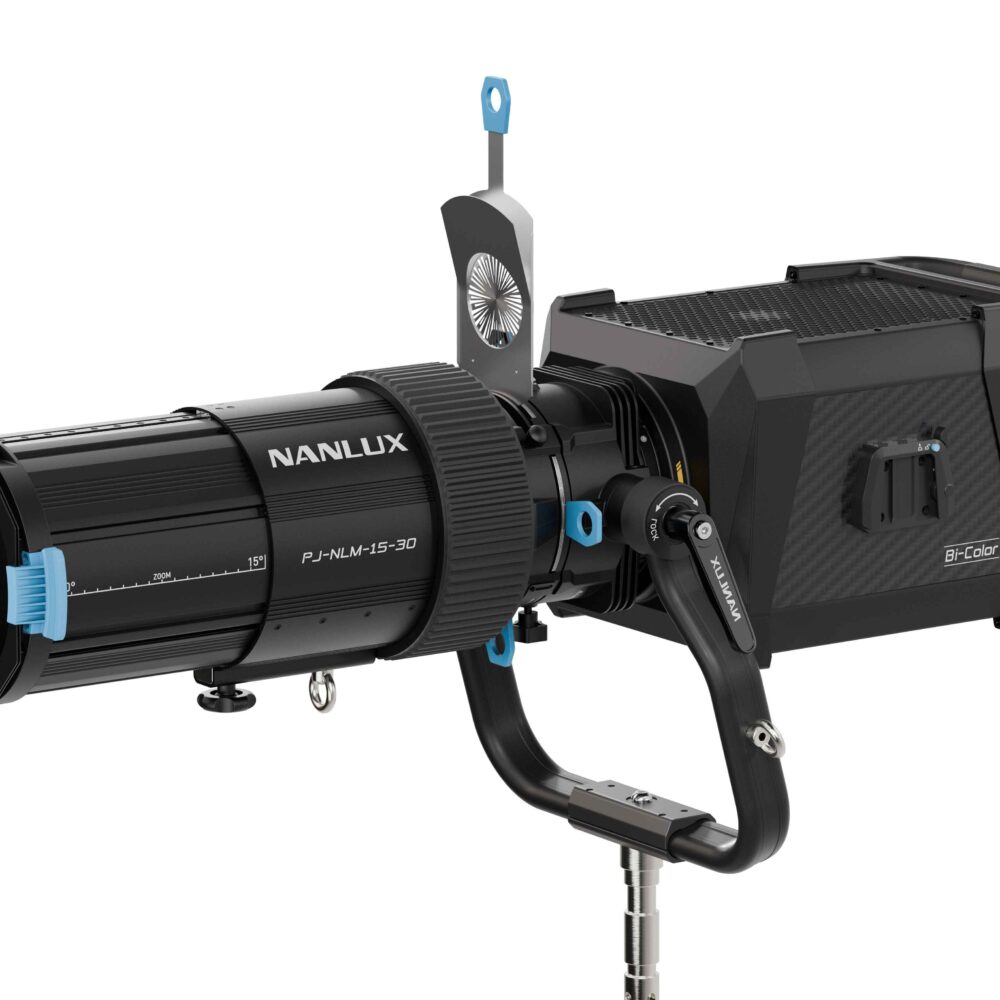

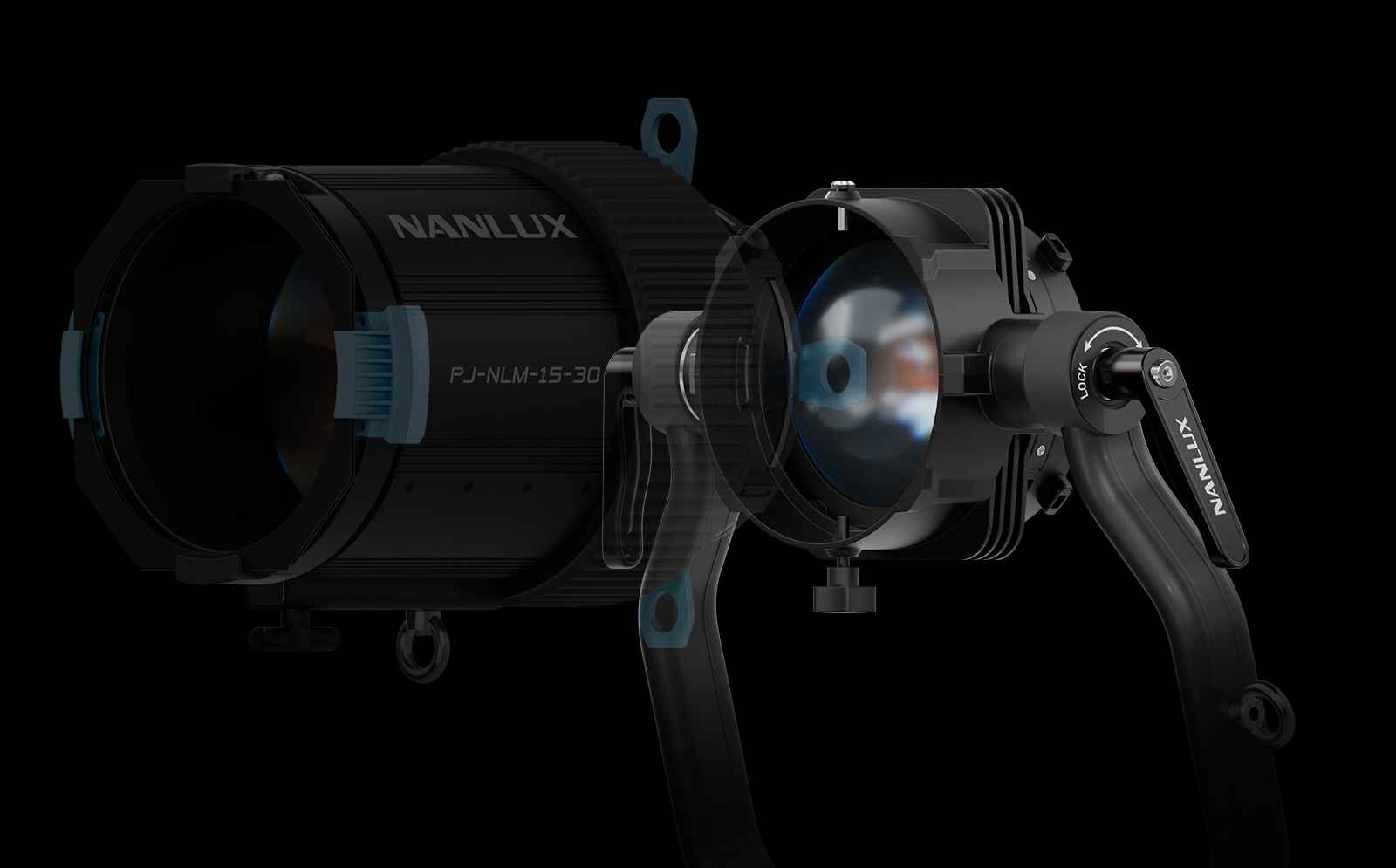

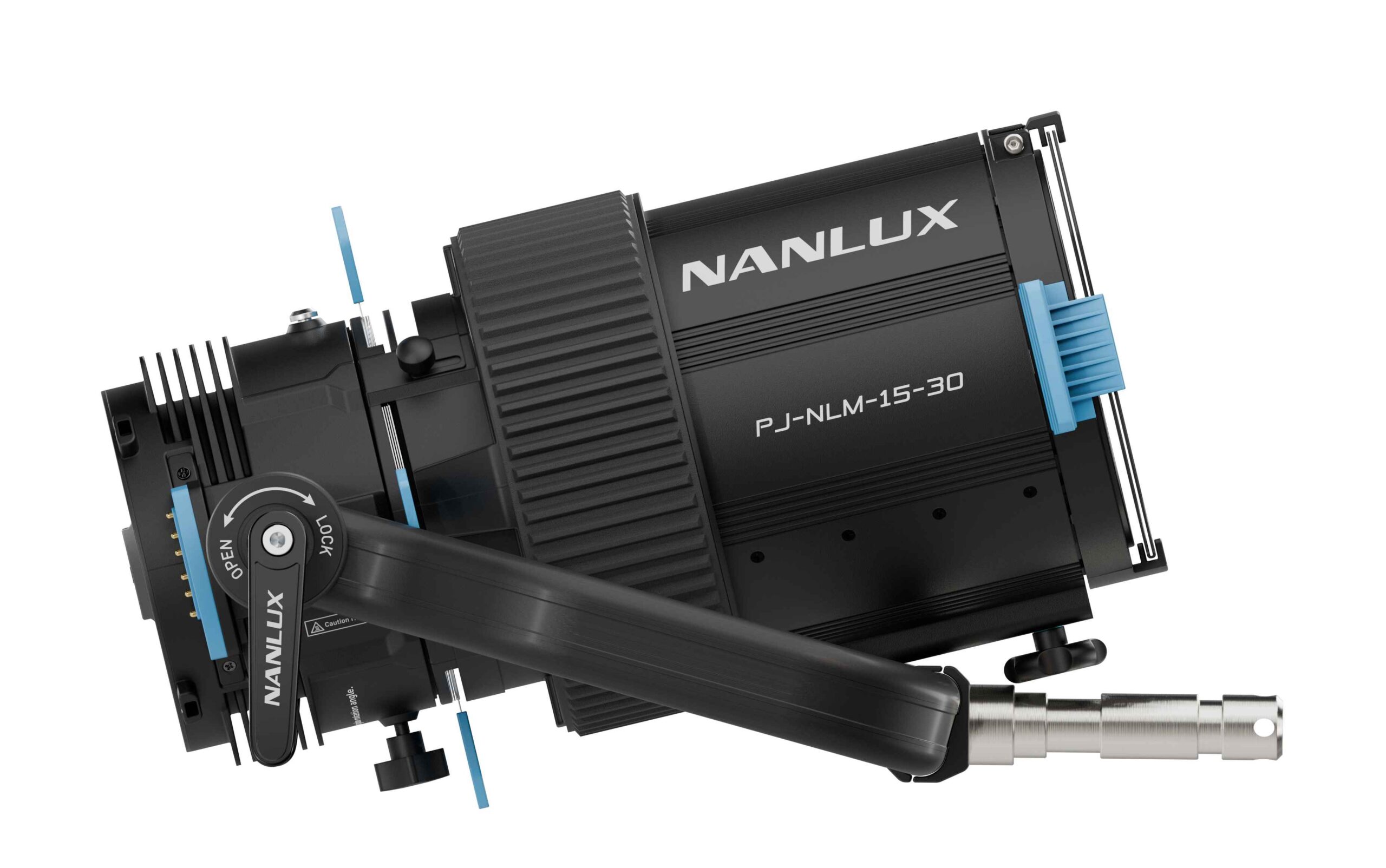

Enhance your productions with the versatile NL Mount Projection Attachment for the Nanlux Evoke Series. Designed for zoom and focus compatibility, this attachment provides exceptional light-shaping control. Whether you need to project a background image or boost the output of your Evoke 900C, 1200, 1200B, or 2400B fixtures, this tool delivers precision and flexibility. The smooth zoom ring allows for fine-tuned focusing, while cutting shutters and an optional iris help shape the light to your needs. A supplied gobo holder lets you incorporate one of the four included gobos, creating striking patterns. Additionally, a gel frame is provided for adding optional color gels. Built for durability, the projection attachment comes in a robust aluminum flight case, ensuring safe transport between sets.
Features
- Edge-blackening for a better, sharp edge
- Antireflective coating improves color accuracy
- Includes front and back protective covers to prevent dust and scratches
- Barrel and yoke eyebolts for attaching an optional safety cable

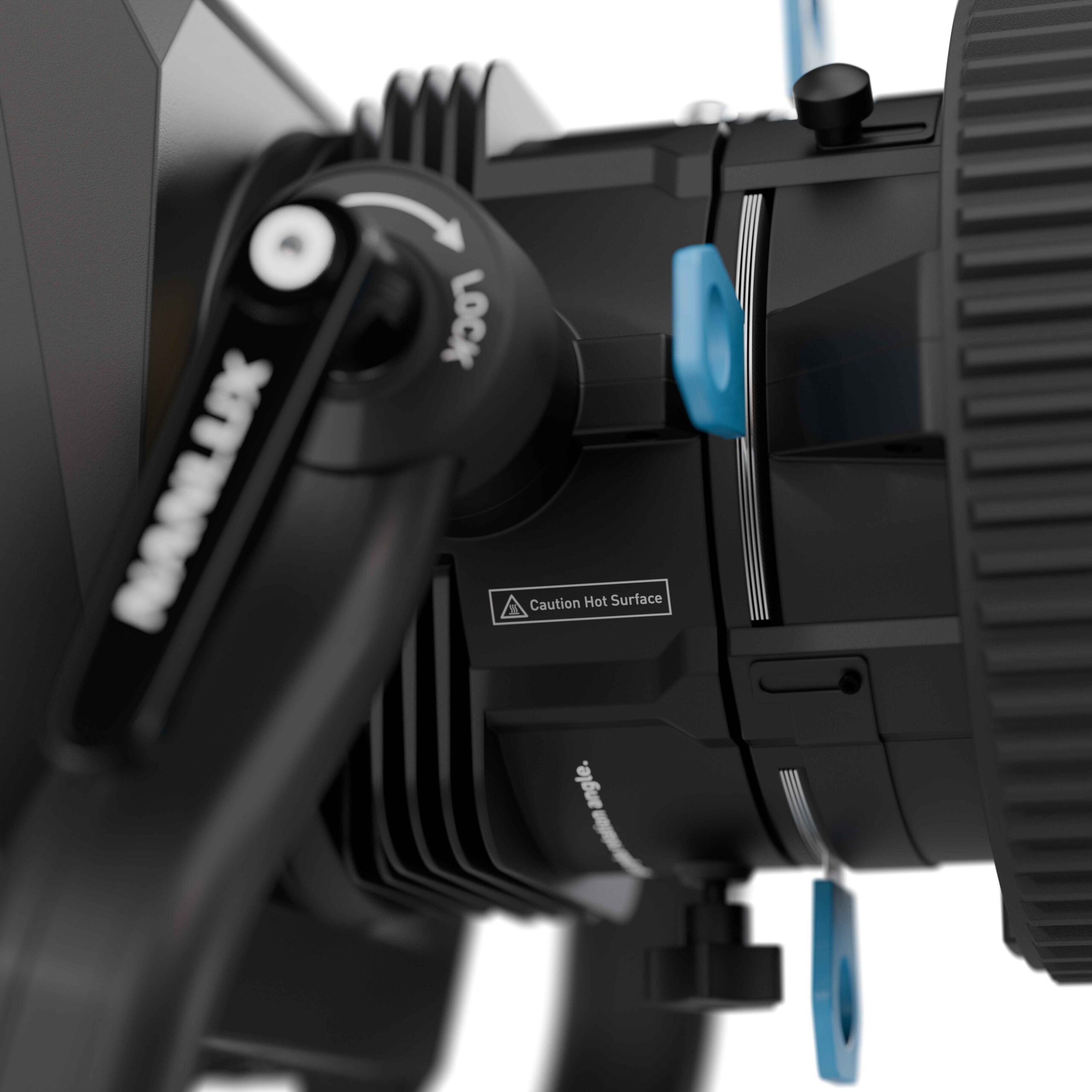

- Fastening knob to prevent wobbling during downward projection
- Sets of other A-size gobos are separately available

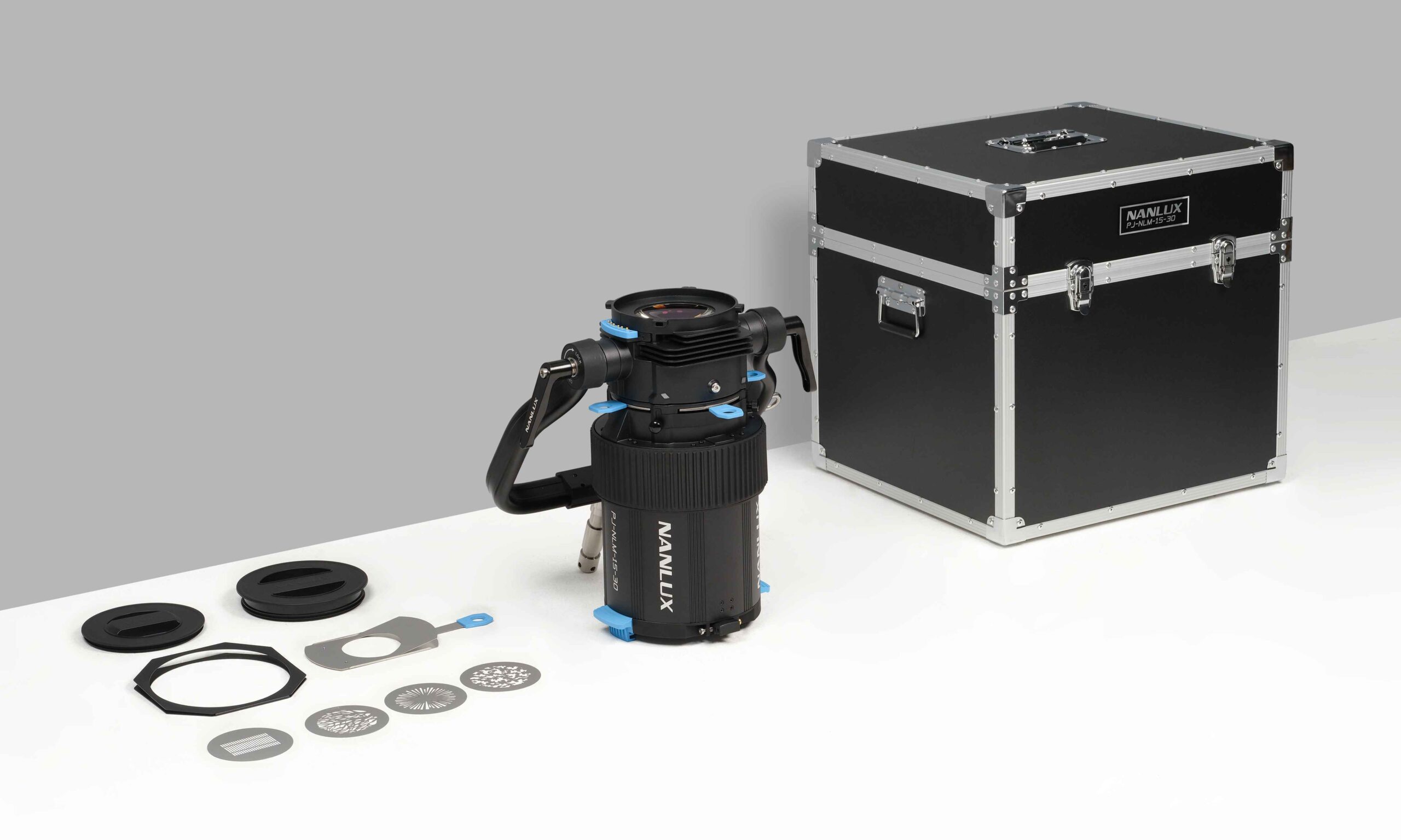

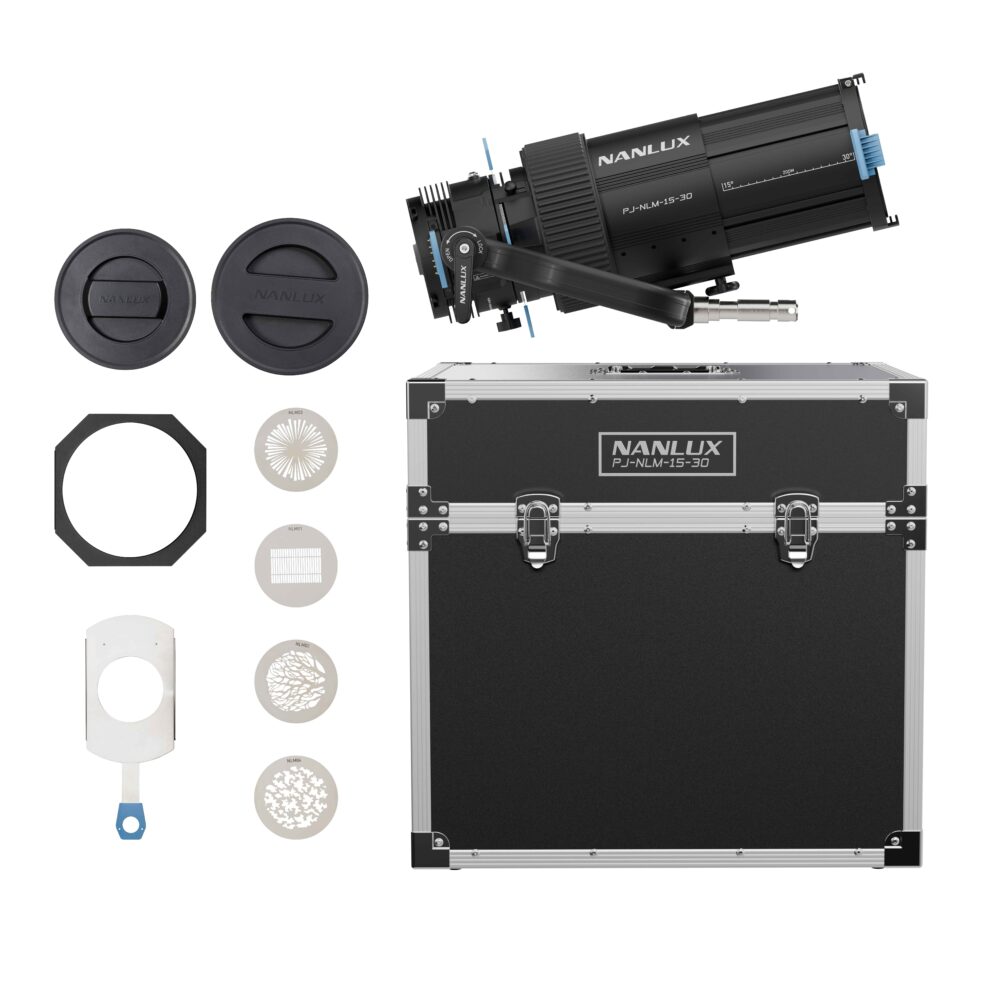

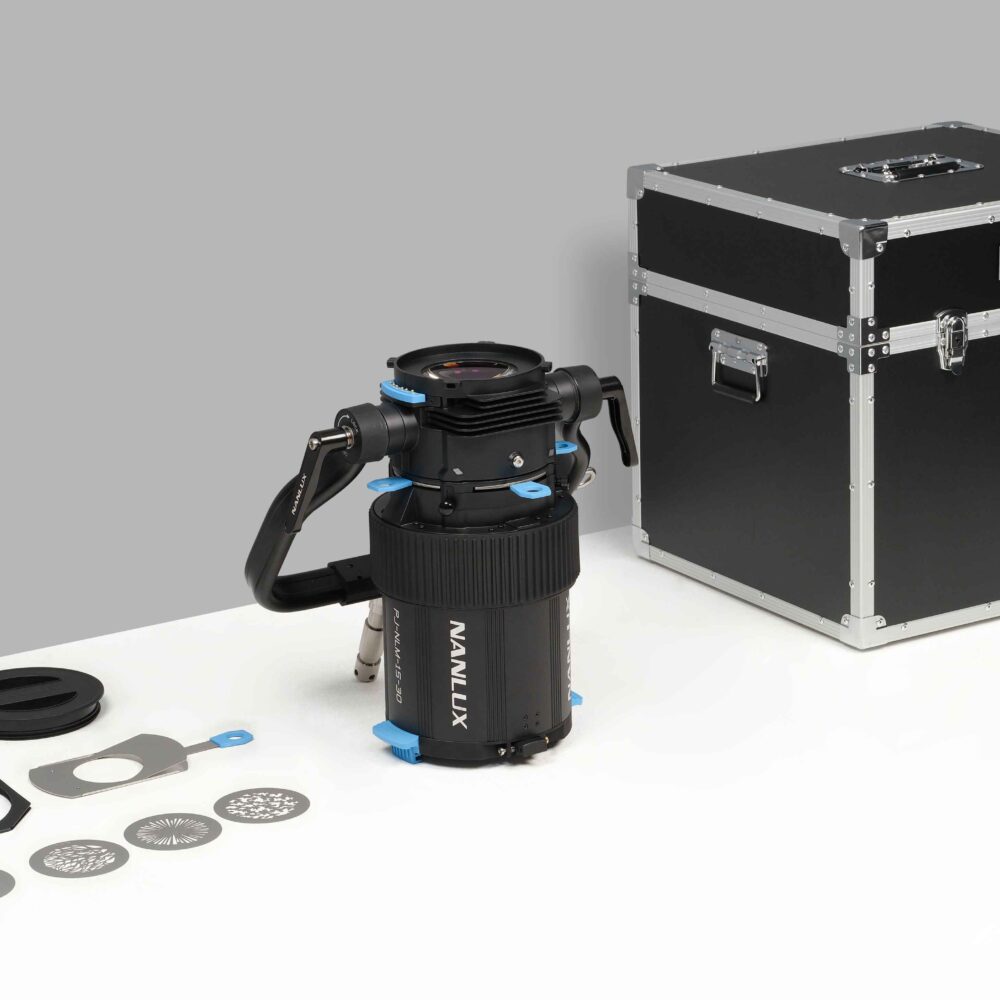

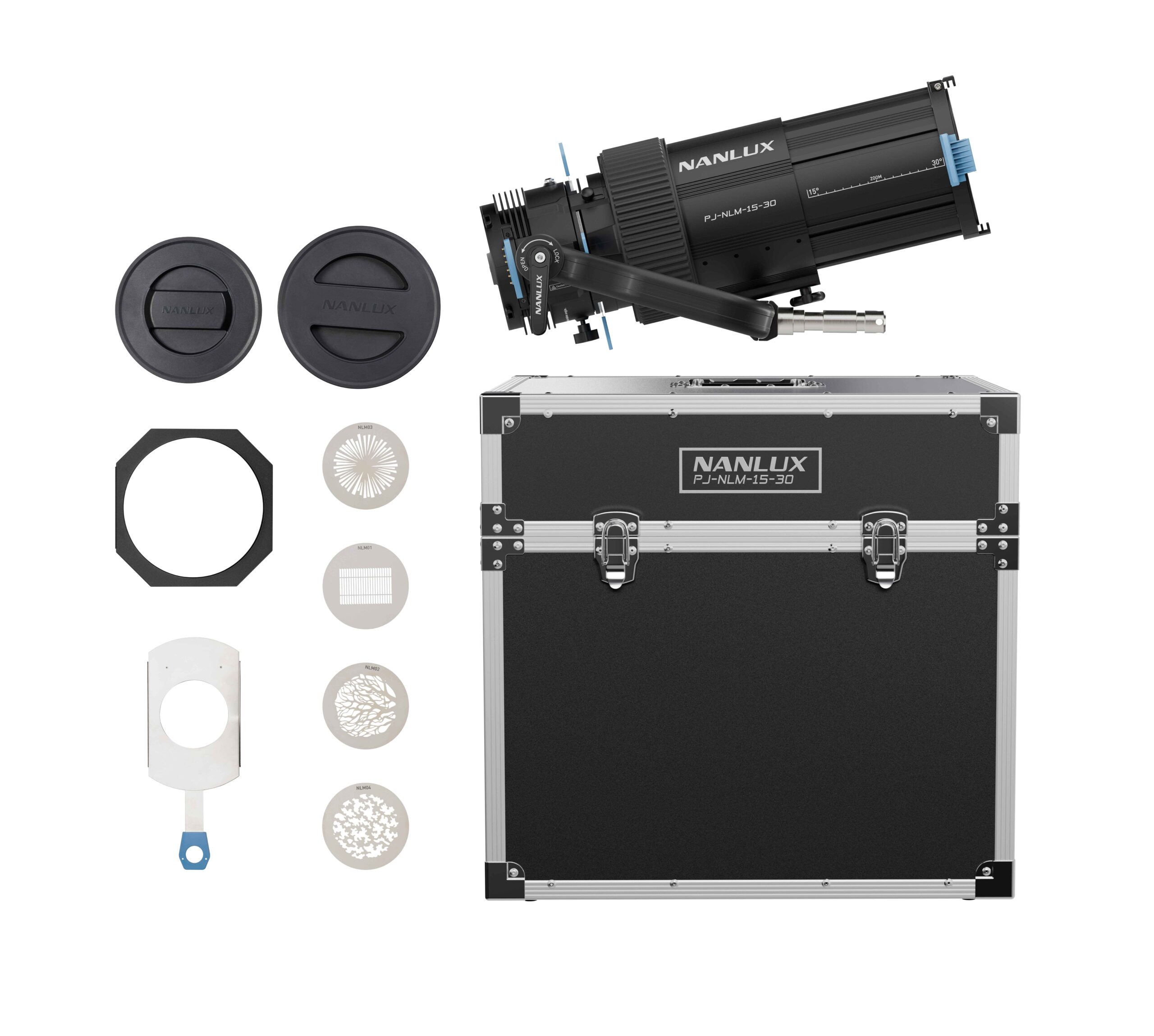

Included
Nanlux NL Mount Projection Attachment 15-30° for Evoke Series
Plastic Protective Cover (Front)
Plastic Protective Cover (Back)
4 x A-Size Gobo
Gobo Holder
Gel Frame

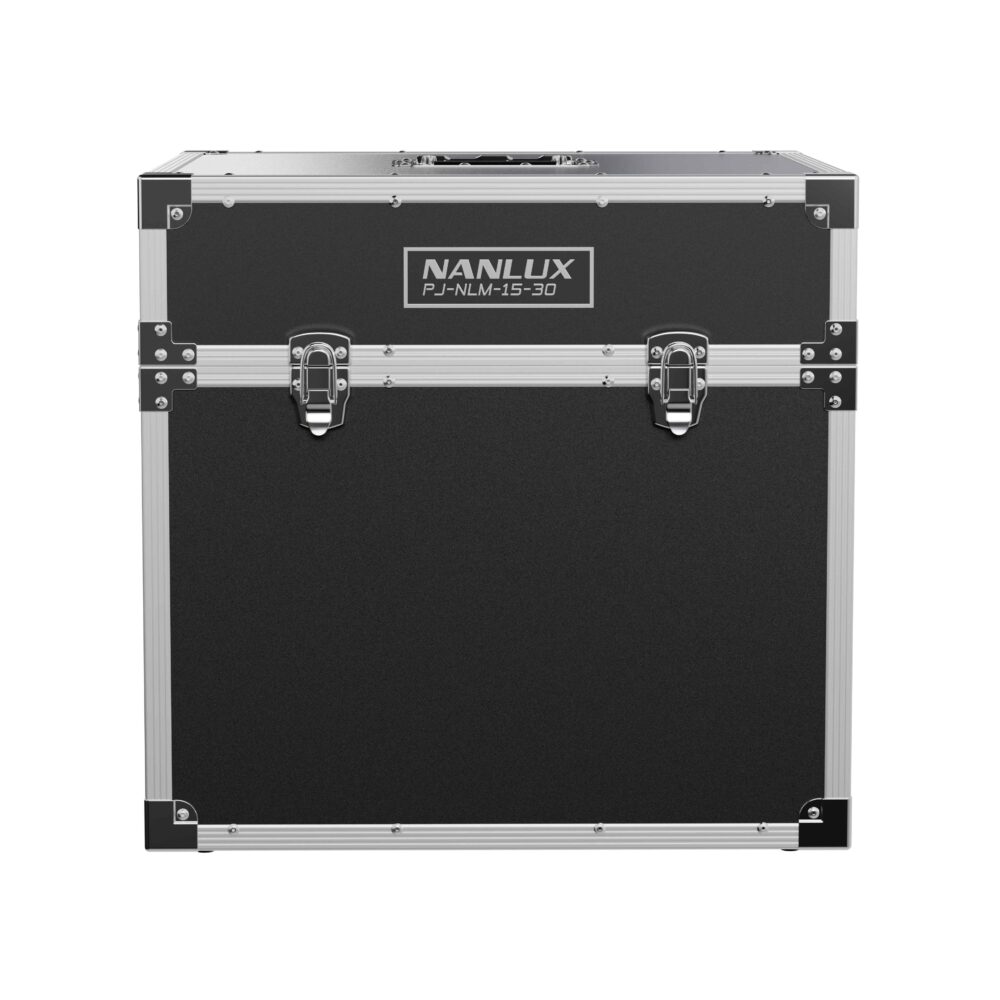

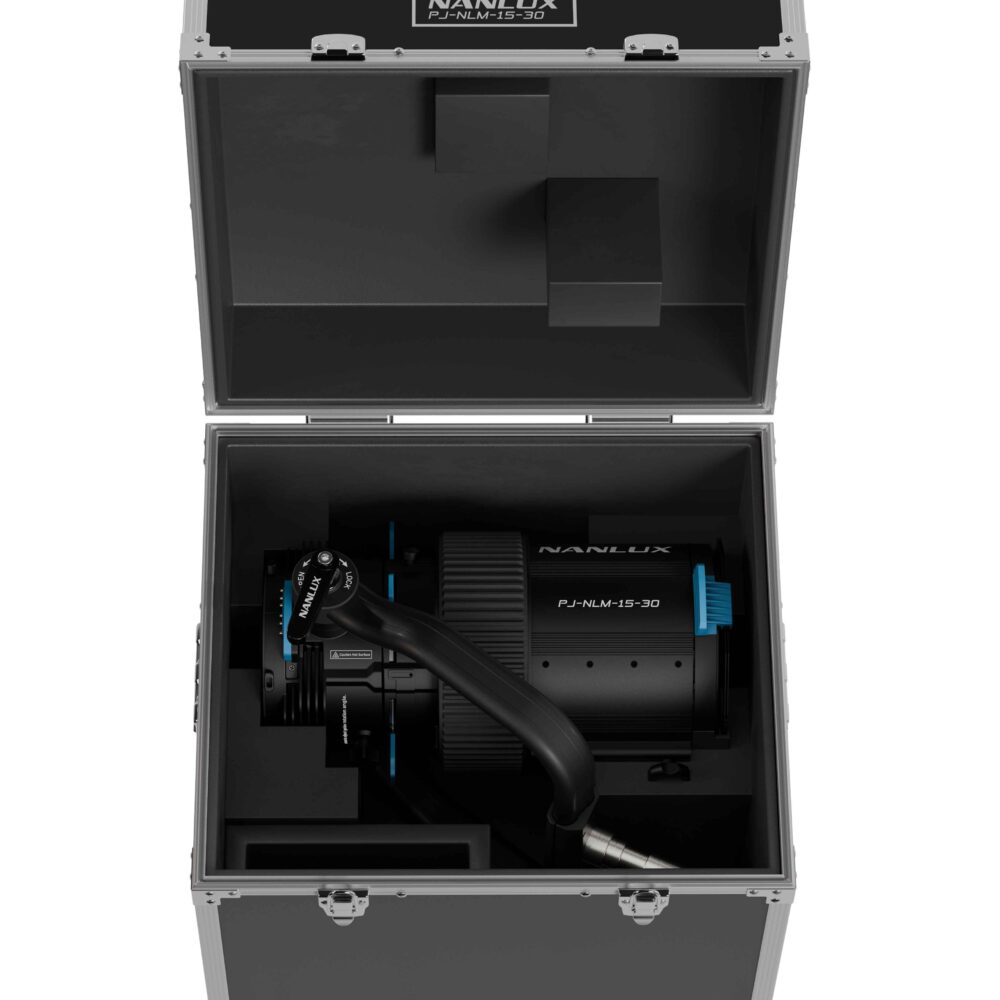

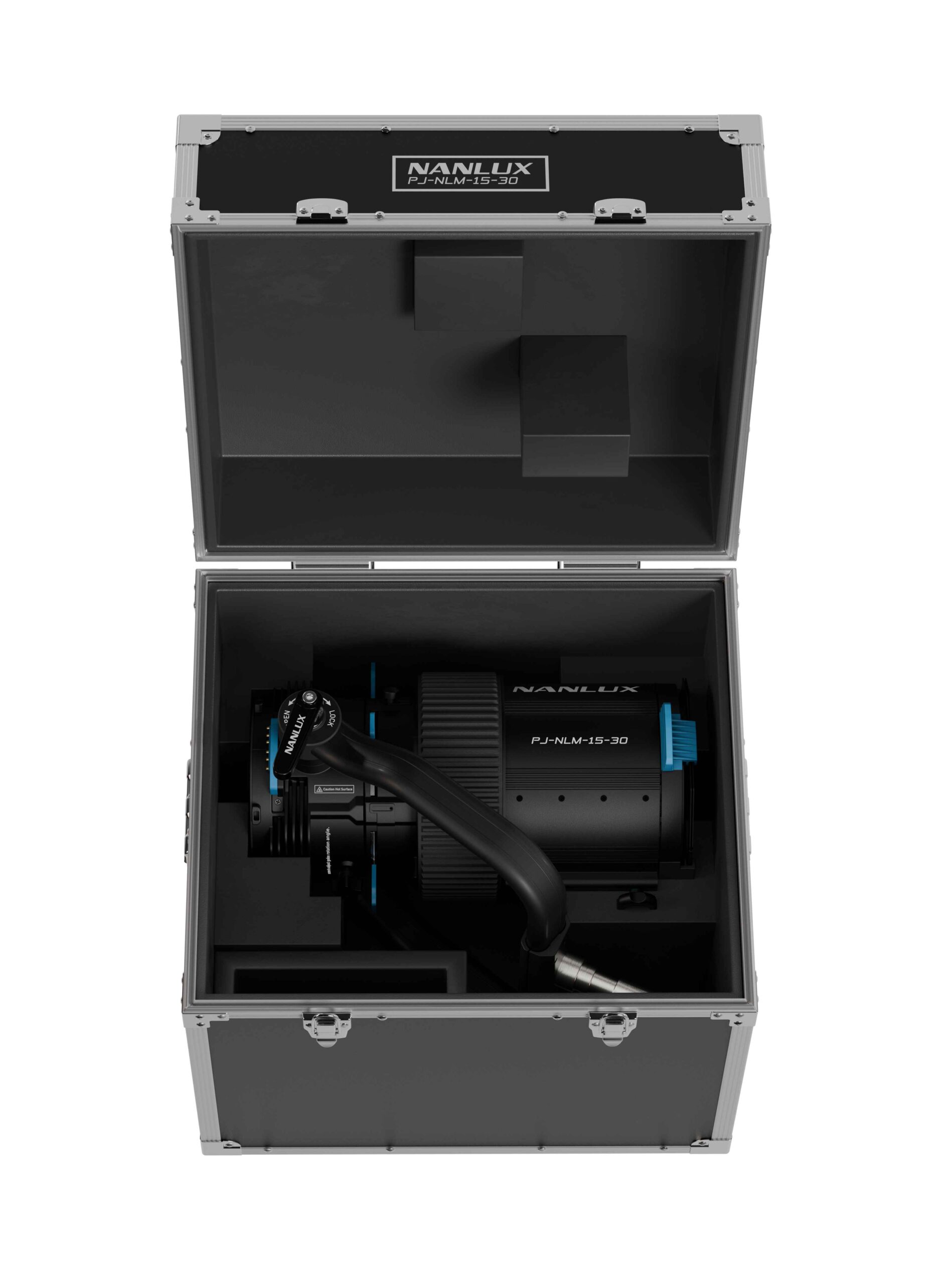

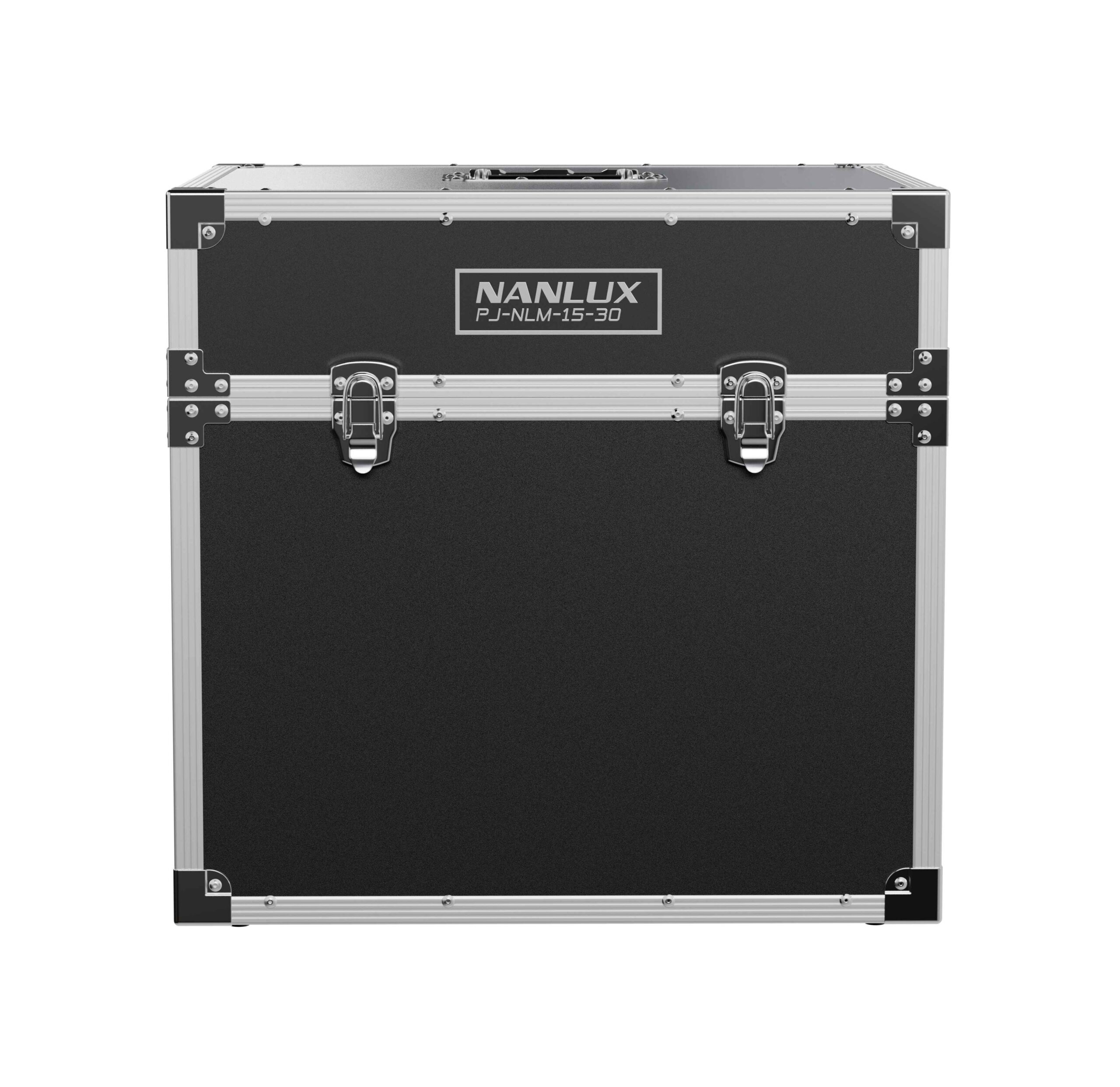

Flight Case
Limited 6-Month Manufacturer Warranty
Compatibility
Nanlux Evoke 1200
Nanlux Evoke 1200B
Nanlux Evoke 2400B
Nanlux Evoke 5000B
Nanlux Evoke 900C
Specifications
| Mounting |
1x NL Mount
|
| Color |
Black
|
| Material of Construction |
Aluminum Alloy, Nylon
|
| Dimensions |
24.78 x 20.26 x 15.45″ / 62.94 x 51.46 x 39.24 cm (Projection Attachment Extended at 15°)
20.26 x 17.78 x 15.45″ / 51.46 x 45.16 x 39.24 cm (Projection Attachment Retracted at 30°) 3.94 x 0.02″ / 10.01 x 0.05 cm (A-Size Gobo) 10.15 x 4.02 x 0.96″ / 25.78 x 10.21 x 2.44 cm (Gobo Holder) 7.4 x 7.4 x 1.38″ / 18.8 x 18.8 x 3.51 cm (Gel Frame) 21.85 x 17.91 x 17.52″ / 55.5 x 45.49 x 44.5 cm (Flight Case) |
| Weight |
26.12 lb / 11.85 kg (Projection Attachment)
27.67 lb / 12.55 kg (Flight Case) |
