Overview

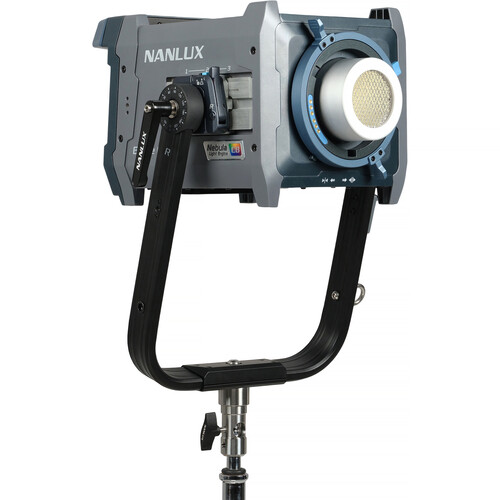

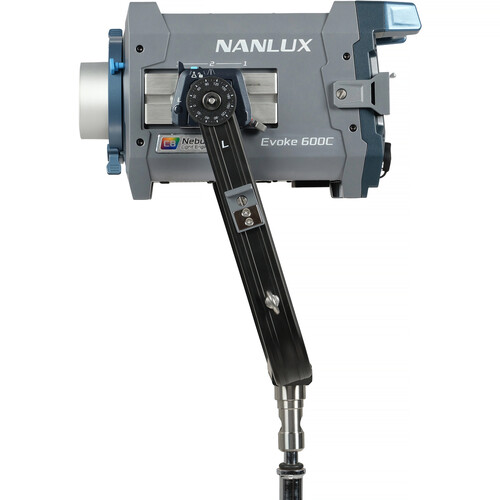

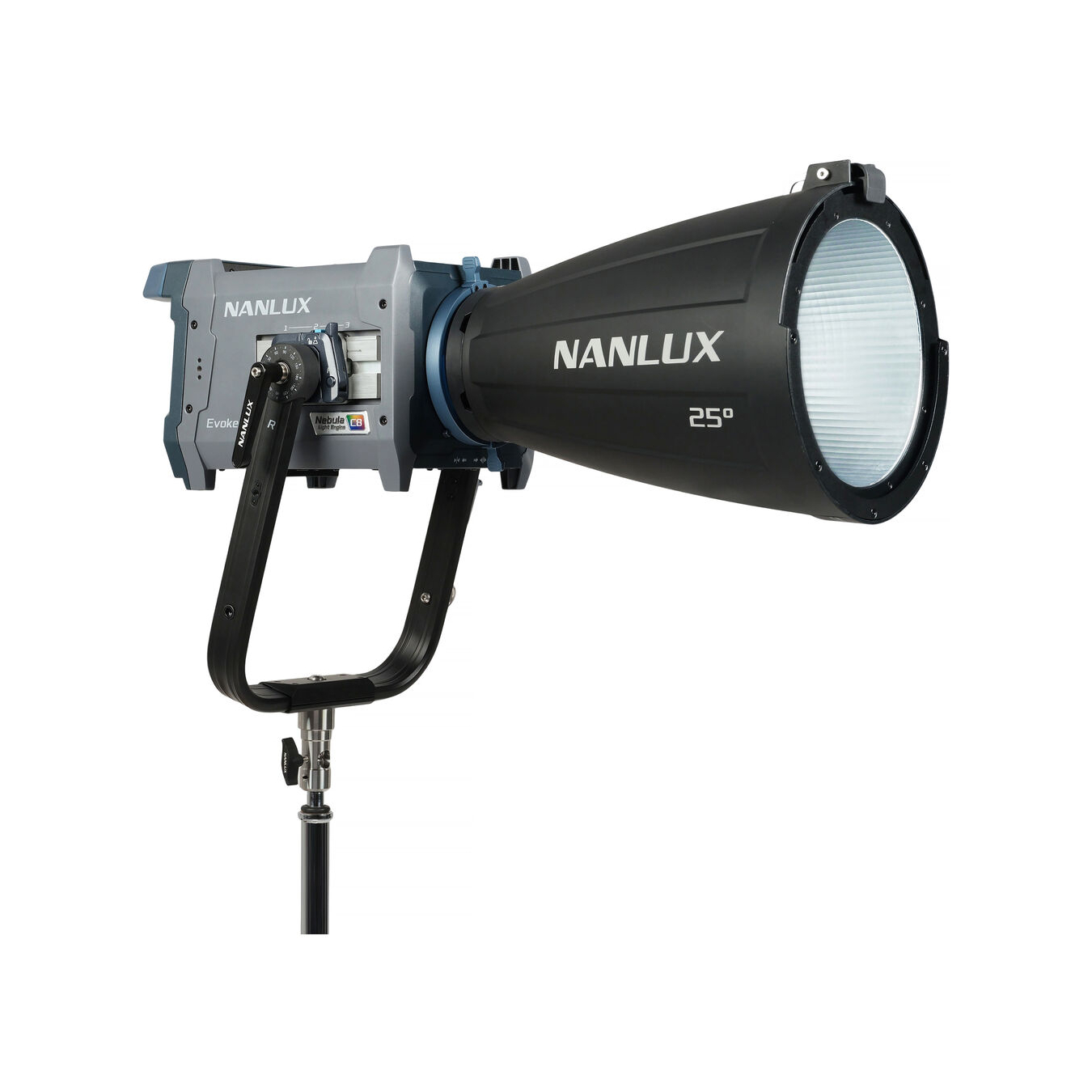

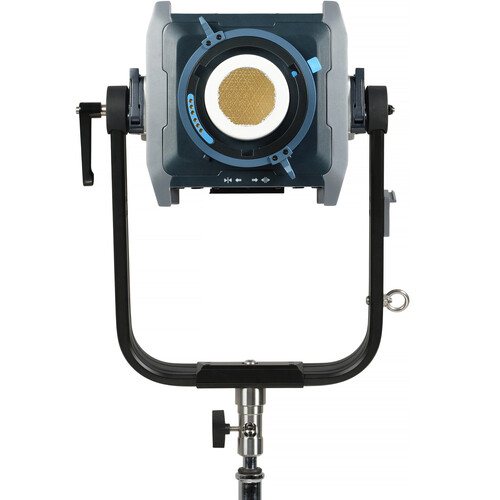

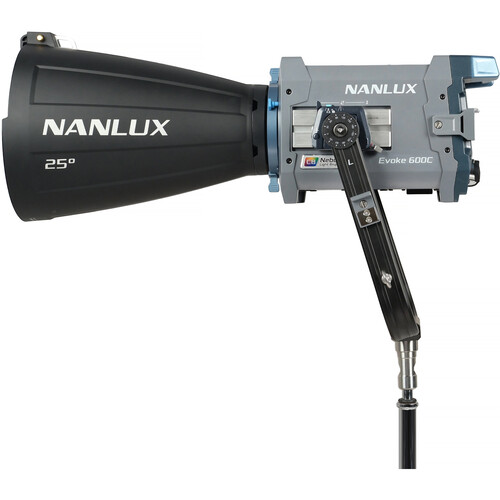

Powerful and extremely color-accurate, the Evoke 600C RGB LED Spot Light Trolley Case Kit from Nanlux arrives as the ideal choice for a light setup in need of an all-in-one full-color fixture with no external ballast. With a larger body than its 150C version, the 600C itself measures 14 x 9.7 x 8″ and weighs 16 lb to offer a native BE mount for standard Bowens compatibility. Developed to accommodate most situations, the light’s wide color balance from 1000 to 20,000K is backed by an extensive +/- 200 green/magenta tint-shifting. What is behind this advanced capability is the Nebula C8 8-chip light engine that mixes deep red, red, amber, lime, green, cyan, blue, and indigo LEDs for the most vivid colors. The Evoke 600C permits AC/DC power and features a wide range of reliable control methods—onboard, DMX/RDM, LumenRadio CRMX, app, or using the supplied wired controller. Finally, the Evoke 600C is built around an IP66-rated housing for all-weather protection. Nanlux adds a trolley case that ensures full protection during storage and transportation.

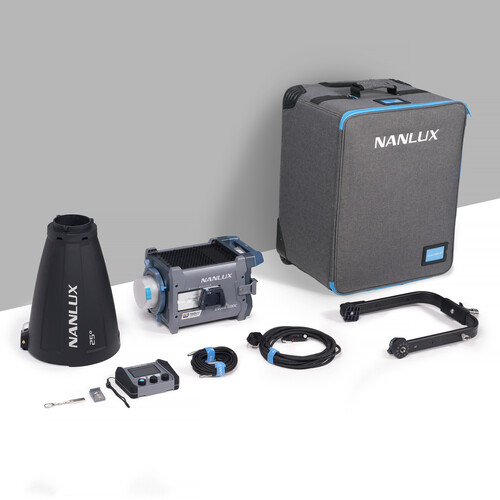

Included
- Nanlux Evoke 600C RGB LED Spot Light
- Yoke
- BE Mount Reflector (25°)
- AC Power Cable (19.6′)
- USB Flash Drive
- Magnetic Base
- Wired Controller
- Connection Cable (26.2′)
- Trolley Case
- Limited 2-Year Manufacturer Warranty
Specifications
| Item Type |
1x LED Spot Light
|
| Included Light Modifier |
1x Reflector
|
| Included Storage Case |
Yes
|
| Photometrics |
3200K: *Standardized Measurement Calculated Internally Based on Closest Distance |
| Color Temperature |
1000 to 20,000K
|
| Color Modes |
RGB, Daylight, Tungsten
|
| Color Accuracy Standard |
CRI 96
TLCI 97 SSI 78 at 5600K SSI 86 at 3200K TM-30 Rf 96 TM-30 Rg 100 |
| Dimming |
App-Controlled / Built-In Dimmer / Controller Included / DMX / RDM
• 0 to 100% |
| Cooling System |
Fan
|
| Beam Angle |
65° Unmodified
25° with Included Reflector |
| Built-In Flash |
No
|
| Preprogrammed Effects |
Yes
|
| Umbrella Mount |
No
|
| Front Accessory Mount |
Proprietary
|
| Wireless Remote Control Type |
Bluetooth
Wireless CRMX Radio/RF *Remote Not Included |
| Mobile App Compatible |
Yes: Android & iOS
App Name: Nanlink Functionality: Remote Control |
| Power Source |
AC Power (Cable Included)
Battery (Not Included) |
| Inputs/Outputs |
1x Proprietary Power Input (
100 to 240 VAC, 50 / 60 Hz 48 VDC) 1x Unspecified Remote Input 1x XLR 5-Pin DMX Input 1x XLR 5-Pin DMX Output |
| Battery |
1x Battery Power Station, 48 VDC (Not Included)
|
| Input Power |
48 VDC at 12.5 A
100 to 240 VAC, 50 / 60 Hz at 8 A |
| Included Adapter / Cable |
1x USA Type-A/B Plug to Proprietary Cable (19.7′ / 6 m)
1x Unspecified to Unspecified Cable (26.2′ / 8 m) |
| Inline Switch |
No
|
| Power Pass-Thru |
No
|
| Power Consumption |
600 W
|
| Yoke Type |
Manually-Operated Yoke
|
| Fixture Mounting |
Support Mount
1x 1-1/8″ Stud with 5/8″ Receiver (Via Yoke Mount) Accessory Mount Multiple x 1/4″-20 Female Thread 1x 3/8″-16 Female Thread |
| Display |
Yes
|
| Environmental Resistance |
Dust/Weather/Water-Resistant (IP66)
|
| Operating Conditions |
-4 to 113°F / -20 to 45°C
|
| Certifications |
BIS, CE, FCC-ID, Kcc, NCC, PSE Circle, RoHS, UKCA
|
| Dimensions |
14 x 9.7 x 8″ / 35.6 x 24.6 x 20.3 cm (Fixture)
22.23 x 18.11 x 14.57″ / 56.46 x 46 x 37.01 cm (Included Storage Case) |
| Weight |
16 lb / 7.3 kg (Fixture with Reflector/Yoke)
|
| Package Weight |
43.075 lb
|
| Box Dimensions (LxWxH) |
24.5 x 19.2 x 17.9″
|
