Lilliput H7S 7″ 4K HDMI/3G-SDI Sunlight Readable On-Camera Monitor

Overview

View your 4K camera footage clearly with the Lilliput H7S 7″ 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor. Designed specifically for filmmaking and photography in DCI 4K24 and UHD 4K resolutions, the H7S offers both 3G-SDI and HDMI 1.4 connectivity options. Featuring a vivid 7-inch LCD panel with an ultra-bright 1800 cd/m² backlight, 1200:1 contrast ratio, and a versatile 16:10 aspect ratio, it displays crisp, detailed images at a native Full HD resolution of 1920 x 1200, with support for inputs up to 2840 x 2160. Additionally, the built-in HDMI loop-through capability enables seamless signal distribution via either 3G-SDI or HDMI outputs to external monitoring equipment, enhancing flexibility during production.

Features

• 7″ bright 1800 cd/m² display; 1200:1 contrast ratio
• DCI and UHD 4K compatible; HDR support
• Support for 3D LUTs, which are loaded via the USB port on the bottom

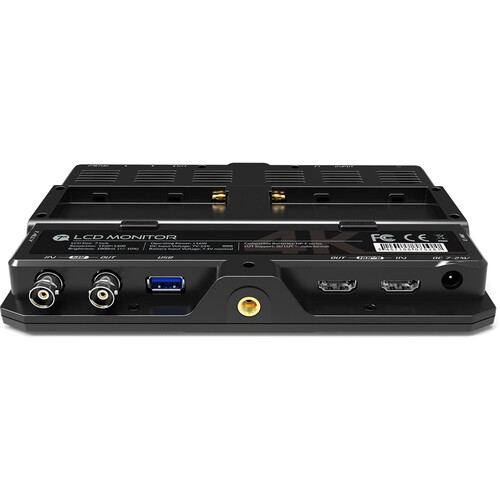

• HDMI and 3G-SDI input and output; tally input
• Advanced functions such as pixel zoom, level meter, peaking, false color, histogram, H/V delay, exposure, check field, image flip, pixel-to-pixel, markers, aspect ratio, and freeze

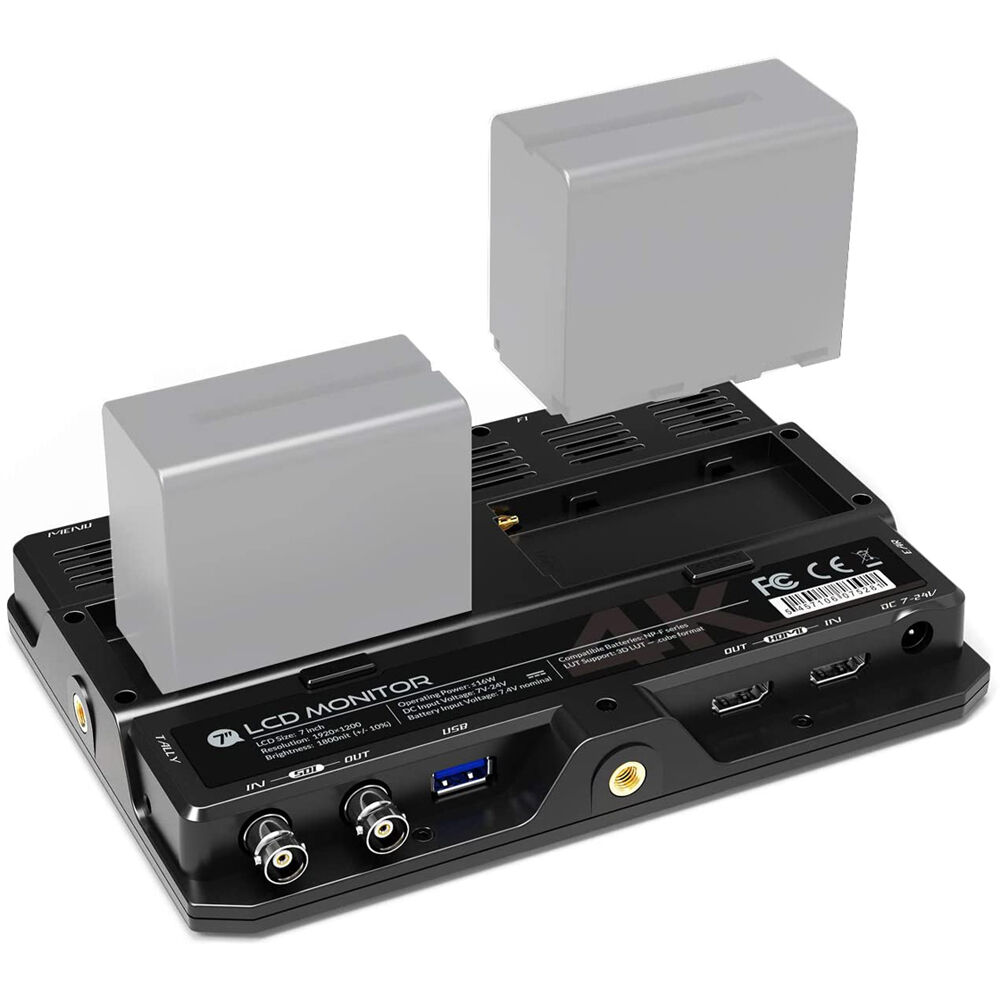

• Dual-battery Sony L-series/F-970 battery plate on back; batteries are hot-swappable

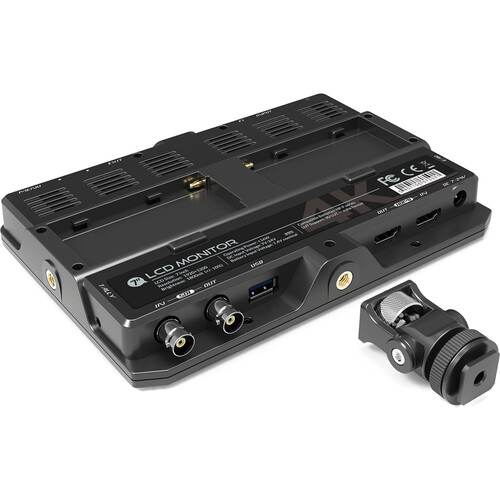

• Includes shoe mount adapter tilts 180° and rotates 360°
• 1/4″-20 mounting threads on bottom and sides

Included

Lilliput H7S 7″ 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor
Tilting Shoe Mount Adapter
Tally Cable
HDMI Type A to Type C Cable
Power Adapter

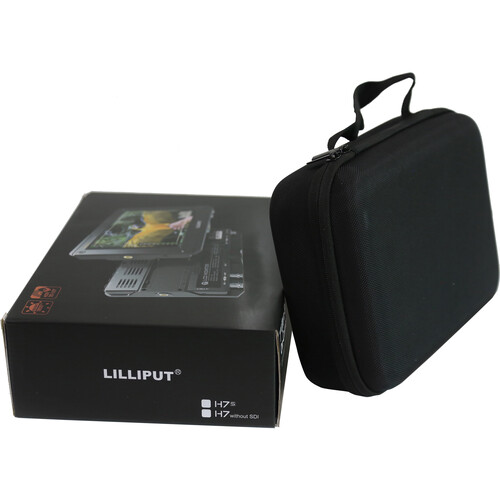

Carry Bag
Limited 1-Year Manufacturer Warranty

Specifications
