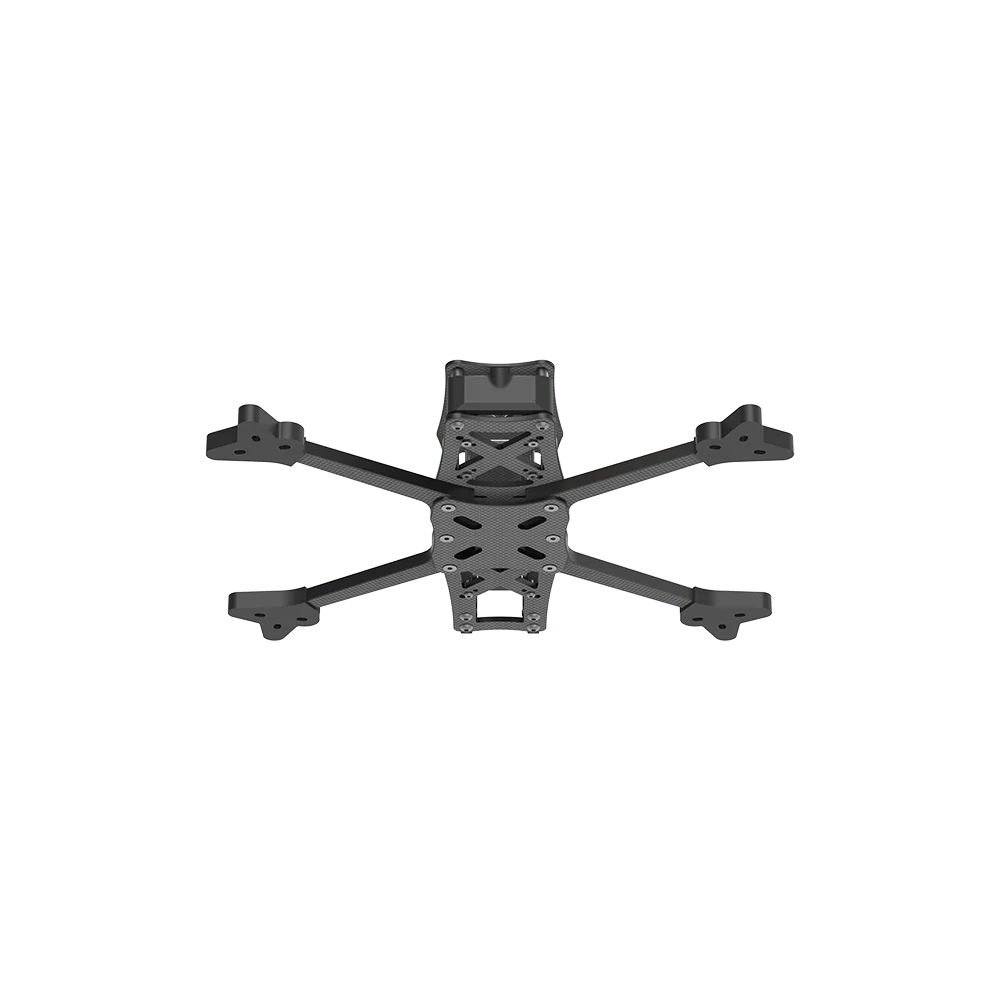

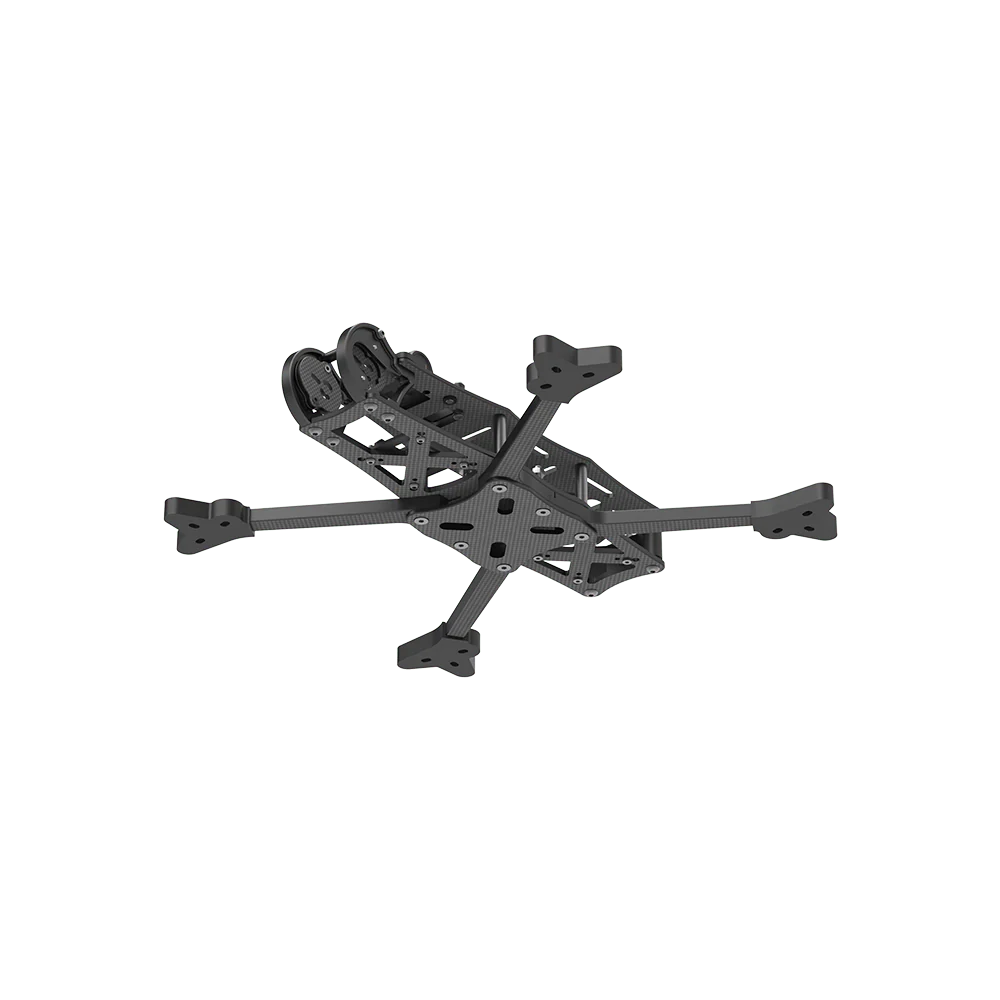

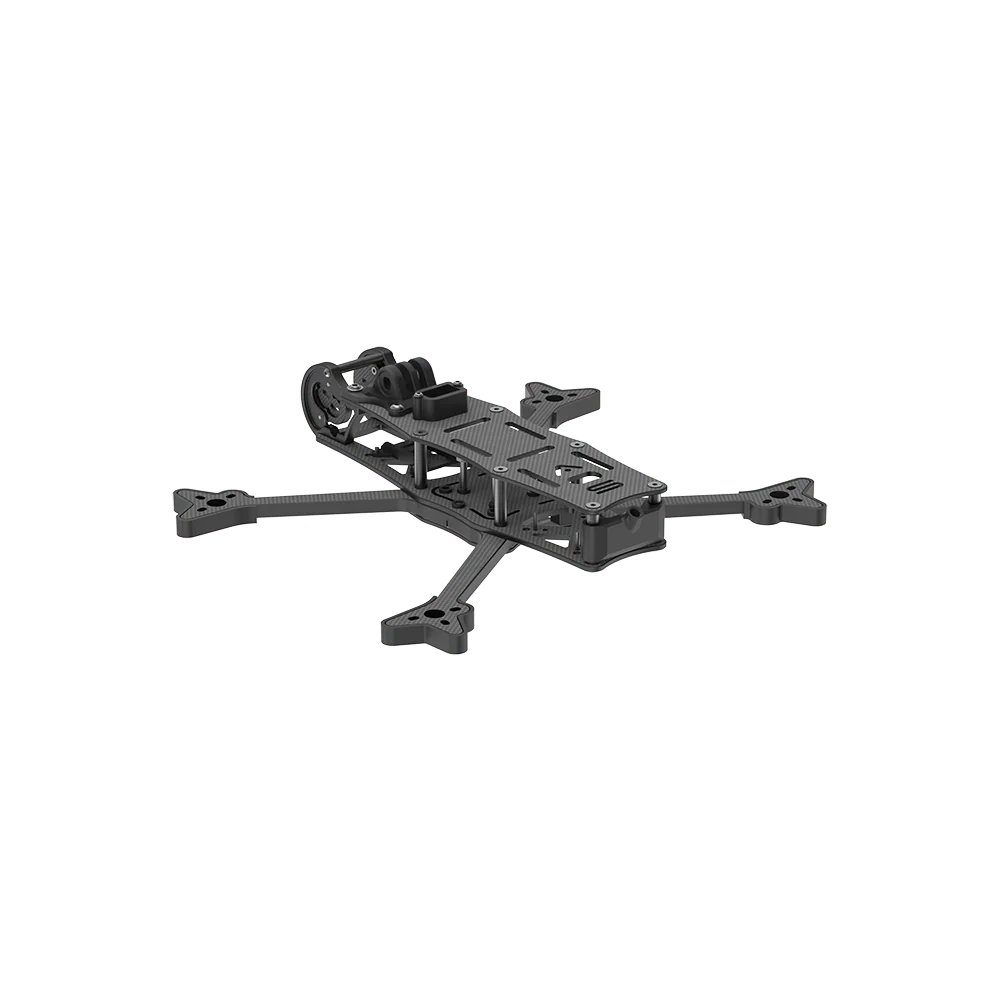

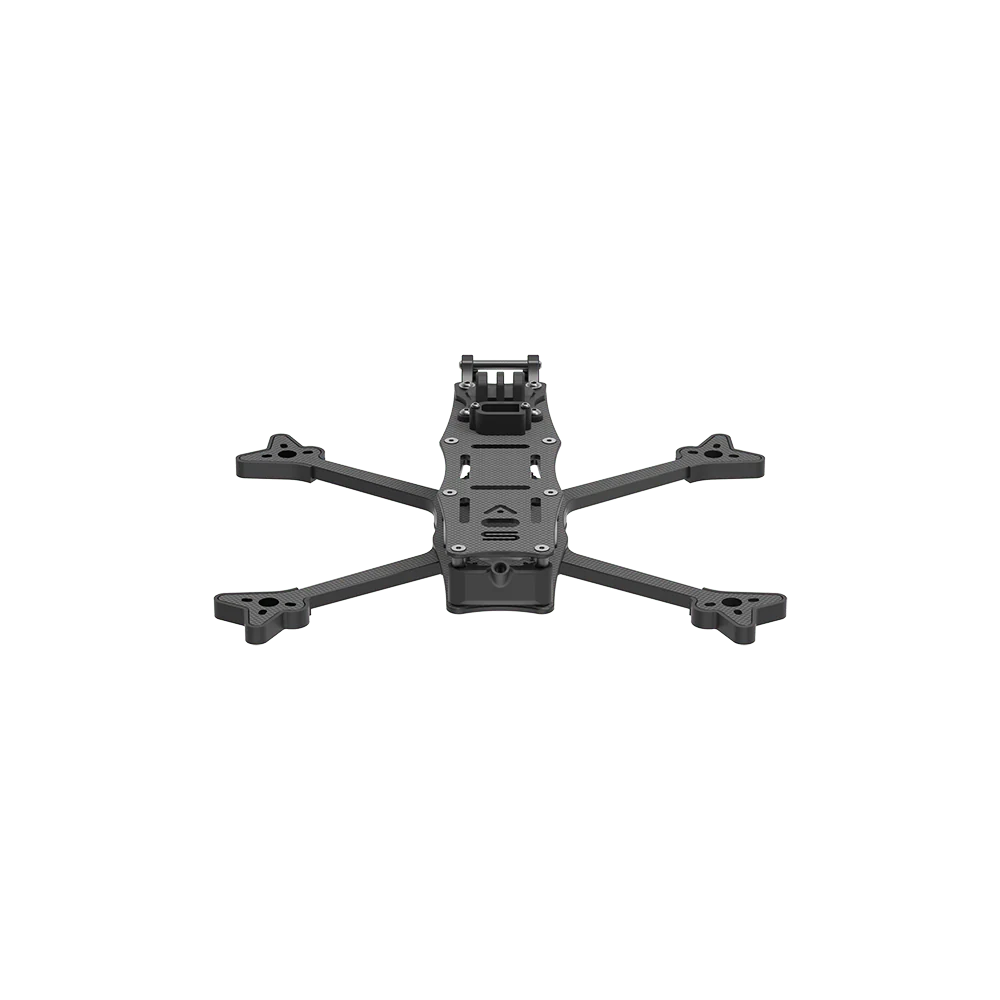

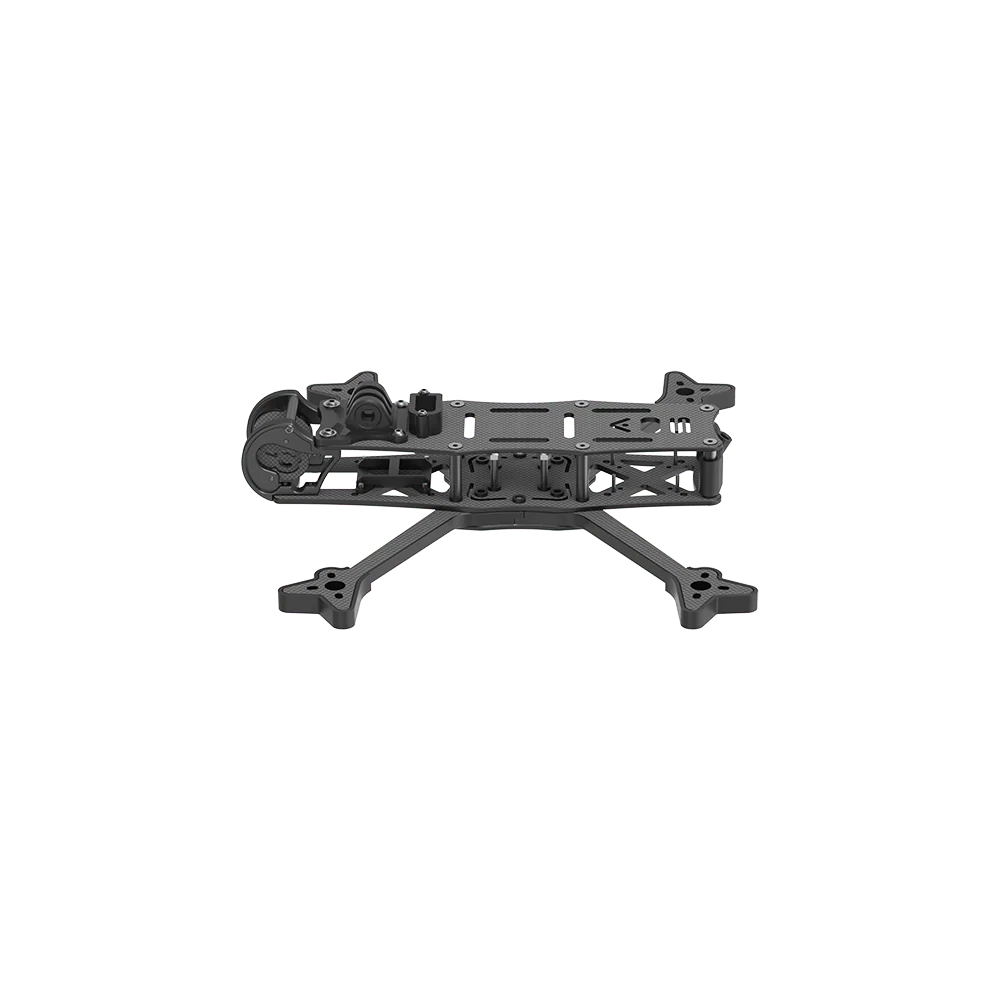

iFlight AOS 5 V5 Frame Kit

Overview

Discover the future of 5″ FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent pending technology and premium materials, here’s why the AOS 5 V5 is the ultimate choice for drone enthusiasts.

Features

• Supports up to 5.2″ Props
• AOS X-Cell Anti-Vibration Technology
• Three 30.5×30.5, 25.5×25.5, or 20×20 mm stacks
• 155° FOV no props in view
• Fully DJI O3 compatible (soft mount + ND filters)
• Supports 19-20mm cameras (hard or soft mounted)
• Reinforced 7075 Aluminium Camera Cage
• Supports Lengthwise or Toilet Tank battery mounting
• ⌀16 – ⌀19mm motor mounting (supports all standard 5″ motors)
• 28x28mm M3 GoPro Mounting Pattern
• 32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)

Included

1 x AOS 5 V5 Frame Kit
1 x TPU Parts
1 x Screw Bag
2 x Battery Strap
2 x Battery pads

Compatibility

DJI O3 air unit
Vista HD system
BLITZ Whoop 1.6W VTX

Specifications
