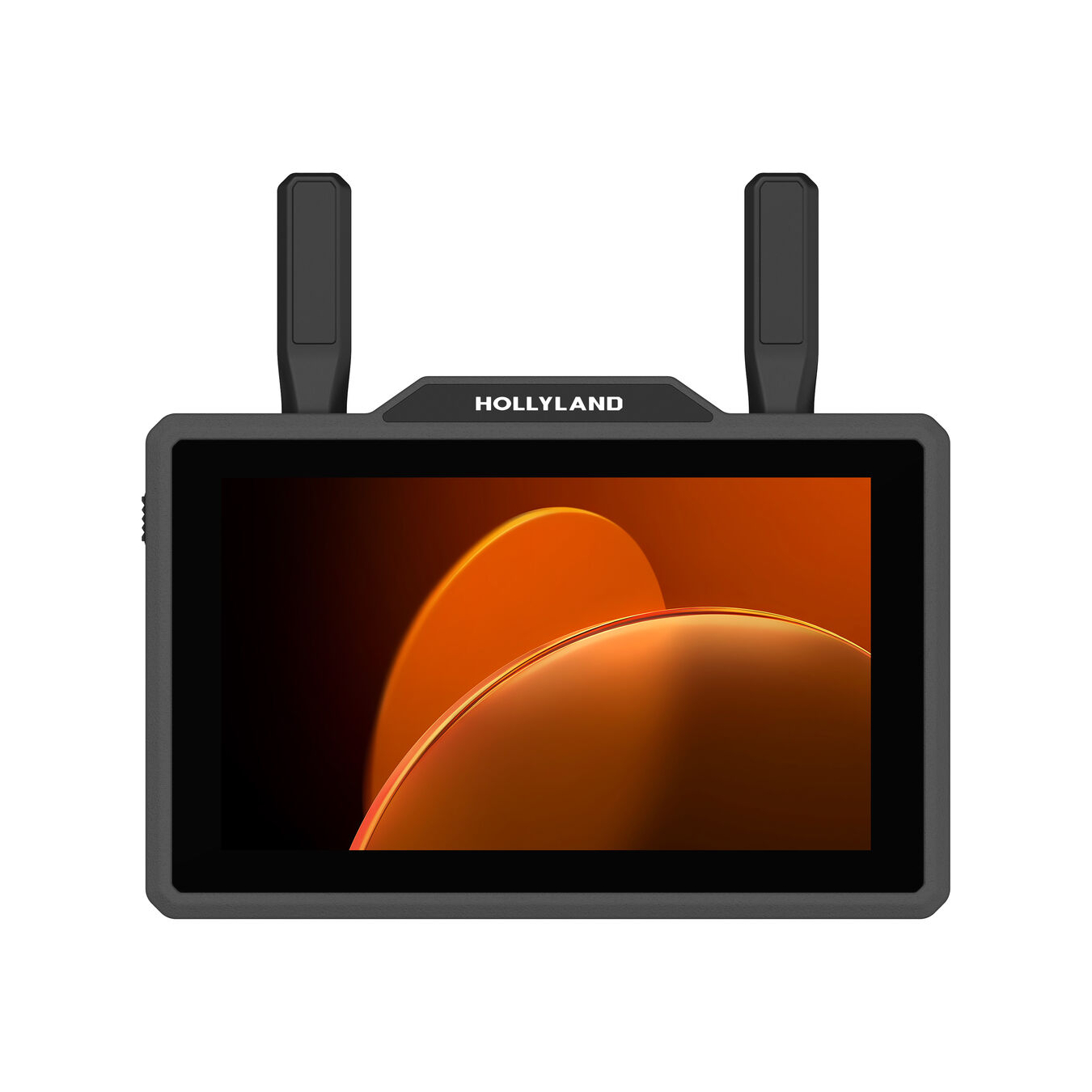

Hollyland Pyro 5 Wireless Transceiver Monitor
€369.00 excl. BTW
- Monitor Wireless Video up to 1312′ Away
- 5.5″ Touchscreen 1920 x 1080 Display
- Transmitter & Receiver Mode Switching
- One Transmitter Can Send to 4 Receivers
- Up to 1080p60 SDI/HDMI Video
- High 1500 cd/m² Brightness
- Auto Frequency Hopping, 2.4/5 GHz Bands
- RTMP Streaming, USB/SD Card Import/Save
- Built-In L-Series Battery Plate
External warehouse, approximately 10 days or more
Overview
Transmit, receive, and monitor high-quality wireless video transmissions using the versatile Pyro 5 Wireless Transceiver Monitor from Hollyland. The Pyro 5 takes the previous M1 transceiver/monitor and makes everything bigger and better with a bright 5.5″ touchscreen display, L-series battery plate, wireless transmission up to 1312′ away, SD card video recording, HDMI/SDI input/output, RTMP streaming, one Pyro 5 sends to up to four receivers, as well as auto dual-band 2.4/5 GHz hopping and auto-frequency hopping.
Features
- The Pyro 5 can be switched to operate as either a transmitter or a receiver. When in transmitter mode, the monitor features one HDMI input, one SDI input, and one HDMI loop output. When in receiver mode, it features one HDMI output.
- The transceiver enables seamless connection with all Pyro series units using a grouping preset. You can group multiple devices and instantly switch monitoring between two cameras by utilizing two customizable buttons.
- HD mode delivers 12 Mb/s bit rate video at a 75 ms latency
- Smooth mode dynamically adjusts the bit rate and delivers video at 60 ms for longer distance transmission

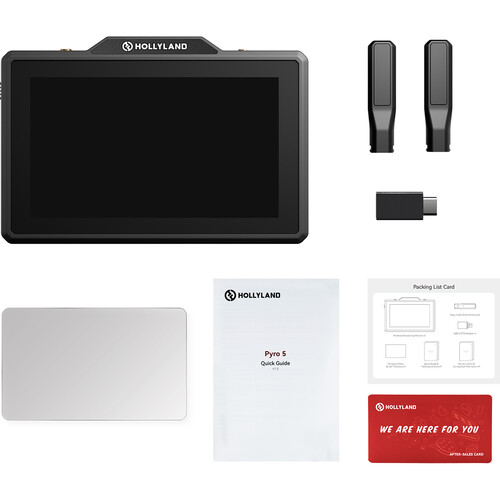

Included
- Hollyland Pyro 5 Wireless Transceiver Monitor
- 2 x Antenna
- Tempered Glass Screen Protector
- USB-C OTG Adapter
- Limited 1-Year Manufacturer Warranty
Specifications
Display
| Panel Type |
LCD
|
| Display Size |
5.5″ / 14.0 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
Yes
|
| Maximum Brightness |
1500 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| HDR Support |
No
|
| LUT Support |
Yes
|
| Image Controls |
False Color, Focus Assist, Waveform, Zebra
|
Inputs/Outputs
| Antenna I/O |
2x RP-SMA
|
| Video I/O |
1x HDMI 1.4b Input
1x SDI (3G-SDI) Input 1x HDMI 1.4b Loop Output 1x SDI (3G-SDI) Loop Output |
| Embedded Audio |
HDMI: 8-Channel
|
| Audio I/O |
1x 1/8″ / 3.5 mm Headphone Output
|
| Built-In Speaker |
No
|
| Power I/O |
1x Barrel (18 VDC) Input
|
| Other I/O |
1x USB-C
|
| Media/Memory Card Slot |
Single Slot: SD (Unspecified Type) [LUT/Firmware Update Only]
|
Wireless
| Wireless Range |
1312.3′ / 400 m
|
| Channel Bandwidth |
40 MHz, 20 MHz
|
| Latency |
60 ms
|
| RF Power |
< 23 dBm
|
| RF Sensitivity |
-85 dBm
|
| Wi-Fi |
Unspecified Version; Dual-Band (2.4 & 5 GHz)
|
| Bluetooth |
No
|
| Mobile App Compatible |
Yes: Android & iOS
|
Format Support
| Video Format |
HDMI
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format |
8-Channel 8-Bit
|
| Timecode Support |
No
|
Recording
| Pulldown Conversion |
No
|
| Camera Trigger |
No
|
| Pre-Roll Record |
No
|
| Encoding Formats |
x
H.264 |
| Closed Caption Support |
No
|
| Reference Input |
No
|
Power
| Input Power |
10 to 18 VDC
6 to 16 VDC |
| Battery |
1x L-Series Mount on Fixed Plate
|
| Power Consumption |
14 W
16.5 W |
Mounting
| Tripod/Accessory Mounting |
1/4″-20 Female
|
General
| Environmental Resistance |
No
|
| Operating Conditions |
14 to 113°F / -10 to 45°C
|
| Storage Conditions |
-40 to 140°F / -40 to 60°C
|
| Dimensions |
7.1 x 5 x 1.8″ / 180 x 127 x 45.8 mm
|
| Weight |
19.0 oz / 538.00 g
|
Packaging Info
| Package Weight |
1.525 lb
|
| Box Dimensions (LxWxH) |
8.9 x 6.1 x 2.2″
|
