DJI SDR Transmission – Transmitter
Original price was: €271.00.€257.00Current price is: €257.00. excl. BTW
- SDR Tri-Bandwidth Technology
- Input & Transmit up to 1080p60 Video
- DFS, 2.4 & 5.8 GHz with Auto Hopping
- Transmit to Tablet/Phone or SDR Receiver
- Wireless SDR Range of up to 1.9 Miles
- Up to 20 Mb/s Bit Rate, 35ms Low Latency
- Broadcast & Control Modes
- Ronin Gimbal Compatible
- HDMI & 3G-SDI Video Input
- L-Series Battery Plate, USB-C PD Input
External warehouse, approximately 10 days or more
Overview

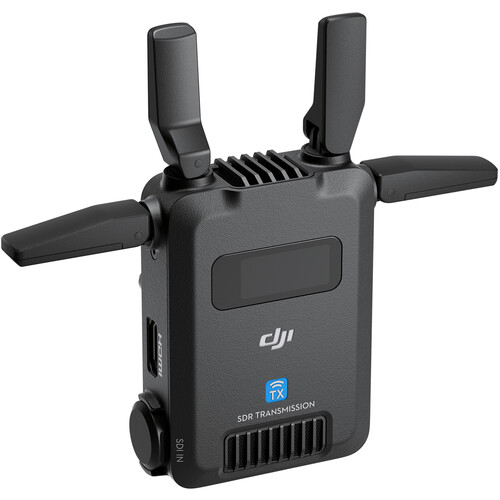

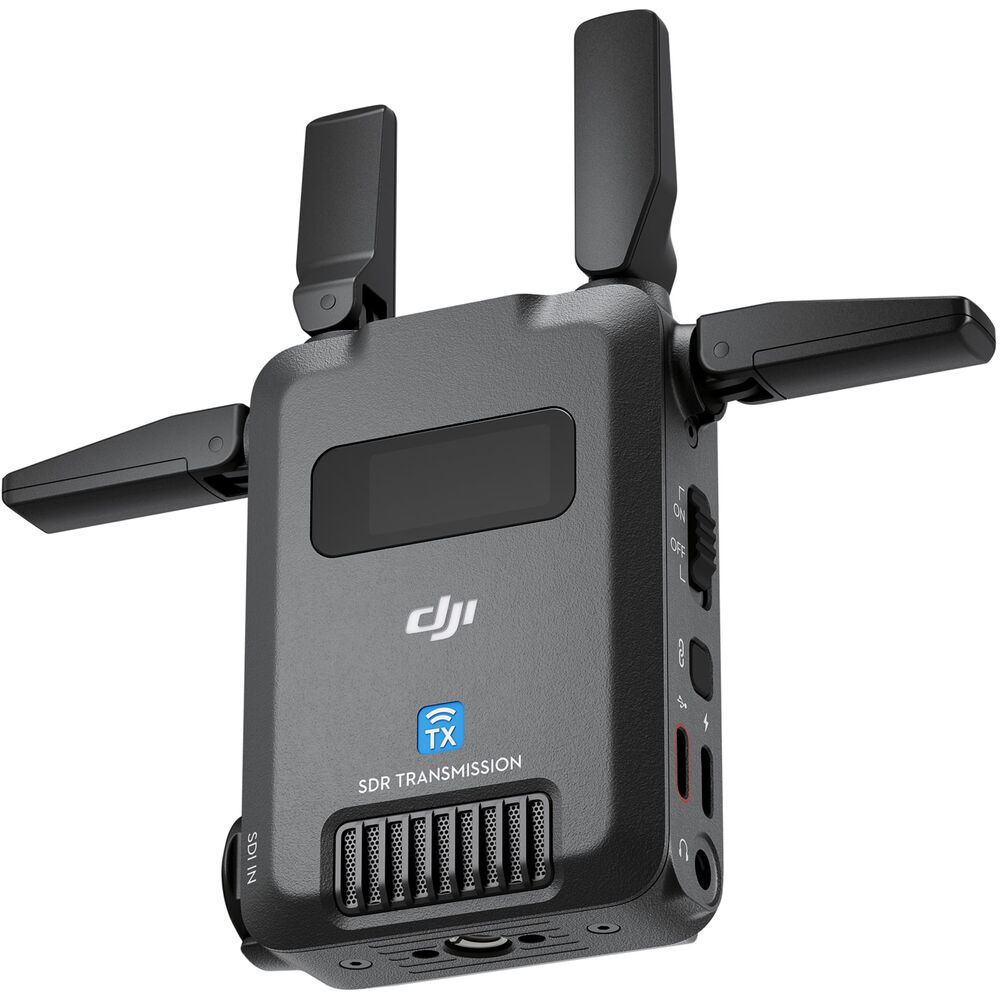

The DJI SDR Transmission Transmitter is engineered for reliable, high-quality video transmission on small-to-medium-sized film sets. It supports long-range transmission of up to 1080p60 resolution, utilizing DJI’s proprietary SDR (Software Defined Radio) technology. The system operates with a tri-band (DFS, 2.4 GHz, and 5.8 GHz) automatic frequency-hopping mechanism, offering strong signal penetration and coverage of up to 1.9 miles. Perfect for transmitting footage from a camera rig to unlimited receivers or mobile devices, it excels in crowded environments or complex architectures where traditional consumer Wi-Fi systems would fail.
Seamless Auto-Frequency Hopping
SDR technology enables smooth automatic frequency hopping across the 2.4 GHz, 5.8 GHz, and DFS bands. If interference occurs, the system can automatically switch to the clearest channel, ensuring stable operation even in environments with multiple obstacles. When the SDR Transmission system is connected to the app in either SDR Control or Wi-Fi mode, users have the option to manually switch channels through the app while also monitoring the channel quality in real time.
Robust Transmission up to 10,000′
The DJI SDR Transmission Receiver is capable of receiving wireless video from a transmitter at distances of up to 10,000 feet, thanks to its advanced SDR technology, ideal for large and dynamic filming spaces. With a remarkably low latency of just 35 ms, it guarantees seamless monitoring and extended transmission range.
Unlimited Number of Receivers
In Broadcast mode, a single transmitter can link to an unlimited number of receivers, offering a high-quality monitoring experience for multiple team members and catering to the distinct monitoring requirements of various professional roles.
Versatile USB-C Port
The transmitter offers versatile monitoring options, supporting three SDR and two Wi-Fi signals at the same time. The receiver can deliver output to monitors through SDI/HDMI, while the transmitter enables direct connection to smartphones or tablets via Wi-Fi for enhanced compatibility. Additionally, the receiver features a USB-C output, allowing it to connect directly to smartphones or tablets using a USB-C cable for smooth and reliable monitoring.

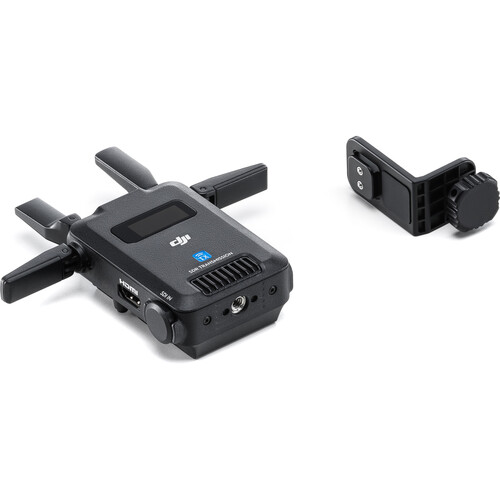

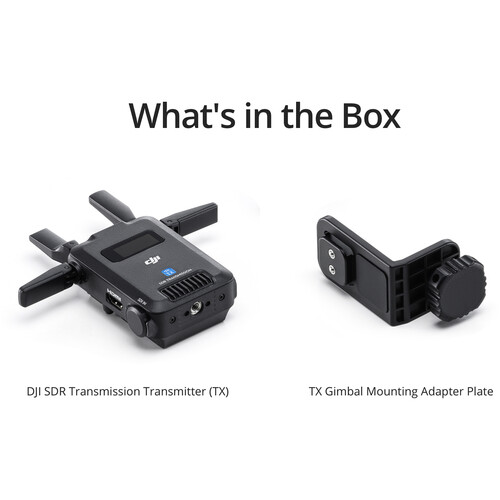

In The Box
DJI SDR Transmission Transmitter
Gimbal Mounting Adapter Plate
Limited 1-Year Manufacturer Warranty
Specifications
| Antenna I/O |
No
|
| Video I/O |
1x HDMI (Unspecified Signal) Input
1x BNC (Unspecified SDI) Input |
| Embedded Audio |
HDMI/SDI/USB/Wireless
|
| Audio I/O |
1x 1/8″ / 3.5 mm Headphone Output
|
| Power I/O |
1x USB-C (2 A / 9 VDC) Input
|
| Other I/O |
1x USB-C (Firmware) Input
|
| Wireless Range |
1.9Â Miles / 3Â km (Line-of-Sight)
656.2′ / 200Â m (Without Quality Loss) |
| Channel Bandwidth |
20 MHz
|
| Frequency Range |
Non-DFS Frequencies
2.4 to 2.4835 GHz 5.725 to 5.85 GHz DFS Frequencies 5.47 to 5.725 GHz |
| Latency |
35 ms
|
| RF Power |
30 dBm
|
| Wi-Fi |
Wi-Fi 6 (802.11ax); Tri-Band (2.4 & 5 + 5 GHz) with MU-MIMO Support (2 x 2)
|
| Bluetooth |
No
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Cellular Support |
No
|
| Video Format |
HDMI/SDI/USB
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format |
PCM Audio
|
| Wireless Video Compression |
Compressed
|
| Timecode Support |
No
|
| Input Power |
6.8 to 17.2 VDC
9 VDC at 2 A |

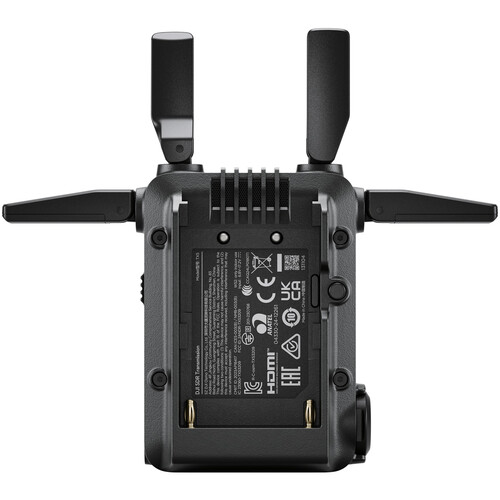

| Battery Type |
1x L-Series
|
| Power Consumption |
8.2 W
|
| Mounting |
1x 1/4″-20 Female (Bottom)
|
| Operating Conditions |
32 to 104°F / 0 to 40°CÂ
|
| Material of Construction |
Plastic
|
| Dimensions |
3.4 x 2.5 x 1.3″ / 86.5 x 64 x 32Â mm (Excluding Antenna)
|
| Weight |
5.11Â oz / 145.00Â g, Including Antenna
|
| Package Weight |
0.475 lb
|
| Box Dimensions (LxWxH) |
4.95 x 4.2 x 1.55″
|
