DJI O4 Air Unit
Original price was: €95.00.€90.00Current price is: €90.00. excl. BTW
- Add FPV Capabilities to Your Drone
- Fits Drone Frames as Small as 2″
- Works with DJI Goggles
- DJI O4 Transmission with 1T1R Antenna
- 23GB of Built-In Storage
- 1/2″ CMOS with 117.6° FOV
- RockSteady 3.0+ Image Stabilization
- Stream 1080p100 Video
- Up to 6.2-Mile Range
- Record 4K60 Footage
1 stock in external warehouse, usually ships 1-2 days.
Overview

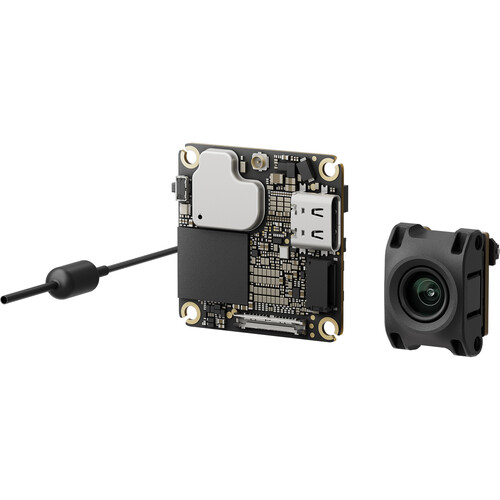

Add FPV excitement to your non-FPV drone with the DJI O4 Air Unit. This standard version comes with a camera module and a single antenna, designed to fit drone frames as small as 2 inches. Compatible with various DJI Goggles, the O4 video transmission system allows you to view real-time 1080p video at a smooth 100 fps, with a range of up to 6.2 miles. Equipped with a 1/2″ CMOS sensor, it captures wide-angle footage with a 117.6° field of view at up to 4K60 resolution, storing the footage on the module’s built-in 23GB of memory.
Features
- 20 ms low latency
- 60 Mb/s maximum bit rate
- Automatic multi-channel frequency selection for the best signal
- Supports optional DJI Avata 2 ND filters to adjust exposure

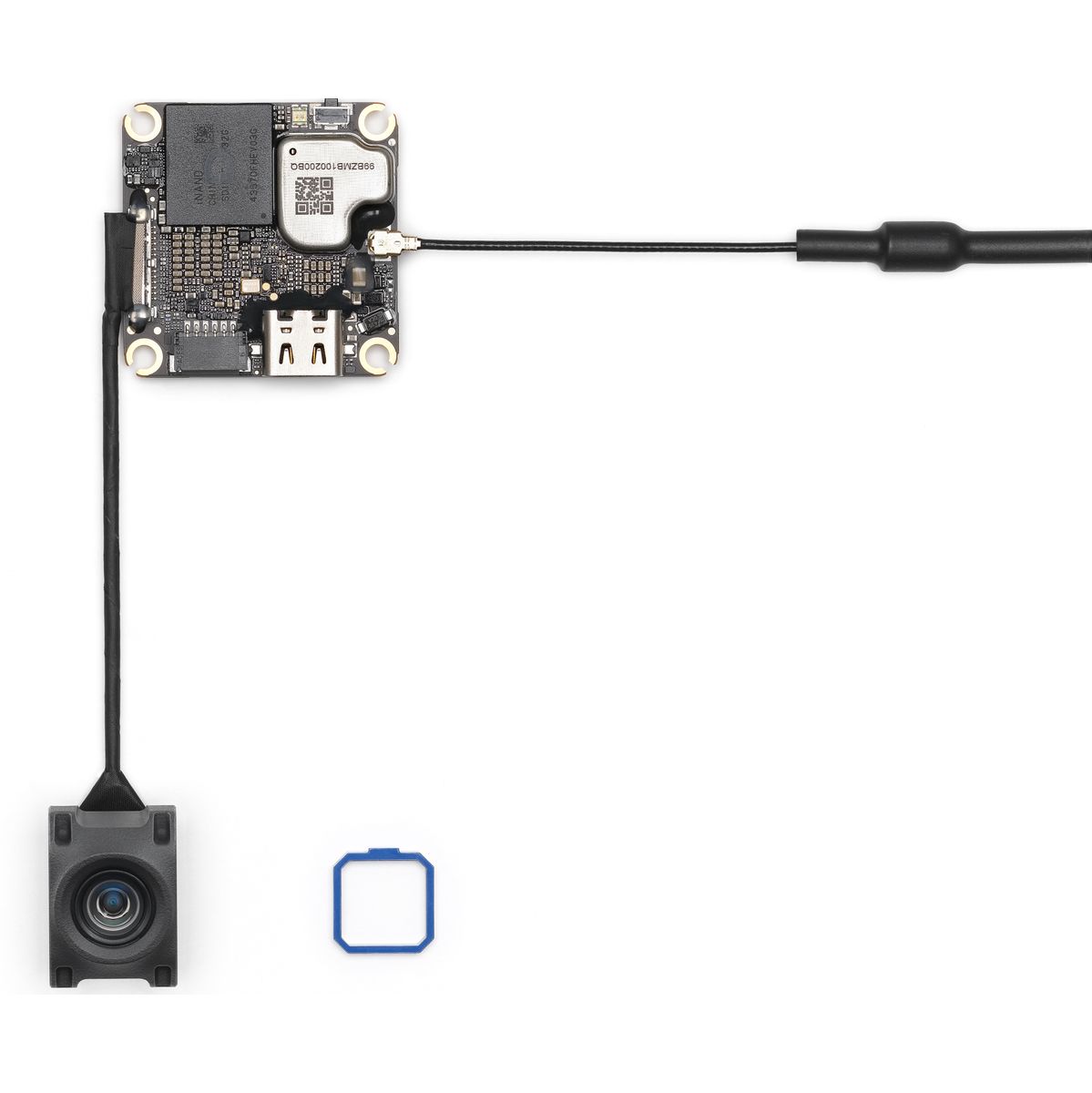

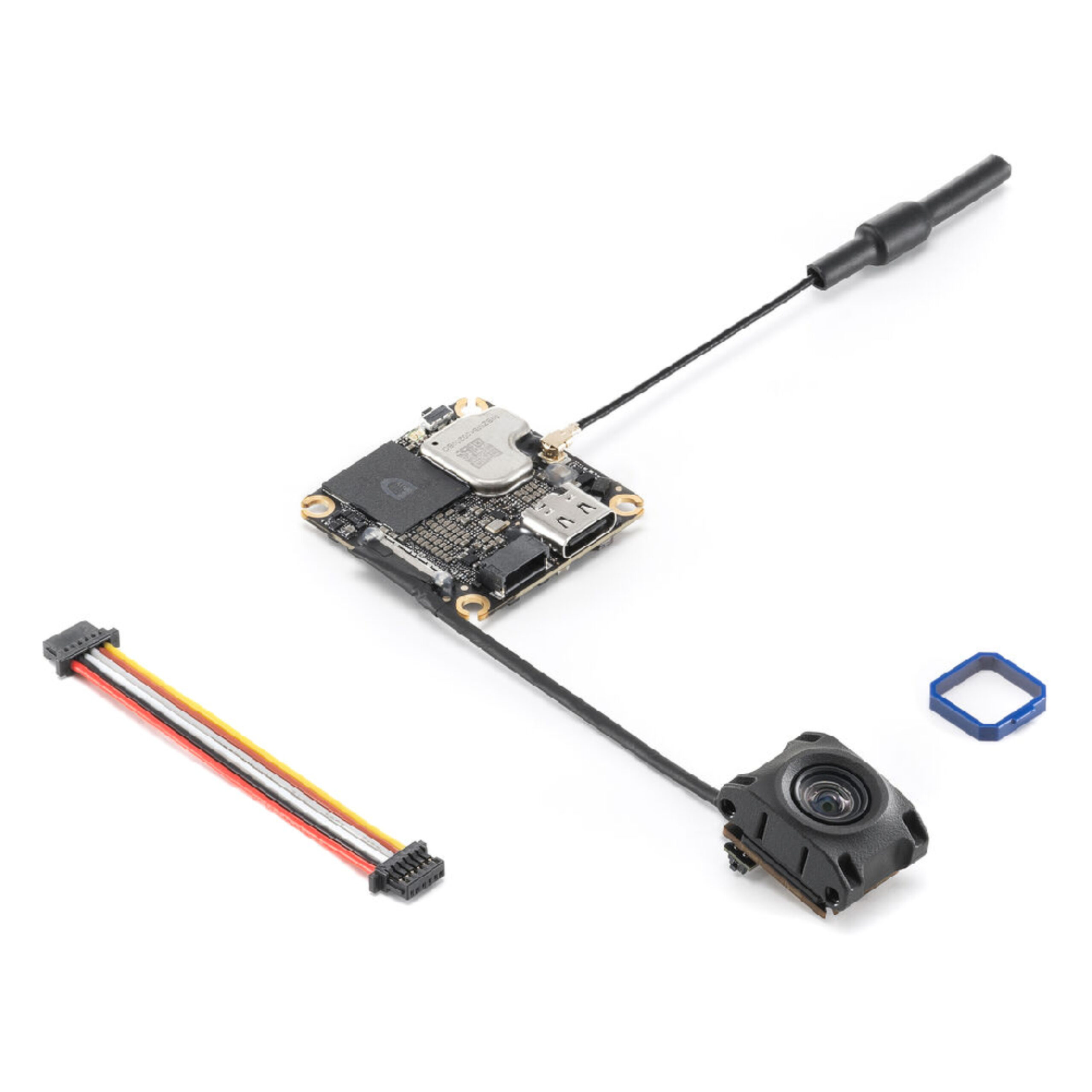

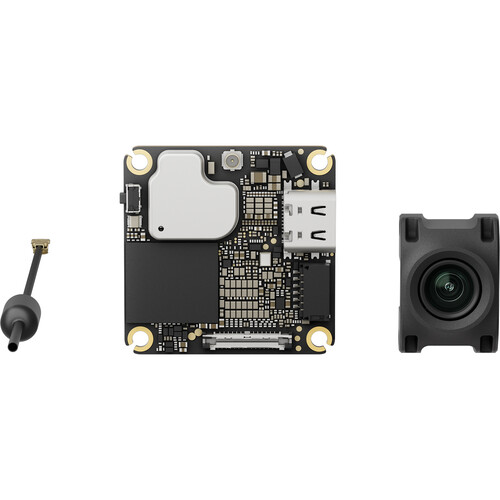

Included
DJI O4 Air Unit
Camera Module
Transmission Module
Antenna
3-in-1 Cable
Limited 1-Year Manufacturer Warranty
Specifications
| Camera |
Image Sensor: 1/2″ CMOS
FOV: 117.6° Equivalent Focal Length: 14mm Aperture: f/2.8 Minimum Focus Distance: 2′ / 0.6 m ISO Range (Auto): 100 to 6400 ISO Range (Manual): 100 to 12,800 Video Resolution (4K 4:3): 3840 x 2880 at 30, 50, and 60 fps Video Resolution (4K 16:9): 3840 x 2160 at 30, 50, and 60 fps Video Resolution (1080p 4:3): 1440 x 1080 at 30, 50, 60, 100, 120 fps Video Resolution (1080p 16:9): 1920 x 1080 at 30, 50, 60, 100, 120 fps Video Format: MP4 Video Bit Rate (Max): 100 Mb/s |
| Storage Capacity |
23 GB
|
| Wireless |
5.8 GHz Radio/RF
|
| Mobile App Compatible |
No
|
| Type of Transmitter |
Operating Freqency: 5.17 to 5.25 and 5.725 to 5.85
Transmitter Power (EIRP): 5.1 GHz: <23 dBm (CE) Transmitter Power (EIRP): 5.8 GHz: <30 dBm (FCC), <14 dBm (CE), and <30 dBm (SRRC) Transmission Range: With DJI Goggles 3/N3: Up to 6.2 Miles / 10 km (FCC), Up to 3.7 Miles / 6 km (CE/SRRC) Live View Quality: 1080p at 30, 50, 60, or 100 fps Communication Bandwidth: 60 MHz (Max) Antenna: 1T1R Channels with DJI Goggles 3/N3: 60/40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels with DJI Goggles 2/Integra: 40 MHz (1 Channel), 20/10 MHz (3 Channels) Channels (FCC/SRRC/CE, 60/40 MHz): Channel 1 at 5794.5 MHz Channels (FCC/SRRC/CE, 20/10 MHz): Channel 1 at 5768.5 MHz, Channel 2 at 5789.5 MHz, and Channel 3 at 5814.5 MH |
| Latency |
With DJI Goggles 3, Racing Mode, and 1080p/100: Down to 20 ms
With DJI Goggles N3, Racing Mode, and 1080p/100: Down to 24 ms With DJI Goggles 2 or Integra and 1080p/100: Down to 35 ms |
| Power Source |
Proprietary Interface
|
| DC Input Power |
3.7 to 13.2 VDC
|
| Color |
Black
|
| Operating Conditions |
14 to 104°F / -10 to 40°C
|
| Cable Length |
2″ / 50 mm (Coaxial)
2″ / 50 mm (3-in-1) |
| Dimensions |
1.2 x 1.2 x 0.2″ / 30 x 30 x 6 mm (Transmission Module)
0.6 x 0.53 x 0.49″ / 16.5 x 13.44 x 12.36 mm (Camera Module) 3.1″ / 80 mm (Antenna) |
| Weight |
0.2 oz / 5.1 g (Without Camera Module)
0.2 oz / 5.8 g (With Camera Module) 0.03 oz / 0.75 g (Antenna) |
