Overview
X1 is a WiFi-enabled PTZ camera from BirdDog with 20x optical zoom. The resolution is Full HD. It features a built-in NDI decoder, specially designed for confidence monitoring, retransmissions, or use with teleprompters. This allows all mentioned functions to be enabled through just one cable.
The camera is NDI-capable and does not overload the network thanks to NDI|HX3 compression, while maintaining image quality. Whether for live events, in dynamic environments, during hunting, or in sports: With AI tracking technology, the camera intelligently and in real-time follows any subject.

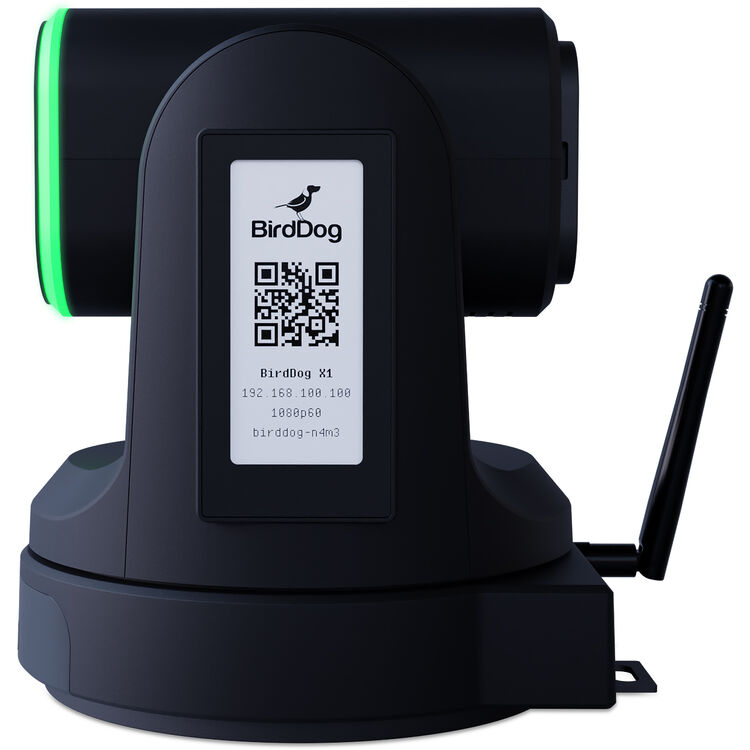

Designed for live productions, the PTZ camera also includes a highly visible Tally Light. The E-Ink label allows, among other things, the capturing of network addresses for accessing controls and creating customizable logos to support any brand image. Thanks to this feature, each camera can be identified even when powered off. In addition to WiFi functionality, the X1 also features regular Ethernet with PoE.
Features
- WiFi-enabled PTZ camera with 20x zoom in Full HD
- NDI | HX3
- Built-in NDI decoder
- AI tracking
- Tally Light
- E-Ink label
Included
- X1 camera
- Remote control
- DC 12V power supply
- Mounting screws
- Rear silicone numbers
- USB cable
- Limited 5-Year Manufacturer Warranty
Specifications
| Image Sensor |
1/2.8″-Type CMOS
|
| Horizontal Resolution (TV Lines) |
1080 TV Lines
|
| Sensor Resolution |
Effective: 2.07 Megapixel (1920 x 1080)
|
| IR Cut Filter |
No
|
| Focus Control |
Autofocus
Manual Focus |
| Shutter Speed |
1/10000 to 1/25 Second
|
| Signal-to-Noise Ratio |
50 dB
|
| White Balance |
Range: 2500 to 9000K
Presets: Manual, VAR |
| Focal Length |
5.5 to 110mm
|
| Max Optical Zoom |
20x
|
| Field of View |
Horizontal: 55.8 to 3.2°
Vertical: 32.2 to 1.8° Diagonal: 61 to 3.64° |
| Maximum Aperture |
f/1.6 to 3.5
|
| Video Output |
HDMI / RJ45 / USB
HD (1920 x 1080p) at 25/30.00/50/60.00 fps HD (1280 x 720) at 25/30.00/50/60.00 fps |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI
|
| Broadcast Output |
NTSC/PAL
|
| IP Streaming |
RTSP/RTMP/NDI HX3/NDI HX2
1920 x 1080 at 60p |
| Presets |
255
|
| Pan/Tilt |
Pan: 350° (-175 to 175°) at 0.1 to 80°/s
Tilt: 180° (-90 to 90°) at 0.1 to 60°/s |
| Tally Light |
Yes
|
| Wireless |
Wi-Fi 5 (802.11ac) / IR
|
| Video I/O |
1x HDMI Output
|
| Other I/O |
1x USB-C
1x RJ45 (NDI, RS-232) Control |
| Built-In Microphone |
No
|
| Built-In Speaker |
No
|
| PoE Support |
PoE 802.3af
|
| Power I/O |
1x RJ45 (12VDC at 2 A) Input
|
| Power Consumption |
13 W
|
| Operating Conditions |
14 to 104°F / -10 to 40°C at 20 to 80% Humidity
|
| Mounting |
1x 1/4″-20 Female
|
| Dimensions (W x H x D) |
10.2 x 8.5 x 7.8″ / 260 x 217 x 197 mm
|
| Weight |
2.98 lb / 1.35 kg (Body Only)
|
| Package Weight |
5.73 lb
|
| Box Dimensions (LxWxH) |
11.9 x 8.5 x 7.9″
|
