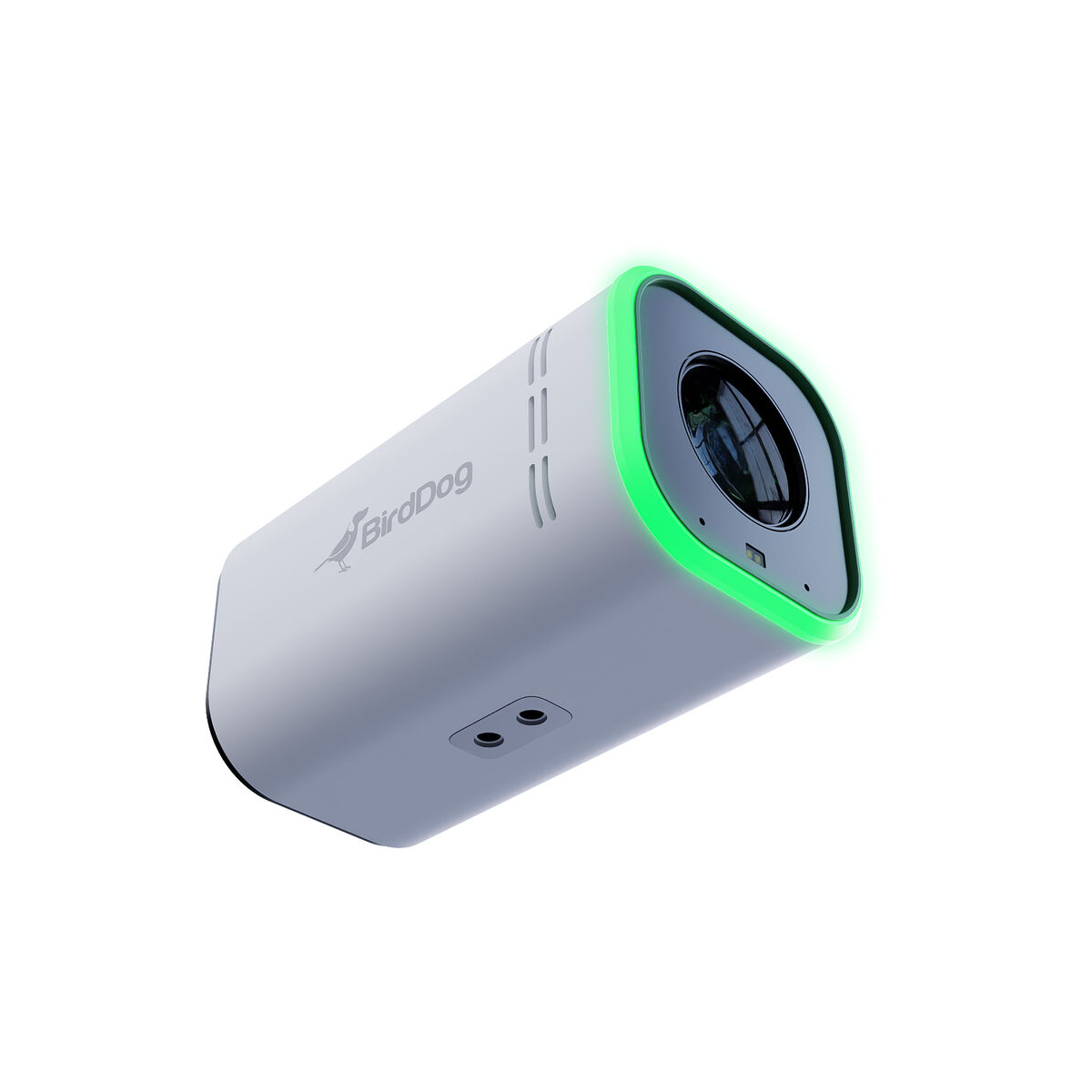

BirdDog MAKI Ultra 4K Box Camera 20x Zoom (White)
€1,219.00 excl. BTW
- 20x Zoom & UHD 4K60 Resolution
- NDI|HX2 & NDI|HX3 Support
- HDMI & USB/UVC Outputs
- Built-In Halo Tally
- Color Matrix, API & Kelvin Control
- PoE Support
- Exceptional Low-Light Performance
External warehouse, approximately 10 days or more
BirdDog MAKI Ultra 20x is a 4K UHD box camera with 20x optical zoom from BirdDog. In addition to a maximum resolution of 4Kp60, it also features fast autofocus. The high frame rate produces detailed, high-resolution footage even in low-light conditions. The autofocus ensures that fast-moving content is precisely focused and remains sharp. This makes the box camera popular for eSports and sports events, live music recordings, church services, and similar events.

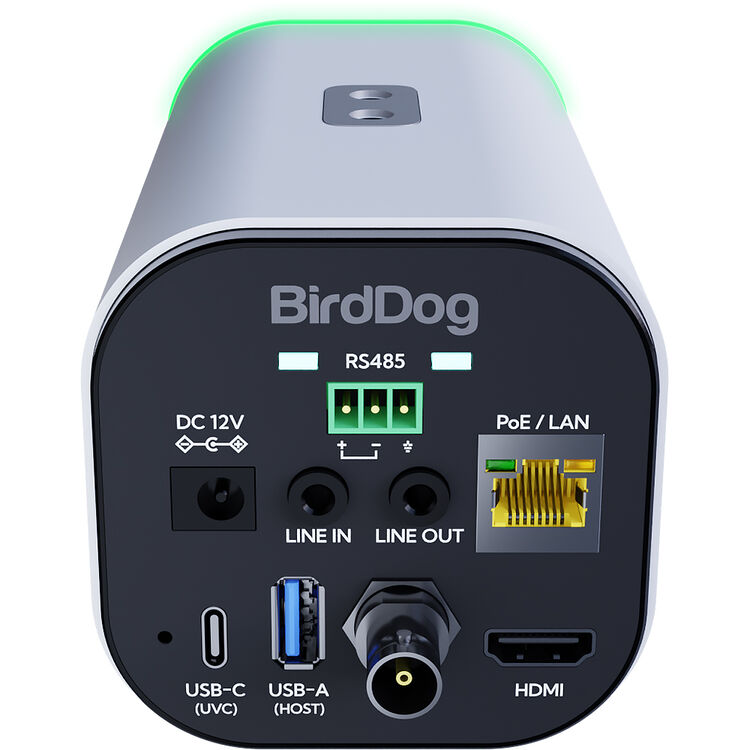

Like all other BirdDog products, the MAKI is NDI-capable. HX3 integration enables high-quality video transmission with low network overhead. The camera features HDMI, 3G-SDI, USB, and Ethernet ports, allowing it to be integrated into a wide variety of workflows.

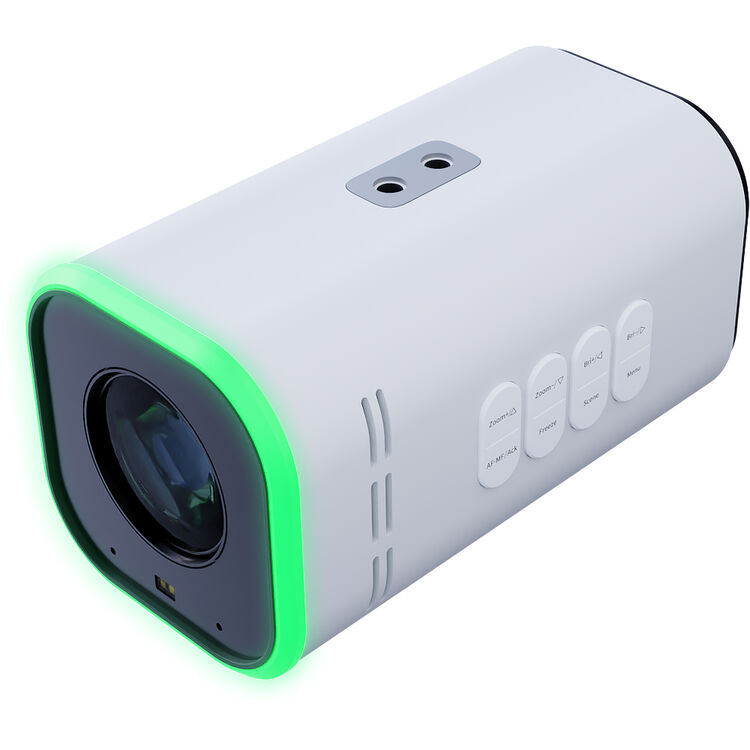

It also features intuitive onboard buttons. This allows for convenient on-board zoom and focus control.
The built-in microphone provides omnidirectional recordings with a range of up to 6 meters – and features a noise reduction algorithm.
Included
- BirdDog MAKI Ultra 4K Box Camera 20x Zoom (White)
- Remote Control
- 12 VDC Power Supply
Specifications
| Image Sensor |
1/2.8″-Type CMOS
|
| Sensor Resolution |
Effective: 8.4 Megapixel
|
| Video Output |
HDMI / RJ45 / SDI/BNC
3840 x 2160p at 60.00/25/50/30.00 fps 1920 x 1080p at 60.00/25/50/30.00 fps 1280 x 720 at 59.94/60.00/25/50/30.00 fps |
| Shutter Type |
Electronic Rolling Shutter
|
| Signal-to-Noise Ratio |
50 dB
|
| Focal Length |
4.7 to 94mm
|
| Aperture Range |
f/1.8 to 2.68
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI 2.0 Output |
| Audio I/O |
1x 1/8″ / 3.5 mm TRS Stereo Line Input
1x 1/8″ / 3.5 mm TRS Stereo Line Output |
| Power I/O |
1x Barrel Input
|
| Other I/O |
1x USB-C Output
|
| Wireless |
No
|
| Supported Protocols |
Video Streaming Protocol
NDI|HX3/NDI|HX2 Camera Control Protocol VISCA/RS-485 |
| Mobile App Compatible |
No
|
| Voltage |
12.0 VDC
|
| Power Consumption |
18 W
|
| Operating Conditions |
14 to 104°F / -10 to 40°C
|
| Accessory Mounting |
4 x 1/4″-20 Female
|
| Dimensions |
5.7 x 3.1 x 3″ / 145 x 78.5 x 76 mm
|
| Weight |
2.87 lb / 1.3 kg
|
| Package Weight |
3.21 lb
|
| Box Dimensions (LxWxH) |
9.5 x 8.5 x 5.6″
|
