The SmallRig 6553 Heavy-Duty Fluid Video Head supports camera loads up to 33.1 lb and provides pan and tilt movement with independent locks and drag control. It features a 75mm bowl base and a Manfrotto-compatible quick release plate with 1/4"-20 and 3/8"-16 screws.

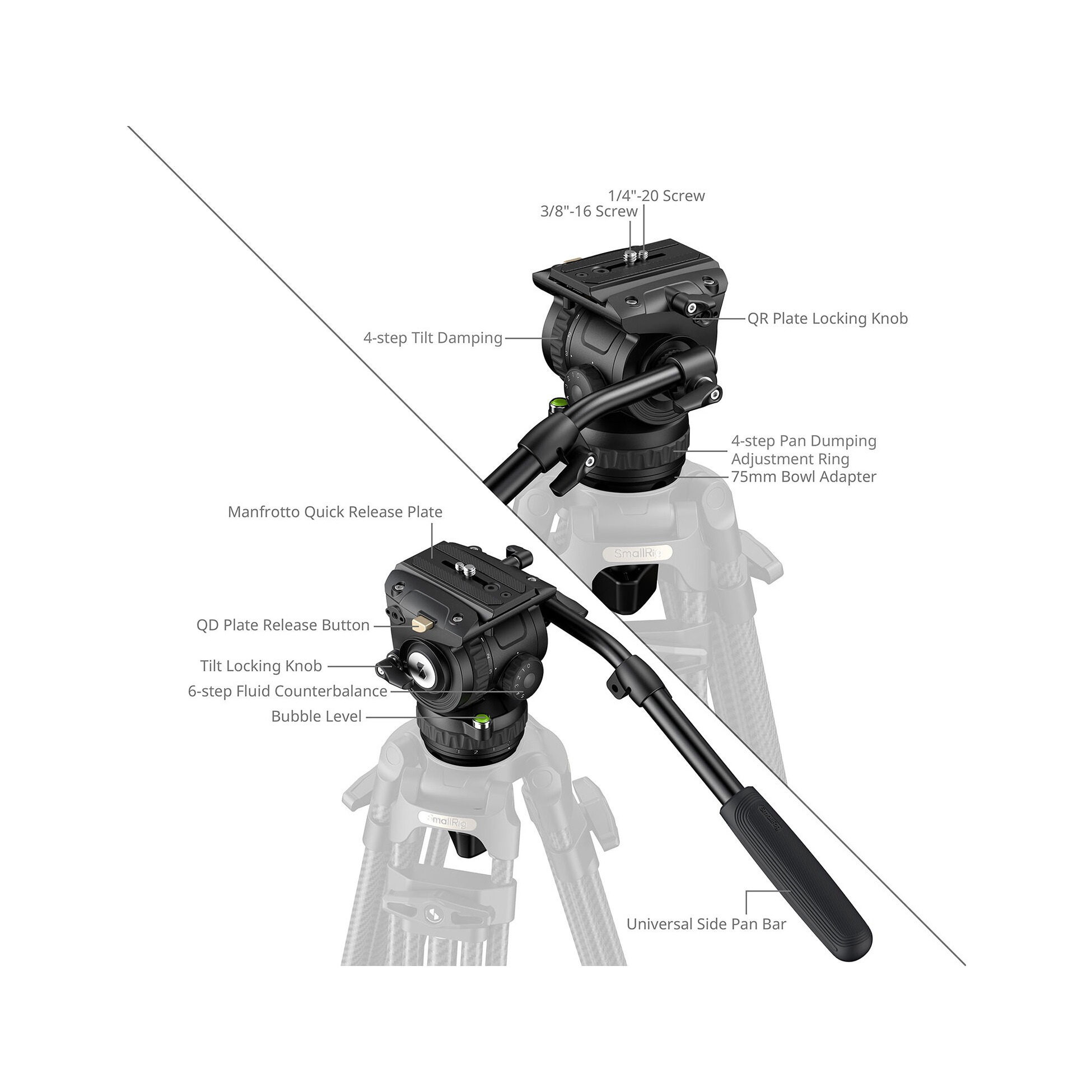

A 6-step counterbalance and 4+4-step tilt and pan damping controls support stable movement. The quick release plate can be swapped for DJI RS series plates, and the included telescopic side handle can be attached to either side of the head.
Features
- Supports loads up to 33.1 lb / 15 kg.
- Includes a quick release plate with 1/4"-20 and 3/8"-16 screws.
- The plate can be swapped to accommodate DJI RS series plates.
- Provides pan and vertical tilt movement with independent pan and tilt locks and drag control.
- The telescopic side handle can be attached to either side, leaving the other 1/4"-20 thread available for articulating arms.
- Includes a 6-step counterbalance system.
Included
- SmallRig 6553 Heavy-Duty Fluid Video Head
- Quick Release Plate
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- Tie-Down Knob
- Telescopic Handle
- Wrench
Specifications
| Top Mounting | Quick Release Plate with 1/4"-20 & 3/8"-16 Screws |
|---|---|
| Head Type | Fluid Head |
| Load Capacity | 33.1 lb / 15 kg |
| Weight | 4.6 lb / 2.1 kg |
| Base Mount | 75 mm Half Ball |

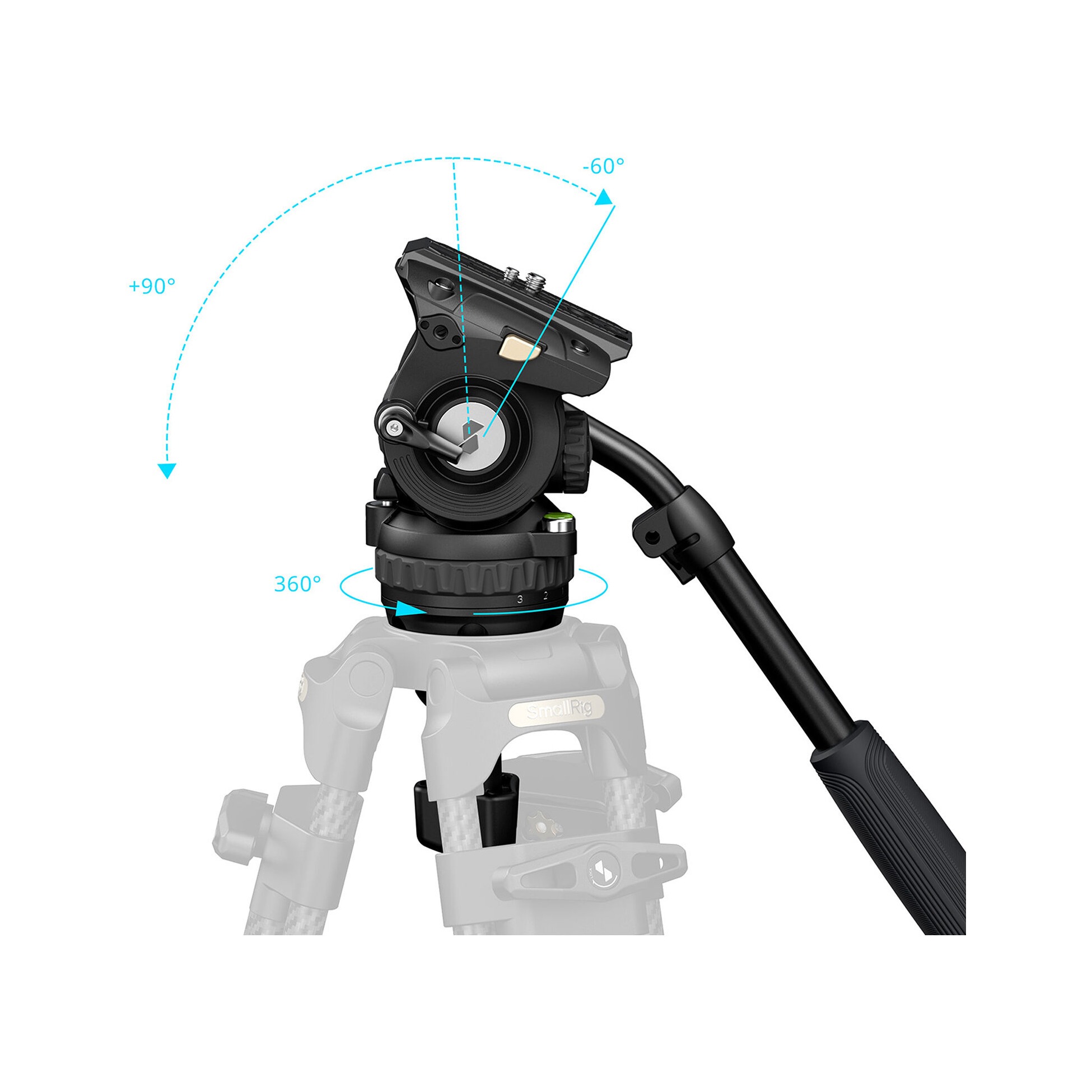

| Pan & Tilt | Pan & Vertical Tilt Only with Independent Pan & Tilt Locks and Drag Control • 150° (-60 to +90°) |
| Counter Balance | Incremental 6-Step (0 to 13.2 lb / 0 to 6 kg) |

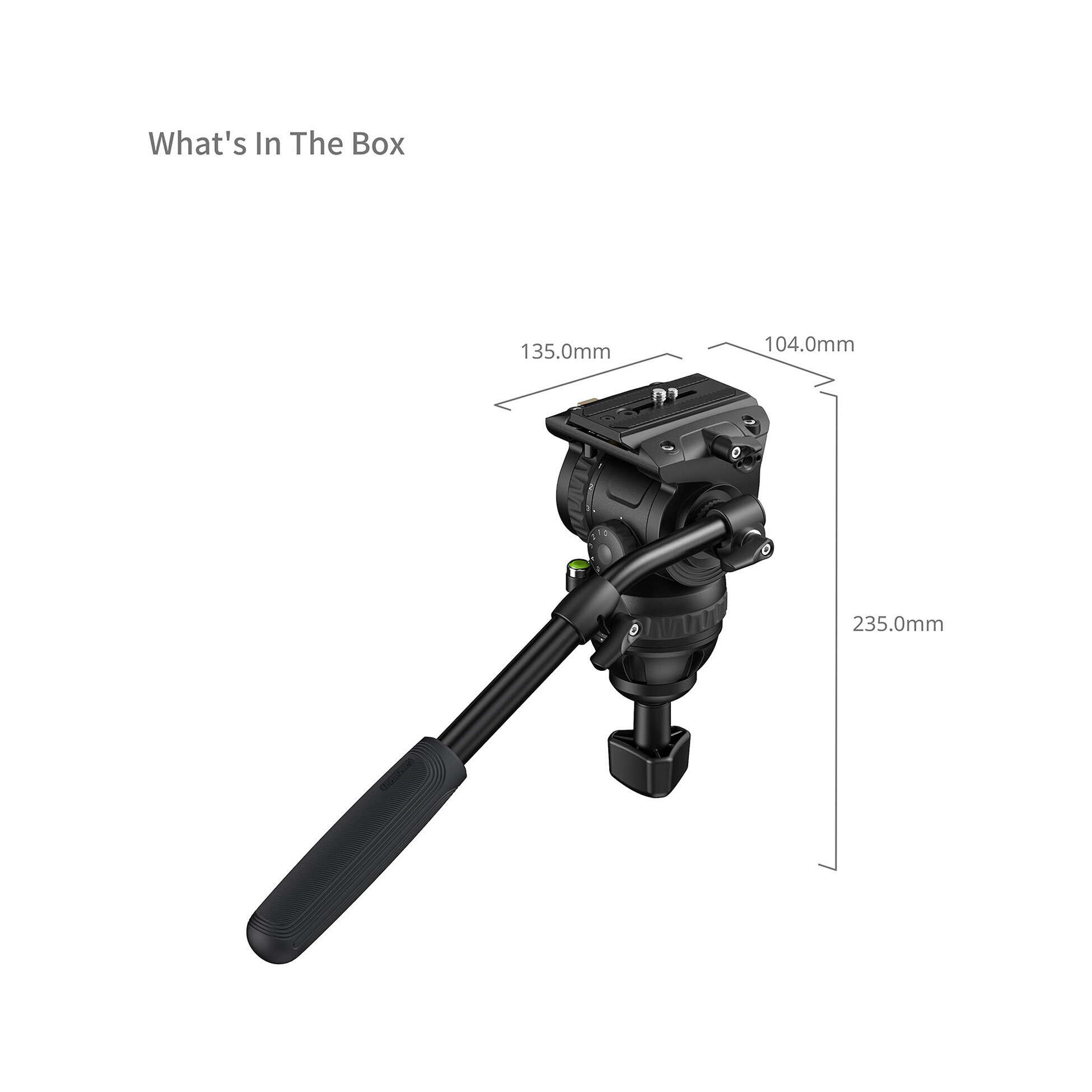

| Dimensions | Height: 9.3" / 235 mm Camera Plate: 5.3 x 4.1" / 135 x 104 mm |
| Accessory Mounting | 1x 1/4"-20 Female Thread |
| Bubble Level | Yes |
| Package Weight | 5.855 lb / 2.66 kg |
| Box Dimensions (LxWxH) | 16.4 x 7.7 x 6.2" / 41.66 x 19.56 x 15.75 cm |
| Ağırlık | 2.66 kg |
|---|---|
| Boyutlar | 41.66 × 19.56 × 15.75 cm |
