MID49 Micro Rosette TWIST Mount Kit (No Spuds)

Genel Bakış

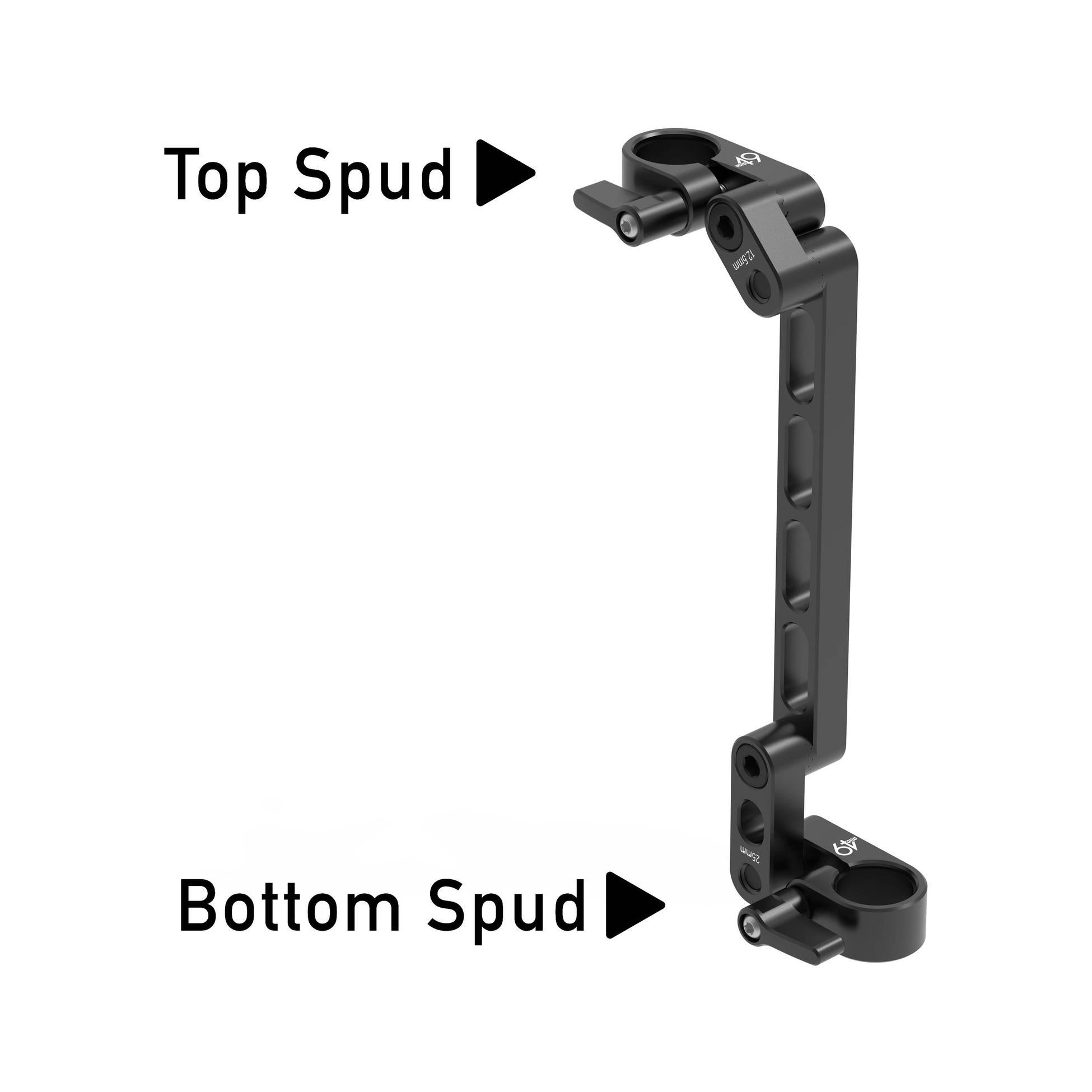

The MID49 Micro Rosette TWIST Mount Kit is a modular mounting system for mounting and adjusting a 5-7" monitor on a camera rig.

The kit includes Micro Rosette TWIST Mounts, two Bends, and five Micro Rosette Arms in different lengths for a variety of mounting configurations. Separately available TWIST Spuds are required.

Features

• Designed for mounting and adjusting an on-camera monitor.
• Includes Micro Rosette components for configuring the mount in different ways.
• The included Micro Rosette Arms measure 0.5", 1", 2", 3", and 3.9".
• Requires separately available TWIST Spuds.

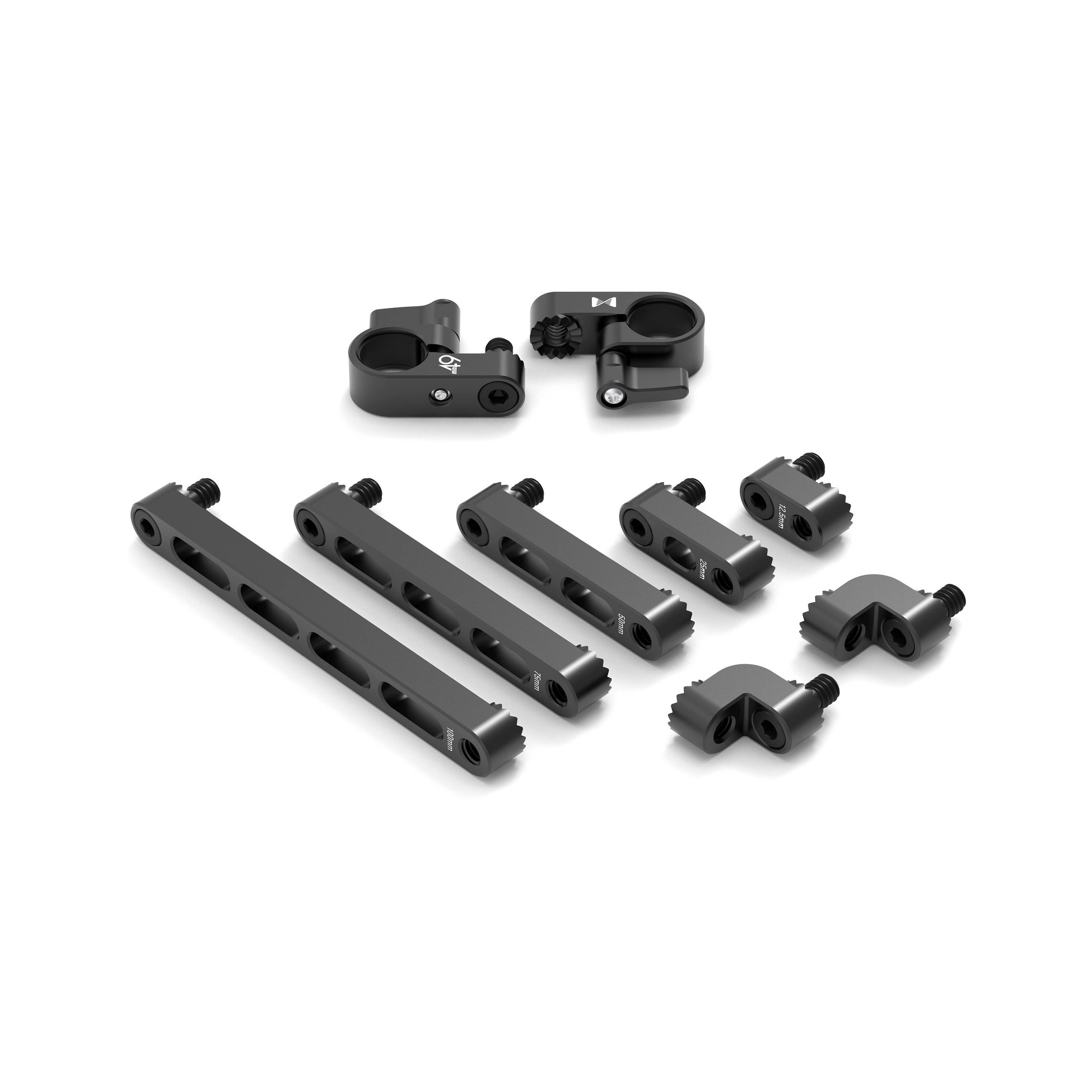

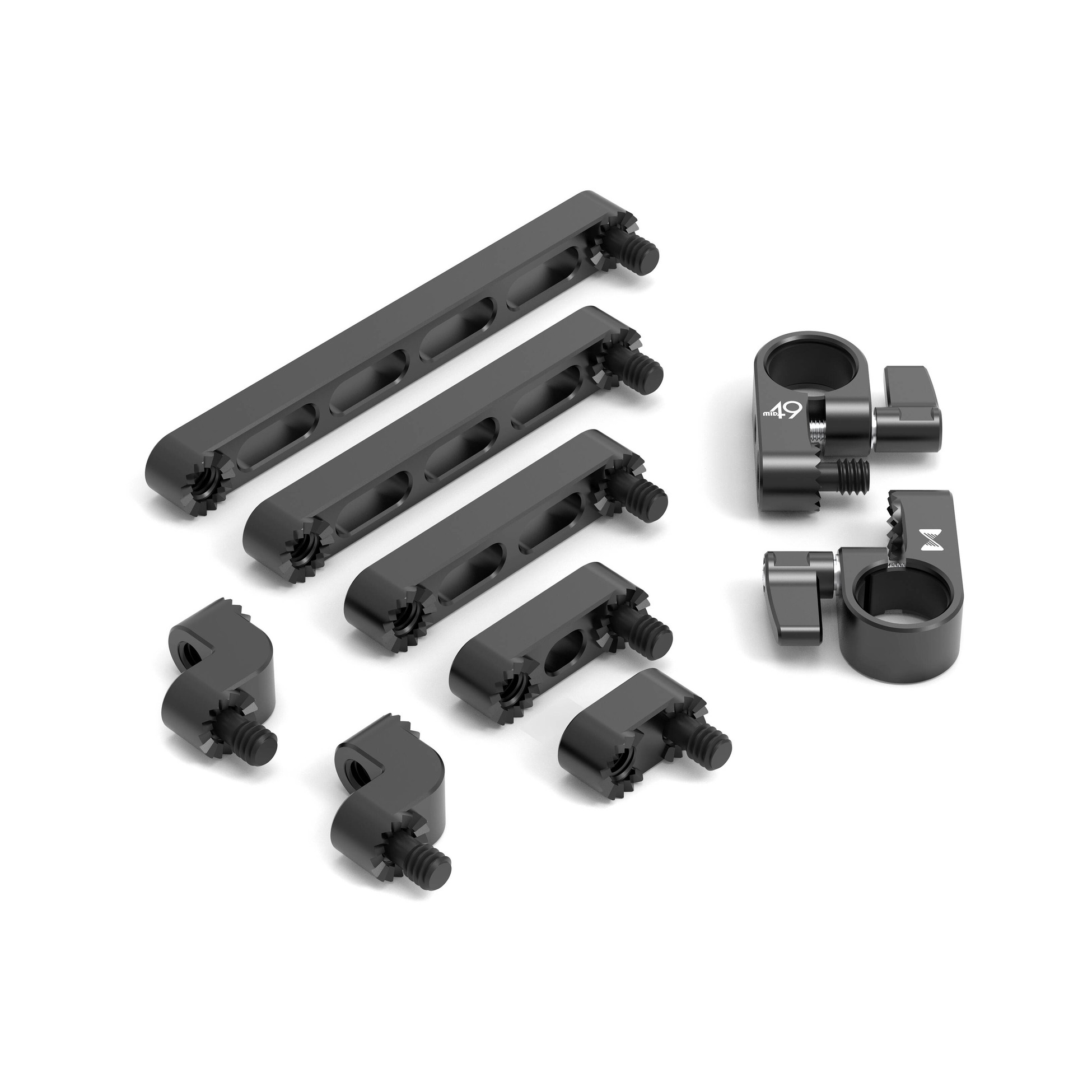

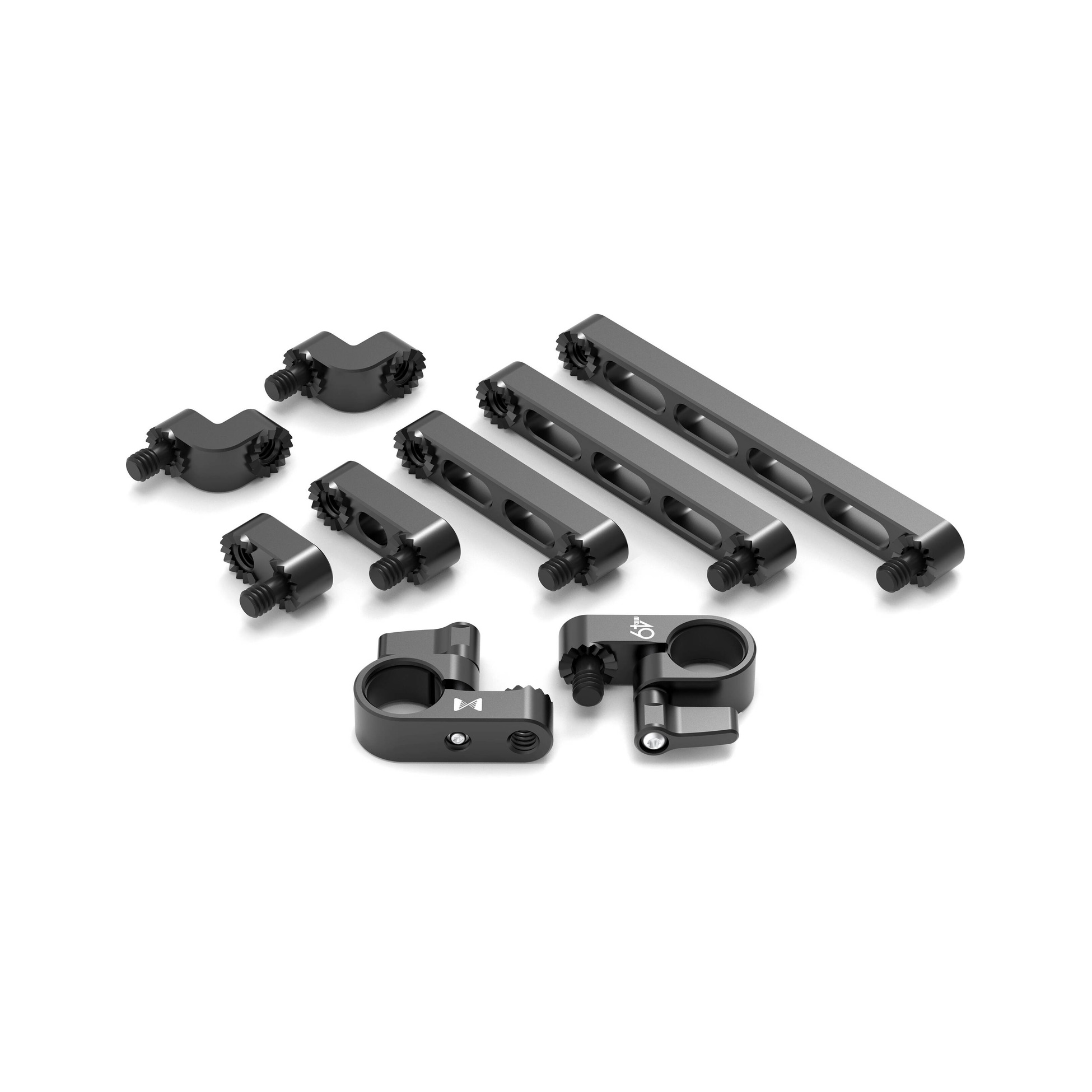

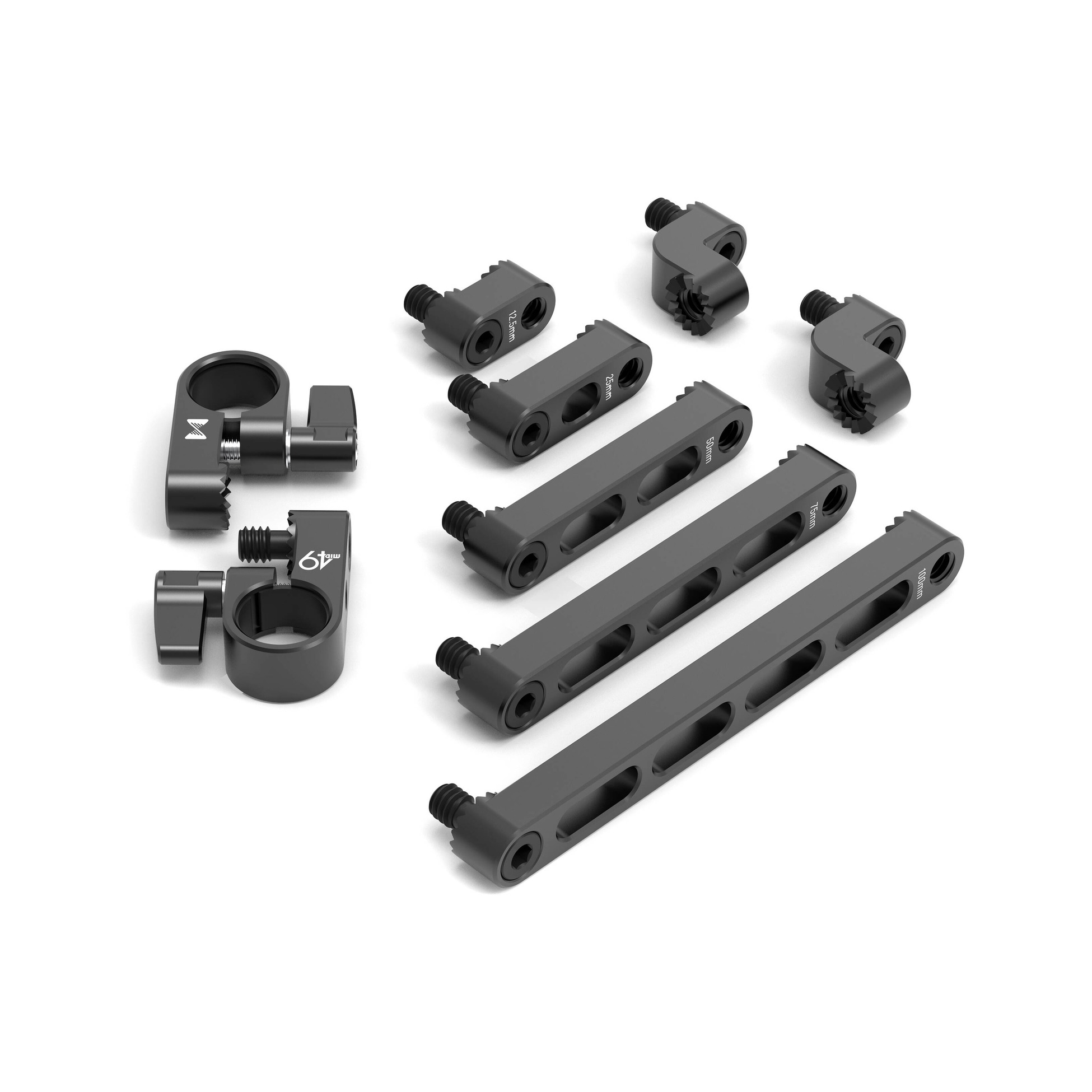

Included

• MID49 Micro Rosette to TWIST Mount (Screw)
• MID49 Micro Rosette to TWIST Mount (Hole)
• 2 x MID49 Micro Rosette Bend
• MID49 Micro Rosette Arm (0.5")
• MID49 Micro Rosette Arm (1")
• MID49 Micro Rosette Arm (2")
• MID49 Micro Rosette Arm (3")
• MID49 Micro Rosette Arm (3.9")

Specifications

MID49 Micro Rosette to TWIST Mount (Screw)

Top Mount	1x Pipe Clamp
Bottom Mount	1x 1/4"-20 Male Screw
Color	Black
Package Weight	0.07 lb / 0.03 kg
Box Dimensions (LxWxH)	3.8 x 2.05 x 1" / 9.65 x 5.21 x 2.54 cm

MID49 Micro Rosette to TWIST Mount (Hole)

Top Mount	1x Pipe Clamp
Bottom Mount	1x 1/4"-20 Female Thread
Color	Black
Package Weight	0.04 lb / 0.02 kg
Box Dimensions (LxWxH)	3.55 x 2.15 x 0.85" / 9.02 x 5.46 x 2.16 cm

2 x MID49 Micro Rosette Bend

Compatibility	MID49 Micro Rosette TWIST Mount / Micro Rosette Arms
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black

MID49 Micro Rosette Arm (0.5")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (1")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (2")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (3")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (3.9")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	3.9" / 100 mm (Length from Center Screw to Center Thread)
