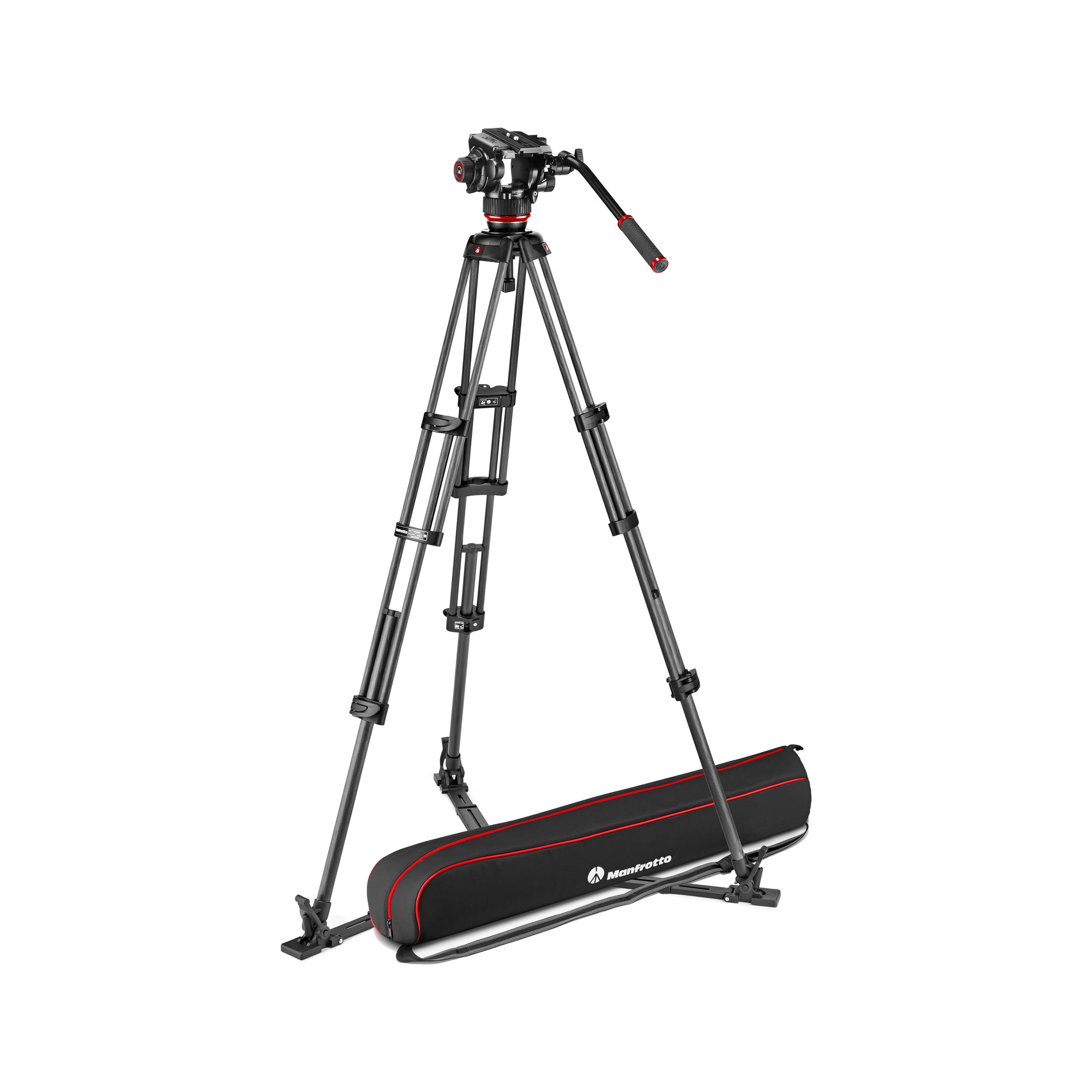

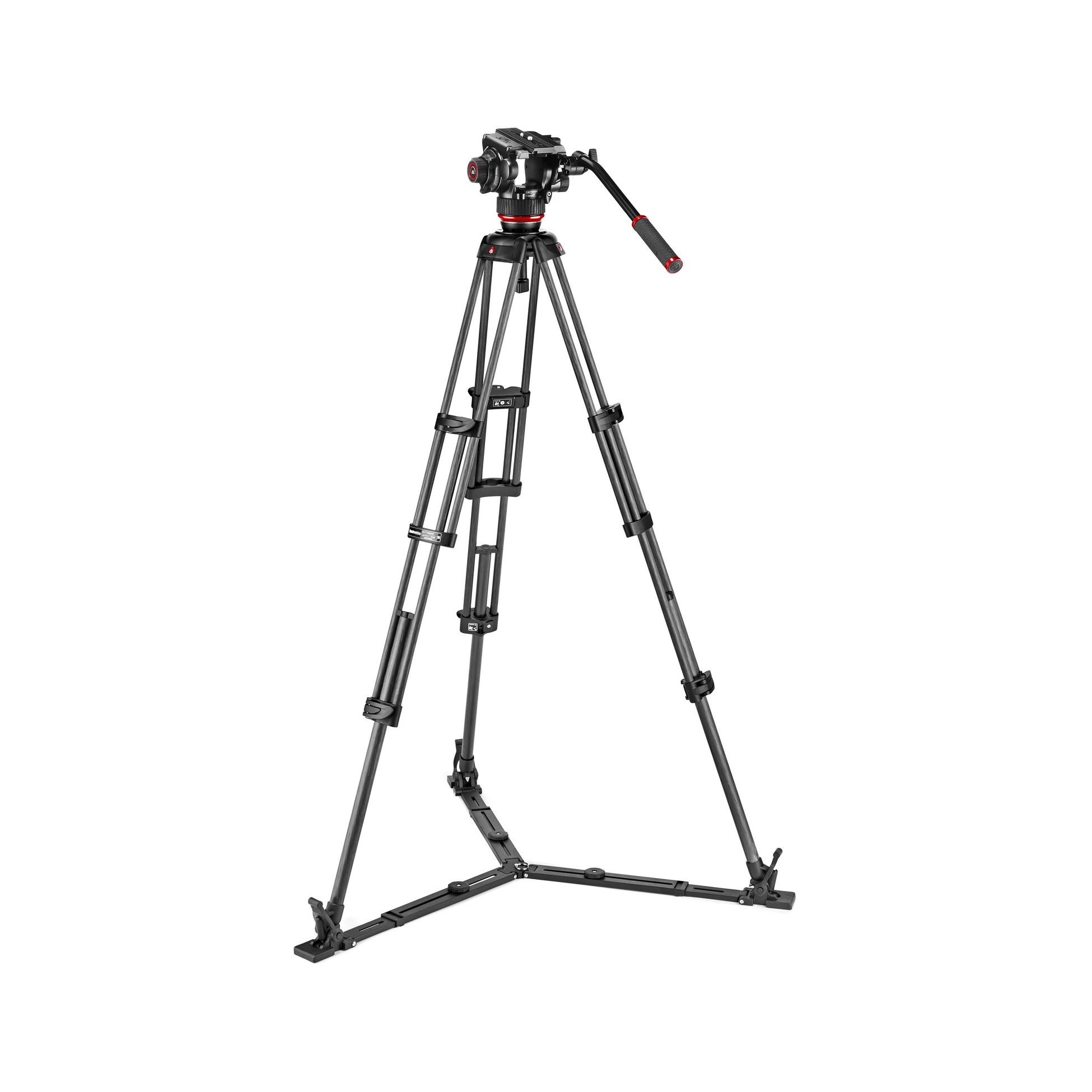

The Manfrotto 504X Fluid Video Head & MVTTWINGC Carbon Fiber Tripod with Ground Spreader combines a 504X flat-base fluid video head with carbon fiber twin-leg tripod legs and a ground spreader.
The system includes a leveling ball for adapting the head to the tripod, a sliding quick release plate, and a carry bag.
Features
- The 504X head has a 26.5 lb / 12 kg load capacity.
- The head features a 4-step counterbalance system.
- The flat-base head has a 3/8"-16 female base mount.
- The head includes a 504PLONGR-1 sliding quick release plate and bubble level.
- The tripod legs are made of carbon fiber and feature a ground spreader.
- The tripod legs have a 100 mm bowl and a 100 to 75 mm adapter ring is included.
Included
- Manfrotto 504X Fluid Video Head with Flat Base
- Pan Handle
- 504PLONGR-1 Quick Release Plate
- Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader (100/75mm Bowl)
- 100 to 75mm Adapter Ring
- Leveling Ball
- Carry Bag
Specifications

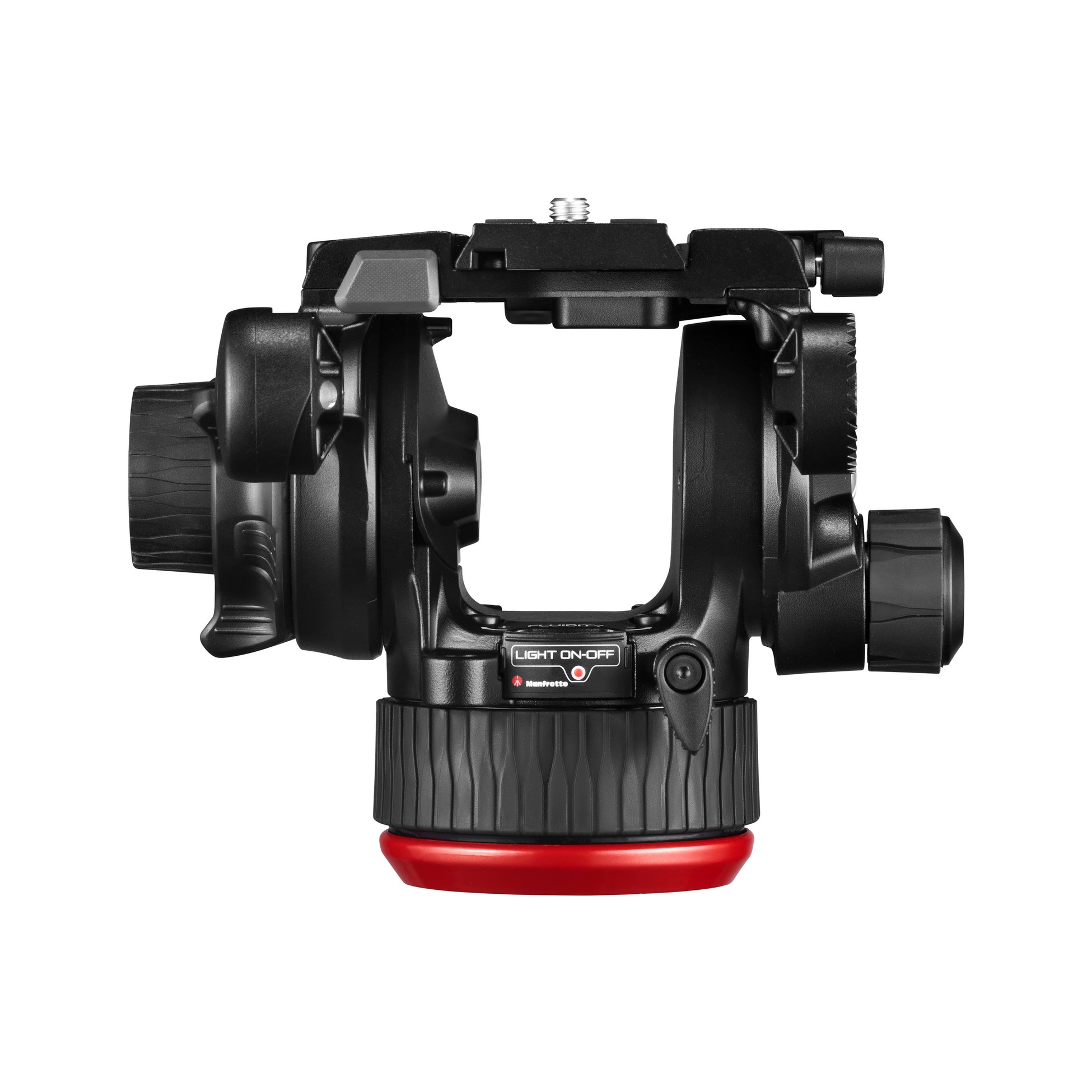

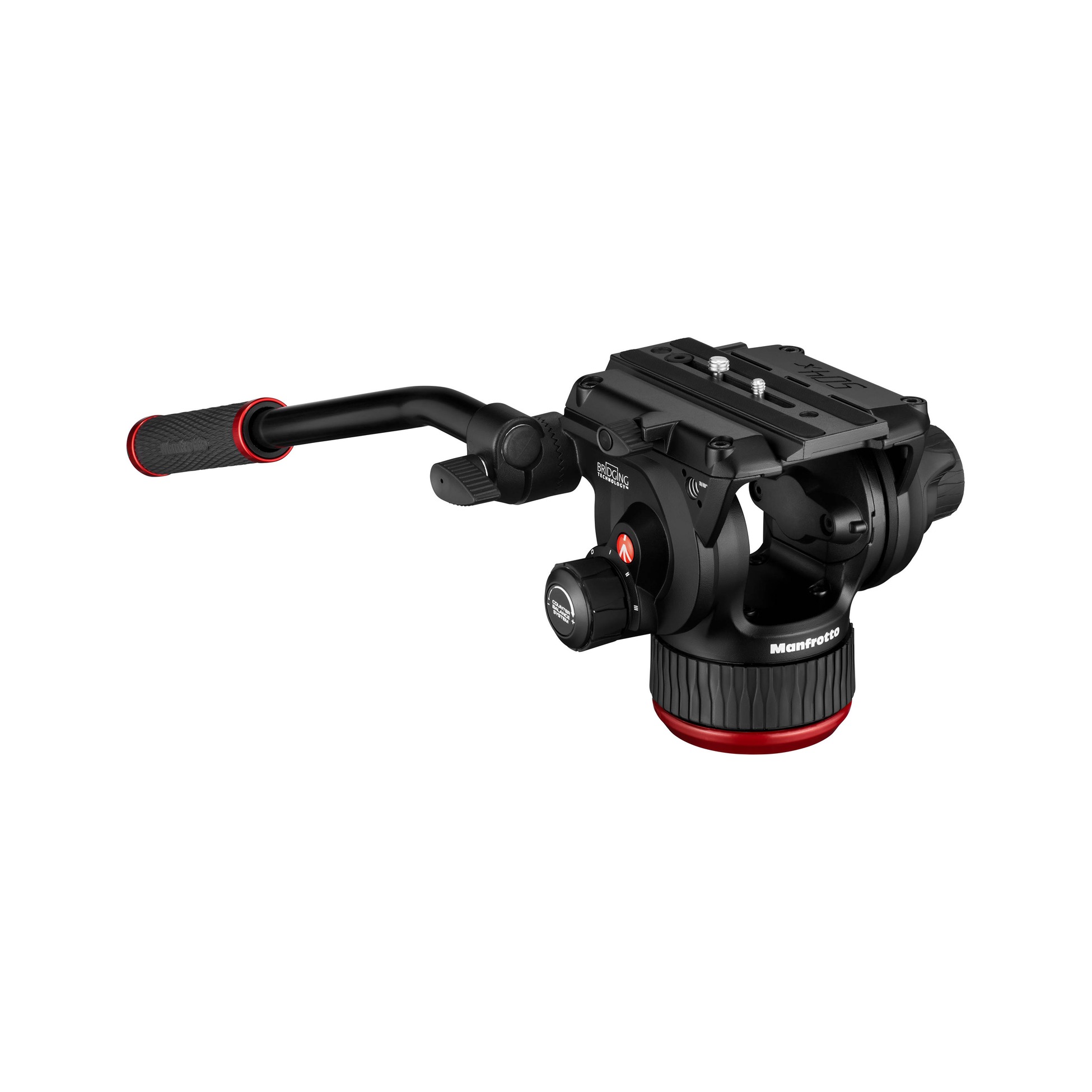

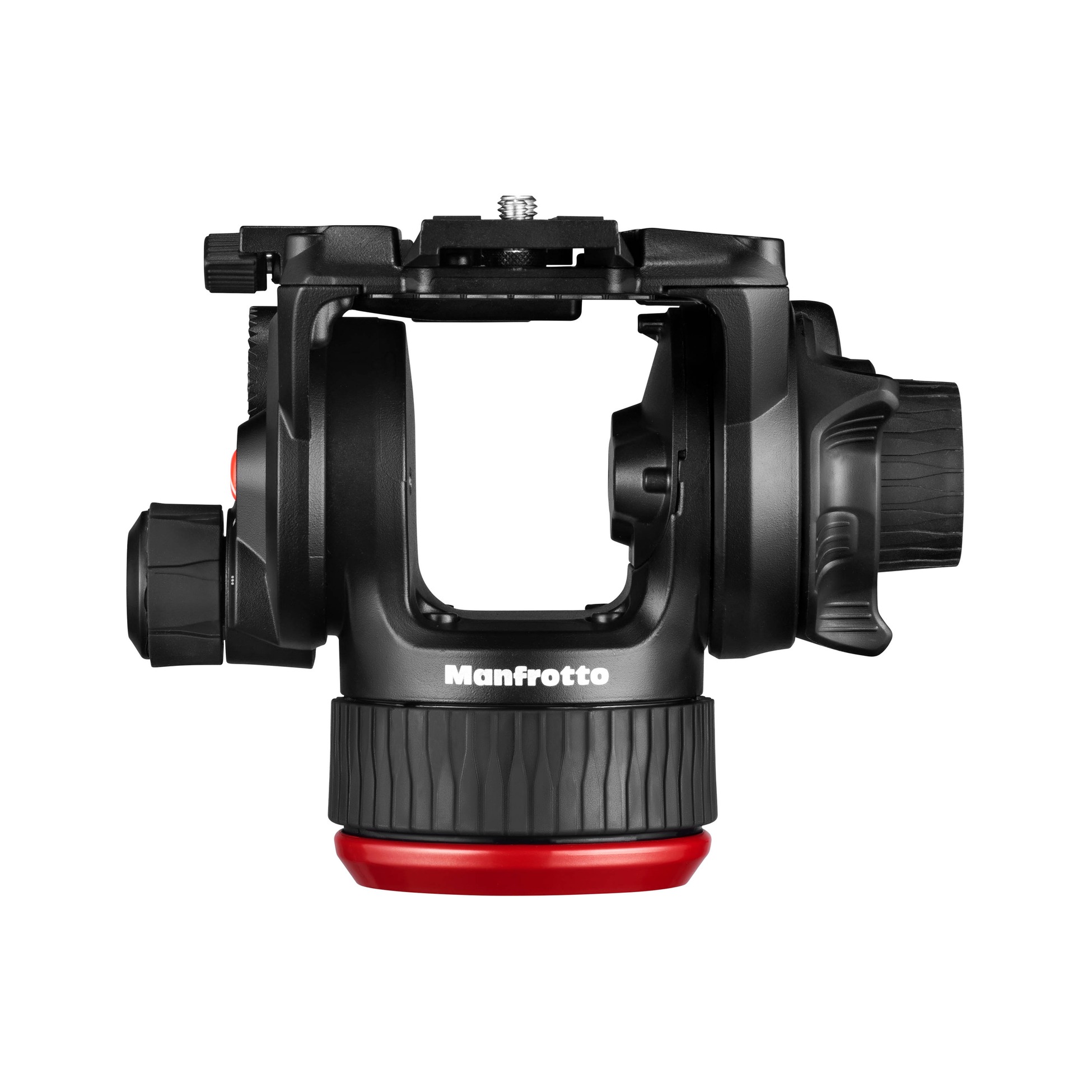

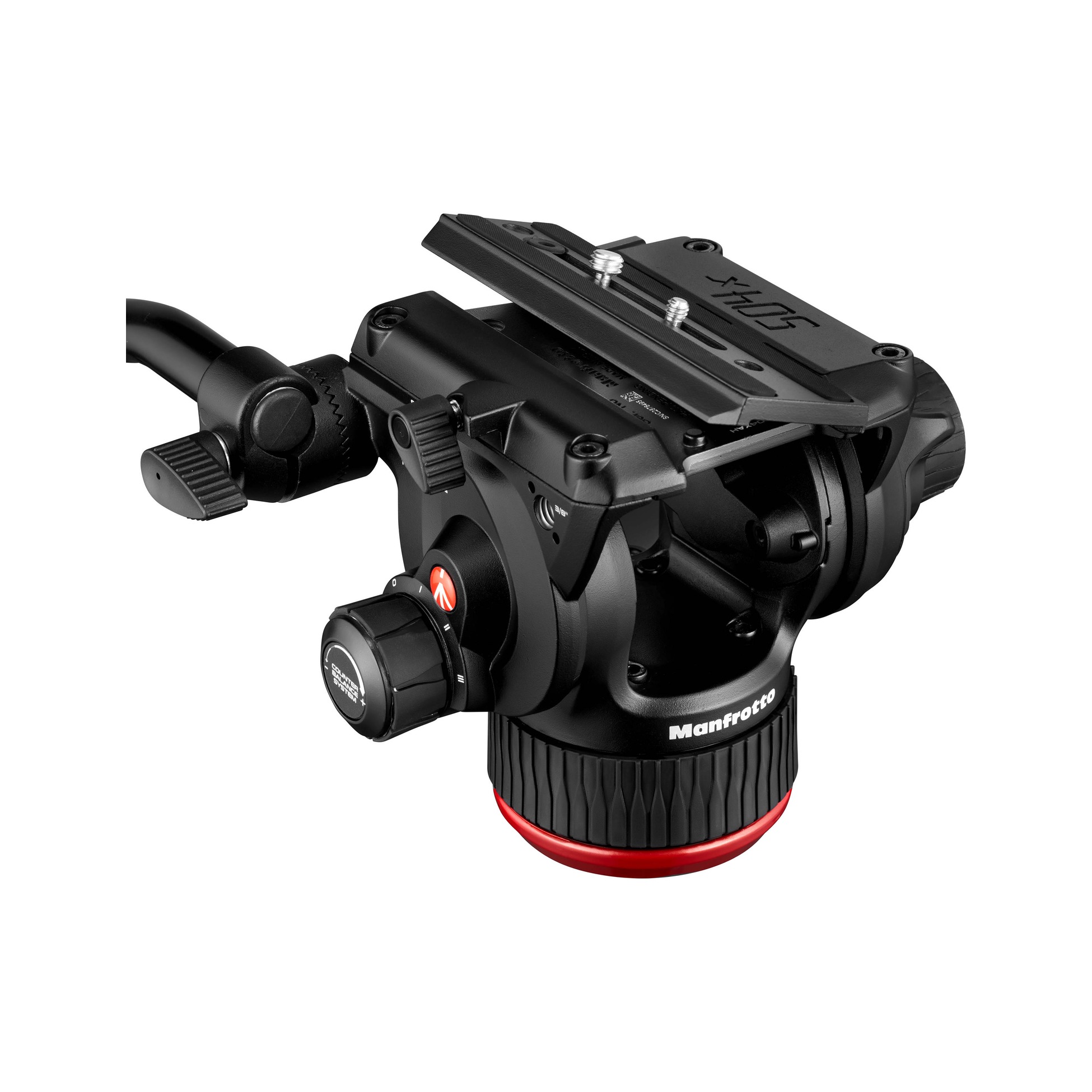

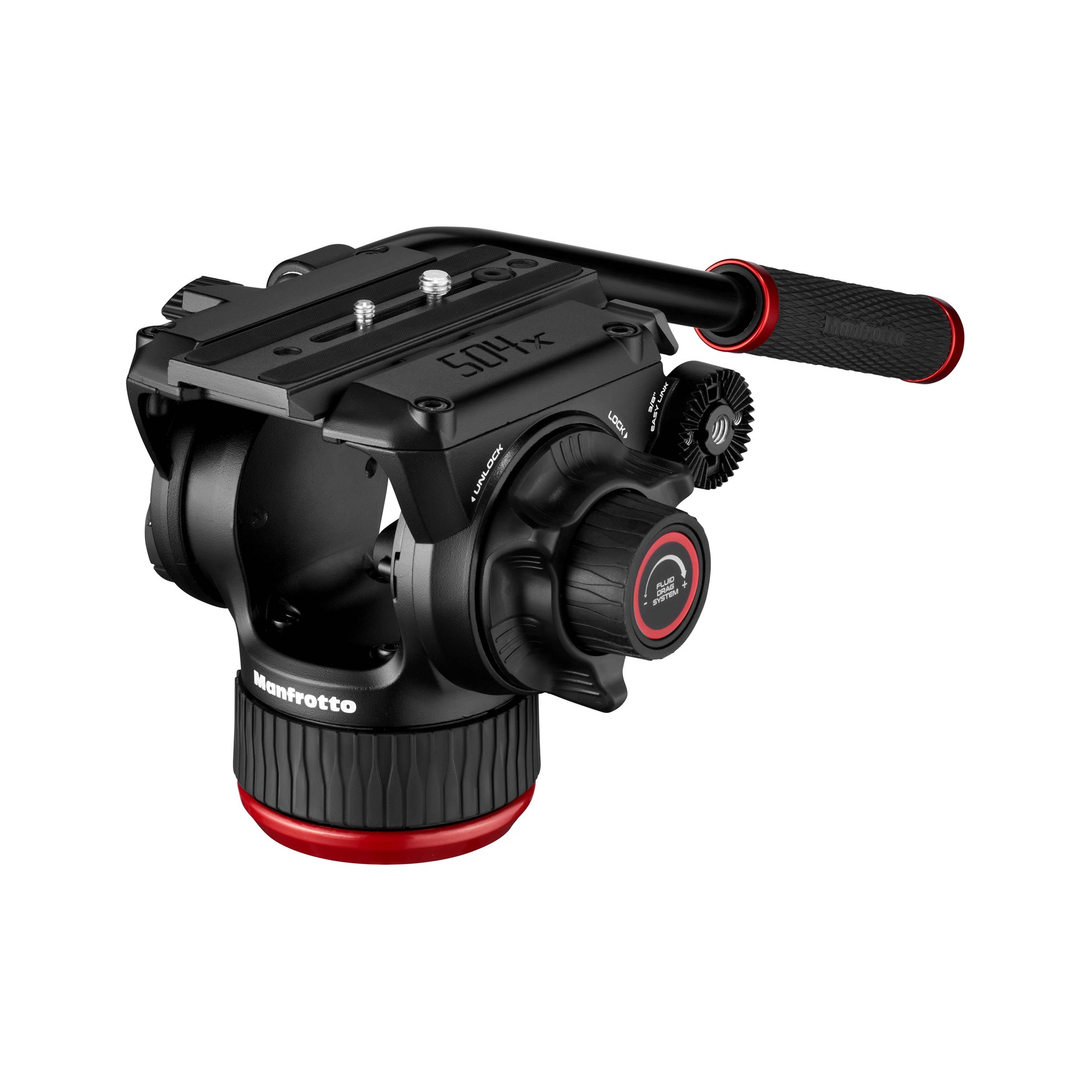

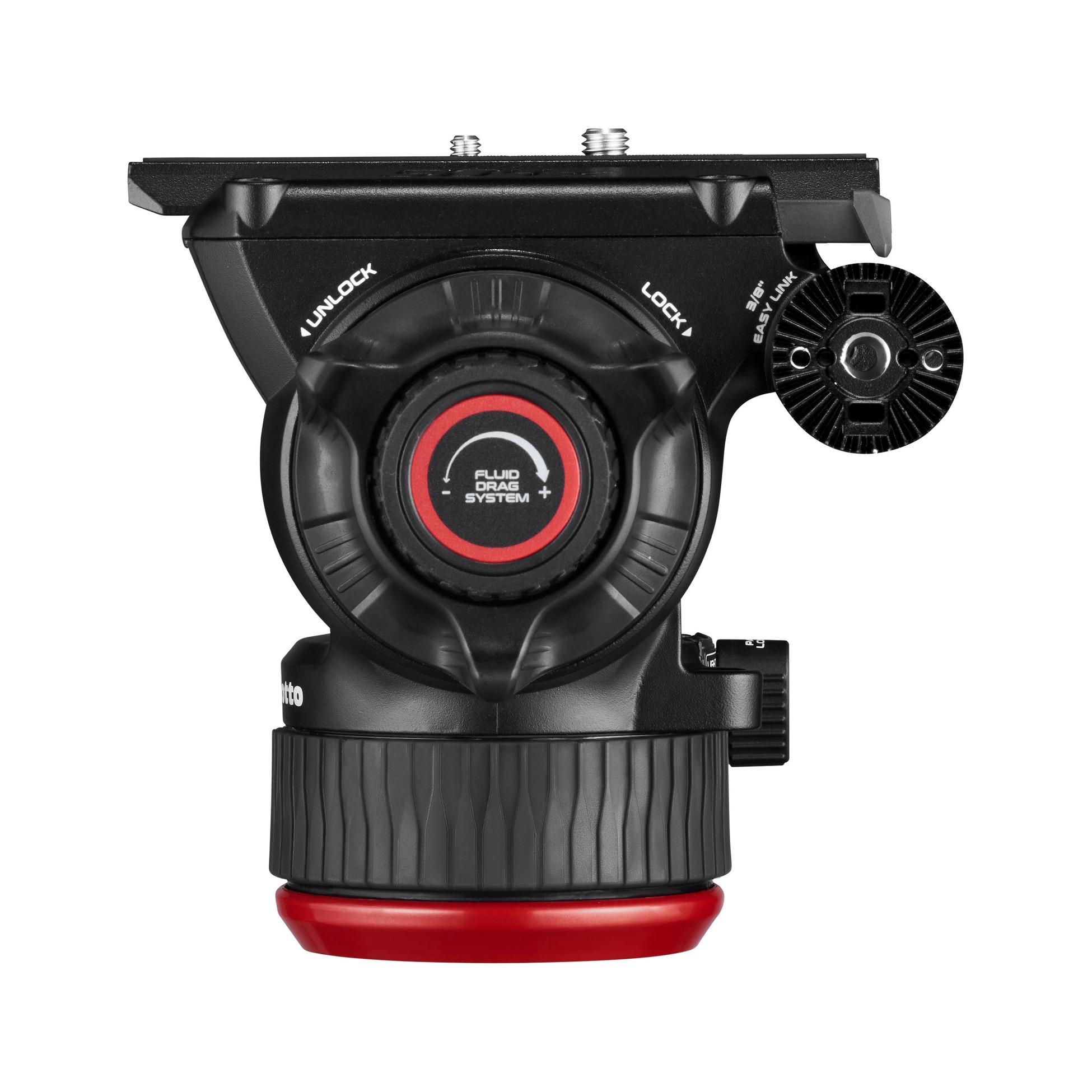

Manfrotto 504X Fluid Video Head with Flat Base
| Top Mounting | 504PLONG Quick Release/Sliding Balance Plate with 1/4"-20 & 3/8"-16 Screws |
|---|---|
| Head Type | Fluid Head |
| Load Capacity | 26.5 lb / 12 kg |
| Weight | 4.4 lb / 2 kg |
| Base Mount | Flat Base with 3/8"-16 Female |
| Pan & Tilt | Pan & Vertical Tilt Only with Independent Pan & Tilt Locks and Drag Control • 160° (-70 to +90°) |

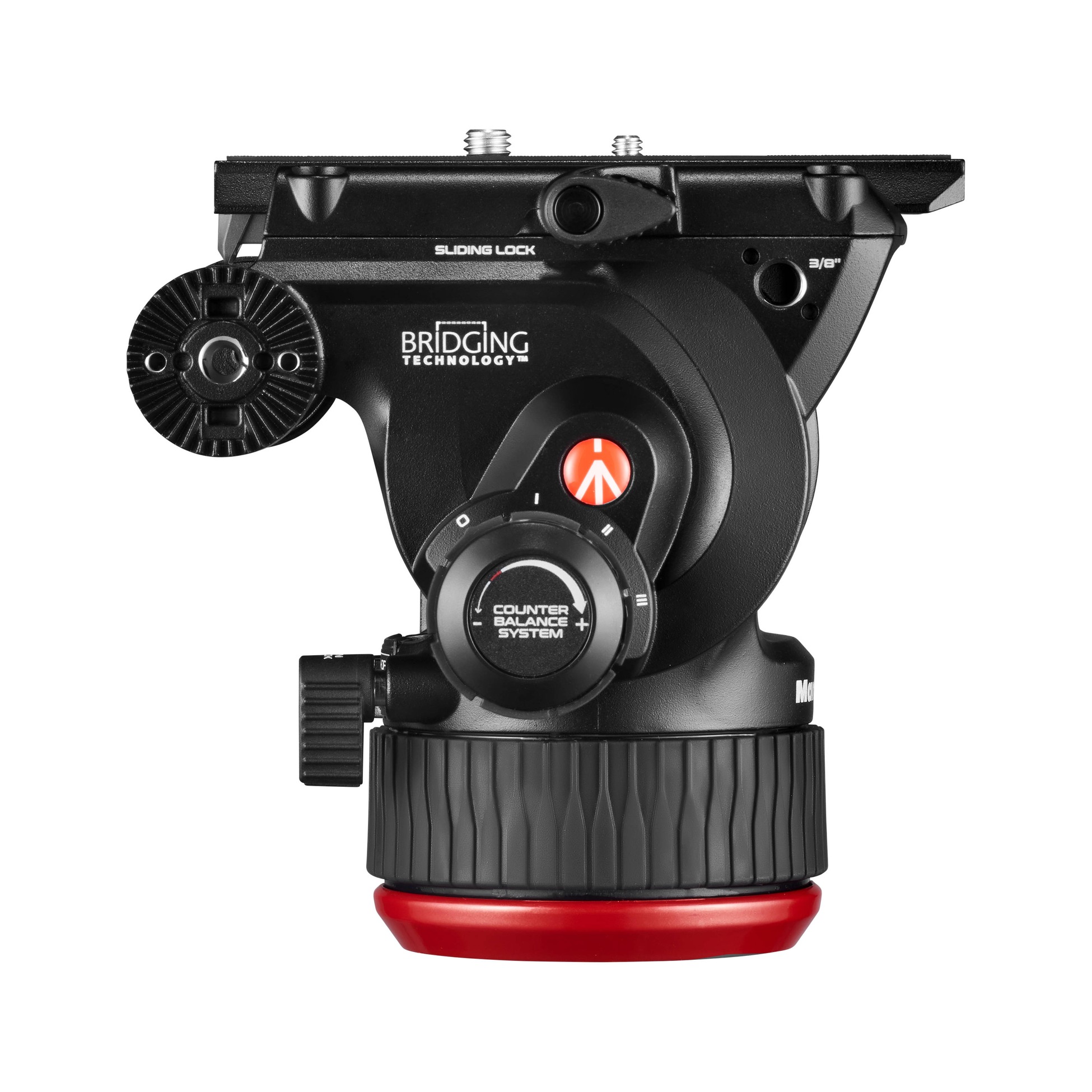

| Counter Balance | Incremental 4-Step Plus 0 (4.9 to 14.3 lb / 2.2 to 6.5 kg) |
| Dimensions | Base Diameter: 3" / 75 mm Height: 5.9" / 14.9 cm |
| Accessory Mounting | 1x Pan Handle Fitting |

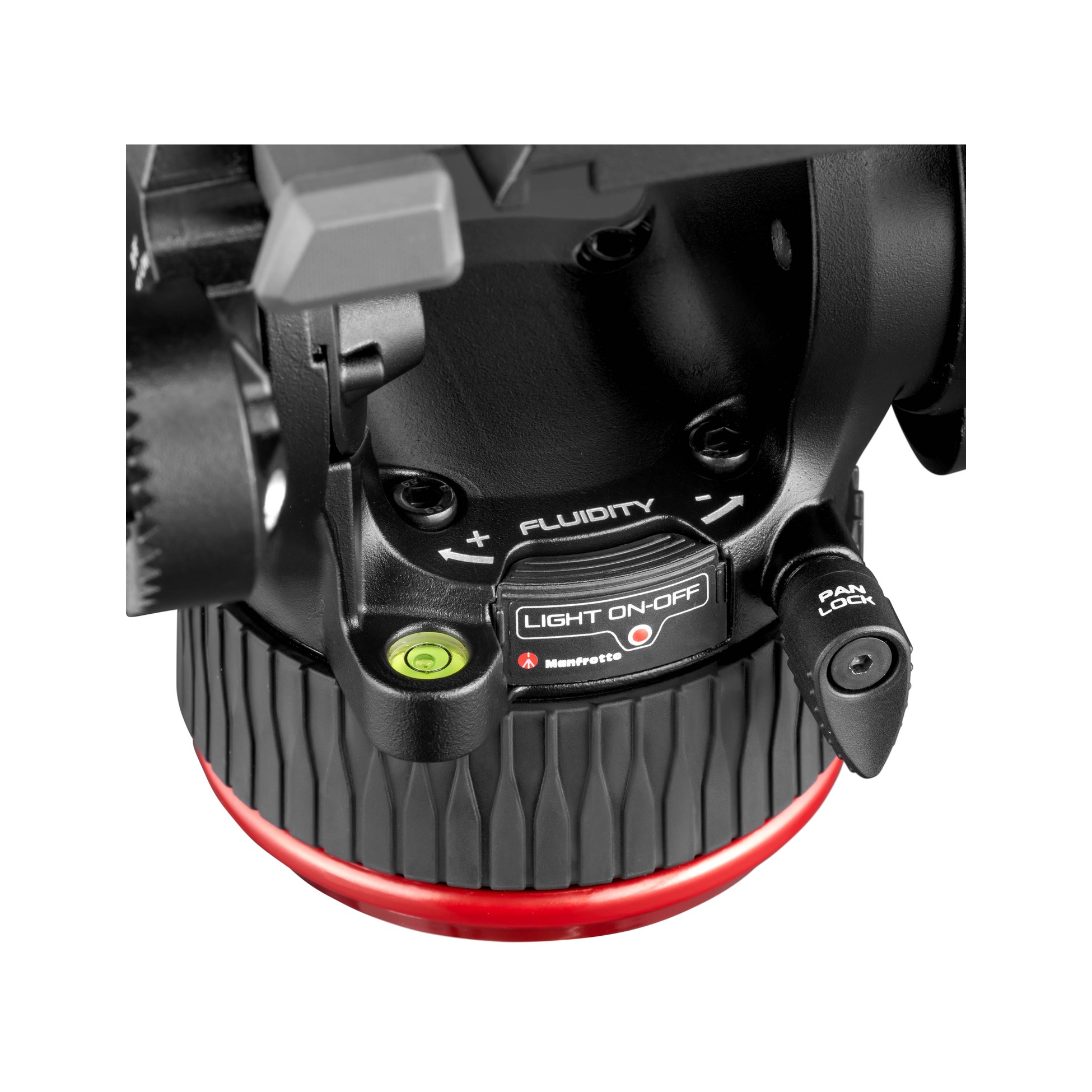

| Bubble Level | Yes |
| Package Weight | 6.085 lb / 2.76 kg |
| Box Dimensions (LxWxH) | 14.5 x 9.8 x 8" / 36.83 x 24.89 x 20.32 cm |

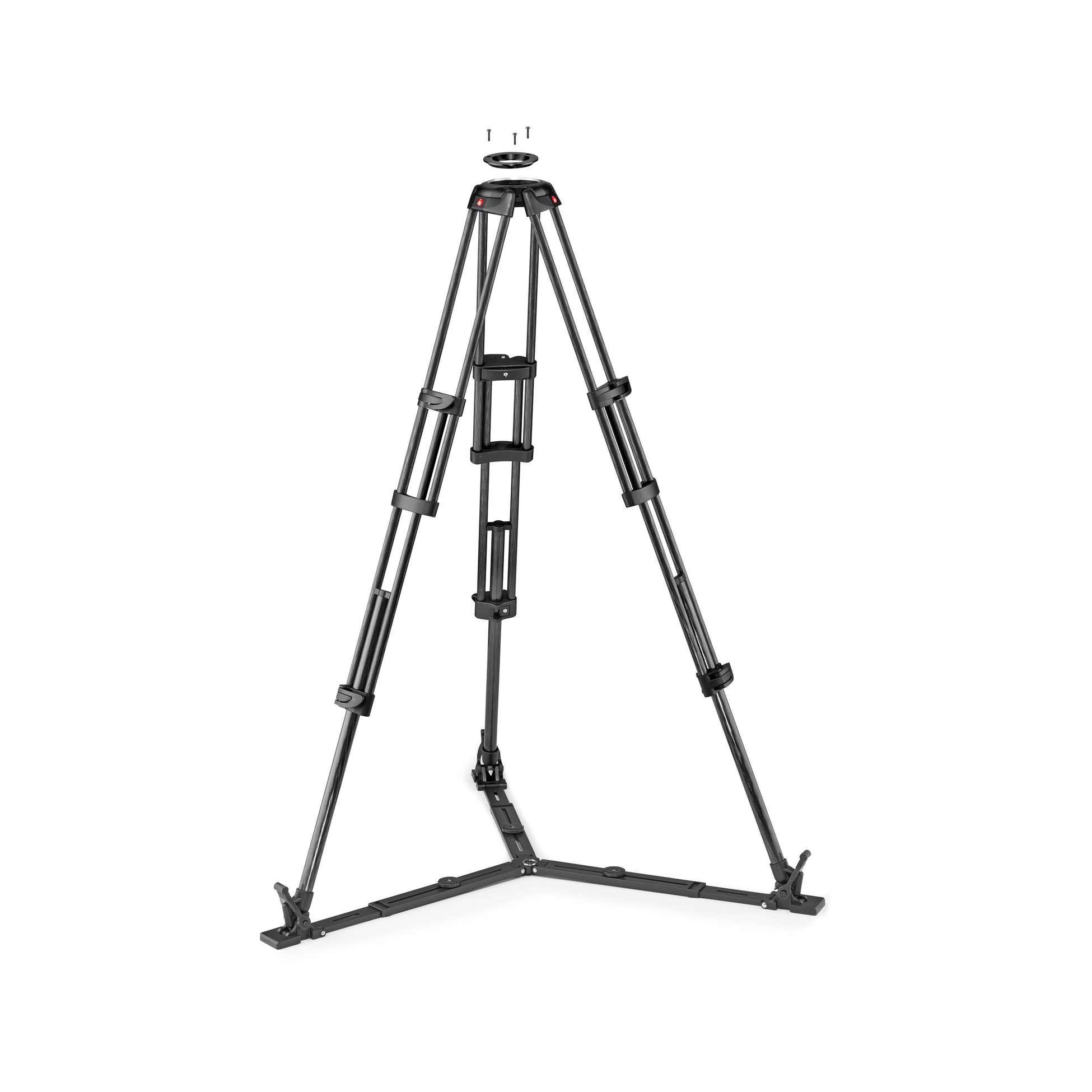

Manfrotto Carbon Fiber Twin Leg Video Tripod Legs with Ground Spreader (100/75mm Bowl)
| Primary Material | Carbon Fiber |
|---|---|
| Load Capacity | 44.1 lb / 20 kg |
| Working Height | 13.2 to 62" / 33.5 to 158 cm |
| Closed Length | 27" / 69 cm |
| Weight | 7.21 lb / 3.27 kg |
| Top Mounting | 100 mm Bowl |
| Sections/Locking | 3 |
| Center Column | No |
| Foot Features | Dual Spiked |
| Bubble Level | No |
| Detachable Monopod | No |
| Spreader Support | Ground (Included) |
| Package Weight | 9.2 lb / 4.17 kg |
| Box Dimensions (LxWxH) | 31 x 9 x 8" / 78.74 x 22.86 x 20.32 cm |
