TREXO Pan/Tilt V2 Kit

Genel Bakış

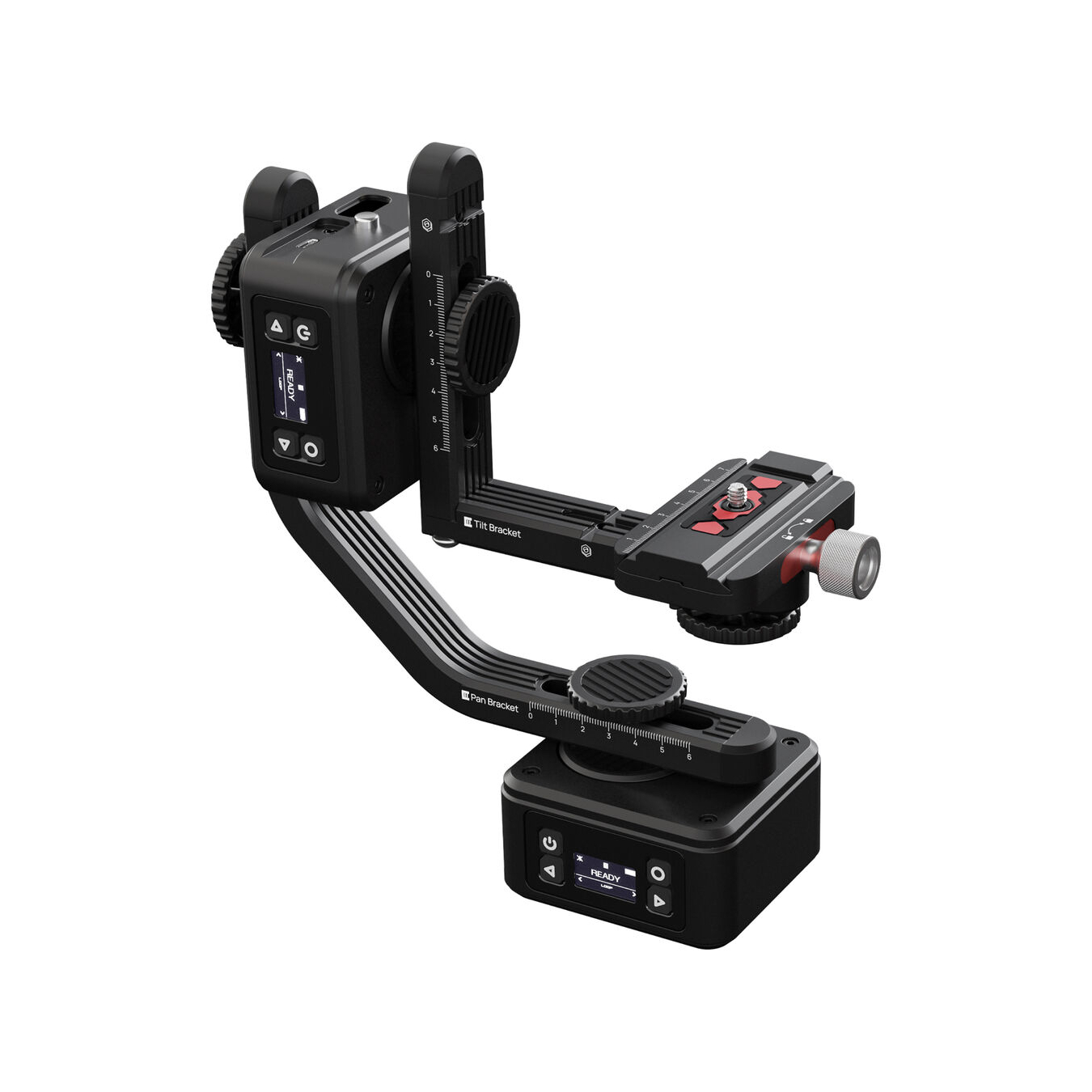

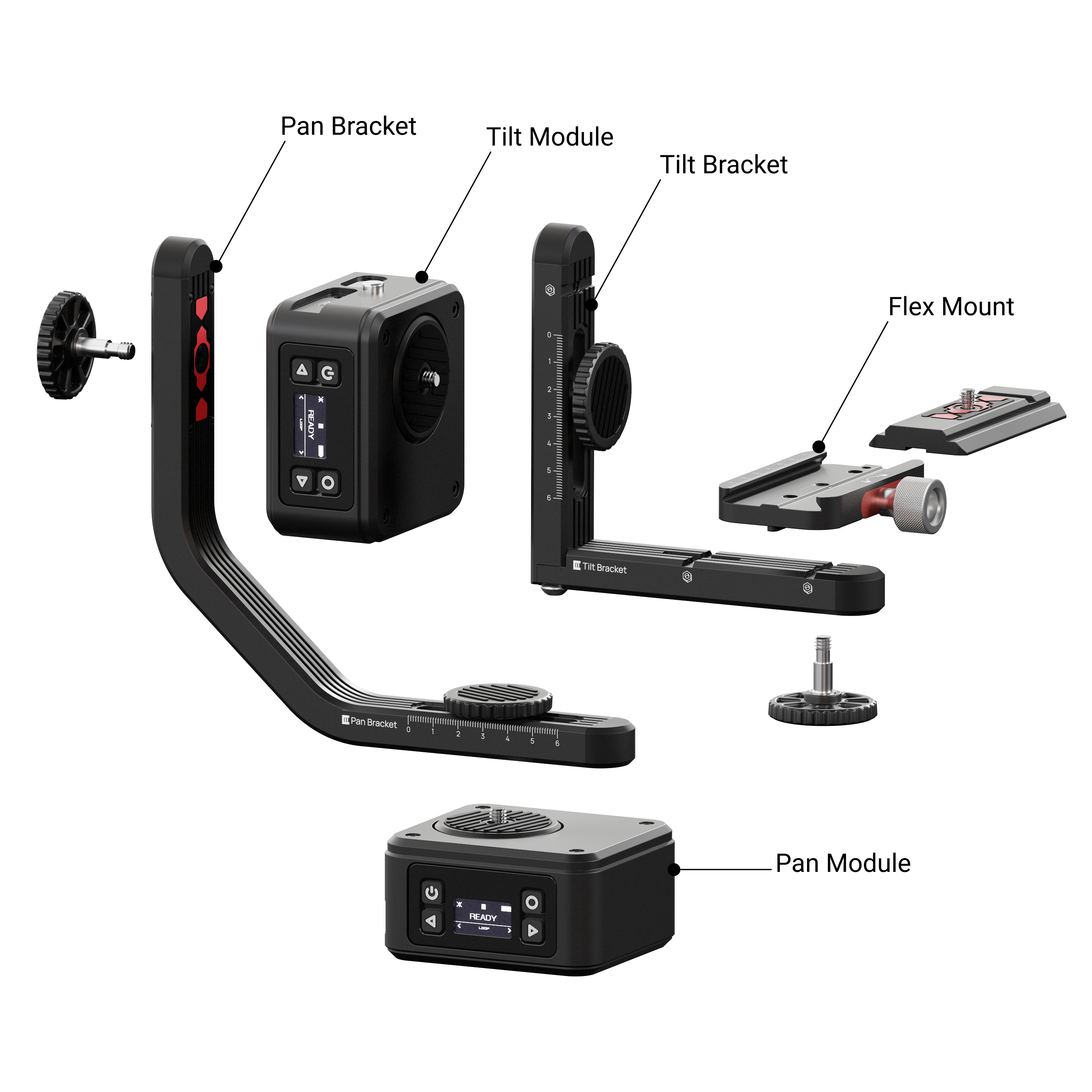

Achieve accurate, motorized three-axis camera movement with the TREXO Pan/Tilt V2 Kit. This kit includes two Pan/Tilt V2 units, a large L-bracket for pan motion, a small L-bracket for tilt, and a quick-release dovetail plate for mounting your camera. Once assembled, it can be seamlessly combined with the TREXO Converta slider system for advanced, multi-axis camera operations. Each module offers a precise rotational speed range from 0.001 to 60° per second and supports complex motion modes such as time-lapse and stop-motion via the TREXO app, available on both iOS and Android platforms.

Features

• Three-axis motion system for dynamic camera moves
• High-resolution encoder step motors for precise control
• Versatile 0.001 to 60°/s pan and tilt speed range
• Programmable moves, including time-lapse and stop-motion
• Improved mechanical stability for smoother performance

• 3250mAh lithium-ion batteries for up to six hours of operation
• 0.96″ Monochrome OLED display
• CNC-machined aluminum components, hard-anodized surface finish
• Overhauled brackets minimize vibrations and include built-in alignment rulers
• Quick release dovetail plate with 1/4″-20 screw for camera mounting

• Use with a TREXO Converta slider system for multi-axis movement
• Multiple 1/4″-20 screws and threads for sturdy mounting
• USB-C charging port and 2.5mm shutter jack

Compatibility

TREXO Converta 400 Smart Camera Slider
TREXO Converta 600 Smart Camera Slider

Included

2 x TREXO Pan/Tilt V2 Module
Quick Release Dovetail Plate
Pan L-Bracket
Tilt L-Bracket
Turntable Plate (4.7″)
USB-C Charging Cable
Limited 2-Year Manufacturer Warrant
