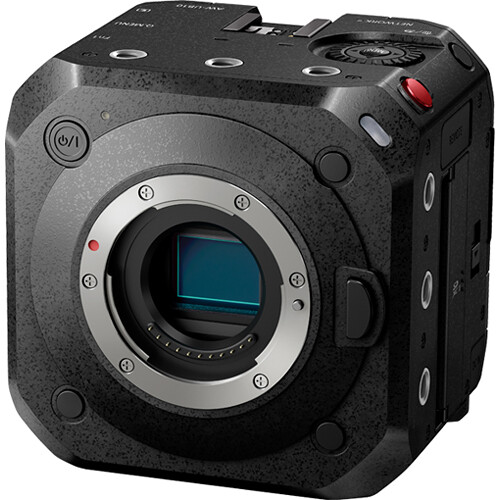

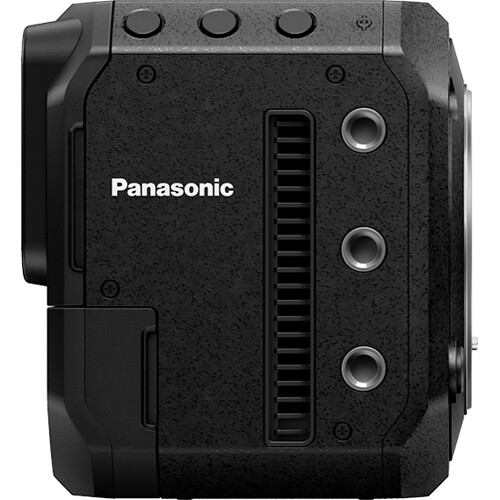

Panasonic AW-UB10 4K Multipurpose Box Camera
€2,099.00 KDV hariç
- 10.3MP 4/3 MOS Sensor, MFT Lens Mount
- 4K MP4 & MOV H.264/H.265/HEVC Recording
- Dual Native ISOs, ISO Auto Mode
- V-Log Capture, 13 Stops Dynamic Range
- 3G-SDI & HDMI Out, PoE+ LAN, USB-C
- Seamless Integration with Panasonic PTZs
- Color Compatible with AW-UE160 Camera
- NDI HX2, RTMPS & SRT IP-Compatible
- Face, Eye & Body AF Recognition
- Timecode I/O, Genlock, 2 SD Card Slots
Sold out!
New stock arriving soon!
Genel Bakış
The Panasonic AW-UB10 4K Multipurpose Box Camera stands out with its exceptional attention to detail, offering cine-style capture in a compact and modular design. Perfectly suited for gimbal and drone applications, it is also ideal for broadcast, live streaming, vlogging, and cinema production. Seamlessly integrating with Panasonic PTZ cameras, it supports NDI HX2 and features precise real-time autofocus and subject tracking capabilities. Equipped with a 10.3MP M4/3″ MOS sensor, an MFT lens mount, and an impressive 13-stop dynamic range, this digital cinema camera excels in adapting to extreme lighting conditions.
The UB10 is the 4K multi-purpose camera supporting all common IP control protocols used in Panasonic’s remote camera systems. The box-style 4K multi-purpose cameras can support rich, versatile image capture and are incredibly easy to operate in the field, enabling more creative video production.
The UB10 features a 10.2-million pixel full-frame sensor. It feature real-time recognition autofocus technology, enabling the cameras to automatically identify the subject and keep them in focus.

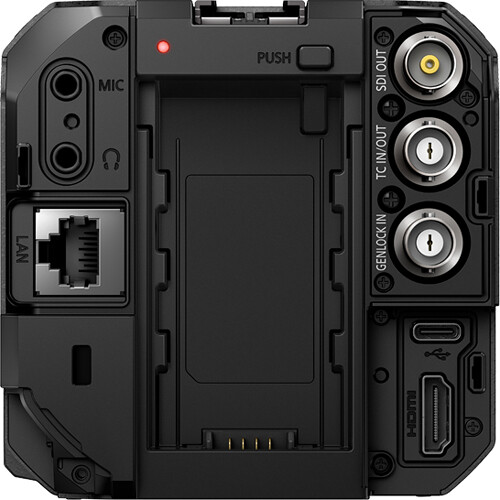

UB10 camera features the 3G-SDI OUT, HDMI Type A, LAN terminal, TC IN/OUT, GENLOCK IN, and USB Type-C input/output interfaces.
The LAN terminal is Power of Ethernet (PoE+) compatible, with video transmission, control, and power delivered via a single cable – further reducing complexity and clutter.
The camera is ideal for a variety of applications from corporate to broadcasting and live entertainment.
Features
- 10.2M MOS sensor for capturing multiple subjects in a single frame (AW-UB10)
- Wide dynamic range with V-Log ( AW-UB10: 13 stops)
- Compact design (height, width & depth each less than 10cm, excluding lens)
- Unified IP control protocol compatible with Panasonic PTZ camera systems
- Compatible with Media Production Suite for multi-camera setups with PTZ cameras
- Planned support for IP transmission standards including NDI® HX2, RTMPS, and SRT
In The Box
Panasonic AW-UB10 4K Multipurpose Box Camera
AC Adapter
Limited 1-Year Manufacturer Warranty
Specifications
| Lens Mount |
Micro Four Thirds
|
| Lens Communication |
Yes
|
| Sensor Resolution |
Actual: 11.9 Megapixel
Effective: 10.3 Megapixel |
| Image Sensor |
Four Thirds MOS
|
| Image Stabilization |
No
|
| Built-In ND Filter |
No
|
| Capture Type |
Stills & Video
|
| Shutter Type |
Electronic Rolling Shutter
|
| ISO Sensitivity Range |
160 to 800 (Extended: 160 to 51,200)
400 to 2000 (Extended: 400 to 25,600) |
| Advertised Dynamic Range |
13 Stops
|
| Fast-/Slow-Motion Support |
Yes
|
| Gamma Curve |
HDR-HLG, Panasonic V-Gamut, Panasonic V-Log, Rec 2100 HLG, Rec709, V-Log
|
| Built-In Microphone |
Stereo
|
| IP Streaming |
Yes
|
| Media/Memory Card Slot |
Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
|
| Video I/O |
1x BNC (3G-SDI) Output
1x HDMI (Unspecified Signal) Output |
| Audio I/O |
1x 1/8″ / 3.5 mm TRS Stereo Mic/Line Input on Camera Body
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output on Camera Body |
| Power I/O |
1x Barrel
|
| Other I/O |
1x USB-C
1x BNC (Timecode) Input/Output 1x BNC (Genlock) Input/Output 1x RJ45 (LAN) Input/Output |
| Wireless |
No
|
| Mobile App Compatible |
No
|
| Global Positioning (GPS, GLONASS, etc.) |
No
|
| Type |
Optional, Not Included
|
| Focus Type |
Auto and Manual Focus
|
| PoE Support |
PoE+ 802.3at
|
| Shoe Mount |
1x Cold Shoe
|
| Tripod Mounting Thread |
2x 3/8″-16 Female (Bottom)
|
| Accessory Mounting Thread |
9x 3/8″-16
|
| Material of Construction |
Aluminum
|
| Dimensions (W x H x D) |
3.7 x 3.7 x 3.1″ / 9.3 x 9.3 x 7.8 cm (Without Protrusions)
|
| Weight |
1.2 lb / 545 g (Body Only)
|
