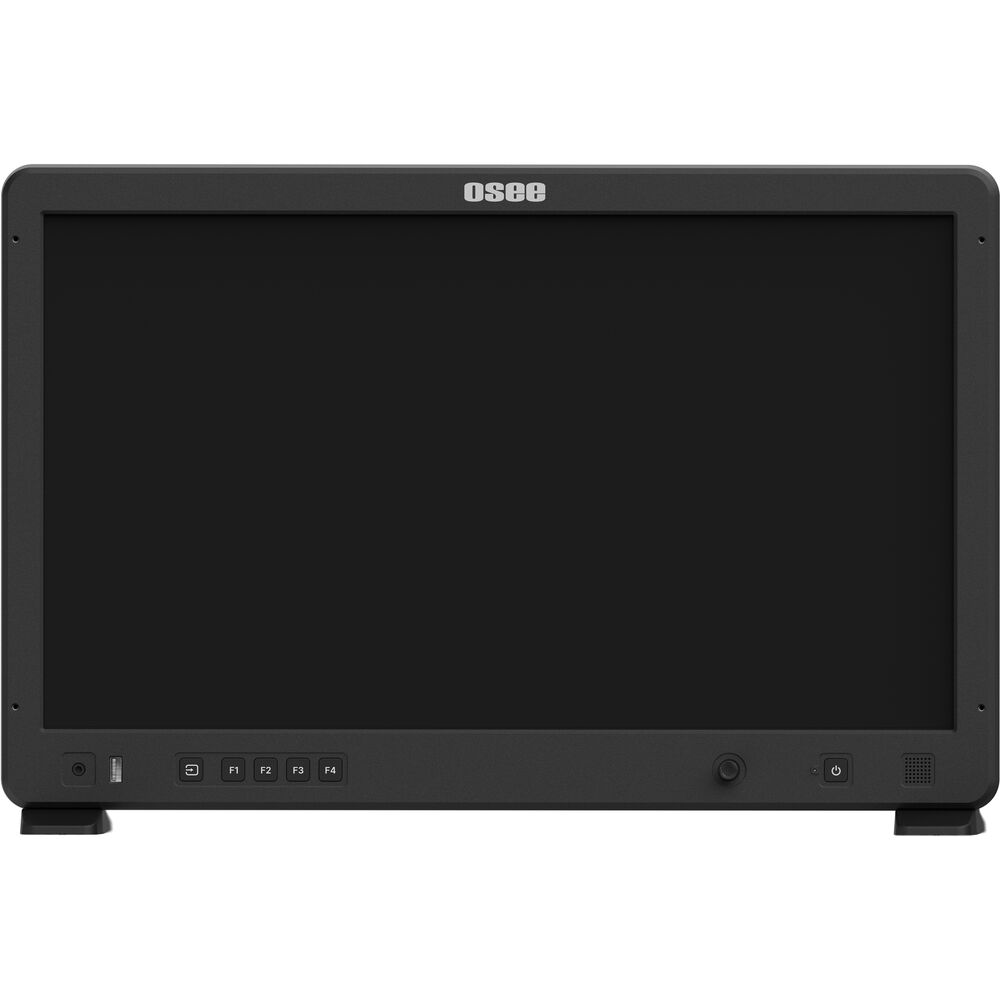

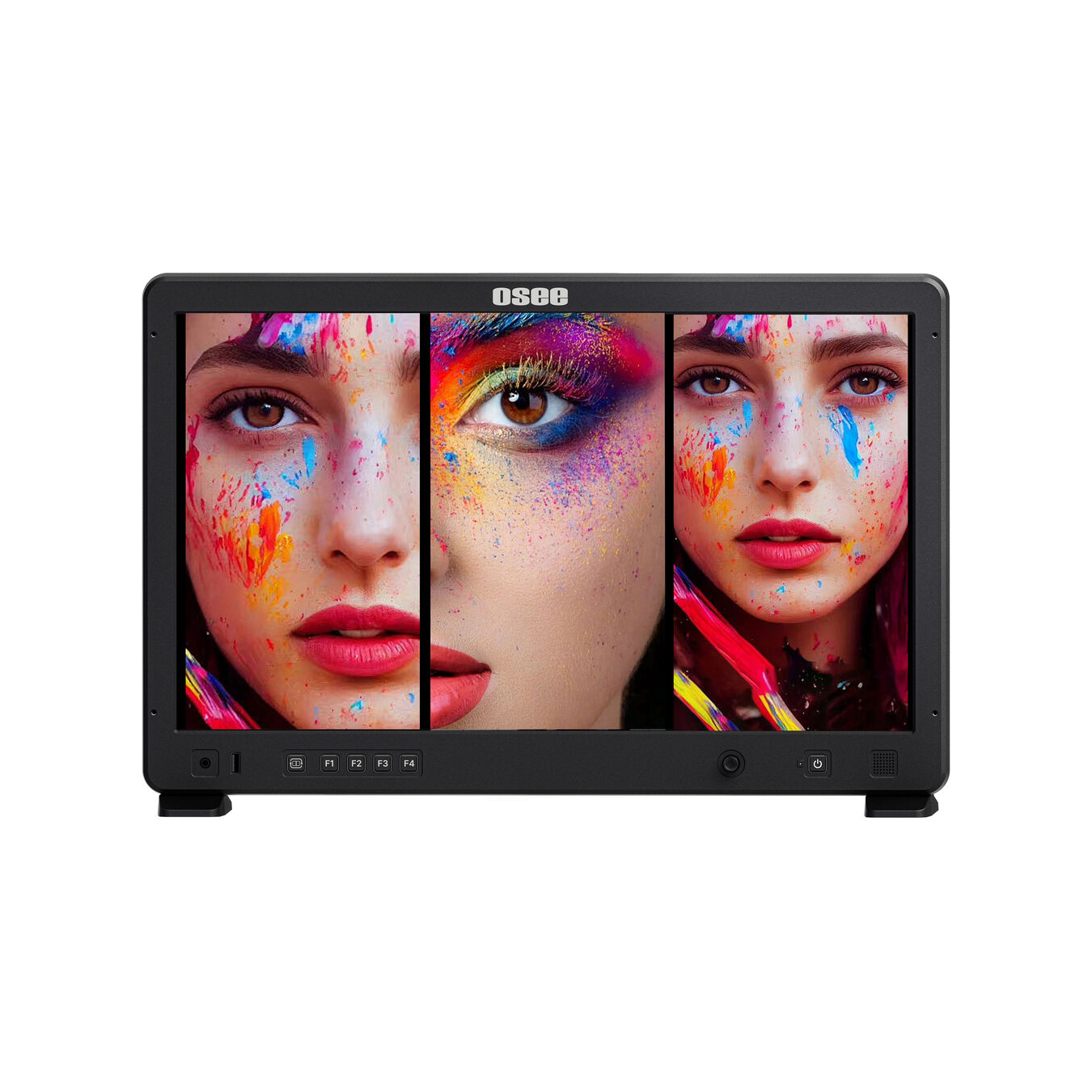

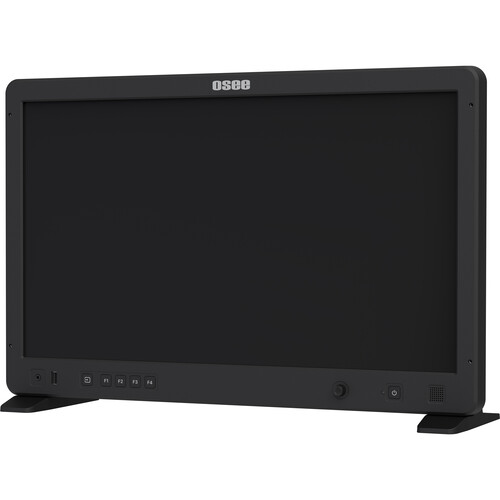

OSEE MEGA 22S4 21.5″ H/V Multiview Production Monitor (MEGA224S-Kit)
€1,600.00 KDV hariç
- 10-Bit IPS LED Panel
- High 1500 cd/m² Brightness
- Built-In and Custom Load 3D LUTs
- HDMI Input, 3G-SDI Inputs and Outputs
- Timecode and Audio Metering on SDI
- Exposure, Framing, and Focus Tools
- Sun Hood, VESA Adapter
- Upgrade and USB-A LUT Input Port
- C-Stand Adapter, Desktop Feet
- Includes Gold/V-Mount Battery Plates
External warehouse, approximately 10 days or more
The MEGA 22S4 21.5″ Horizontal/Vertical Multiview Production Monitor from OSEE is a bright, 1500 cd/m² monitor featuring an IPS panel with 10-bit color, 3D LUT application, and HLG/PQ HDR for crisp, clear imaging for video resolutions up to DCI 4K30. A slew of monitoring tools includes focus peaking, histogram, waveform, false color, zebra, and aspect ratio options. The MEGA 22S4 also supports anamorphic de-squeeze, plus timecode and audio metering for SDI. The monitor includes a V-mount battery plate, a Gold mount battery plate, a sun hood, a C-stand mount, and a cheese-style plate.
Included

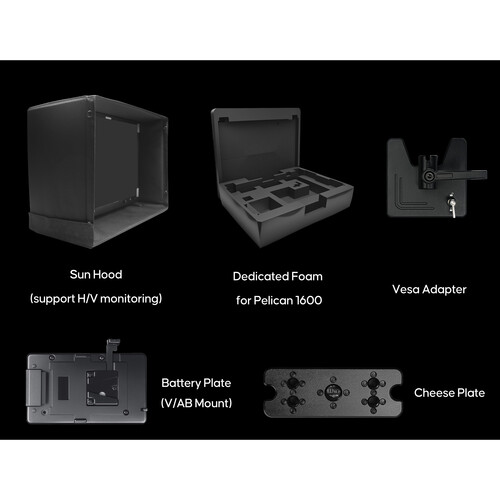

- OSEE MEGA 22S4 21.5″ Multiview Production Monitor with Gold/V-Mount
- Plates
- Sun Hood
- V-Mount Battery Plate
- Gold Mount Battery Plate
- C-Stand Adapter
- Cheese Plate
- Custom Foam for Pelican 1600 Case
- Limited 1-Year Manufacturer Warranty
Specifications
| Panel Type |
LCD
|
| Display Size |
21.5″ / 54.6 cm
|
| Native Resolution |
1920 x 1080
|
| Aspect Ratio |
16:9
|
| Touchscreen |
No
|
| Maximum Brightness |
1500 nits / cd/m2
|
| Contrast Ratio |
1100:1
|
| Color Support |
1.07 Billion Colors
|
| HDR Support |
Yes
|
| LUT Support |
Yes
|
| Image Controls |
Anamorphic De-Squeeze, Customizable Aspect Ratios, False Color, Focus Assist, Focus Peaking, Histogram, Image Flip, Scaling, Screen Markers, Screen Split – Half, Screen Split – Quarter, Vectorscope, Waveform, Zebra
|

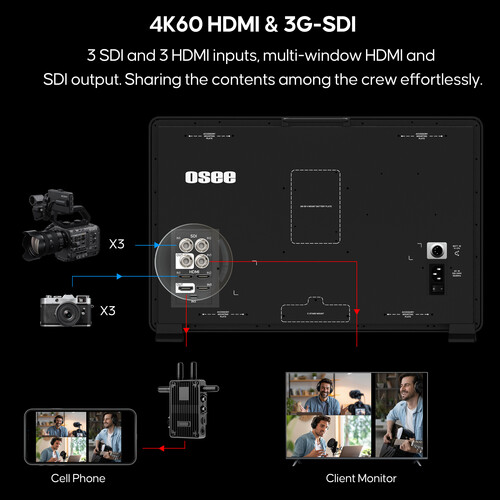

| Video I/O |
3x BNC (3G-SDI) Input
1x BNC (3G-SDI) Output 3x HDMI Input 1x HDMI Output |
| Embedded Audio |
HDMI/SDI
|
| Audio I/O |
1x 1/8″ / 3.5 mm Headphone Output
1x 1/8″ / 3.5 mm Line Input |
| Built-In Speaker |
Mono
|
| Power I/O |
1x XLR 4-Pin (17 VDC) Input
1x IEC Input |
| Other I/O |
1x USB-C (Calibration)
1x USB-A (Firmware/LUT Upload) |
| Media/Memory Card Slot |
No
|
| Wi-Fi |
No
|
| Bluetooth |
No
|
| Mobile App Compatible |
No
|
| Video Format |
HDMI
DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 DCI 2K: 50/25/24/23.98 DCI 2K PsF: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 1080PsF: 30/29.97/25/24/23.98 720p: 60/59.94/50 |
| Input Power |
11 to 17 VDC at 3 A
100 to 240 VAC, 50 / 60 Hz |
| Pil |
1x V-Mount or Gold Mount on Included, Interchangeable Plates
|
| Power Consumption |
60 W (Maximum)
|
| VESA Mounting-Hole Pattern |
100 x 100 mm
|
| Environmental Resistance |
No
|
| Dimensions |
20.4 x 12.6 x 2.9″ / 517 x 319 x 74.3 mm
|
| Weight |
14.8 lb / 6.7 kg
|
| Package Weight |
23.15 lb
|
| Box Dimensions (LxWxH) |
22.8 x 19.1 x 8.3″
|
