MID49 Power Distribution Box DB-9 for Blackmagic PYXIS (Gold Mount, Rod Mounted)

Genel Bakış

Power Distribution Box DB-9 (Blackmagic PYXIS, Gold Mount) attaches directly to the camera body using the rear two 1/4-20 threaded holes and provides intelligent power distribution with D-Taps, 5V USB-C PD, 3pin Fischers, and 2pin LEMO compatible connectors. Removable REMOTE USB-C cable enables remote start/stop capability using 3pin Fischer devices. The DB-9 works with all PYXIS models.

Hot-swap between on-board battery and 4pin XLR DC INPUT without losing camera or accessory power. When both sources are connected, the DC INPUT takes priority down to 12.5V at which point, the DB-9 will switch to an onboard battery.

The mount design allows a Sony BP-U35 battery to be installed in the camera to function as an emergency backup. To swap the internal battery, swing the DB-9 up and release the battery.

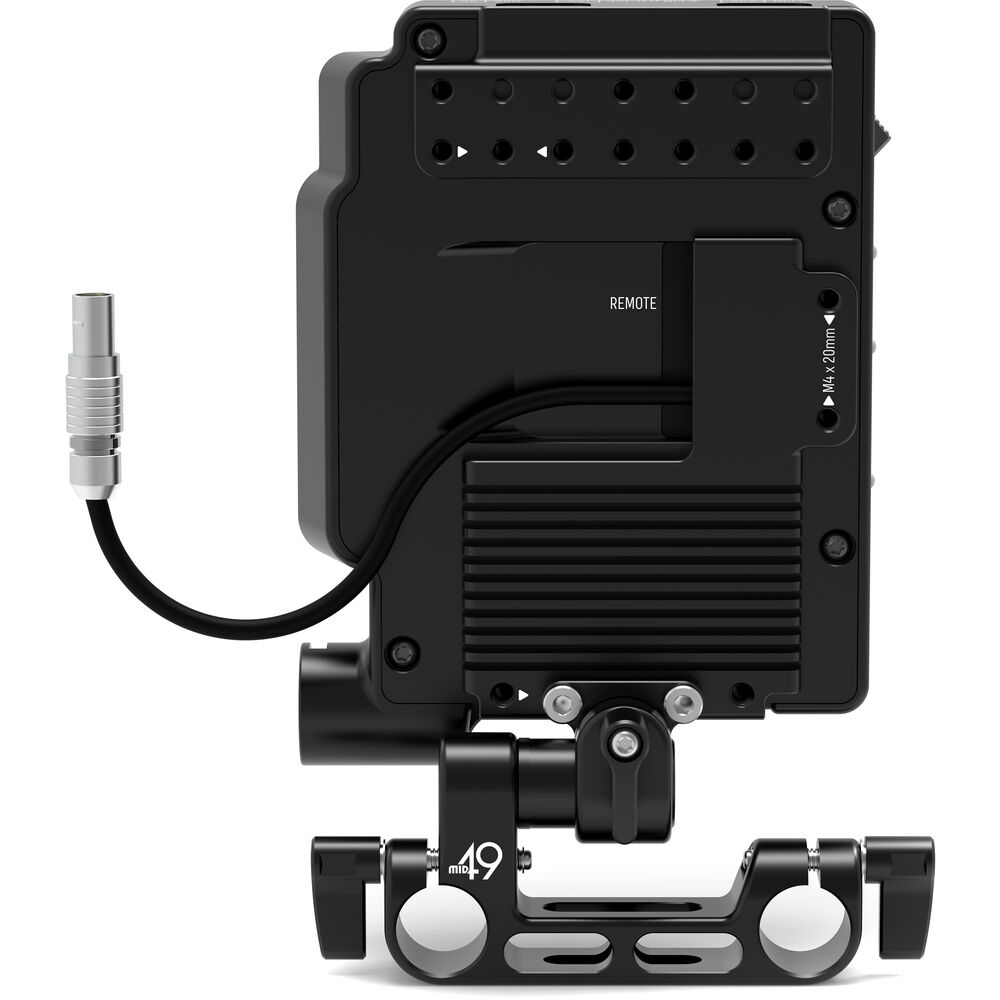

The DB-9 can also be separated from its camera mount, revealing a 15mm rod clamp with an internal friction sleeve.

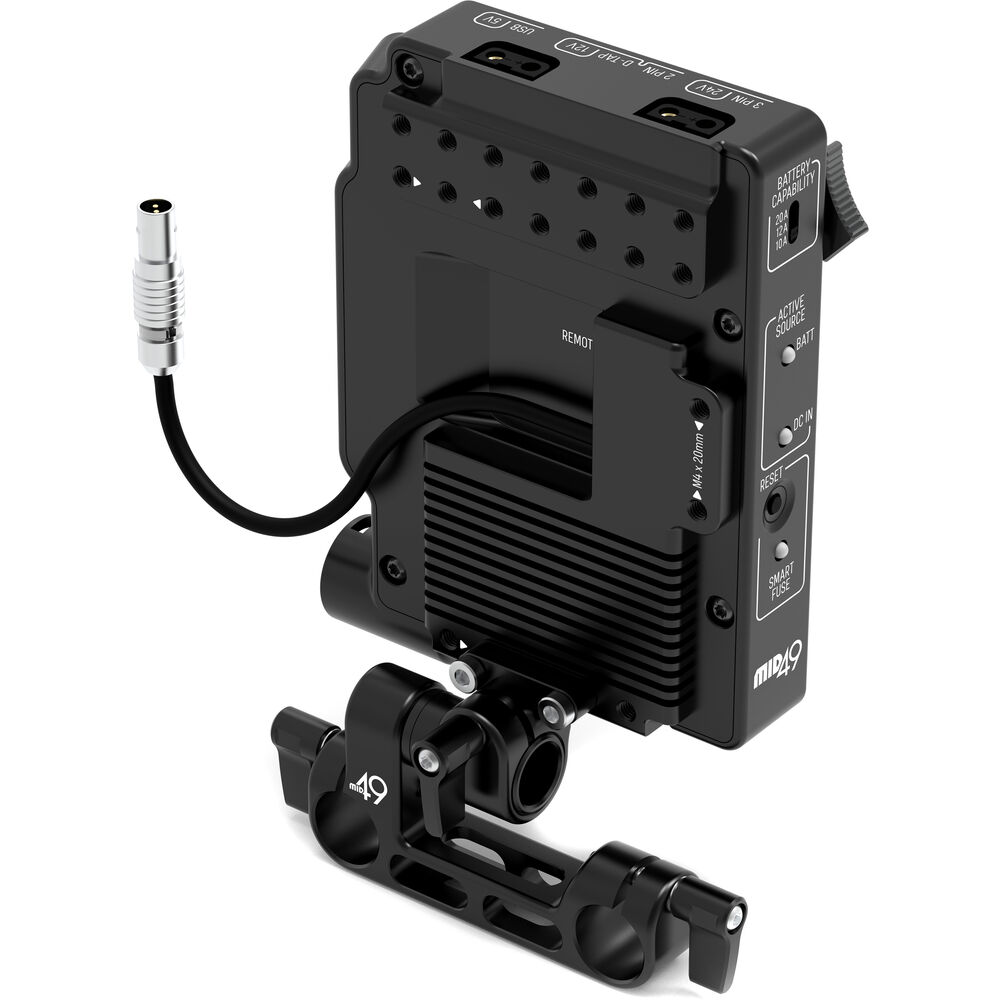

With the SMART FUSE design, camera power is monitored and the remaining power budget is allocated to accessories. For example, the PYXIS uses approximately 1.8A at 14V so when using a 10A capable battery, the remaining 8.2A is allocated for accessory use. If an accessory configuration exceeds the 8.2A limit, accessory power is cut off, leaving the camera powered. The “SMART FUSE” LED will illuminate, showing the error, and once the configuration has been adjusted to lower than 8.2A, the RESET button can be pressed, and power will be re-enabled to accessory outputs.

In the event of a complete short circuit, the system will immediately shut down and can only be turned back on once the short circuit has been removed.

Compatibility

• Blackmagic Design PYXIS 12K
• Blackmagic Design PYXIS 12K EF Mount
• Blackmagic Design PYXIS 12K L Mount
• Blackmagic Design PYXIS 12K PL Mount
• Blackmagic Design PYXIS 6K
• Blackmagic Design PYXIS 6K EF Mount
• Blackmagic Design PYXIS 6K L Mount
• Blackmagic Design PYXIS 6K PL Mount

Specifications
