Genel Bakış

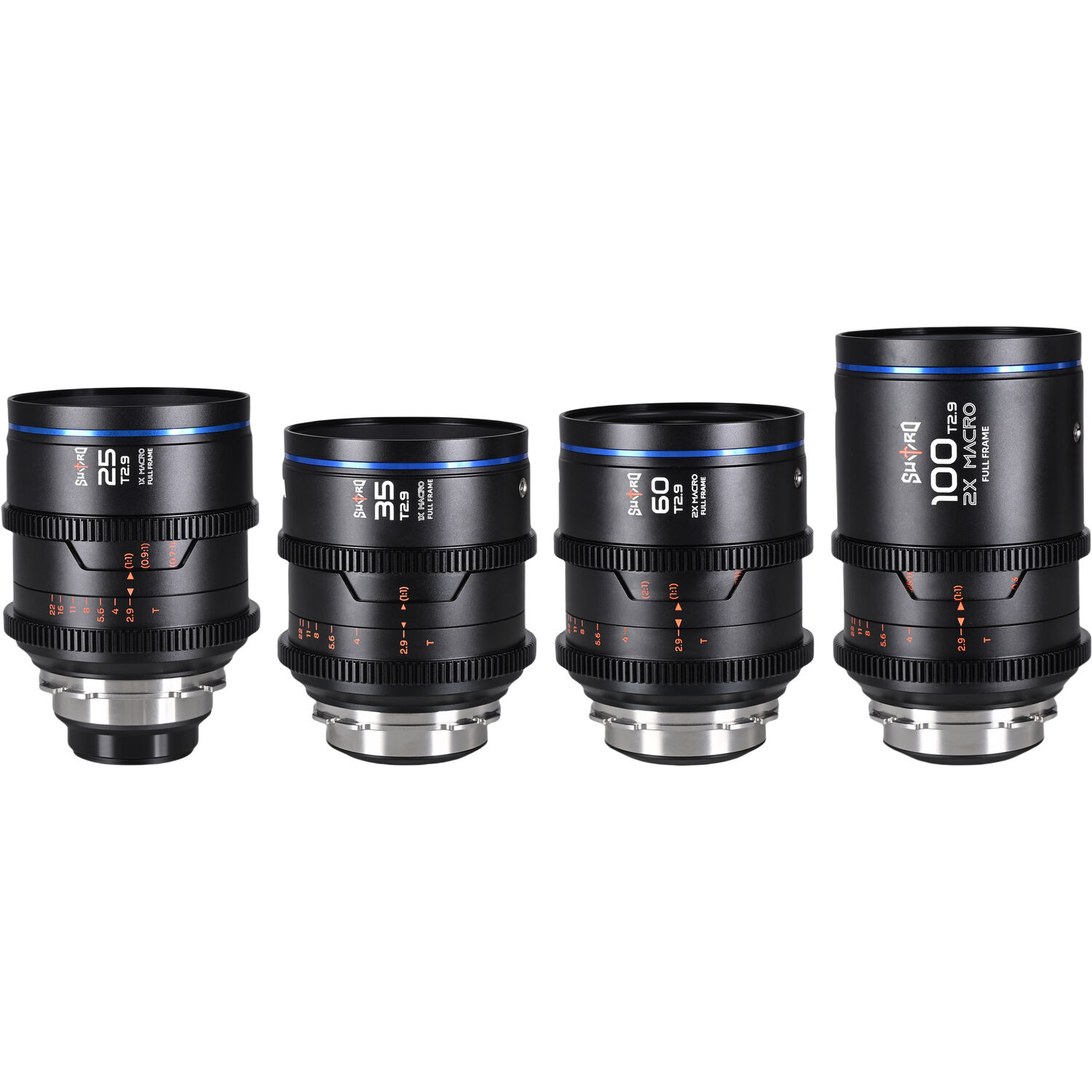

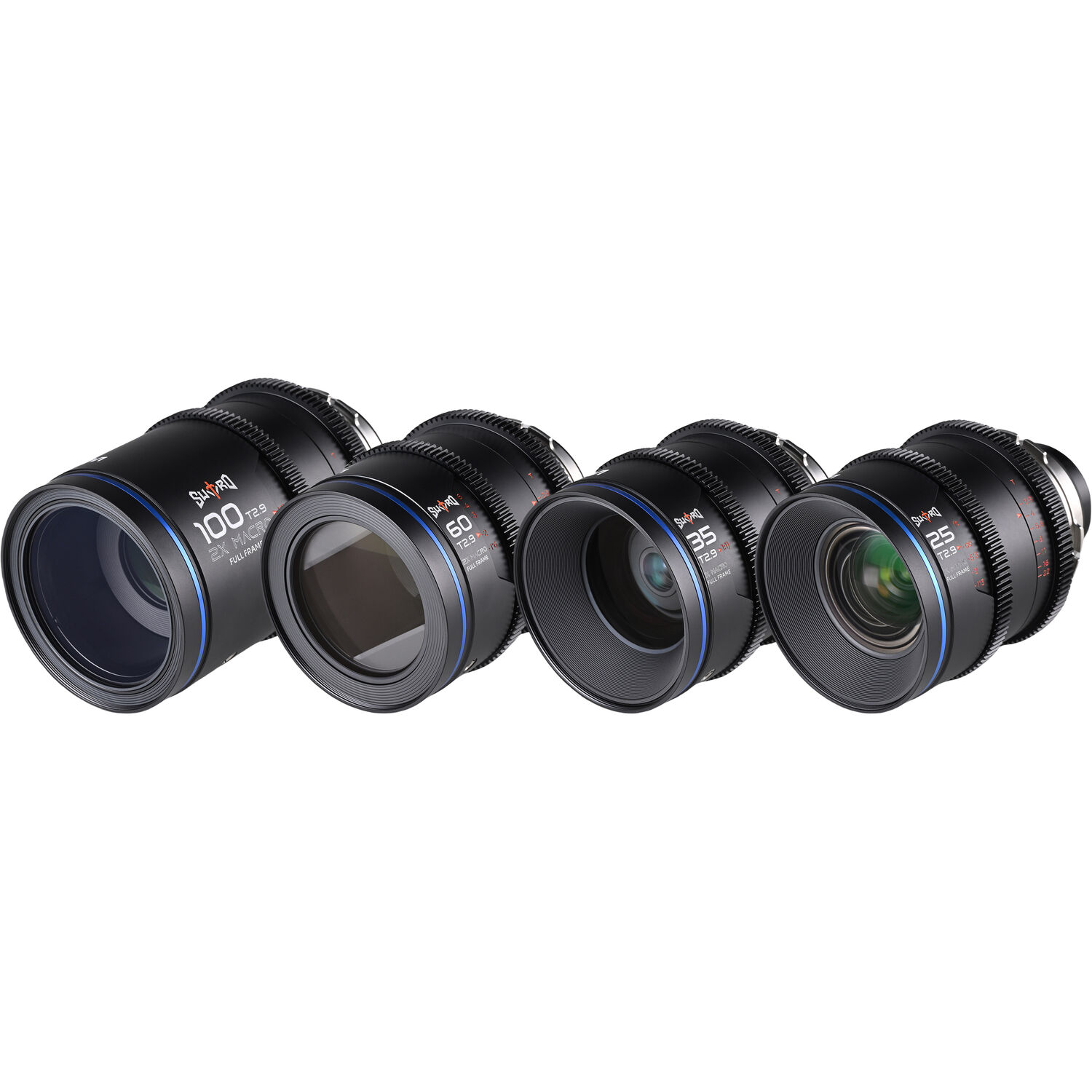

The Laowa Sword Macro Cine 4-Lens Set includes four versatile focal lengths for a wide range of shooting scenarios. Compatible with ARRI PL full-frame cameras, this set features 25mm, 35mm, 60mm, and 100mm lenses. All lenses are designed with cine-standard gearing, consistent front diameters, filter threads, and aperture ranges, allowing for seamless lens transitions. Below, you will find more details about each lens included in this kit.

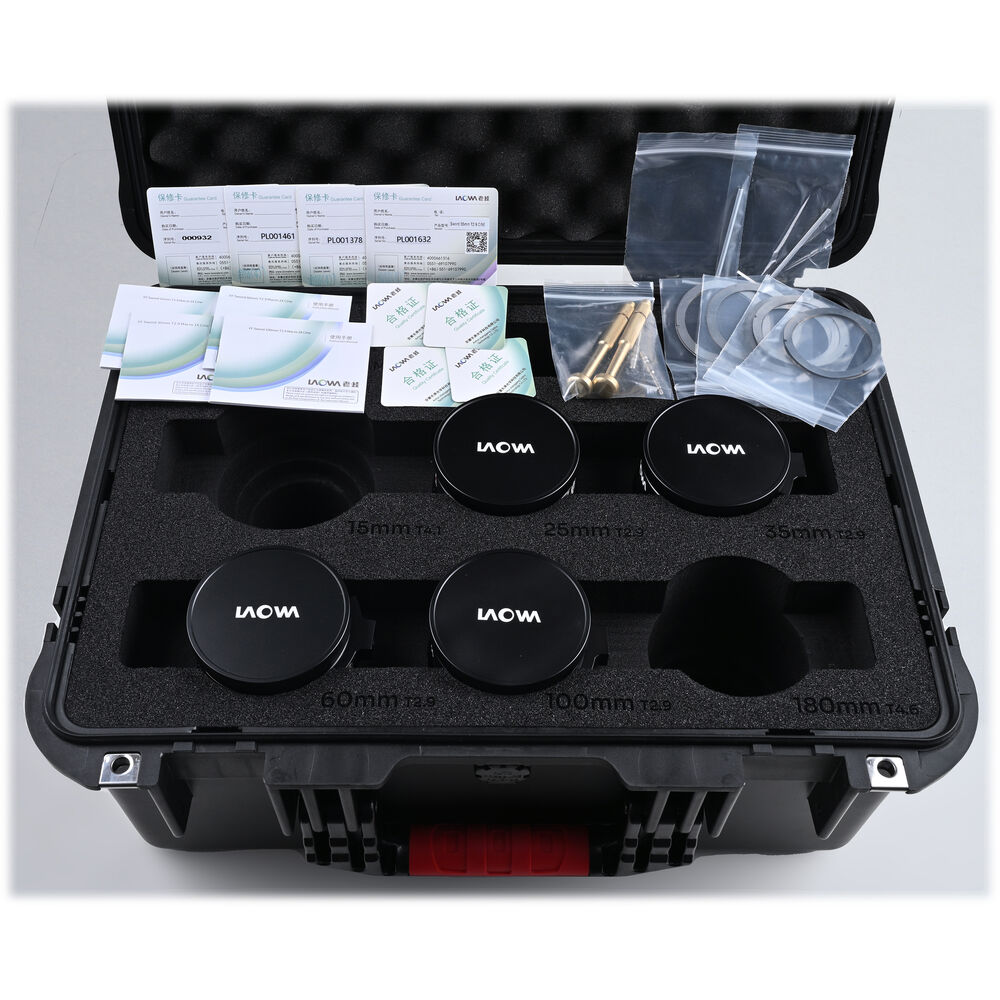

In The Box
- Laowa Sword 25mm T2.9 1x Macro Cine Lens (ARRI PL)
Front Lens Cap
Rear Lens Cap
- Laowa Sword 35mm T2.9 1x Macro Cine Lens (ARRI PL)
Front Lens Cap
Rear Lens Cap
- Laowa Sword 60mm T2.9 2x Macro Cine Lens (ARRI PL)
Front Lens Cap
Rear Lens Cap
- Laowa Sword 100mm T2.9 2x Macro Cine Lens (ARRI PL)
Front Lens Cap
Rear Lens Cap
Specifications
Laowa Sword 25mm T2.9 1x Macro Cine Lens (ARRI PL)
| Maximum Aperture | T2.9 |
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | Yes |
| Lens Format Coverage | Full Frame |
| Image Circle | 43.2 mm |
| Angle of View | Full Frame: Horizontal: 82° |
| Focus Scales | Metric, Imperial |
| Optical Design | 13 Elements in 10 Groups |
| Filter Thread | 77 mm |
| Minimum Focus Distance | 6.6″ / 16.8 cm |
| Maximum Magnification Ratio | 1:1 |
| Diaphragm Blades | 7 |
| Image Stabilization | No |
| Gear Standard | 0.8 MOD |
| Gear Rotation | Focus: 100°, Iris: 40° |
| Electronic Communication | No |
| Coating | No |
| Environmental Resistance | No |
| Diameter | Front: 3.1″ / 80 mm |
| Length | 3.72″ / 94.56 mm |
| Weight | 1.7 lb / 755 g |
Laowa Sword 35mm T2.9 1x Macro Cine Lens (ARRI PL)
| Maximum Aperture | T2.9 |
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | Yes |
| Lens Format Coverage | Full Frame |
| Image Circle | 43.2 mm |
| Angle of View | Full Frame Horizontal: 63° |
| Focus Scales | Metric, Imperial |
| Optical Design | 13 Elements in 10 Groups |
| Filter Thread | 77 mm |
| Minimum Focus Distance | From Unspecified Point in Lens: 7.0″ / 17.8 cm |
| Maximum Magnification Ratio | 1:1 |
| Diaphragm Blades | 13 |
| Image Stabilization | No |
| Gear Standard | 0.8 MOD |
| Gear Rotation | Focus: 270° Iris: 59° |
| Electronic Communication | No |
| Coating | No |
| Environmental Resistance | No |
| Diameter | Front: 3.1″ / 80 mm |
| Length | 3.72″ / 94.56 mm |
| Weight | 1.7 lb / 750 g |
Laowa Sword 60mm T2.9 2x Macro Cine Lens (ARRI PL)
| Maximum Aperture | T2.9 |
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | Yes |
| Lens Format Coverage | Full Frame |
| Image Circle | 43.2 mm |
| Angle of View | Full Frame Horizontal: 40° |
| Focus Scales | Metric, Imperial |
| Optical Design | 14 Elements in 11 Groups |
| Filter Thread | 77 mm |
| Minimum Focus Distance | From Unspecified Point in Lens: 8.3″ / 21 cm |
| Maximum Magnification Ratio | 2.0:1 |
| Diaphragm Blades | 13 |
| Image Stabilization | No |
| Gear Standard | 0.8 MOD |
| Gear Rotation | Focus: 160° Iris: 73° |
| Electronic Communication | No |
| Coating | No |
| Environmental Resistance | No |
| Diameter | Front: 3.1″ / 80 mm |
| Length | 4.45″ / 112.93 mm |
| Weight | 1.6 lb / 736 g |
Laowa Sword 100mm T2.9 2x Macro Cine Lens (ARRI PL)
| Maximum Aperture | T2.9 |
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | Yes |
| Lens Format Coverage | Full Frame |
| Image Circle | 43.2 mm |
| Angle of View | Full Frame: Horizontal: 24° |
| Focus Scales | Metric, Imperial |
| Optical Design | 12 Elements in 10 Groups |
| Filter Thread | 77 mm |
| Minimum Focus Distance | From Unspecified Point in Lens: 9.7″ / 24.7 cm |
| Maximum Magnification Ratio | 2.0:1 |
| Diaphragm Blades | 13 |
| Image Stabilization | No |
| Gear Standard | 0.8 MOD |
| Gear Rotation | Focus: 220° Iris: 65° |
| Electronic Communication | No |
| Coating | No |
| Environmental Resistance | No |
| Diameter | Front: 3.1″ / 80 mm |
| Length | 5.5″ / 139.5 mm |
| Weight | 2.1 lb / 957 g |
