Genel Bakış

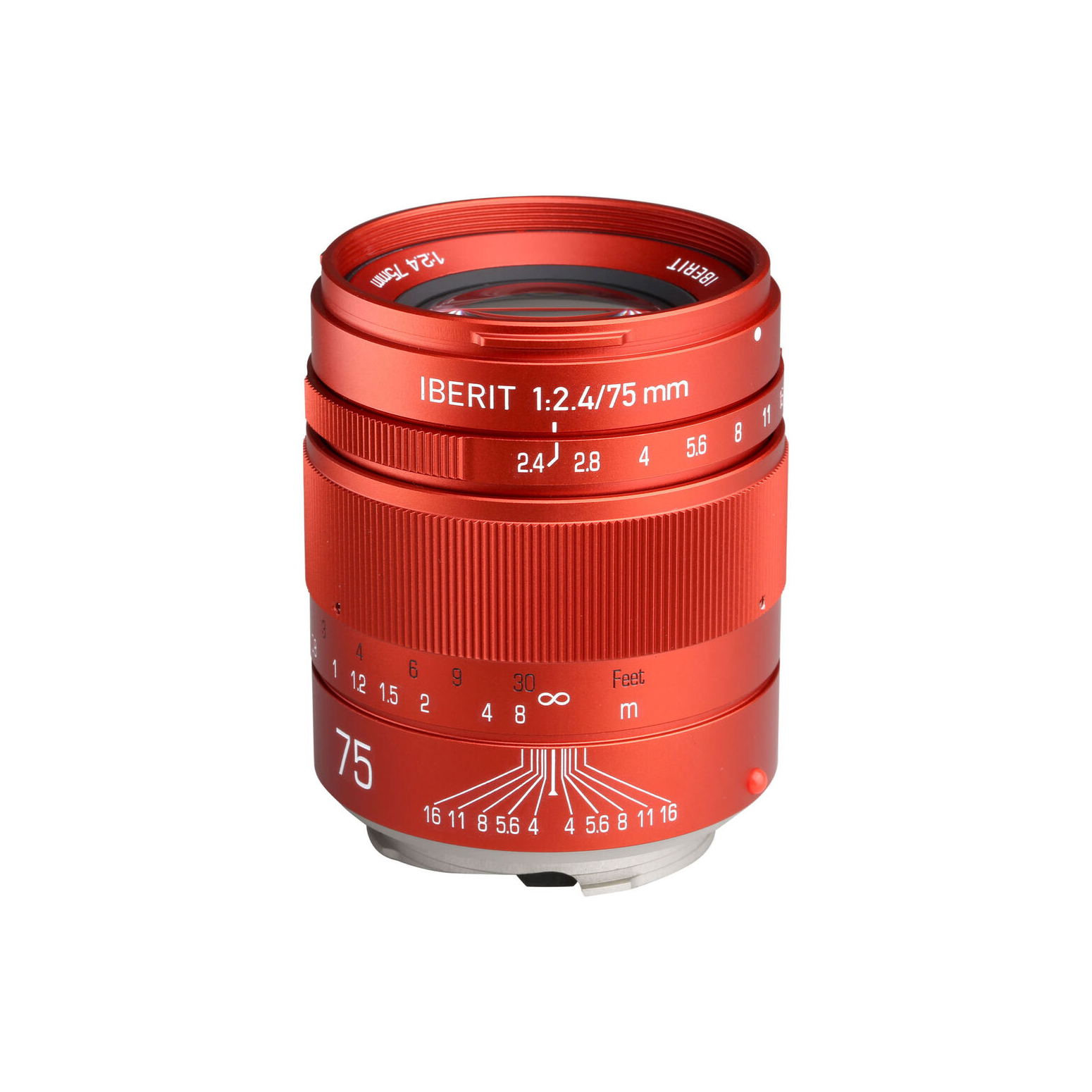

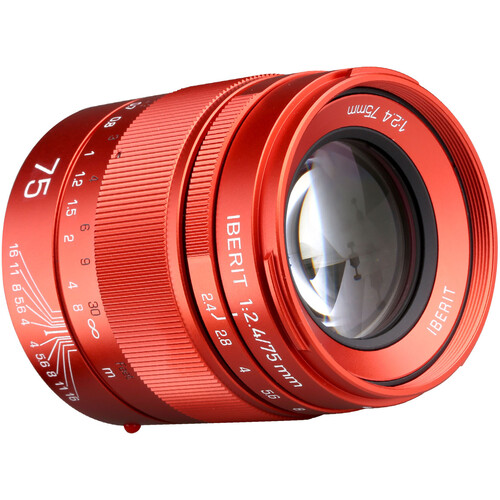

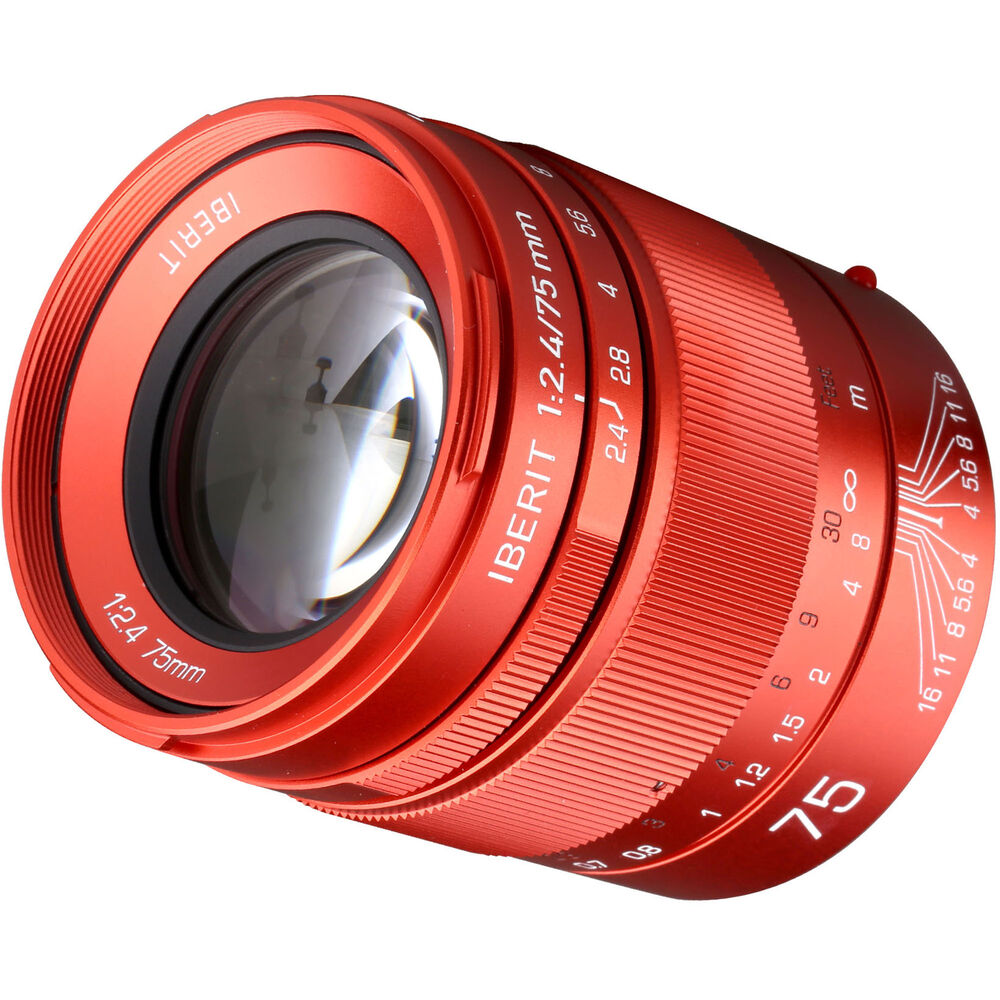

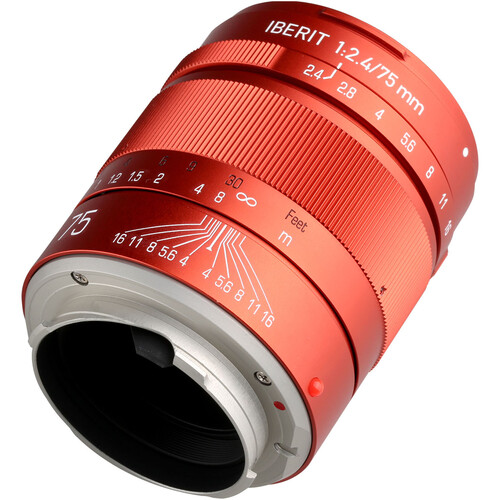

Offering a portrait-length field of view, the red Iberit 75mm f/2.4 from Kipon is a sleek, compact lens designed for Leica M-mount rangefinder cameras. It uses a simple five elements in five groups optical design to render imagery with a classic quality, and its precise manual focus control affords working with subjects as close as 2.3′ away. The all-metal construction realizes a rugged physical design, and the lens barrel’s exterior also incorporates both depth of field and focusing distance scales for more accurate focus control.
Features
- Manual focus design permits working with subjects as close as 2.3′ away.
- Engraved focus distance and depth of field scales benefit working with pre-focus and hyperfocal focusing techniques.
- Six diaphragm blades contribute to a pleasing bokeh quality.
- All-metal construction realizes a physically durable design that is also lightweight and easy to handle.
- Focus ring has a 90° throw, and the aperture ring has a 103° angle of rotation.
- Exterior diameter of 58mm is consistent throughout the entire Iberit lens lineup.
Specifications
| Focal Length |
75mm
|
| Aperture |
Maximum: f/2.4
Minimum: f/16 |
| Lens Mount |
Leica M
|
| Angle of View |
32.2°
|
| Minimum Focus Distance |
2.3′ / 70 cm
|
| Optical Design |
5 Elements in 5 Groups
|
| Aperture/Iris Blades |
6
|
| Focus Type |
Manual Focus
|
| Filter Size |
49 mm (Front)
|
| Dimensions |
ø: 2.28 x L: 2.56″ / ø: 58 x L: 65 mm
|
| Weight |
9.5 oz / 270 g
|
