Genel Bakış

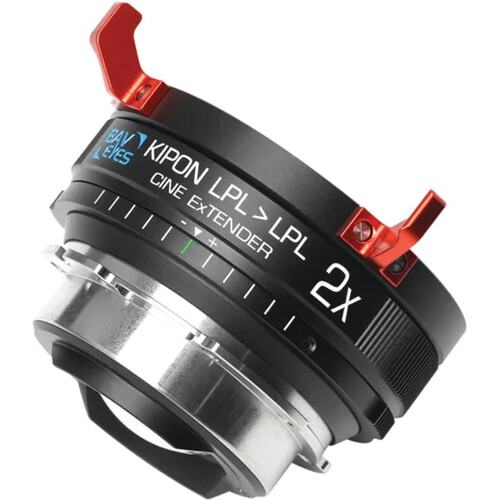

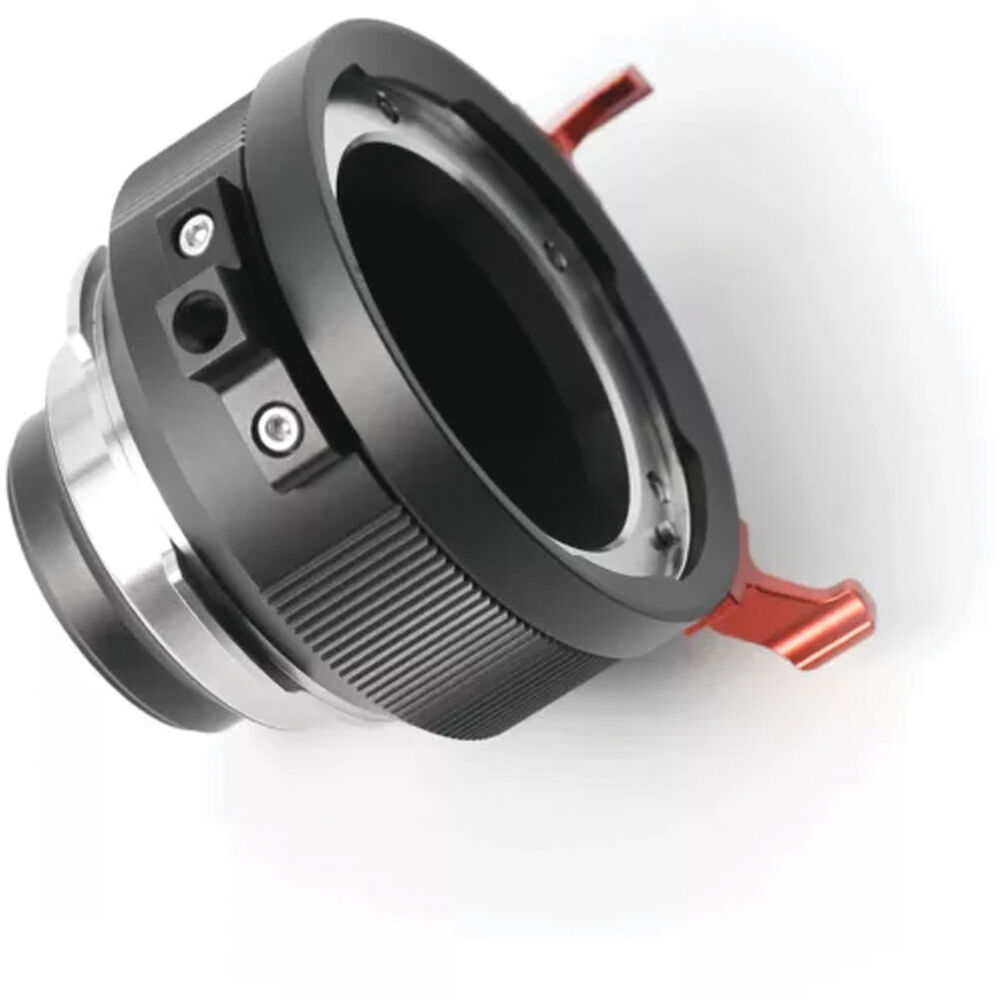

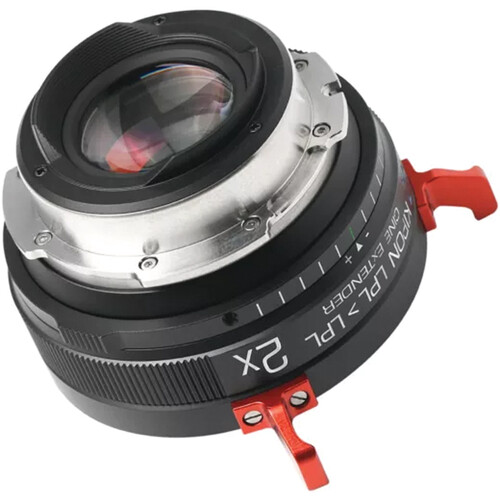

KIPON BAVEYES CINE Extender 2x is designed to double the focal length of cine lenses. The adapter allows light to pass through up to an aperture of 1.4. During the design process, care was taken to leave the character of the lenses used largely unchanged and to ensure the greatest possible compatibility with as many lenses as possible. With a max. immersion depth of 14mm (LPL mount), the 2x extender is compatible with a wide range of cine prime and zoom lenses.
The optical design consisting of 7 lenses in 4 groups uses high refractive index and low dispersion glass and has been optimized for maximum contrast transmission and minimum aberrations with state-of-the-art optical design software. Tolerance and stray light analysis by special software, avoids ghosting and reflections already at the design stage and ensures maximum imaging performance.
An integrated option to finely adjust the flange focal distance via rotary wheel (FFD Adjustment +/- 0.05mm), allows a quick fine tuning of the flange focal distance without the use of tools and shims. The adapter is pre-adjusted to 44.00mm flange focal length (LPL FFD) ex works.
Features
- With back focal adjustable structure
- Built in 4 groups of 7 glasses with high refractive index and low dispersion
- Max. light input of F1.4
- Max. lens immersion depth of 14mm
- Designed in Germany

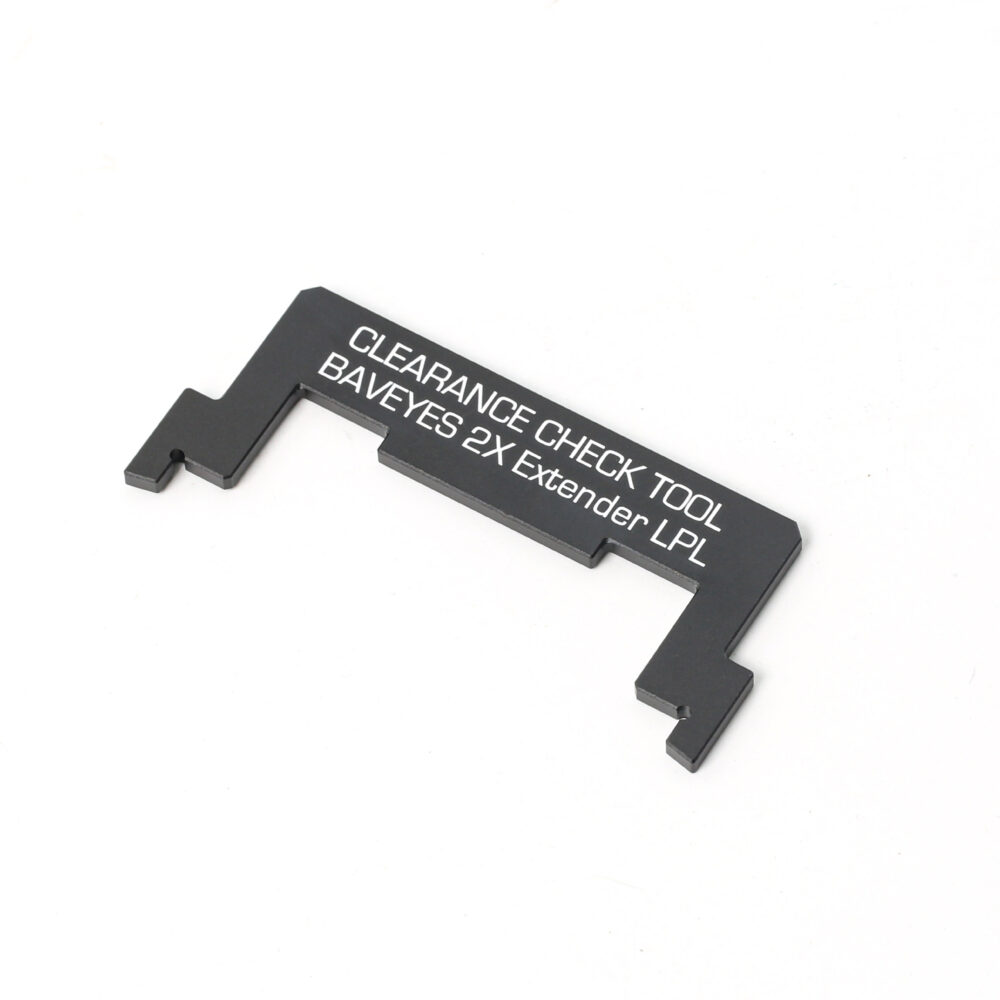

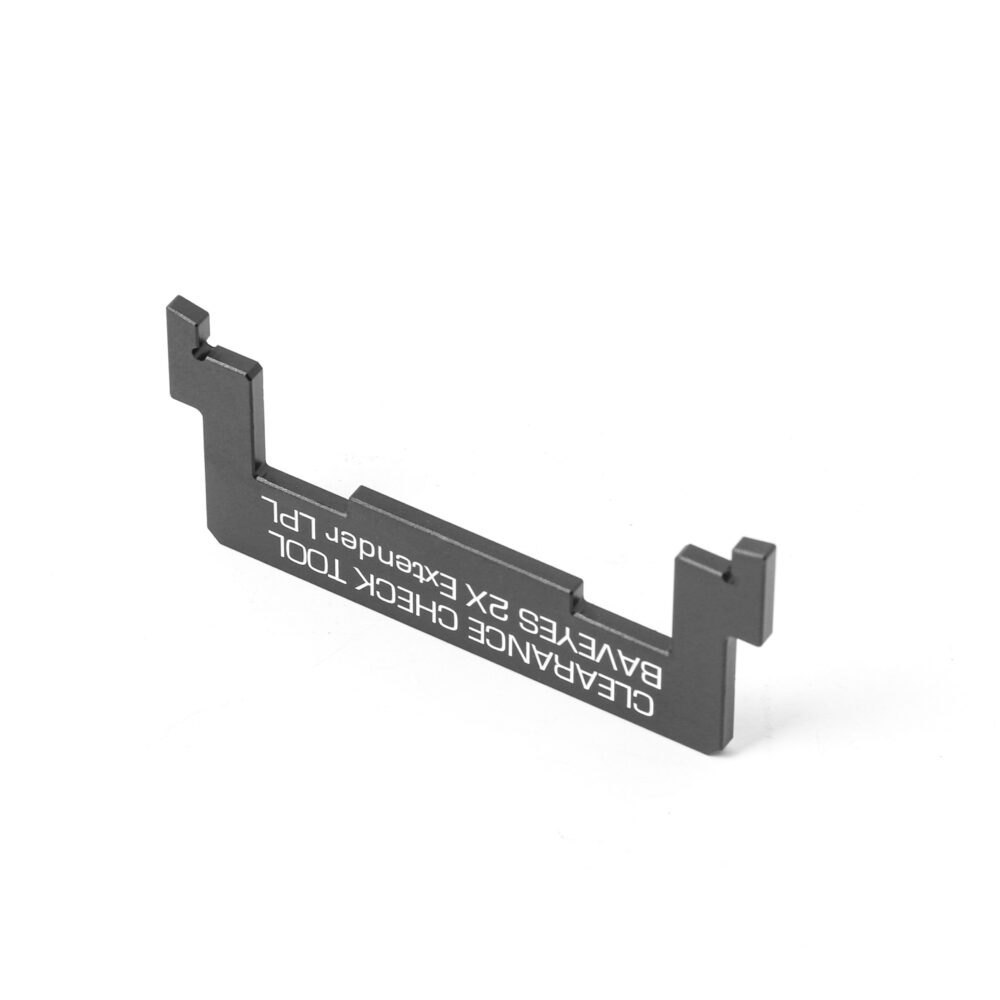

- The lens checker is included in the package
Included
- KIPON Baveyes LPL 2x Cine Extender
- Lens Checker
- Limited 1-Year Manufacturer Warranty
Specifications
| Camera Compatibility |
ARRI LPL Mount
|
| Lens Compatibility |
ARRI LPL Mount
|
| Magnification |
2x
|
| Electronic Communication |
No
|
| Optical Design |
7 Elements in 4 Groups
|
| Included Shims | |
| Materials |
Metal
|
| Dimensions |
Depth: 1.4″ / 35.7 mm
|
| Weight |
1.2 lb / 550 g
|
| Package Weight |
1.905 lb
|
| Box Dimensions (LxWxH) |
5.5 x 4.6 x 4.6″
|
