€349.00 KDV hariç
13 stock in external warehouse, usually ships 1-2 days.

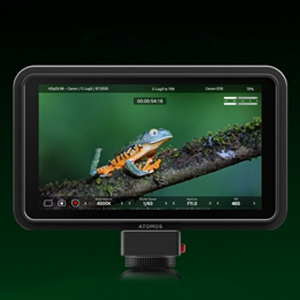

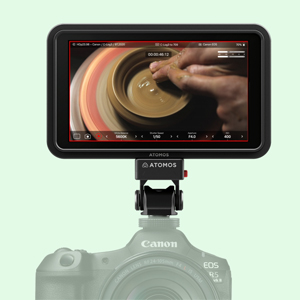

Enhance your on-camera monitoring with the Atomos Shinobi II 5.2″ HDMI HDR Monitor. Tailored for vloggers, photographers, and content creators, the Shinobi II introduces numerous upgrades from the original model, including a sleeker design, a 50% brighter 1500 cd/m² display, USB-C camera control for Canon, Panasonic, Sony, and Z CAM with status indicators, and the new AtomOS 11 interface. Additional features include USB-C PD power I/O, a locking HDMI and USB-C adapter, improved image tools, and ultra-efficient battery usage, enabling all-day operation with just one battery.

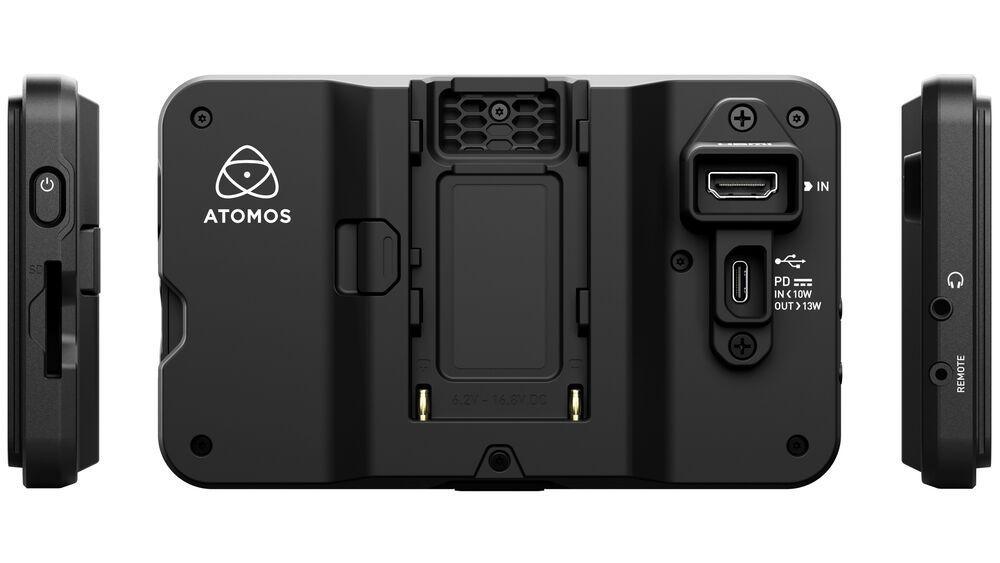

He monitor has been slimmed down to weigh only 7.4 oz, and there are added locating holes alongside the 1/4″-20 threads for anti-twist mounting. A single L-series battery plate on the back has been placed in the center to improve balancing and maneuverability.

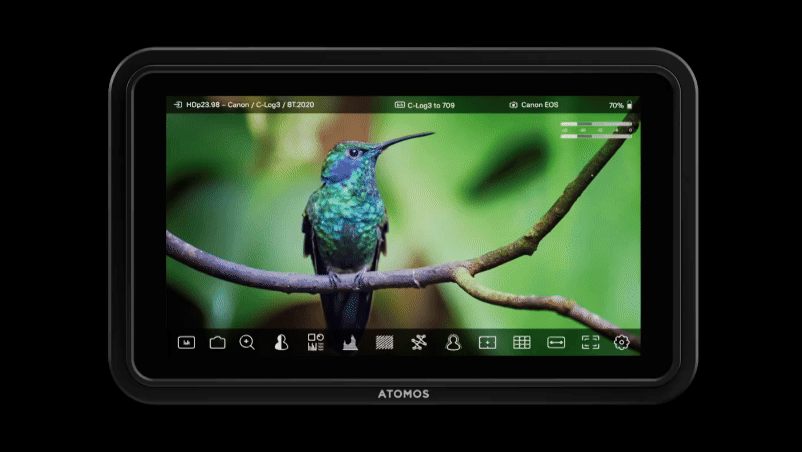

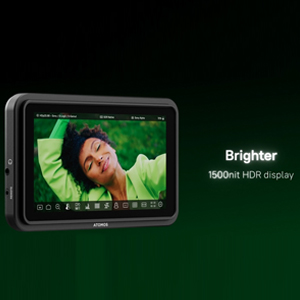

The 5.2″ touchscreen display is 50% brighter than the Shinobi, measuring 1500 cd/m² peak brightness, making it easily readable whether you’re shooting indoors or in bright sunlight.
Using specially designed on-screen sliders you can adjust white balance, lens aperture, shutter speed/angle and ISO. A red edge display indicates when the camera is recording internally, whether triggered by the camera or from the Shinobi II.
Shinobi II will run all day on a single battery and offers a host of professional monitoring features. Set up your shots accurately using our advanced histograms, waveforms and videoscopes. A multi-tool Analysis View gives you all the essential info at a glance. There’s even a selfie Mirror Mode for vloggers. Shinobi II is the perfect accessory to improve any photo or video production.
Atomos has developed a unique and rugged locking ecosystem to maintain a secure grip on connected HDMI and USB-C cables and Shinobi II is supplied with a special bracket to facilitate this. With Atomos locking cables (purchased separately) it is the most robust capture cable system available today. Shinobi II is also fully compatible with standard, non-locking cables.

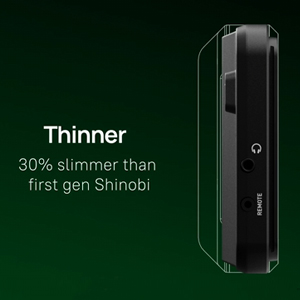

The monitor has been designed with a slimmer form factor, weighing only 7.4 oz, and there are added locating holes alongside the 1/4″-20 threads for anti-twist mounting. A single L-series battery plate on the back has been placed in the center to improve balancing and maneuverability. The included HDMI/USB-C locking adapter allows you to use Atomos’ new line of locking cables to prevent disconnecting or pulling.
There are multiple methods to power the Shinobi II, including an L-series/NP-F style battery, an optional battery eliminator (dummy battery) in combination with a DC barrel to D-Tap cable, or via a USB-C PD charger with 10W input. You can also charge/power your camera via USB-C PD 13W output while using Shinobi II’s camera control features.
Atomos Shinobi II 5.2″ HDMI HDR Monitor
USB-C 2.0 Cable
HDMI/USB-C Locking Cable Adapter
Limited 1-Year Manufacturer Warranty
| Panel Type | IPS-Type LCD |
| Display Size | 5.2″ / 13.2 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 178° Vertical: 178° |
| Touchscreen | Yes |
| Maximum Brightness | 1500 nits / cd/m2 |
| Color Support | 1.07 Billion Colors (8-Bit+FRC) |
| HDR Support | Yes, Hybrid Log Gamma |
| Pixels Per Inch (ppi) | 423 ppi |
| Color Gamut | 100% Rec. 709 |
| LUT Support | Yes |
| Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Vectorscope, Waveform, Zebra |
| Video I/O | 1x HDMI 1.4 Input |
| Embedded Audio | HDMI: 2-Channel |
| Audio I/O | 1x 1/8″ / 3.5 mm Headphone Output |
| Built-In Speaker | No |
| Power I/O | 1x USB-C (16.8 VDC) Input/Output |
| Other I/O | 1x 2.5 mm (LANC) Output |
| Media/Memory Card Slot | Single Slot: SD/SDHC/SDXC (UHS-I) |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Video Format | HDMI (8/10-Bit 4:2:2) DCI 4K: 30/29.97/25/24/23.98 UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/29.97/25/24/23.98 |
| Gamma Curve | ARRI Log C, Canon Log, Canon Log 2, Canon Log 3, FUJIFILM F-Log, FUJIFILM F-Log 2, HDR-HLG, HDR-PQ, JVC J-Log, Nikon N-Log, Panasonic V-Gamut, Panasonic V-Log, Rec709, Rec2020, REDlogFilm, REDWideGamutRGB, Sony S-Log, Sony S-Log 2, Sony S-Log 3, V-Log |
| Input Power | 6.2 to 16.8 VDC |
| Battery Type | 1x L-Series |
| Power Consumption | 10 W (Typical) 13 W (Maximum) |
| Mounting | 1x 1/4″-20 Female (Bottom) |
| Environmental Resistance | No |
| Operating Conditions | Up to 104°F / 40.0°C |
| Material of Construction | Polycarbonate |
| Dimensions | 5.9 x 3.6 x 0.8″ / 151 x 91.5 x 20.8 mm |
| Weight | 7.41 oz / 210.00 g |
