Overzicht

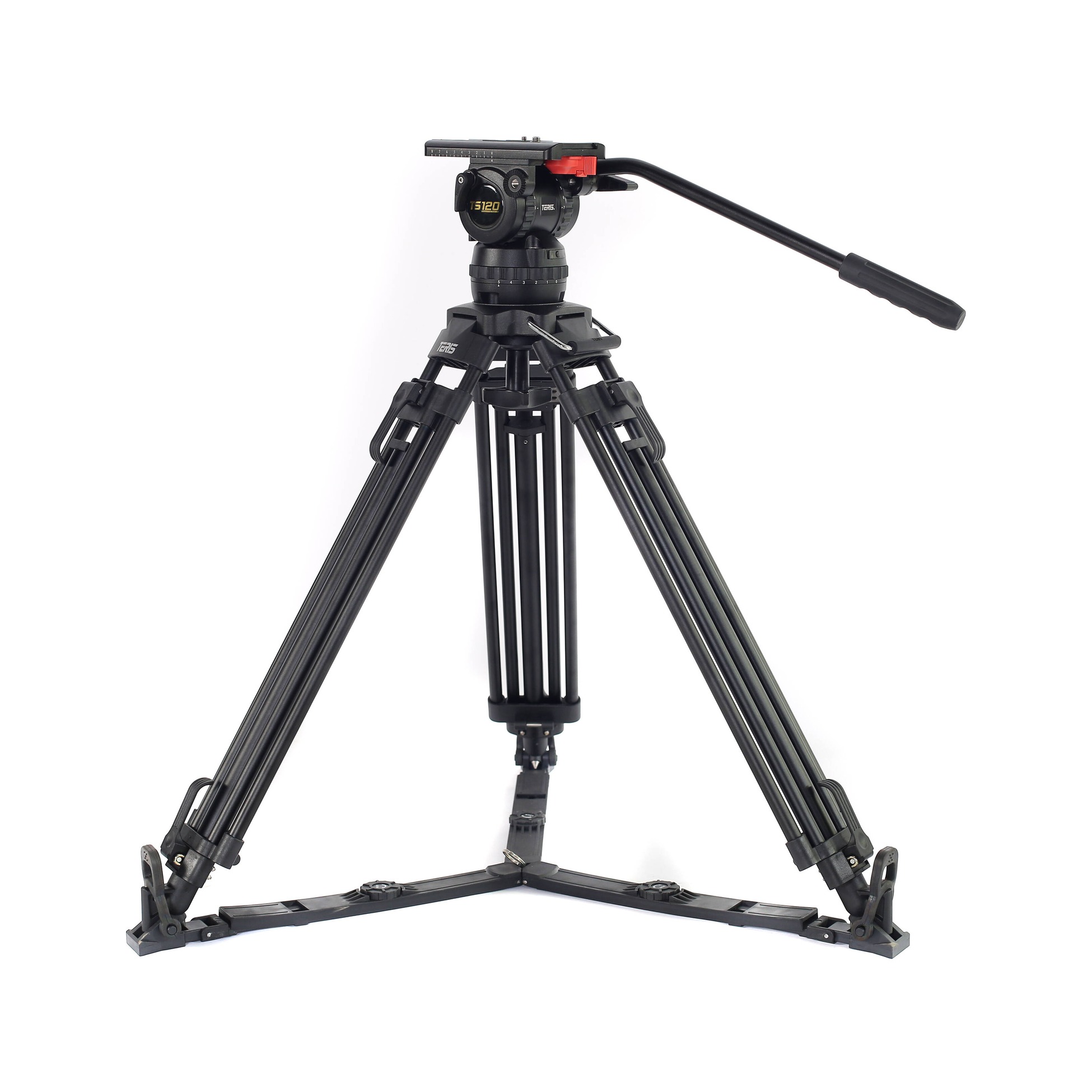

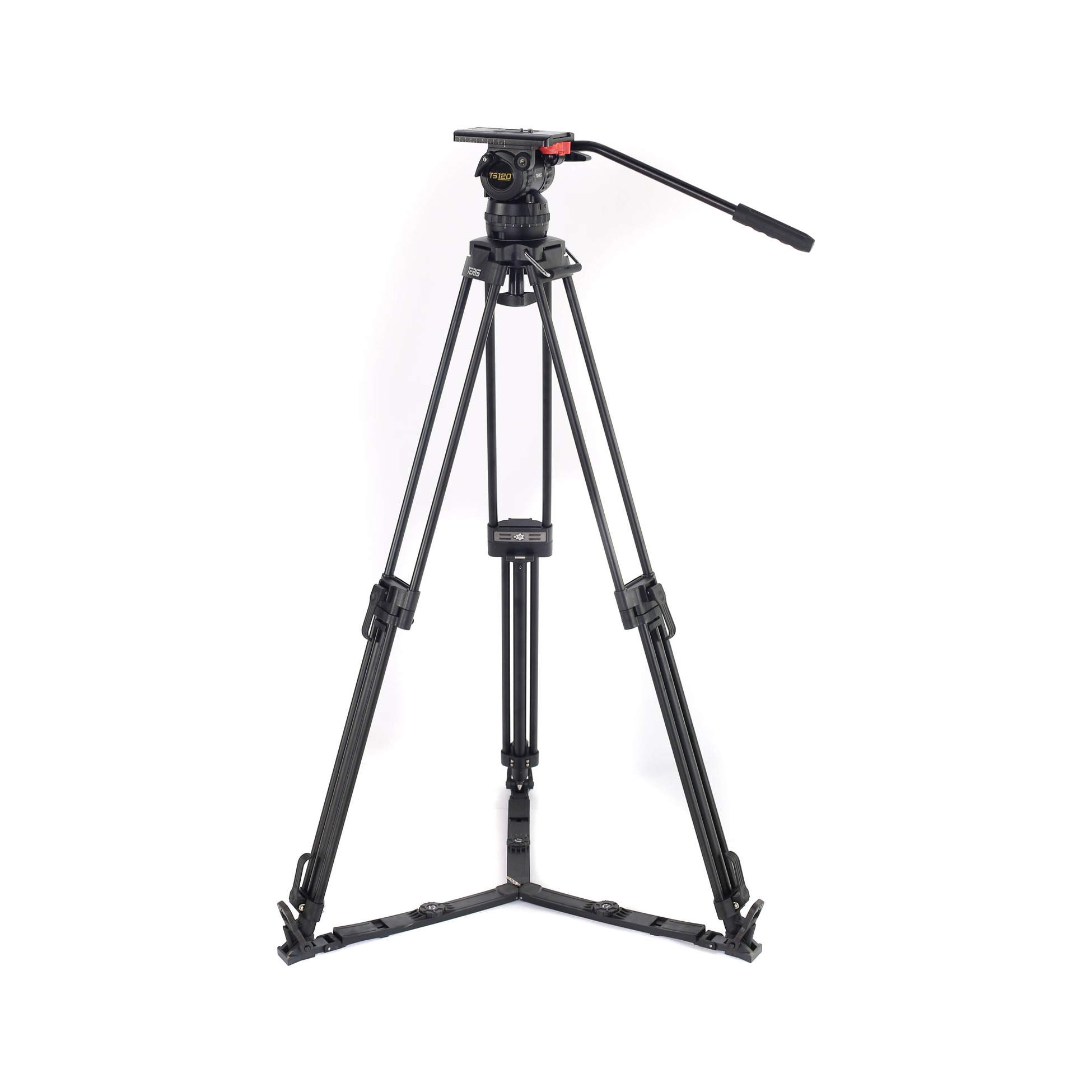

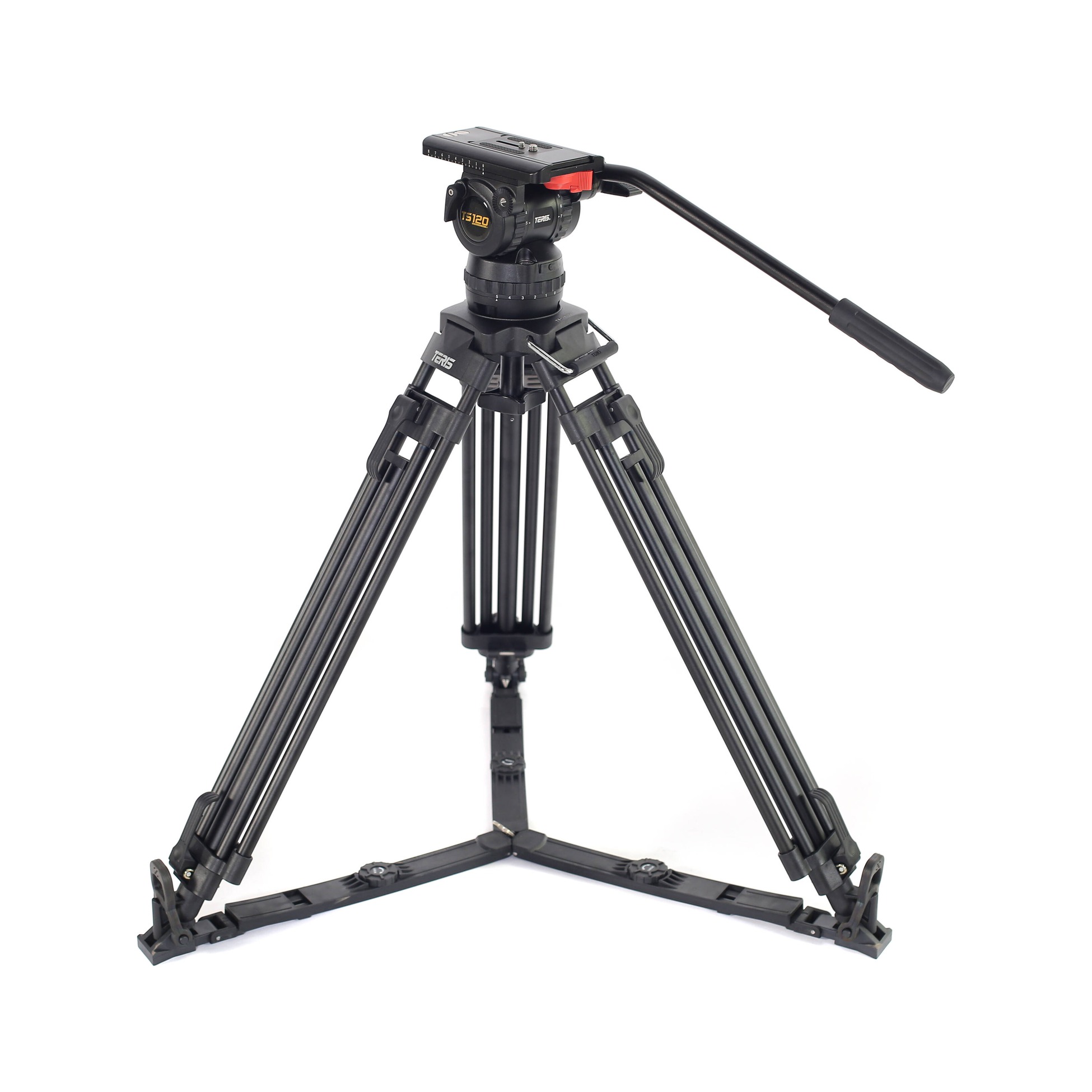

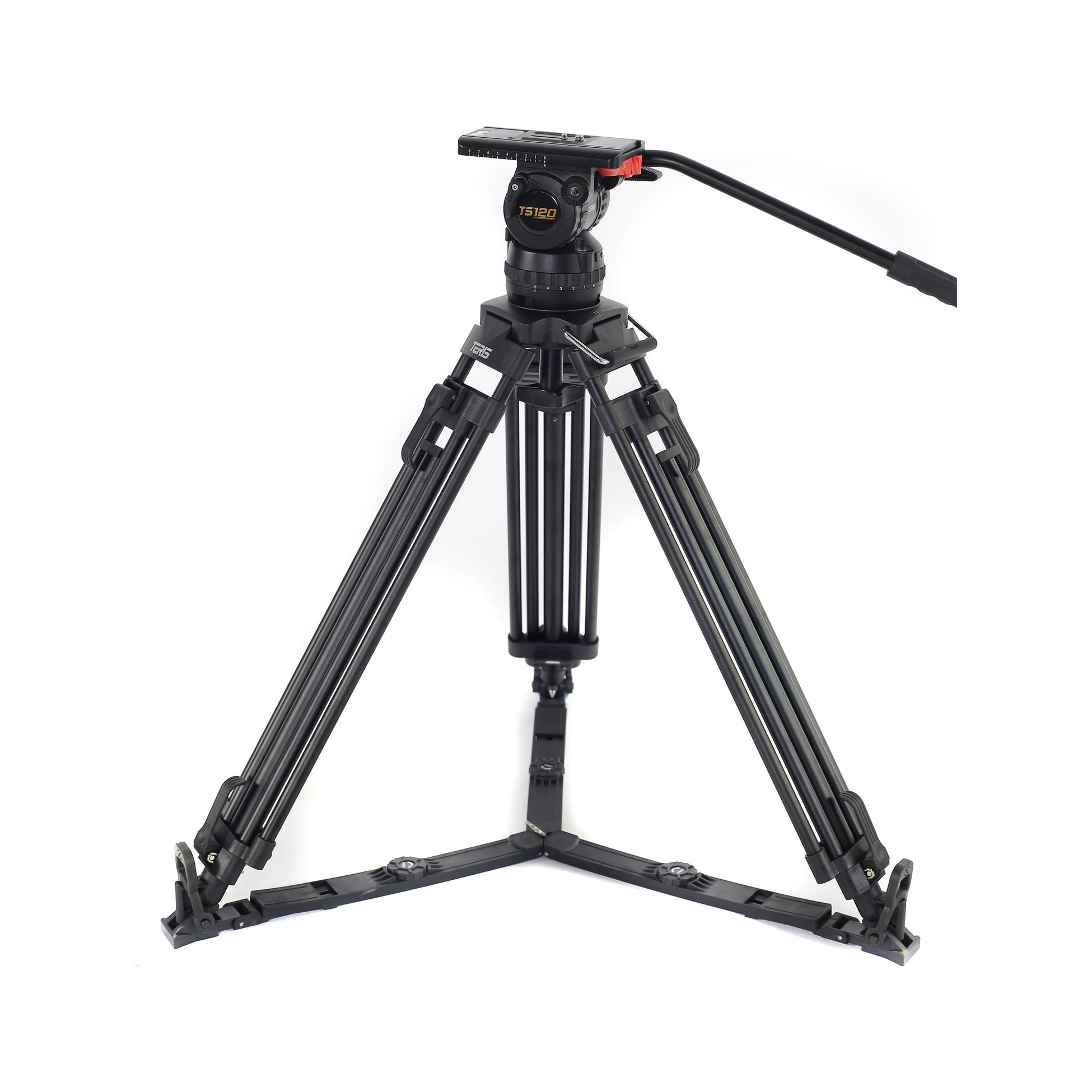

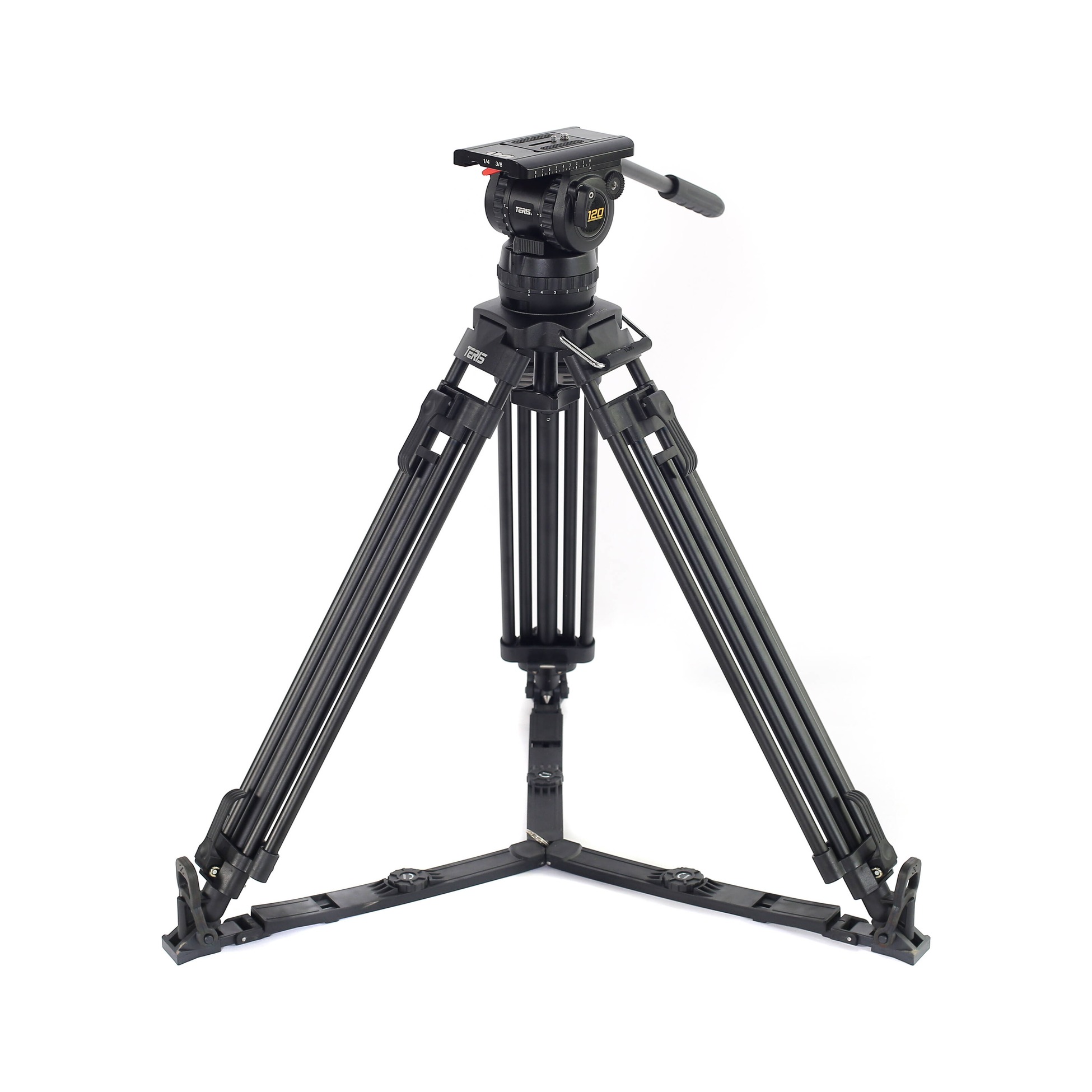

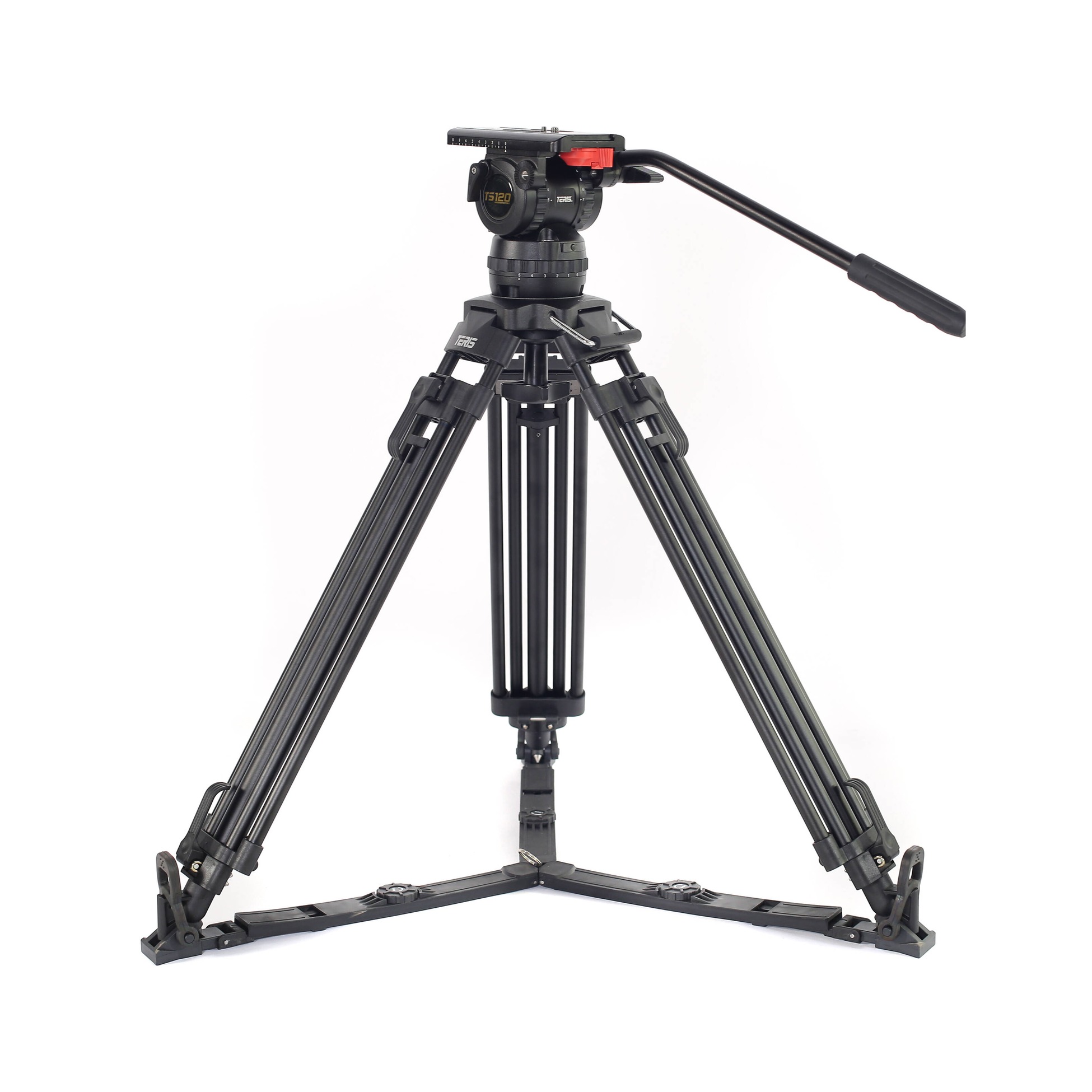

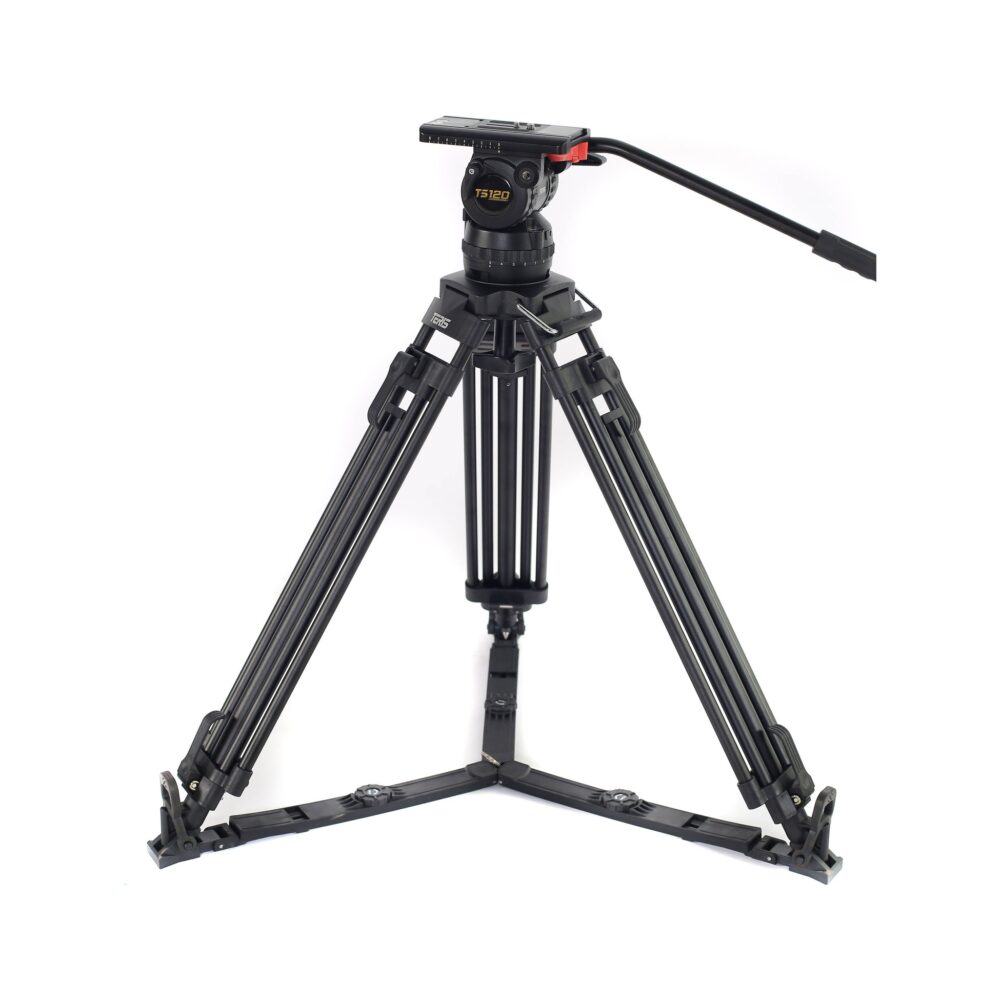

The Teris TS120AL combines a fluid head with a two-stage aluminum tripod, ground spreader, sliding quick release plate system, and pan handle. The tripod has an adjustable height range of 27.2 to 70" and the assembled system weighs 15.9 lb.

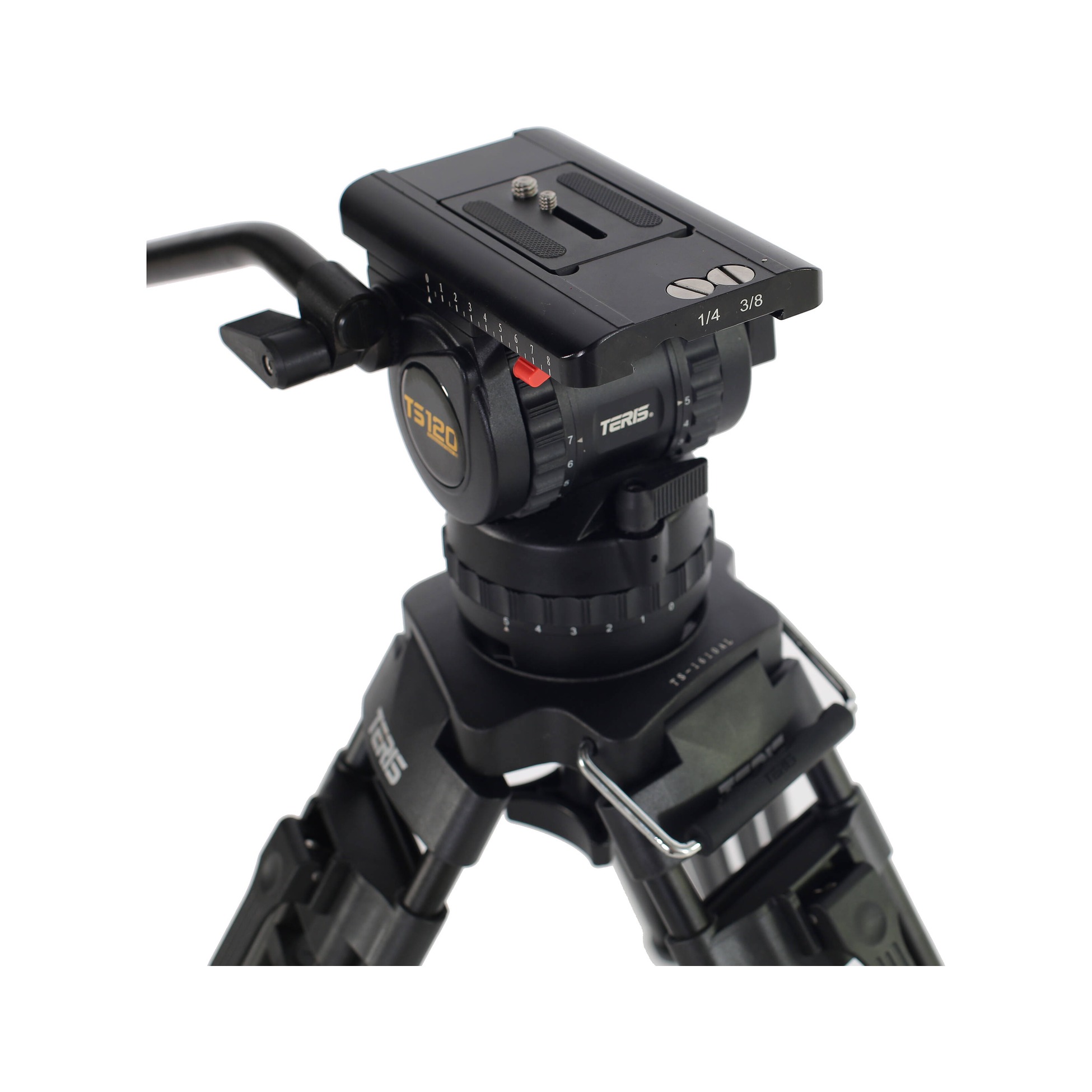

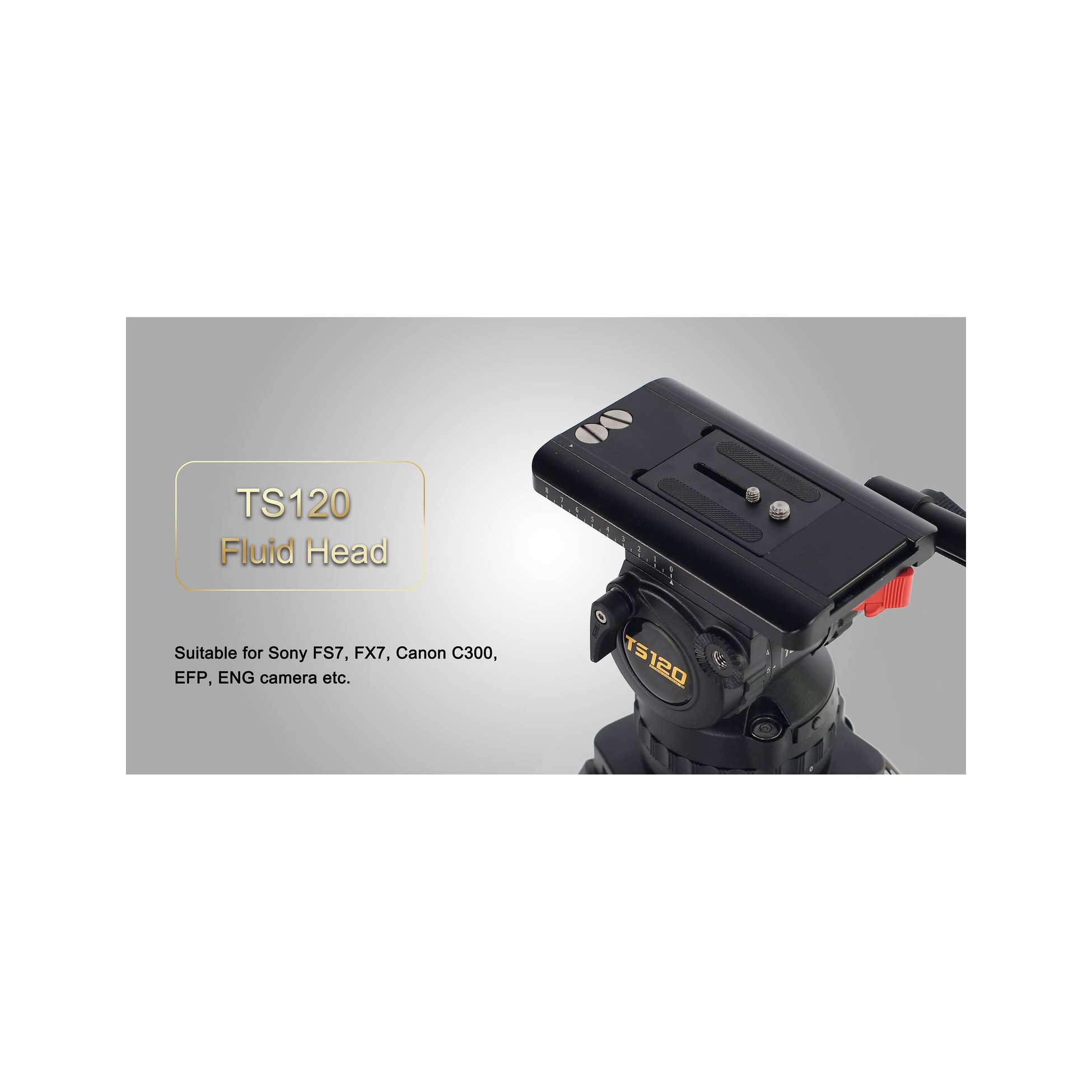

The fluid head features a 100mm flat base, supports loads up to 33 lb, and provides a ±90/-75° tilt range. Drag is adjustable from 0 to 5, while counterbalance offers 0 to 7 grades.
Features

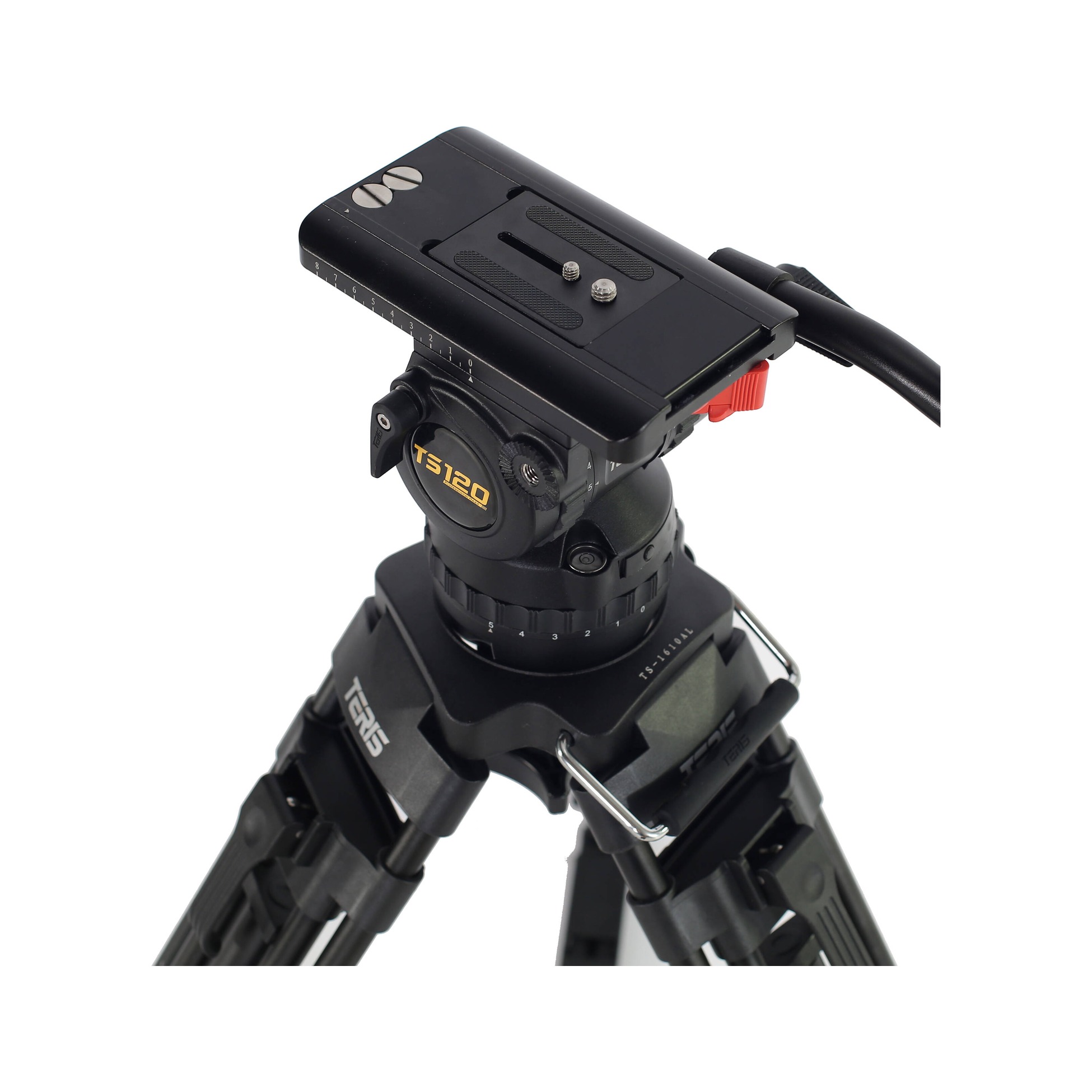

- Sliding quick release plate system
- ±90/-75° tilt range
- 0 to 5 drag grades
- 0 to 7 counterbalance grades
- 15.9 lb assembled system weight
- All-black color scheme

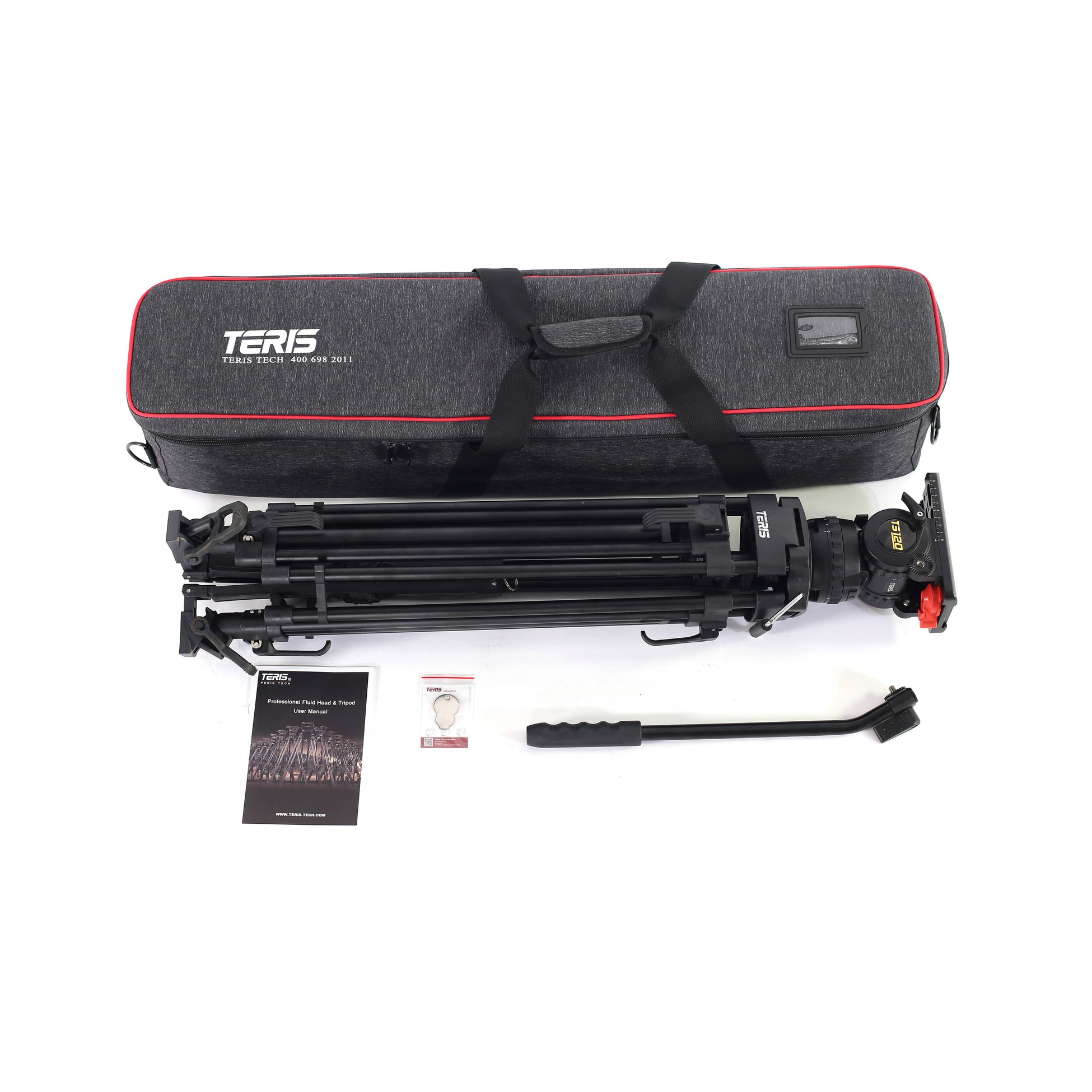

Included
- Teris TS120AL Fluid Head & Tripod Kit (Aluminum)
- 100mm Fluid Head
- Aluminum Tripod Legs
- Ground Spreader
- Quick Release Plate
- Pan Handle
Specifications
| Head Type | Fluid Head |
|---|---|
| Primary Material | Aluminum |
| Load Capacity | 33.1 lb / 15 kg |
| Closed Length | Not Specified by Manufacturer |
| Weight | 15.9 lb / 7.21 kg |
| Top Mounting | TS-15/18 Plate Quick Release/Sliding Balance Plate with 1/4"-20 & 3/8"-16 Screws |
| Base Mount | 100 mm Half Ball |
| Pan & Tilt | Pan & Vertical Tilt Only with Independent Pan & Tilt Locks and Drag Control • 165° (-75 to +90°) |
| Counter Balance | Incremental 7-Step Plus 0 |
| Dimensions | Camera Platform: 3.3 x 2.2" / 8.4 x 5.6 cm |
| Pre-Set Positions | 2 Positions: |
| Foot Features | Removable, Spiked |
| Accessory Mounting | 1x Pan Handle Fitting |

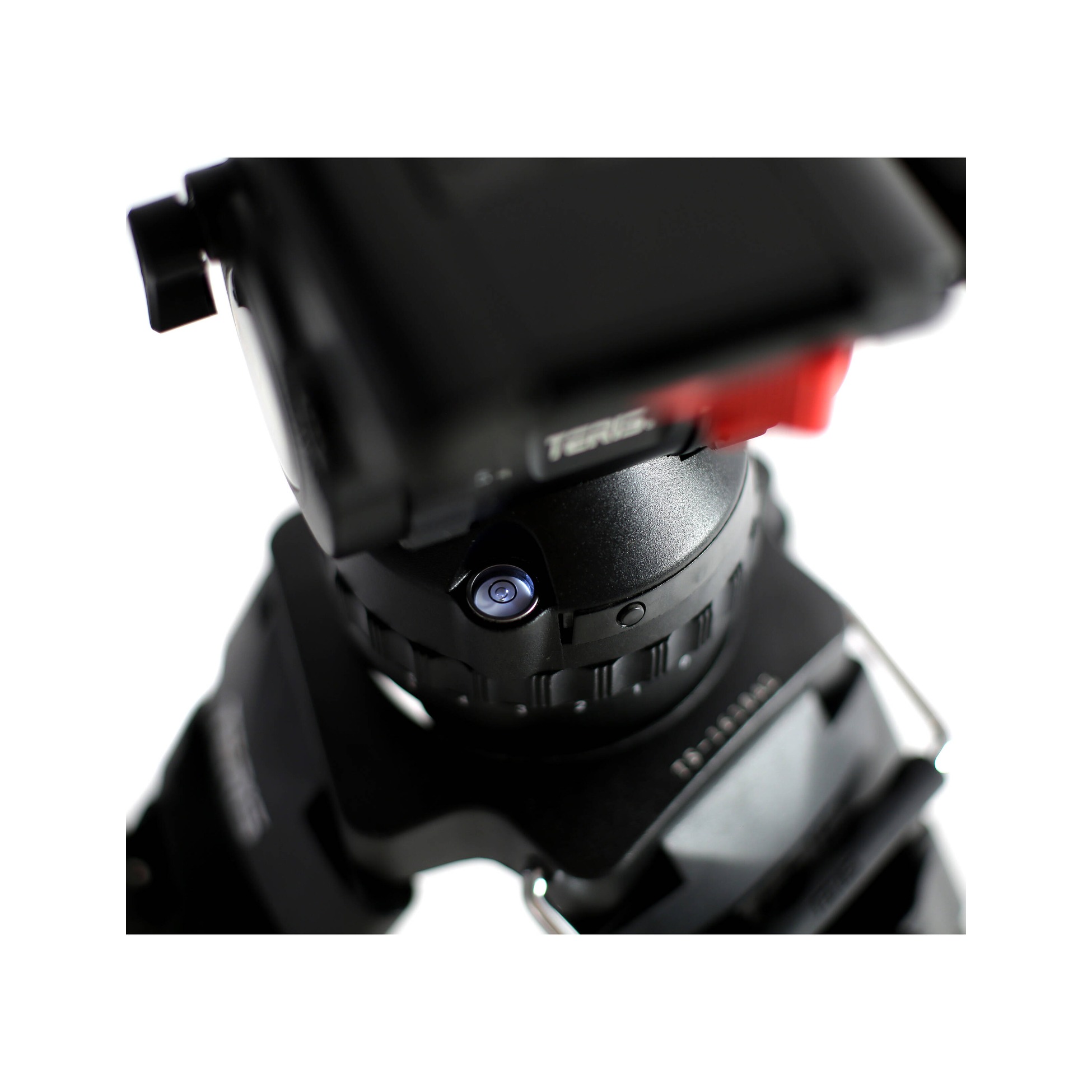

| Bubble Level | Yes (Illuminated) |
| Detachable Monopod | No |
| Spreader Support | Ground (Included) |
| Package Weight | 24.6 lb / 11.16 kg |
| Box Dimensions (LxWxH) | 40.25 x 9.25 x 9.25" / 102.23 x 23.50 x 23.50 cm |
