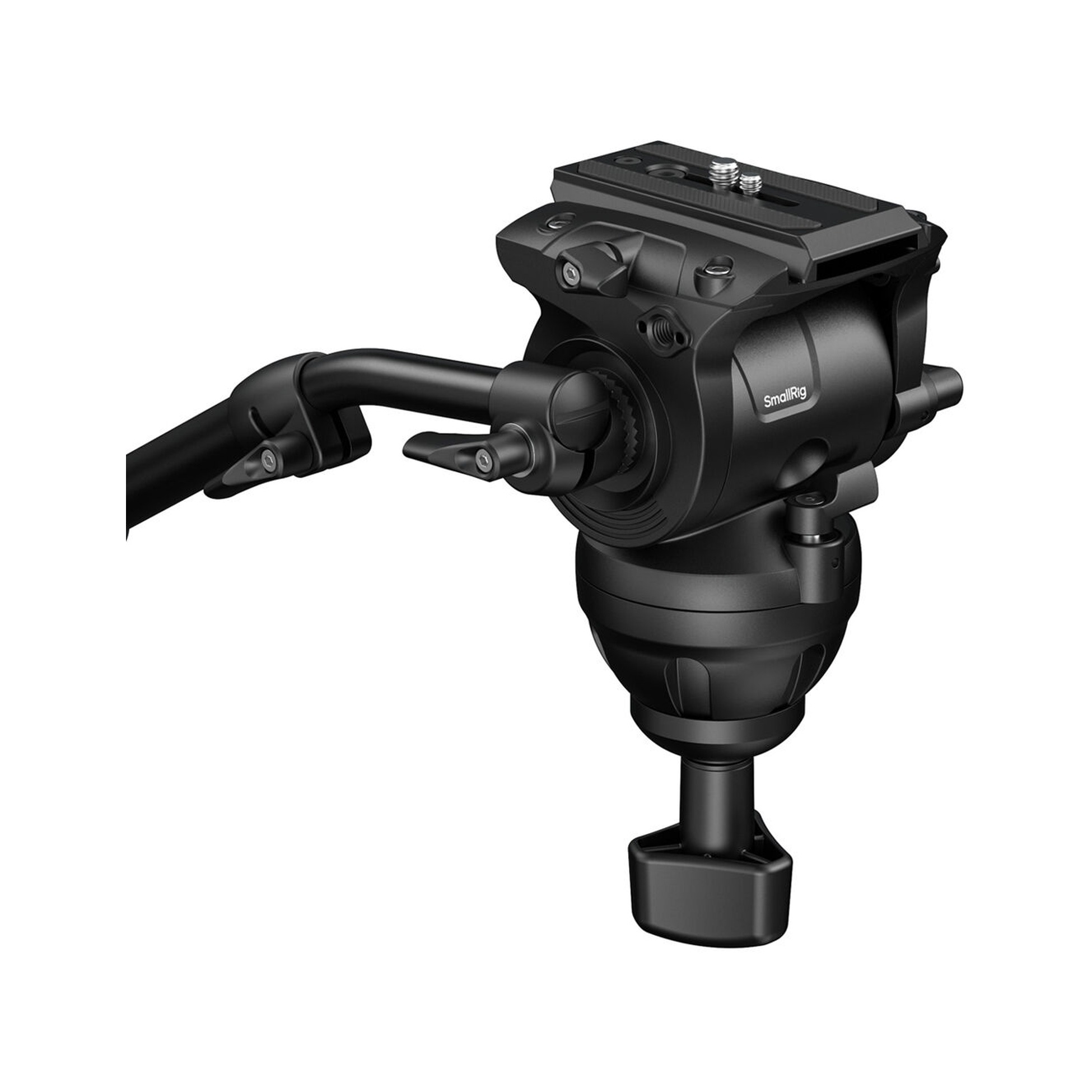

The SmallRig 6552 Heavy-Duty Fluid Video Head supports camera loads up to 33.1 lb / 15 kg and provides pan and vertical tilt movement with independent pan and tilt locks and drag control.

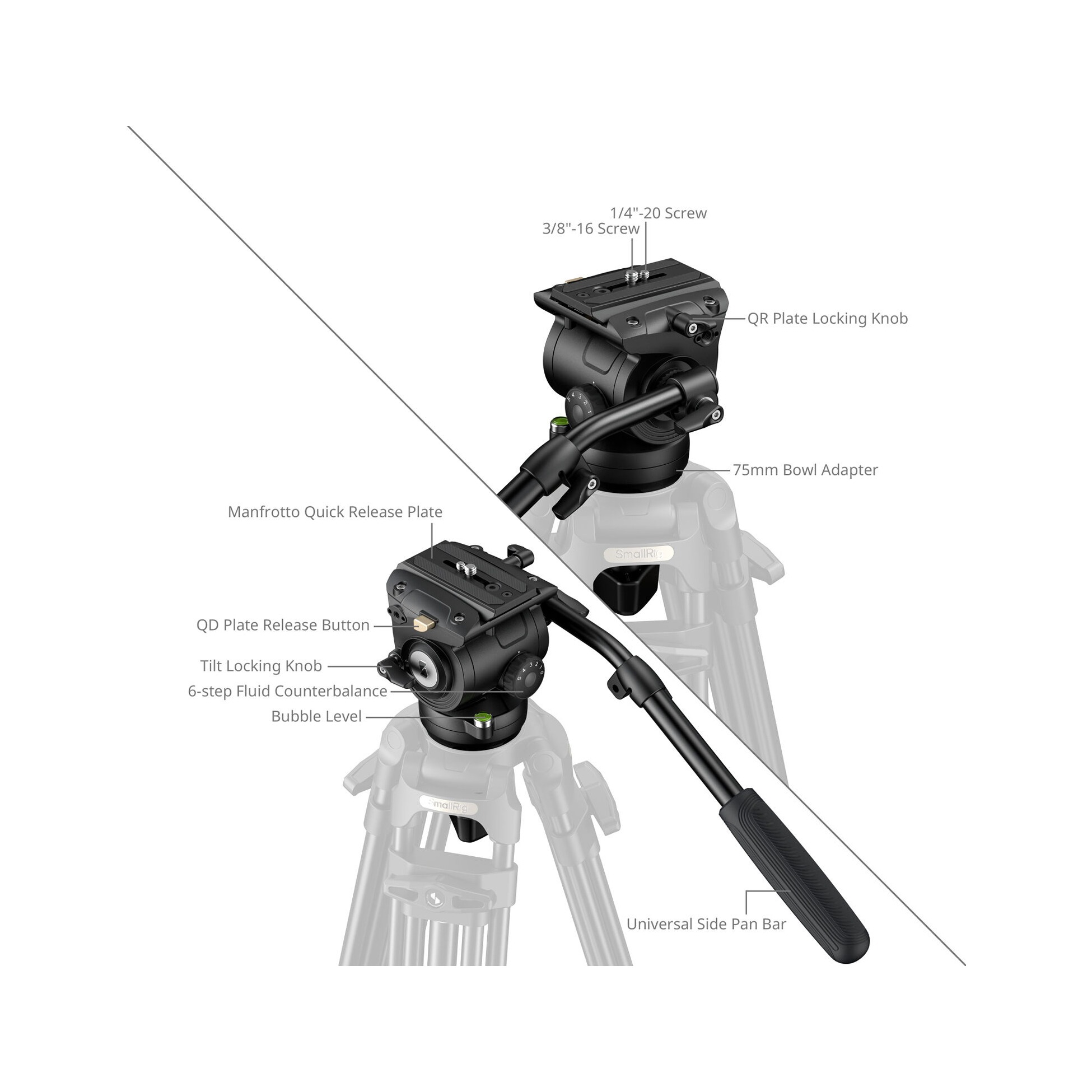

It features a 75 mm bowl base, a Manfrotto-compatible quick release plate with 1/4"-20 and 3/8"-16 screws, and a 6-step counterbalance system. The plate can be swapped to accommodate DJI RS series plates, while the telescopic side handle can be attached to either side of the head.
Features
- Supports maximum loads up to 33.1 lb / 15 kg.
- Includes a 75 mm bowl base for mounting.
- Provides pan and vertical tilt movement with independent pan and tilt locks and drag control.
- Offers a 6-step counterbalance from 0 to 13.2 lb / 0 to 6 kg.
- The accessory mounting point has 1x 1/4"-20 female thread.
- Includes a bubble level.

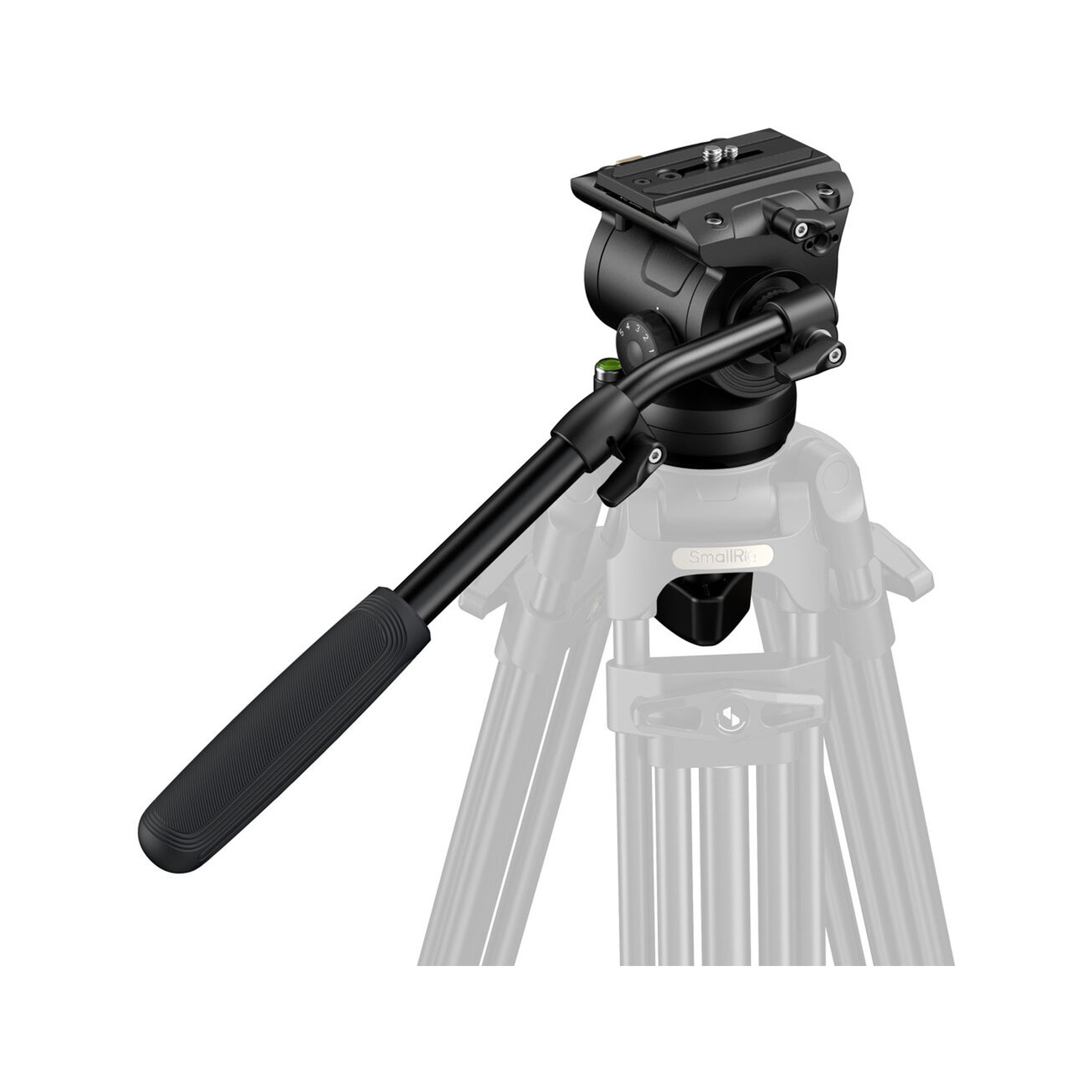

- The telescopic side handle can be attached to either side of the head.
Included
- SmallRig 6552 Heavy-Duty Fluid Video Head
- Quick Release Plate
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- Tie-Down Knob
- Telescopic Handle
- Wrench
Specifications
| Top Mounting | Quick Release Plate with 1/4"-20 & 3/8"-16 Screws |
|---|---|
| Head Type | Fluid Head |
| Load Capacity | 33.1 lb / 15 kg |
| Weight | 4.28 lb / 1.94 kg |
| Base Mount | 75 mm Half Ball |

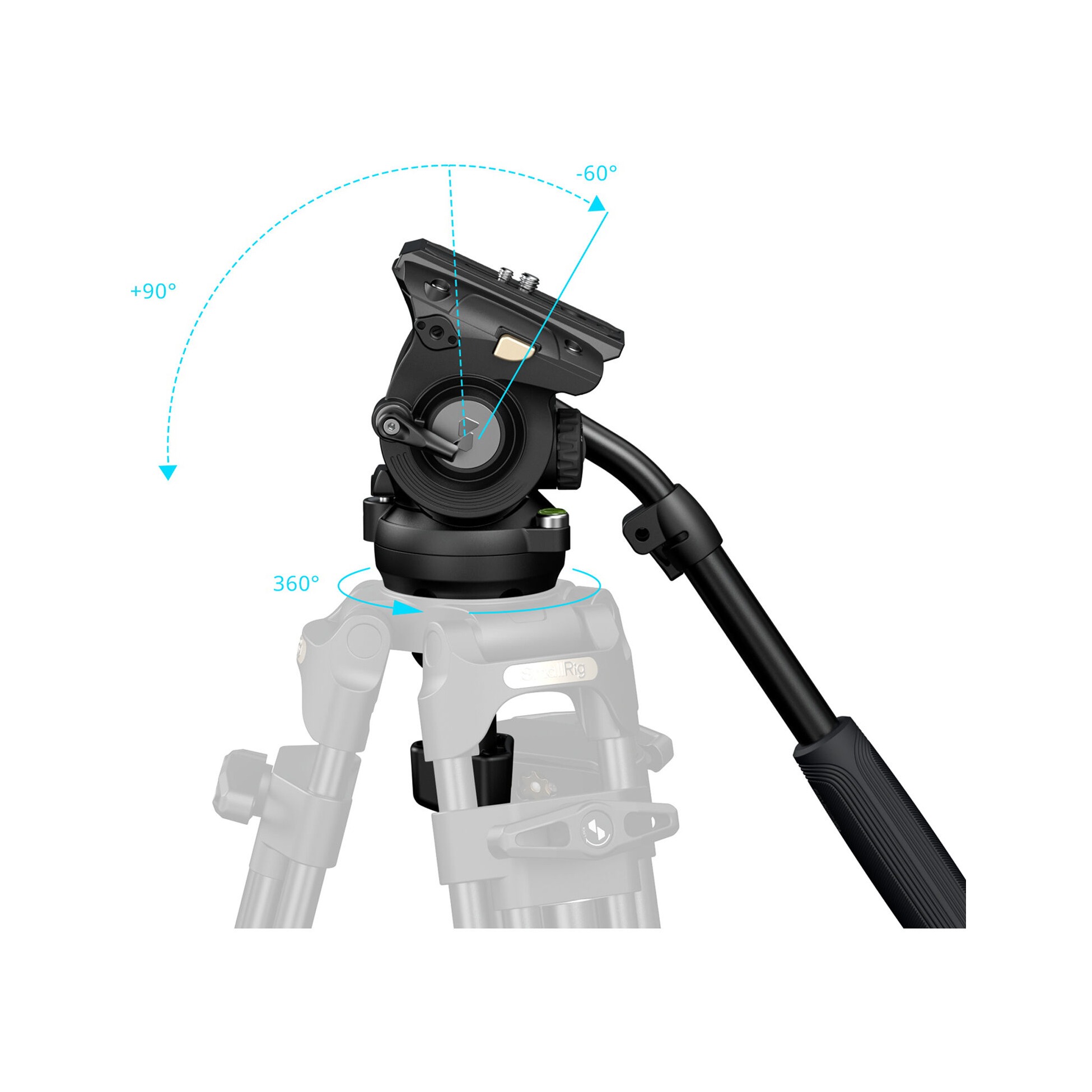

| Pan & Tilt | Pan & Vertical Tilt Only with Independent Pan & Tilt Locks and Drag Control • 150° (-60 to +90°) |
| Counter Balance | Incremental 6-Step (0 to 13.2 lb / 0 to 6 kg) |

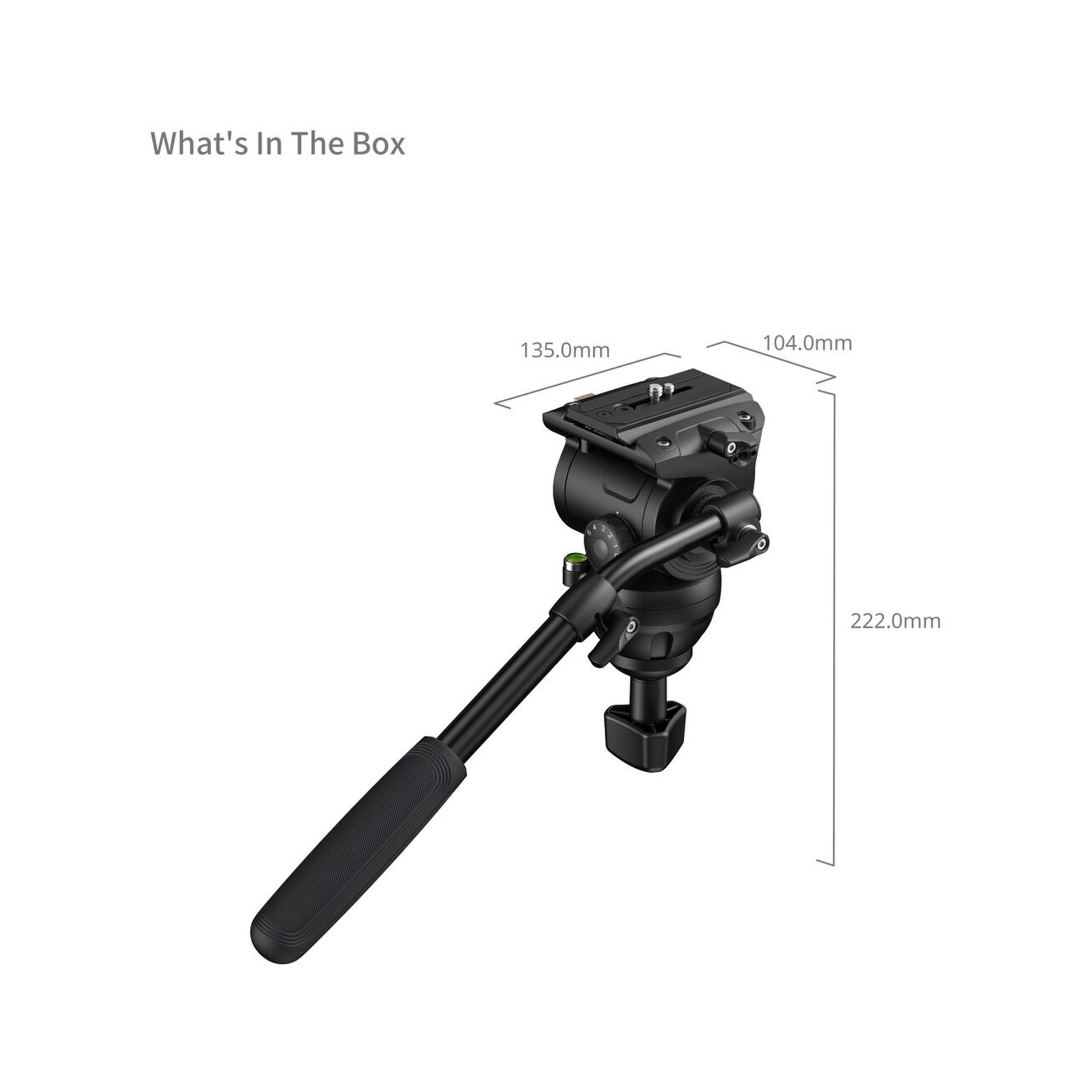

| Dimensions | Height: 8.7" / 222 mm Camera Plate: 5.3 x 4.1" / 135 x 104 mm |
| Accessory Mounting | 1x 1/4"-20 Female Thread |
| Bubble Level | Yes |
| Package Weight | 5.49 lb / 2.49 kg |
| Box Dimensions (LxWxH) | 16.4 x 8 x 6" / 41.66 x 20.32 x 15.24 cm |
| Gewicht | 2.49 kg |
|---|---|
| Afmetingen | 41.66 × 20.32 × 15.24 cm |
