Overzicht

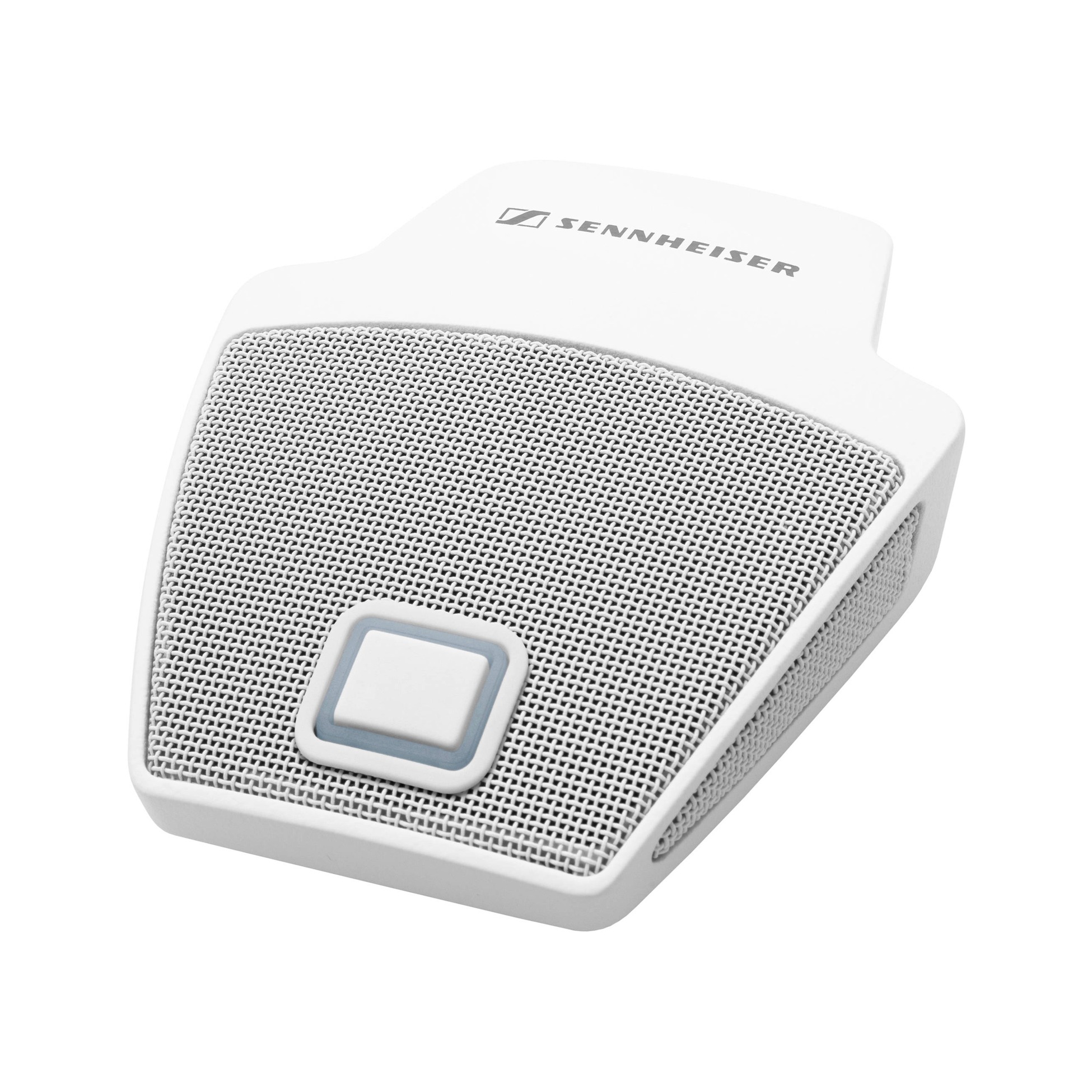

The white Sennheiser MEB 114-S is a wired boundary microphone designed for conferences, teleconferences, presentations, boardrooms, lecture halls, school auditoriums and similar applications.
The microphone uses a cardioid polar pattern and is designed to maintain speech intelligibility. It can be placed on tables, lecterns and similar surfaces, and includes a 9.8' mini XLR to 3-pin XLR cable.
Features
- Low-frequency roll-off switch
- Condenser element
- Low Cut/HPF, mic mute, On/Off, programmable switch and push-to-talk controls
- 140 dB maximum SPL
- Mono sound field
Included
- Sennheiser MEB 114-S Cardioid Boundary Microphone (White)
- 9.8' Mini XLR to 3-Pin XLR Cable
Specifications
| Microphone Type | Boundary |
|---|---|
| Polar Pattern | Cardioid |
| Element Type | Condenser |
| Controls | Low Cut/HPF, Mic Mute, On/Off, Programmable Switch, Push-to-Talk |
| Frequency Response | 40 Hz to 20 kHz |
| Maximum SPL | 140 dB |
| Analog Output | 1x XLR 3-Pin Male |
| Power Sources | Phantom Power |
| Sound Field | Mono |
| Orientation | End Address |
| Circuitry | Solid-State |
| Sensitivity | 10 mV/Pa |
| Dynamic Range | 111 dB (A-Weighted) |
| Equivalent Noise Level | 29 dB (A-Weighted) 39 dB (CCIR) |
| Analog Output Connector | 1x XLR 3-Pin Male |
| Cable Length | 9.8' / 3 m |
| Operating Voltage | 48 V |
| Color | White |
| Dimensions | H: 3.9 x W: 3.3 x L: 1" / 100 x W: 85 x L: 25 mm |
| Weight | 10.3 oz / 291 g |
| Package Weight | 1.15 lb / 0.52 kg |
| Box Dimensions (LxWxH) | 8.2 x 6.9 x 2.3" |
