MID49 Micro Rosette Monitor TWIST Hinge Kit (1/4-20 to 1/4-20)

Overzicht

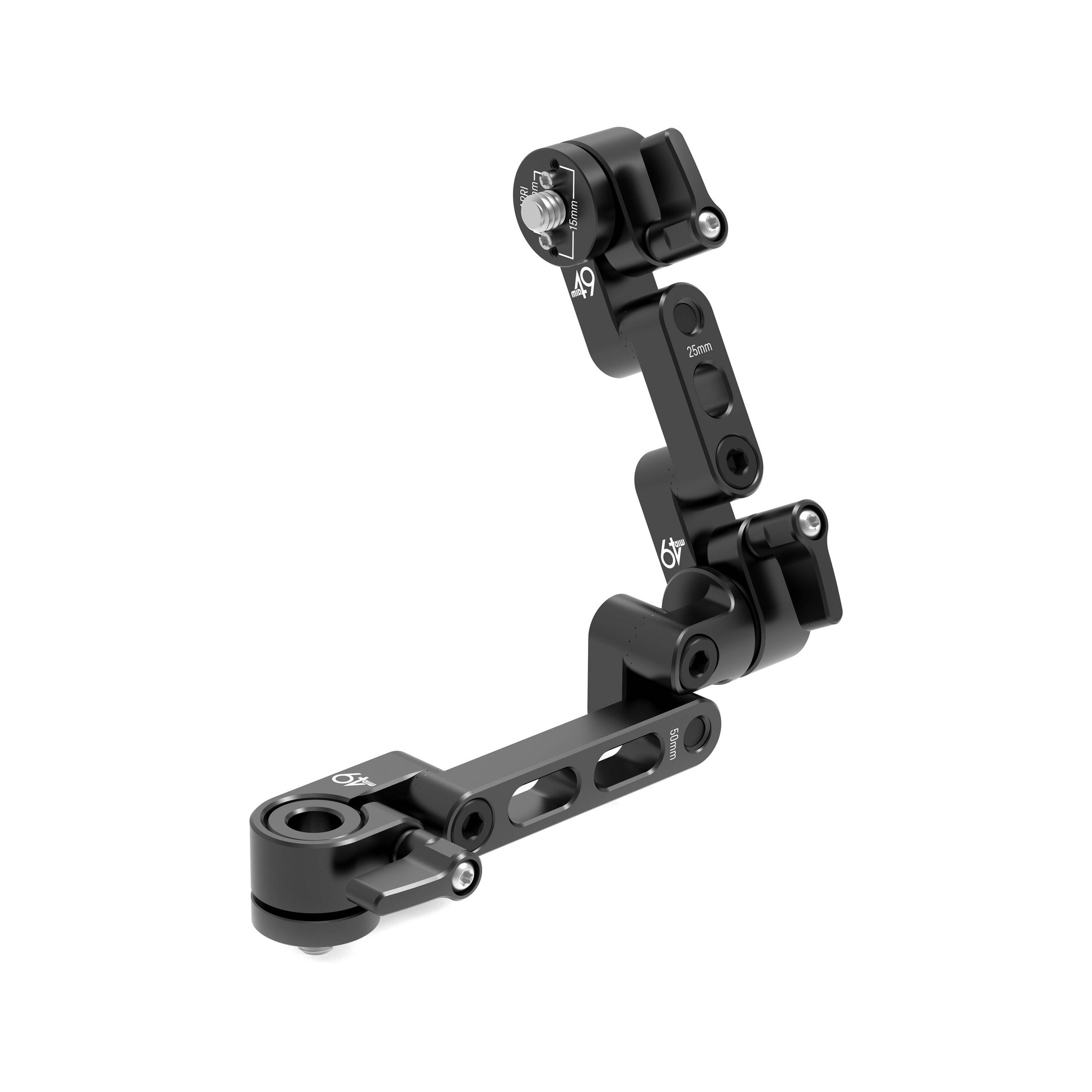

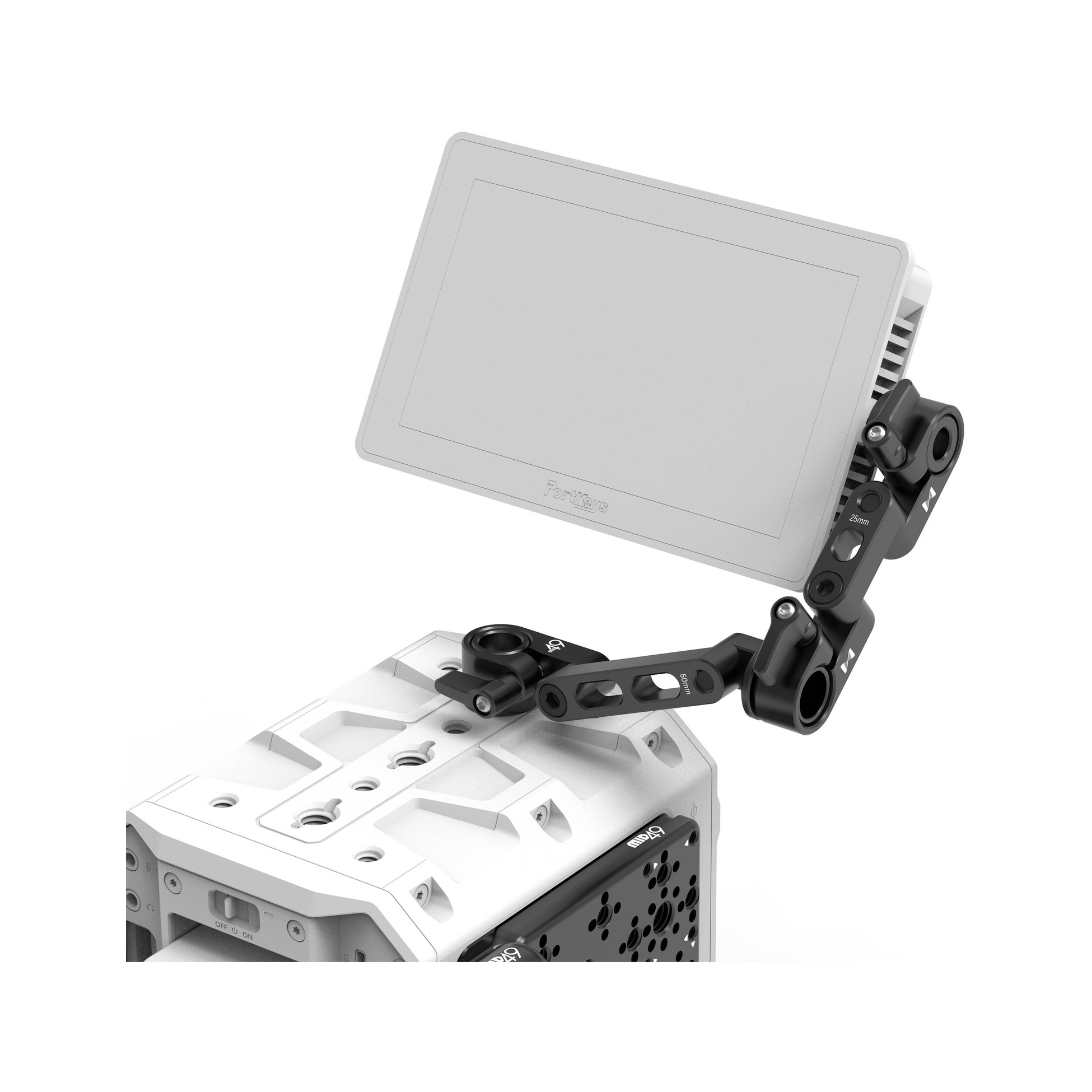

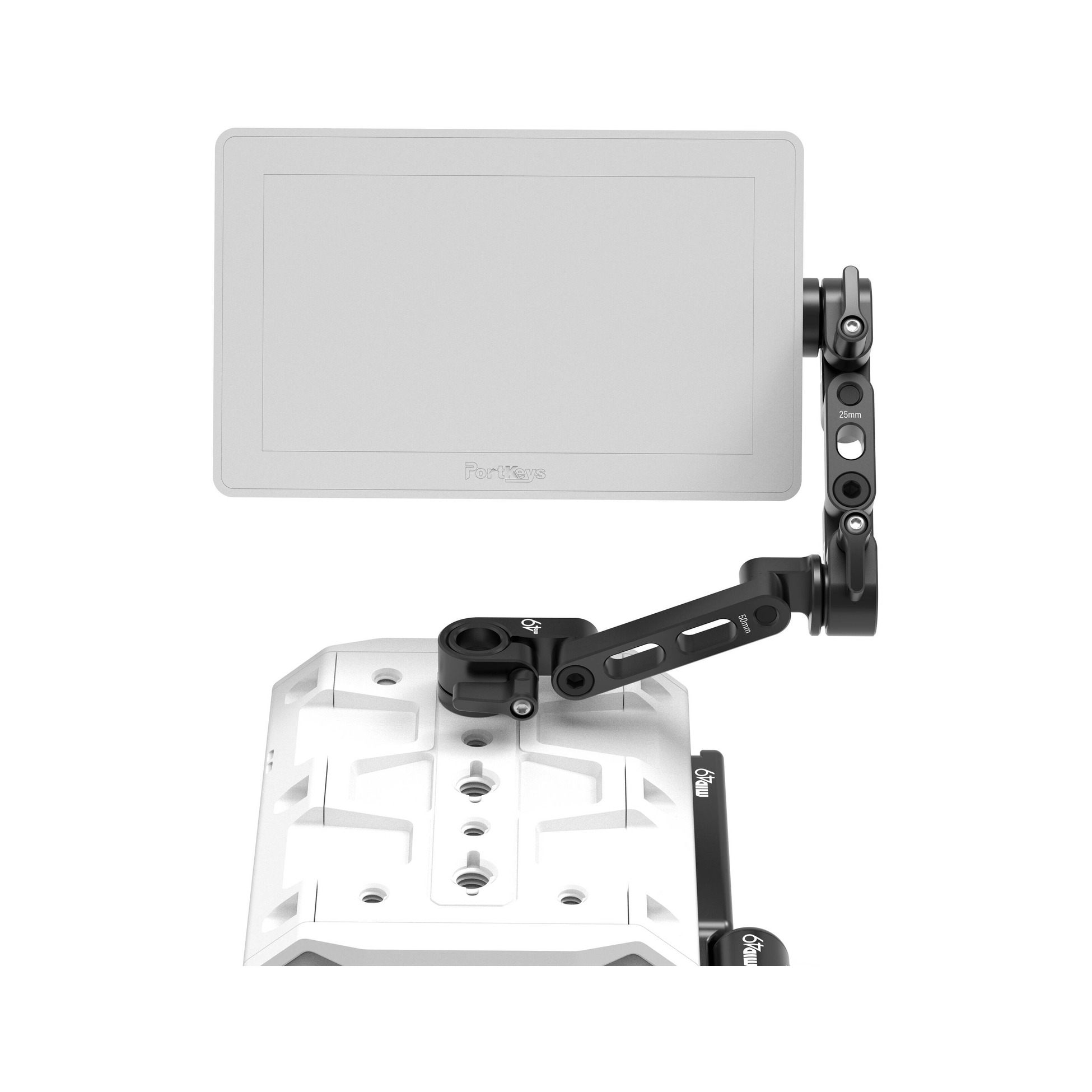

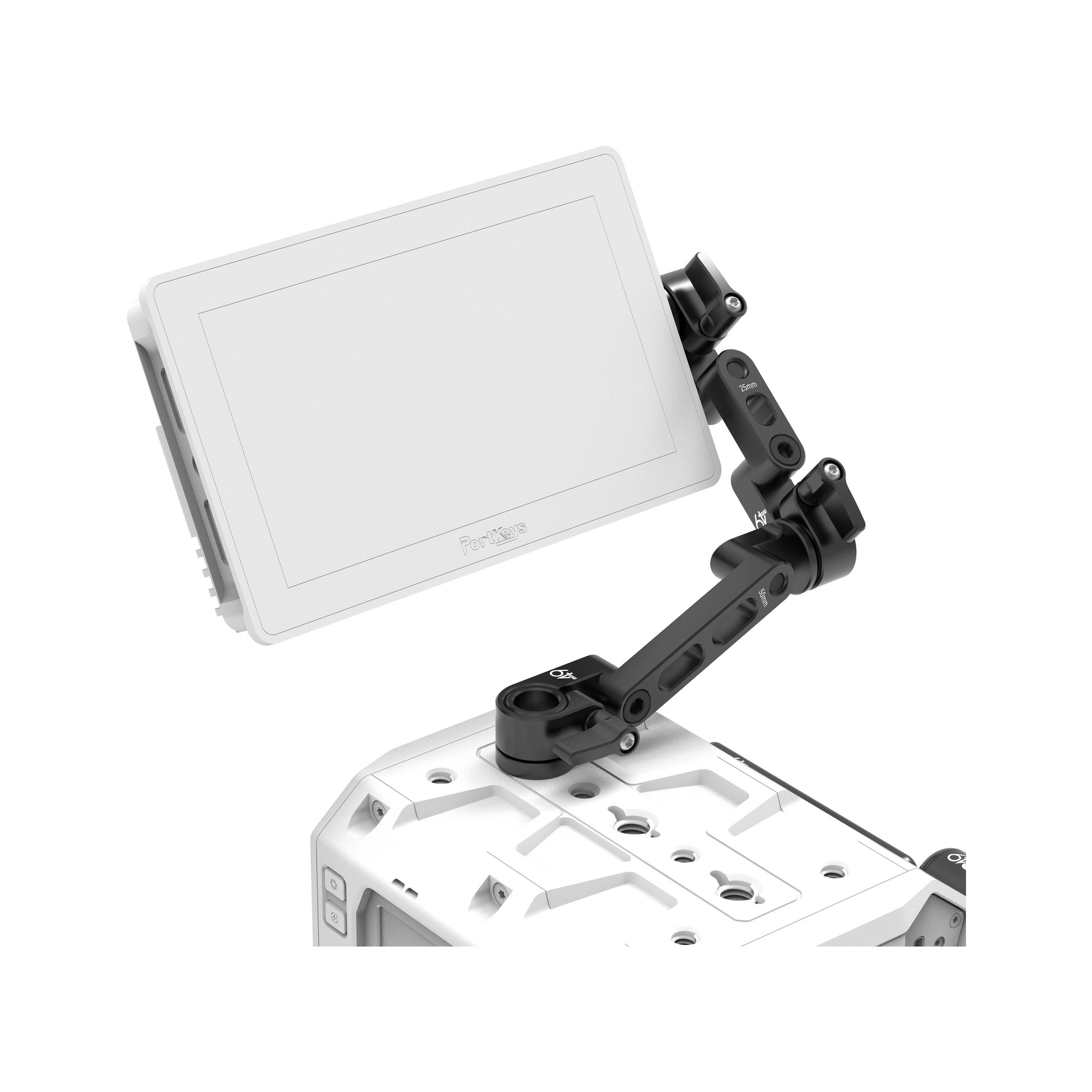

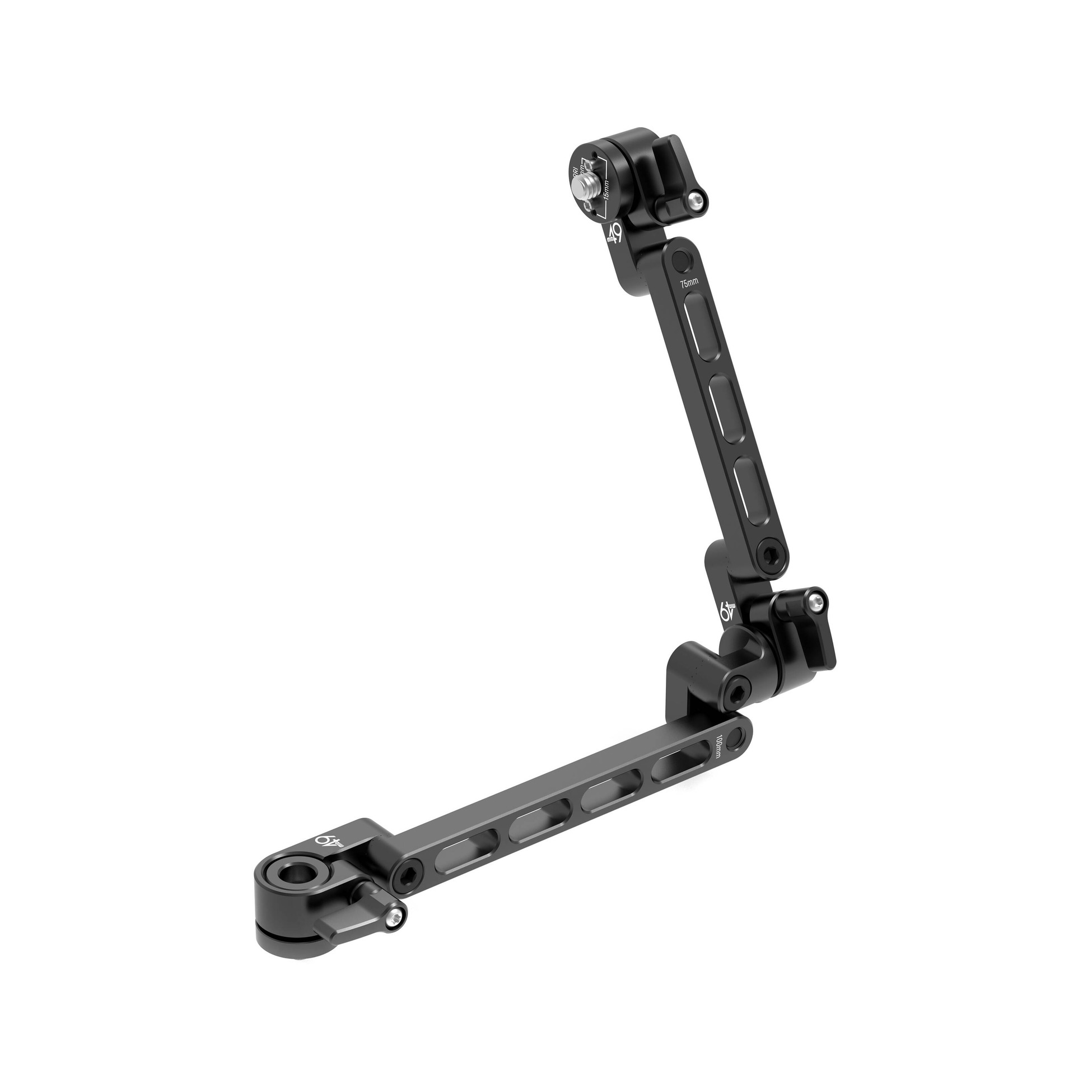

The MID49 Micro Rosette Monitor TWIST Hinge Kit is a modular mounting system for mounting and adjusting a 5-7" monitor on a camera rig.

The kit includes Micro Rosette TWIST Mounts, five Micro Rosette Arms in different lengths, and 1/4"-20 TWIST Spuds for mounting in a variety of configurations.

Features

• Modular system for camera-rig monitor mounting
• Includes Micro Rosette TWIST Mounts
• Includes Micro Rosette Arms measuring 0.5", 1", 2", 3", and 3.9"
• Includes TWIST Mount EVF Spuds with ARRI 1/4"-20 Screws
• Supports multiple mounting configurations

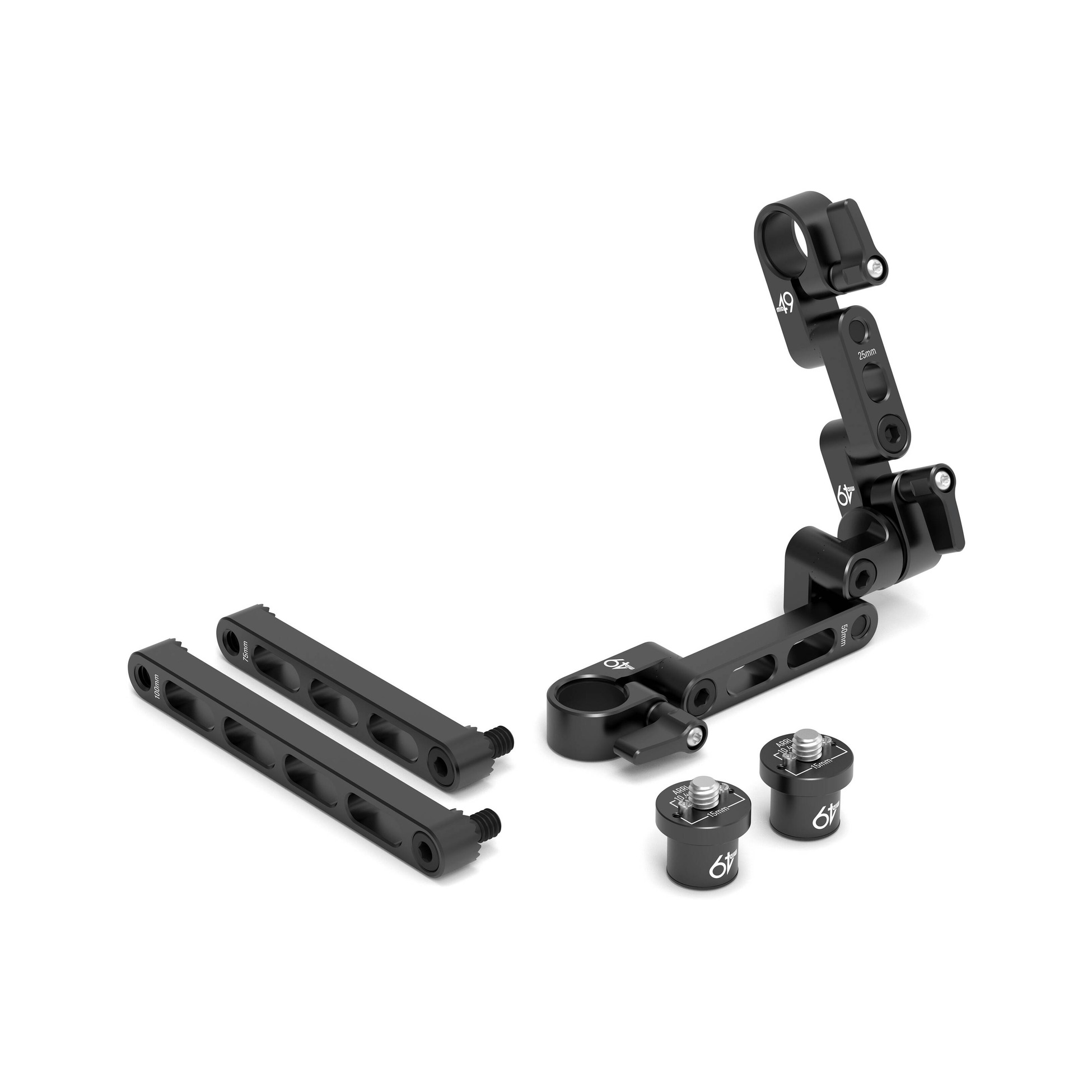

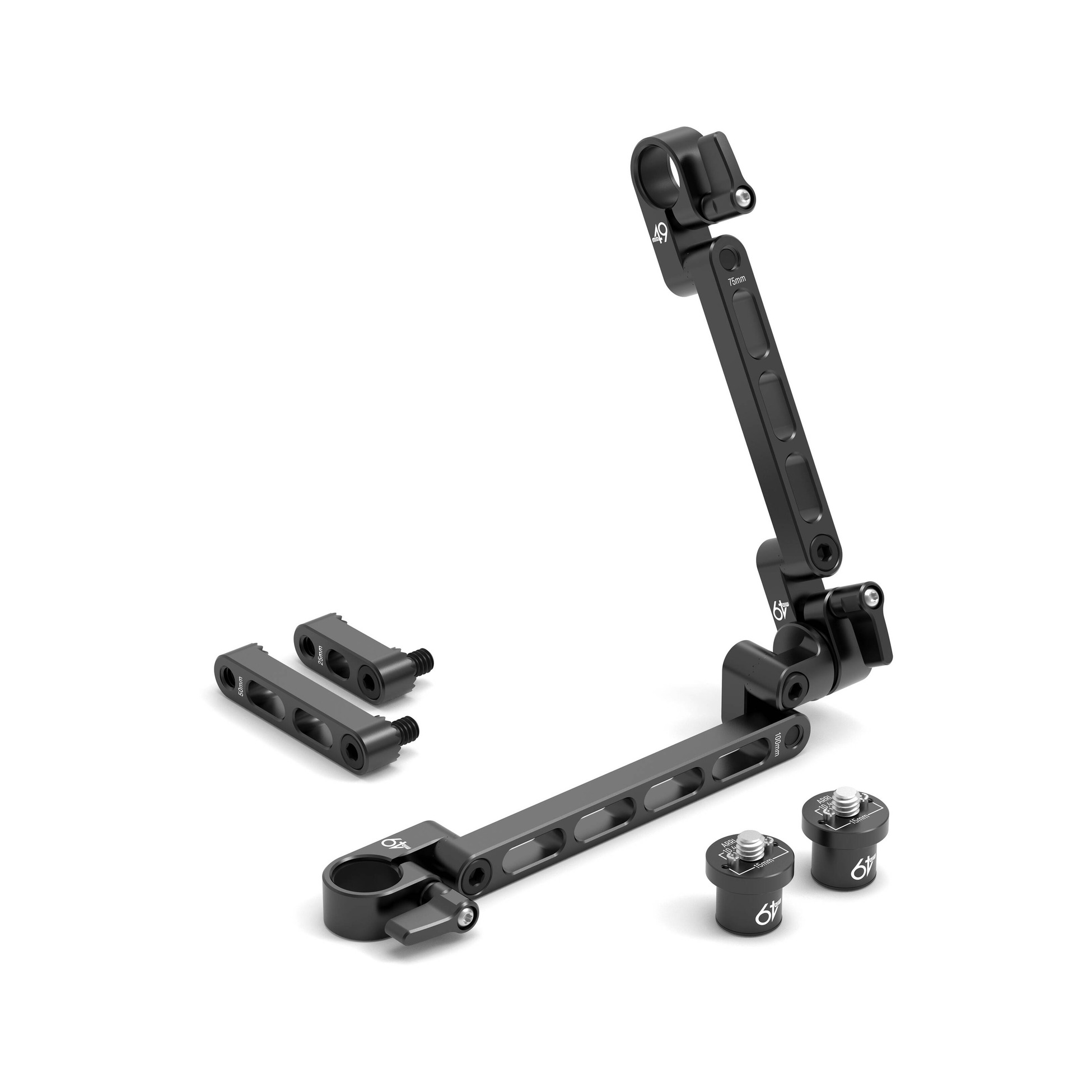

Included

• 2 x MID49 TWIST Mount EVF Spud with ARRI 1/4"-20 Screw
• MID49 Micro Rosette to TWIST Mount (Screw)
• MID49 Micro Rosette to TWIST Mount (Hole)
• MID49 Micro Rosette Arm (0.5")
• MID49 Micro Rosette Arm (1")
• MID49 Micro Rosette Arm (2")
• MID49 Micro Rosette Arm (3")
• MID49 Micro Rosette Arm (3.9")

Specifications

2 x MID49 TWIST Mount EVF Spud with ARRI 1/4"-20 Screw

Compatibility	Blackmagic Design PYXIS Monitor SmallHD Indie 5 / Cine 5 / Ultra 5 ARRI Camera Control Monitor CCM-1 PORTKEYS LH7P
Mounting	1x 15 mm Rod 1x ARRI 1/4"-20 Screw
Color	Black
Dimensions	0.8 x 0.8 x 0.7" / 20 x 20 x 19 mm
Weight	0.4 oz / 10 g
Package Weight	0.05 lb / 0.02 kg
Box Dimensions (LxWxH)	3.7 x 2.3 x 0.85" / 9.40 x 5.84 x 2.16 cm

MID49 Micro Rosette to TWIST Mount (Screw)

Top Mount	1x Pipe Clamp
Bottom Mount	1x 1/4"-20 Male Screw
Color	Black
Package Weight	0.07 lb / 0.03 kg
Box Dimensions (LxWxH)	3.8 x 2.05 x 1" / 9.65 x 5.21 x 2.54 cm

MID49 Micro Rosette to TWIST Mount (Hole)

Top Mount	1x Pipe Clamp
Bottom Mount	1x 1/4"-20 Female Thread
Color	Black
Package Weight	0.04 lb / 0.02 kg
Box Dimensions (LxWxH)	3.55 x 2.15 x 0.85" / 9.02 x 5.46 x 2.16 cm

MID49 Micro Rosette Arm (0.5")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (1")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (2")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (3")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	0.5" / 12.5 mm (Length from Center Screw to Center Thread)

MID49 Micro Rosette Arm (3.9")

Compatibility	MID49 Micro Rosette TWIST Mount
Mounting	1x 14"-20 Thread 1x 14"-20 Screw 2x Rosettes
Color	Black
Dimensions	3.9" / 100 mm (Length from Center Screw to Center Thread)
