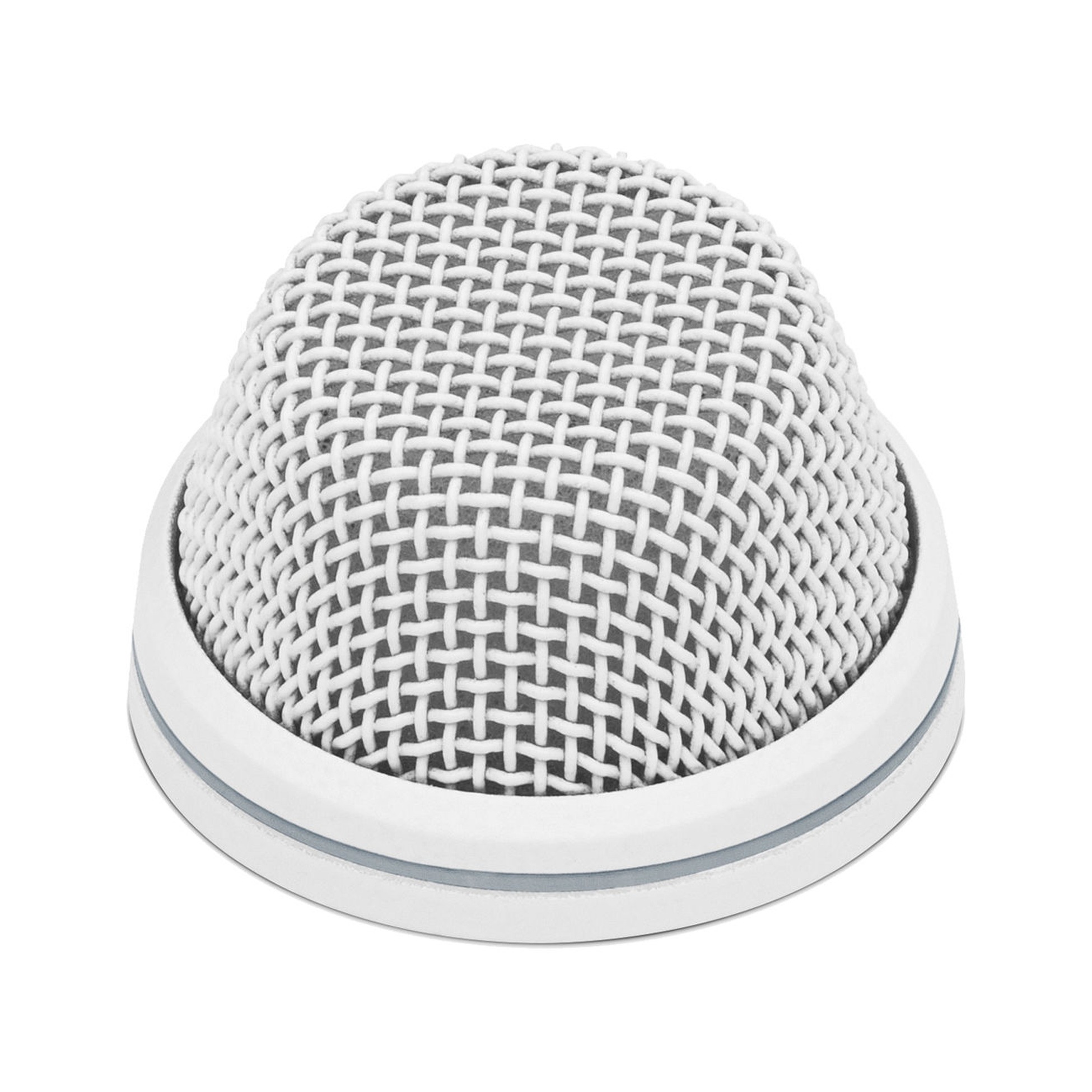

The white Sennheiser MEB 104-L W is a cardioid boundary microphone for permanent installations, including conference rooms, boardrooms, lecture halls and school auditoriums.
It features a bi-color LED for status indication, a programmable button with On, On/Off, PTT and PTM modes, a frequency response of 40 Hz to 20 kHz and 24 to 48V phantom power.
E' dotato di porte di ingresso e uscita
- Boundary microphone with a condenser element.
- Provides a mono sound field.
- Supports 24 to 48V phantom power.
- Maximum SPL is 125 dB.
- Includes an XLR 5-Pin Male analog output.
Incluso
- Sennheiser MEB 104-L Cardioid Boundary Microphone (White)
- 2 x Rubber Rings for Mounting
- Hex Nut for Mounting
Specifiche
| Microphone Type | Boundary |
|---|---|
| Polar Pattern | Cardioid |
| Element Type | Condenser |
| Controls | Mic Mute, On/Off, Programmable Switch, Push-to-Talk |
| Frequency Response | 40 Hz to 20 kHz |
| Maximum SPL | 125 dB |
| Analog Output | 1x XLR 5-Pin Male |
| Power Sources | Phantom Power |
| Sound Field | Mono |
| Orientation | N/A to Boundary Mics |
| Sensitivity | 14 mV/Pa |
| Dynamic Range | 97 dB (A-Weighted) |
| Equivalent Noise Level | 28 dB (A-Weighted) 38 dB (CCIR) |
| Analog Output Connector | 1x XLR 5-Pin Male |
| Operating Voltage | Not Specified by Manufacturer |
| Colore | White |
| Peso | 2.1 oz / 60 g |
