MID49 Folding TWIST Mount EVF Kit with Sony/PORTKEYS 1/4"-20 Spud

MID49 Folding TWIST Mount EVF Kit with Sony/PORTKEYS 1/4″-20 Spud

€260.00 excl. IVA

Folding EVF TWIST Mount
Double-Sided NATO Rail with 15mm Rod
Knuckle with 15mm Rod Clamp & NATO Clamp
Sony/PORTKEYS 1/4"-20 Anti-Twist Spud
Center Knuckle for Pivoting

Magazzino esterno, circa 10 giorni o più

EAN: 737879864845 COD: M49-EVF-FLD-KIT-S142 Categorie: EVF Accessoires, Rig Accessories

Descrizione

Panoramica

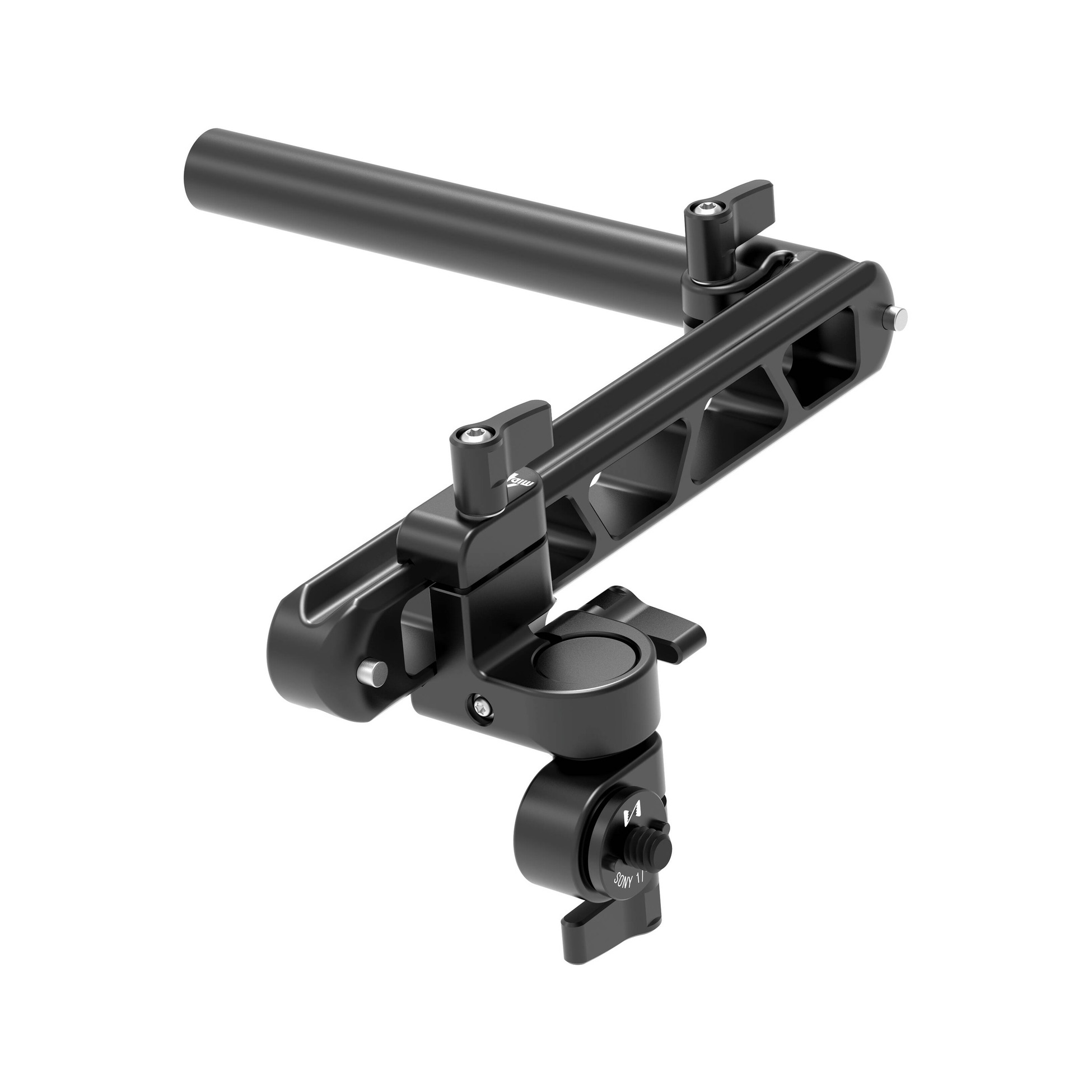

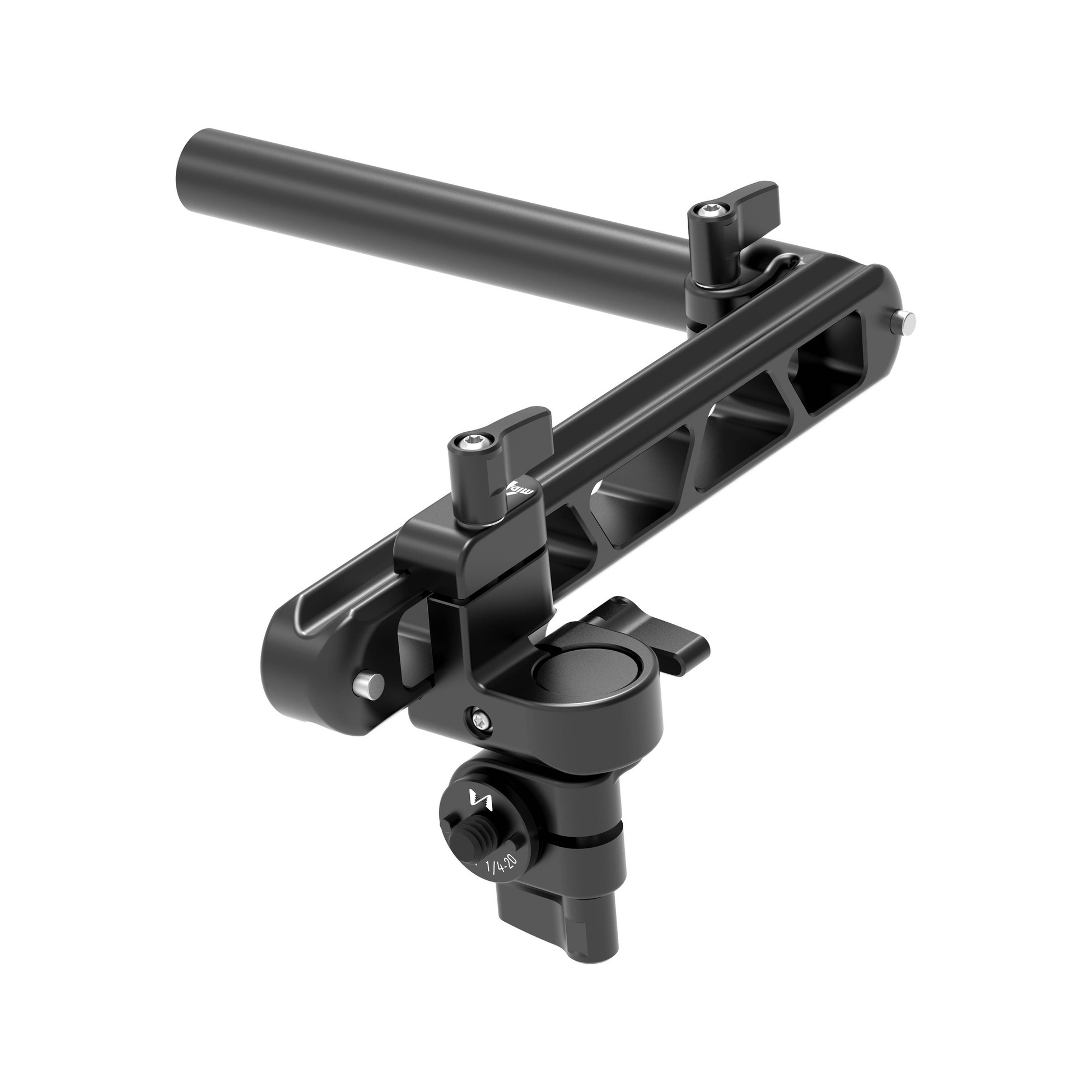

The MID49 Folding TWIST Mount EVF Kit is designed for mounting the Sony BURANO, PORTKEYS LH7P, 5" BM5 IV, or another monitor with a Sony anti-twist configuration. It is also compatible with the MID49 Sony BURANO EVF Pivot Adapter.

The kit combines a double-sided NATO rail with a perpendicular 15mm rod, a Sony 1/4"-20 spud, and a folding center-twisting knuckle with 15mm rod clamp and NATO clamp attachments.

E' dotato di porte di ingresso e uscita

Mounts compatible Sony anti-twist monitors.
The included NATO rail has 2x NATO Rail and 1x 15mm Rod mounting.
The folding knuckle has 1x NATO Clamp on top and 1x 15 mm Rod Clamp on the bottom.
The EVF spud has 1x 15mm Rod and 1x 1/4"-20 Screw mounting.
The components are finished in black; the folding knuckle is made of metal.

Incluso

MID49 TWIST Mount Double-Sided NATO Rail to 15mm Rod (6")
MID49 Folding TWIST Mount EVF Knuckle Only
MID49 TWIST Mount EVF Spud with Sony 1/4"-20 Screw

Specifiche

MID49 TWIST Mount Double-Sided NATO Rail to 15mm Rod (6")

Mounting	2x NATO Rail 1x 15mm Rod
Colore	Black
Dimensioni	5.9 x 5.8 x 1.2" / 15 x 14.8 x 3.1 cm 6" / 15.2 cm (NATO Rail Length)
Peso	2.9 oz / 82 g
Package Weight	0.205 lb / 0.09 kg
Box Dimensions (LxWxH)	6.5 x 5.75 x 1.4" / 16.51 x 14.61 x 3.56 cm

MID49 Folding TWIST Mount EVF Knuckle Only

Compatibilità	Mid49 Folding TWIST Mount Kit
Top Mount	1x NATO Clamp
Bottom Mount	1x 15 mm Rod Clamp
Additional Mounting	No
Colore	Black
Material of Construction	Metal
Dimensioni	2.8 x 1.1 x 0.6" / 72 x 27 x 14 mm
Peso	1.1 oz / 30 g
Package Weight	0.12 lb / 0.05 kg
Box Dimensions (LxWxH)	3.25 x 1.85 x 1.45" / 8.26 x 4.70 x 3.68 cm

MID49 TWIST Mount EVF Spud with Sony 1/4"-20 Screw

Compatibilità	Sony BURANO
Mounting	1x 15mm Rod 1x 1/4"-20 Screw
Colore	Black
Dimensioni	0.7 x 0.7 x 0.7" / 19 x 17 x 17 mm
Peso	0.3 oz / 8 g
Package Weight	0.055 lb / 0.02 kg
Box Dimensions (LxWxH)	4.15 x 2.45 x 0.7" / 10.54 x 6.22 x 1.78 cm
