MID49 Folding TWIST Mount EVF Kit for 1/4-20 Rosette (Zacuto Gratical / Kameleon, Kinefinity EAGLE SDI e-Viewfinder)

MID49 Folding TWIST Mount EVF Kit for 1/4-20 Rosette (Zacuto Gratical / Kameleon, Kinefinity EAGLE SDI e-Viewfinder)

€270.00 excl. IVA

Folding EVF TWIST Mount
Double-Sided NATO Rail with 15mm Rod
Knuckle with 15mm Rod Clamp & NATO Clamp
Rosette Spud with 1/4"-20 Screw
Center Knuckle for Pivoting

Magazzino esterno, circa 10 giorni o più

EAN: 737879864852 COD: M49-EVF-FLD-KIT-KINE Categorie: EVF Accessoires

Descrizione

Panoramica

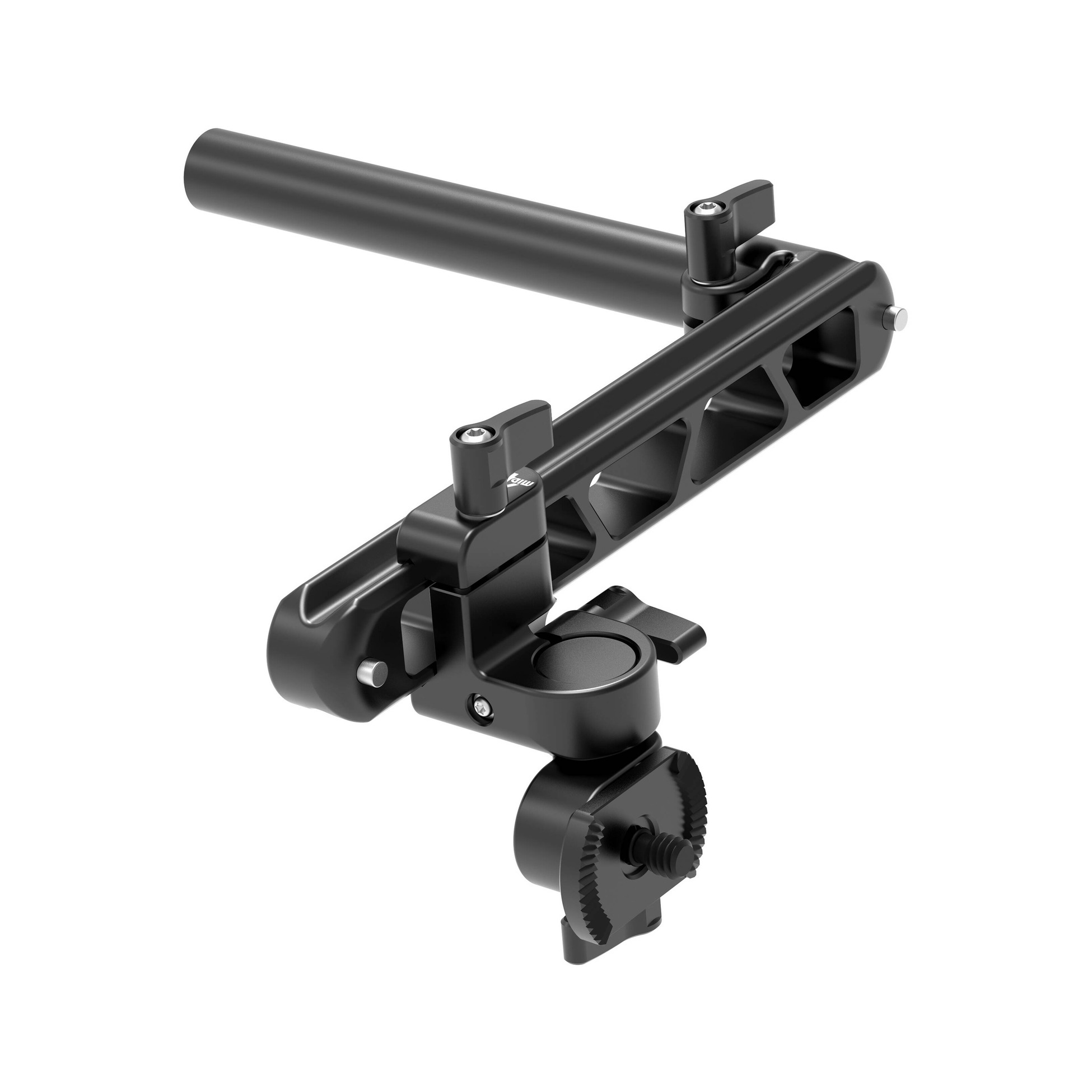

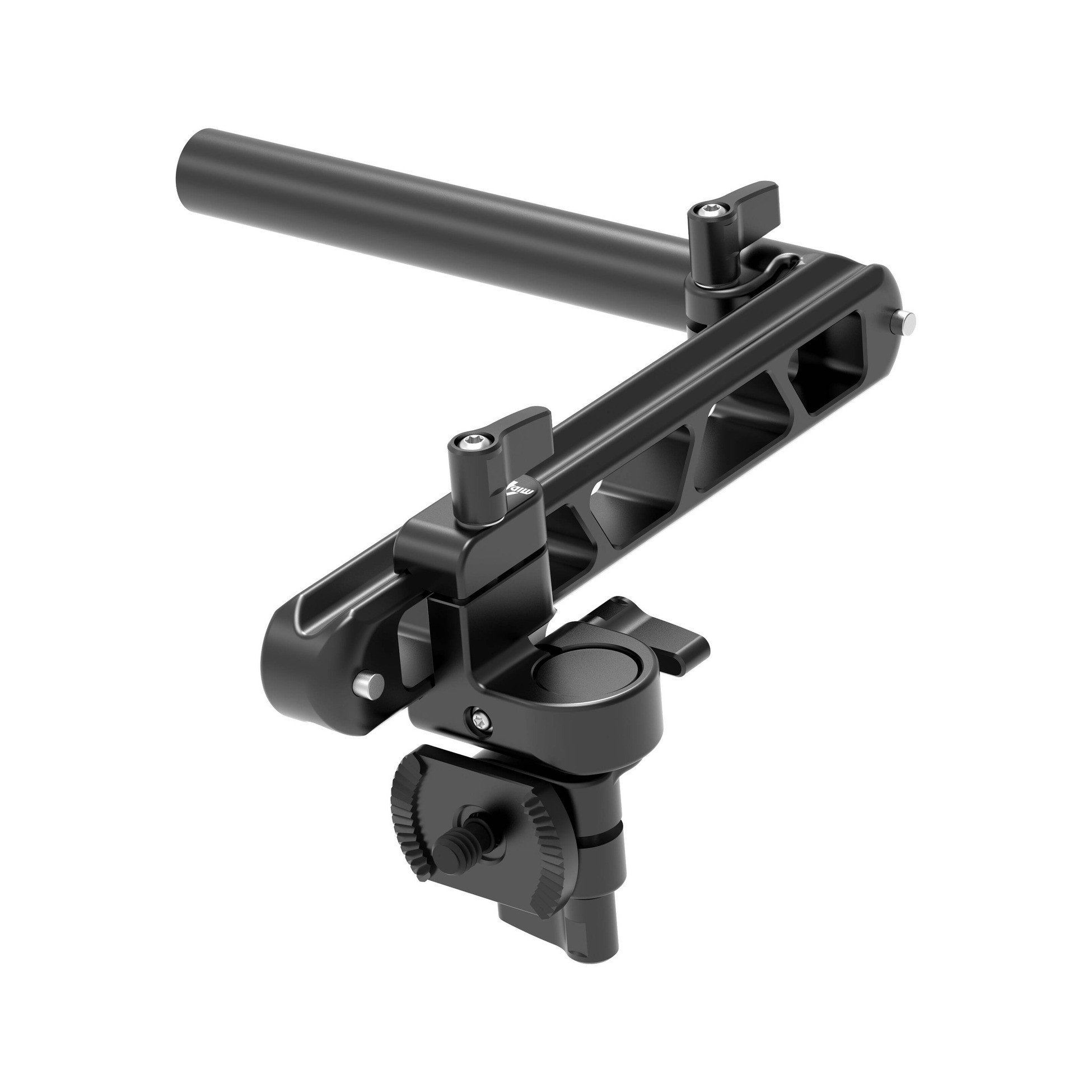

The MID49 Folding TWIST Mount EVF Kit is designed for mounting a Zacuto Gratical, Gratical Eye, or Kameleon Pro EVF, a Kinefinity EAGLE SDI or HDMI e-Viewfinder, or another monitor or EVF with a 1/4-20 ARRI rosette.

The kit combines a double-sided NATO rail with a perpendicular 15mm rod, a 1/4-20 rosette spud, and a folding center knuckle with 15mm rod clamp and NATO clamp attachments.

E' dotato di porte di ingresso e uscita

Mounting solution for compatible EVFs and monitors with a 1/4-20 ARRI rosette
Double-sided NATO rail with a perpendicular 15mm rod on one end
Folding knuckle twists at the center
15mm rod clamp and NATO clamp attachments
Compatible with Zacuto Gratical, Gratical Eye, and Kameleon Pro EVFs, as well as Kinefinity EAGLE SDI and HDMI e-Viewfinders

Incluso

MID49 TWIST Mount Double-Sided NATO Rail to 15mm Rod (6")
MID49 Folding TWIST Mount EVF Knuckle Only
MID49 TWIST Mount EVF Spud for Kinefinity EAGLE SDI e-Viewfinder

Specifiche

MID49 TWIST Mount Double-Sided NATO Rail to 15mm Rod (6")

Mounting	2x NATO Rail 1x 15mm Rod
Colore	Black
Dimensioni	5.9 x 5.8 x 1.2" / 15 x 14.8 x 3.1 cm 6" / 15.2 cm (NATO Rail Length)
Peso	2.9 oz / 82 g
Package Weight	0.205 lb / 0.09 kg
Box Dimensions (LxWxH)	6.5 x 5.75 x 1.4" / 16.51 x 14.61 x 3.56 cm

MID49 Folding TWIST Mount EVF Knuckle Only

Compatibilità	Mid49 Folding TWIST Mount Kit
Top Mount	1x NATO Clamp
Bottom Mount	1x 15 mm Rod Clamp
Additional Mounting	No
Colore	Black
Material of Construction	Metal
Dimensioni	2.8 x 1.1 x 0.6" / 72 x 27 x 14 mm
Peso	1.1 oz / 30 g
Package Weight	0.12 lb / 0.05 kg
Box Dimensions (LxWxH)	3.25 x 1.85 x 1.45" / 8.26 x 4.70 x 3.68 cm

MID49 TWIST Mount EVF Spud for Kinefinity EAGLE SDI e-Viewfinder

Compatibilità	Kinefinity EAGLE SDI e-Viewfinder MID49 TWIST Mount EVF Knuckle
Mounting	1x Rosette with 1/4"-20 Screw
Colore	Black
Material of Construction	Lega di alluminio
Package Weight	0.075 lb / 0.03 kg
Box Dimensions (LxWxH)	3.2 x 2.45 x 0.9" / 8.13 x 6.22 x 2.29 cm
