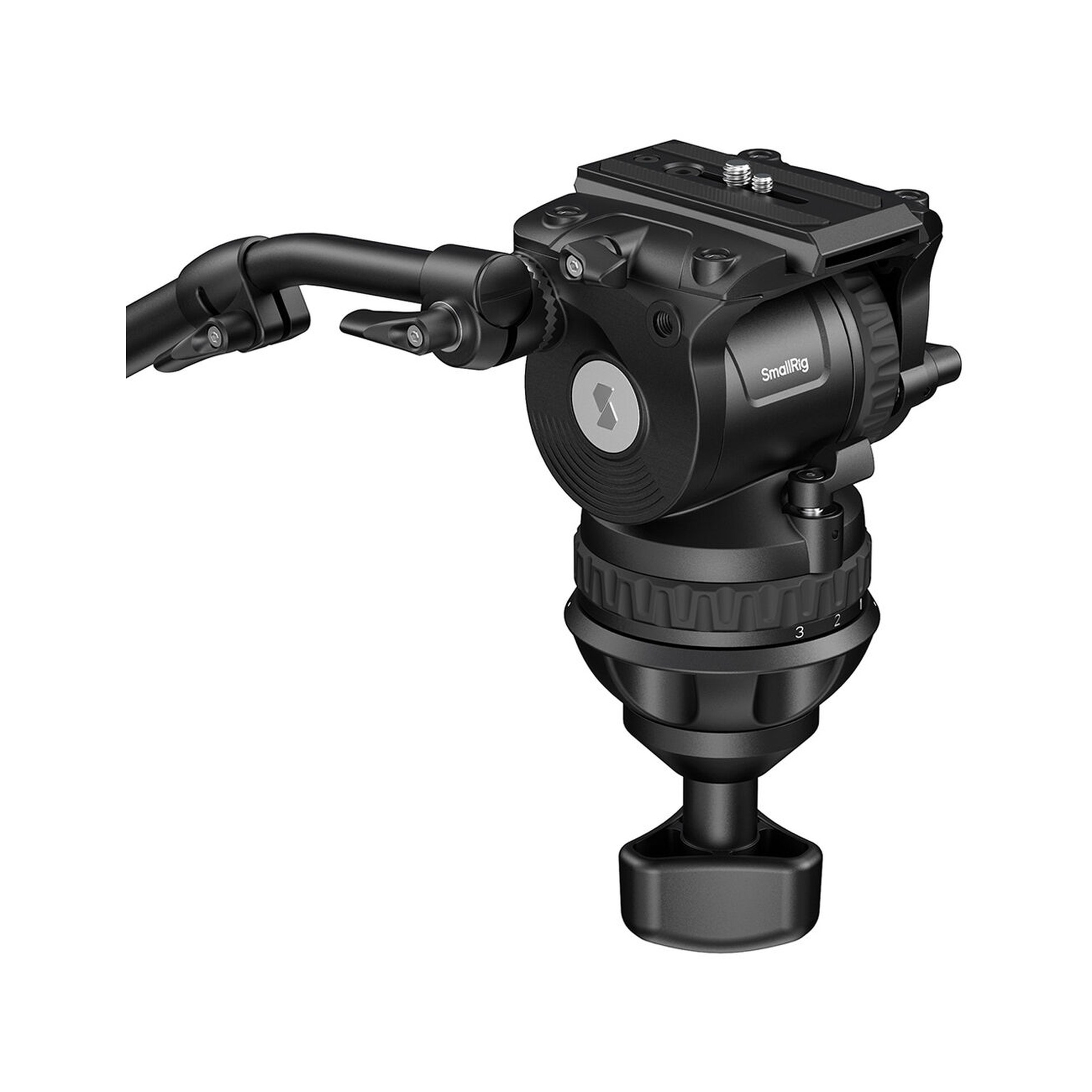

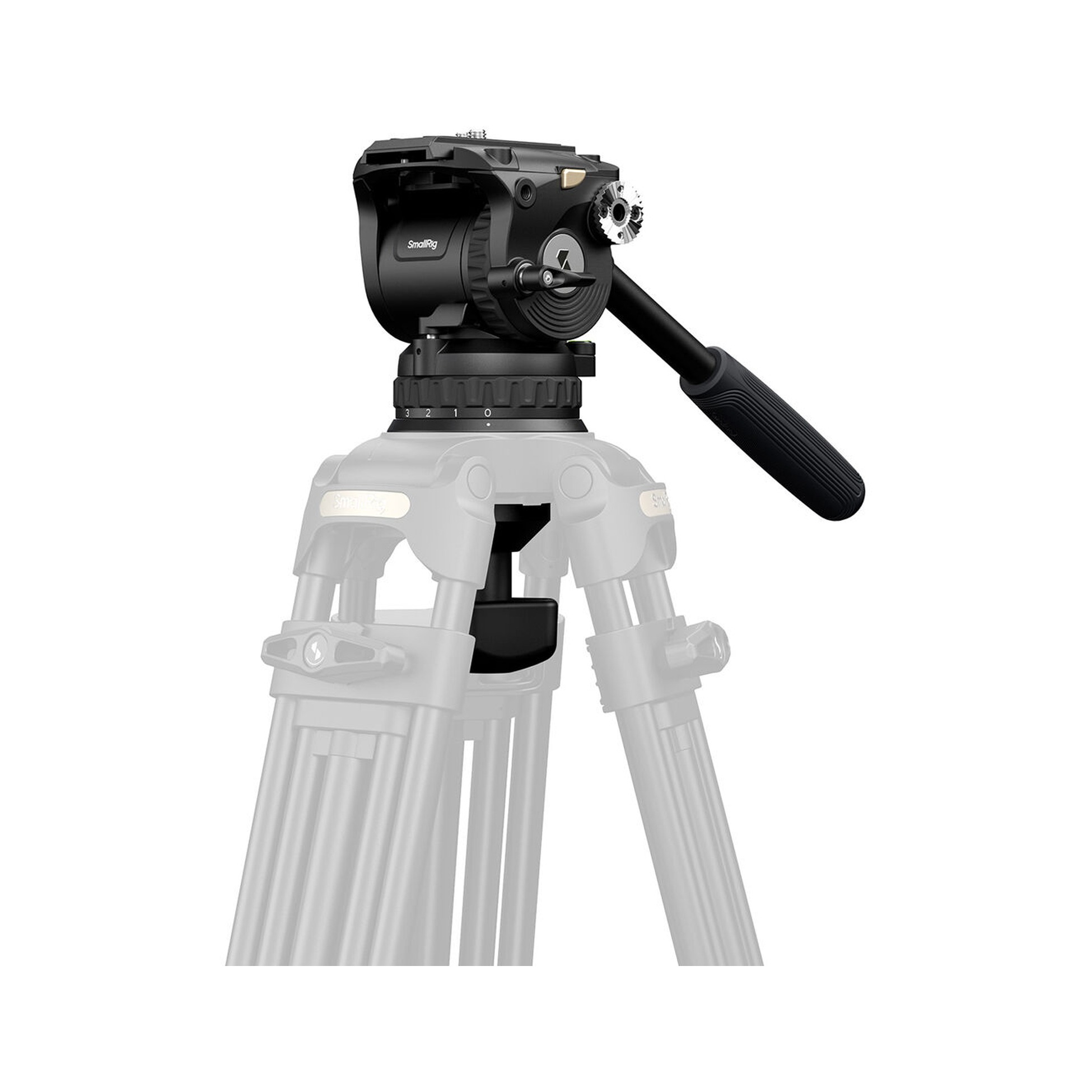

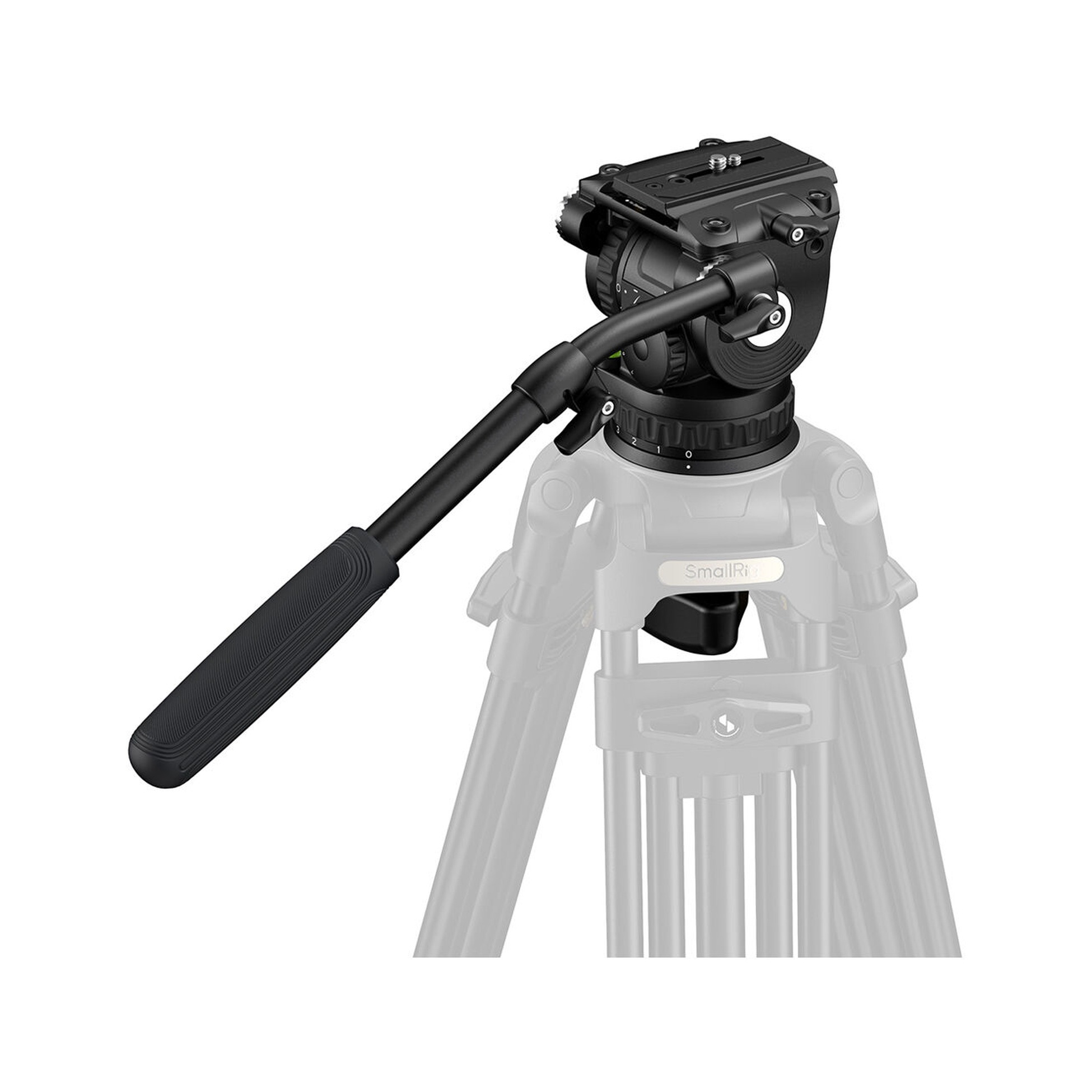

The SmallRig 6554 Heavy-Duty Fluid Video Head supports camera loads up to 37.5 lb and provides pan and tilt movement with independent locks and drag control. It features a 100mm bowl base and a Manfrotto-compatible quick release plate with 1/4"-20 and 3/8"-16 screws.
The quick release plate can be swapped for DJI RS series plates for transitions between tripod and gimbal configurations. A 7-step counterbalance and 4+4-step tilt and pan damping controls support stable movements, while the telescopic side handle can be attached to either side.

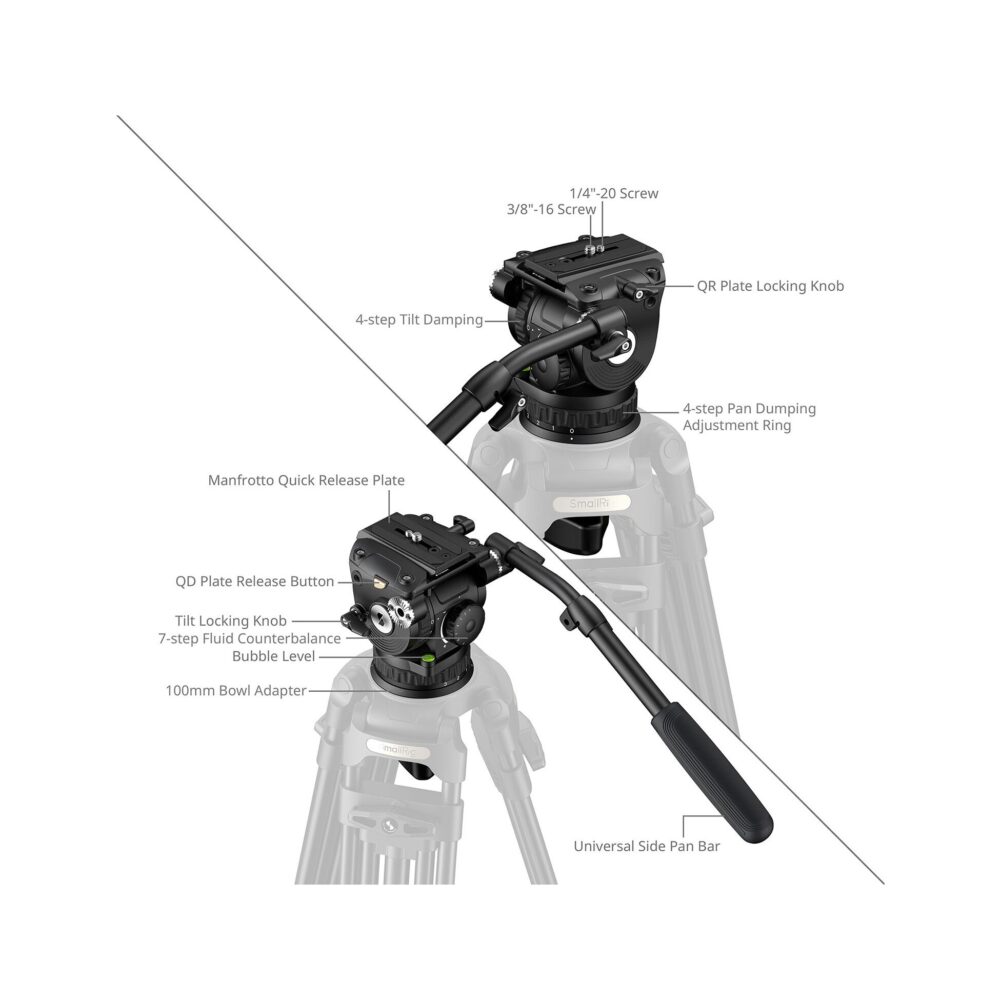

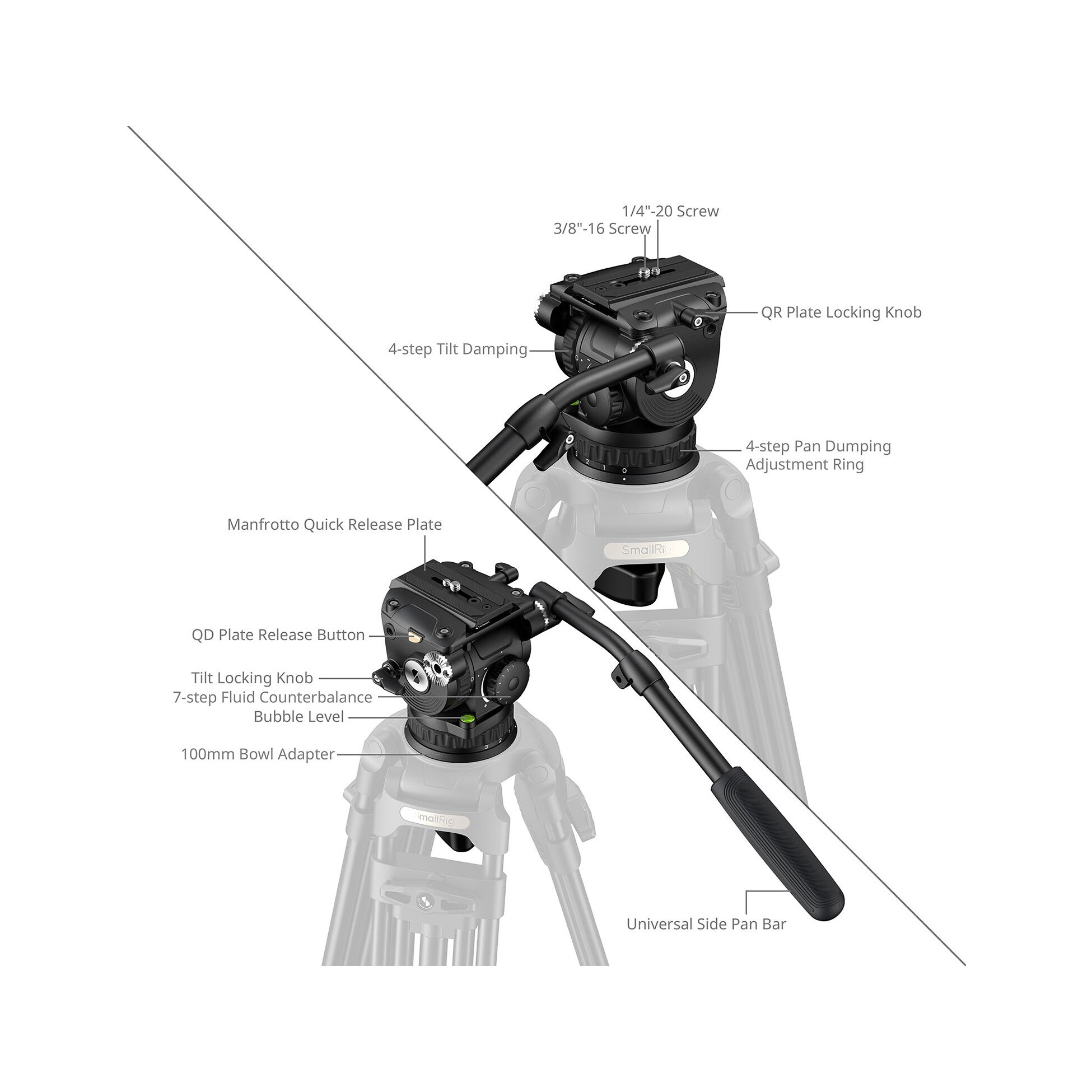

Features
- Fluid head designed for heavy camera loads
- Quick release plate with 1/4"-20 and 3/8"-16 screws
- Compatible with DJI RS series plates when the plate is swapped
- Independent pan and tilt locks with drag control
- Telescopic side handle can be mounted on either side
- 1/4"-20 thread remains available for an articulating arm when the handle is mounted
Included
- SmallRig 6554 Heavy-Duty Fluid Video Head
- Quick Release Plate
- 1/4"-20 Camera Screw
- 3/8"-16 Camera Screw
- Tie-Down Knob
- Telescopic Handle
- Wrench
Specifications
| Top Mounting | Quick Release Plate with 1/4"-20 & 3/8"-16 Screws |
|---|---|
| Head Type | Fluid Head |
| Load Capacity | 37.5 lb / 17 kg |
| Weight | 5.42 lb / 2.46 kg |
| Base Mount | 100 mm Half Ball |
| Pan & Tilt | Pan & Vertical Tilt Only with Independent Pan & Tilt Locks and Drag Control • 150° (-60 to +90°) |
| Counter Balance | Incremental 7-Step (8.8 to 22 lb / 4 to 10 kg) |

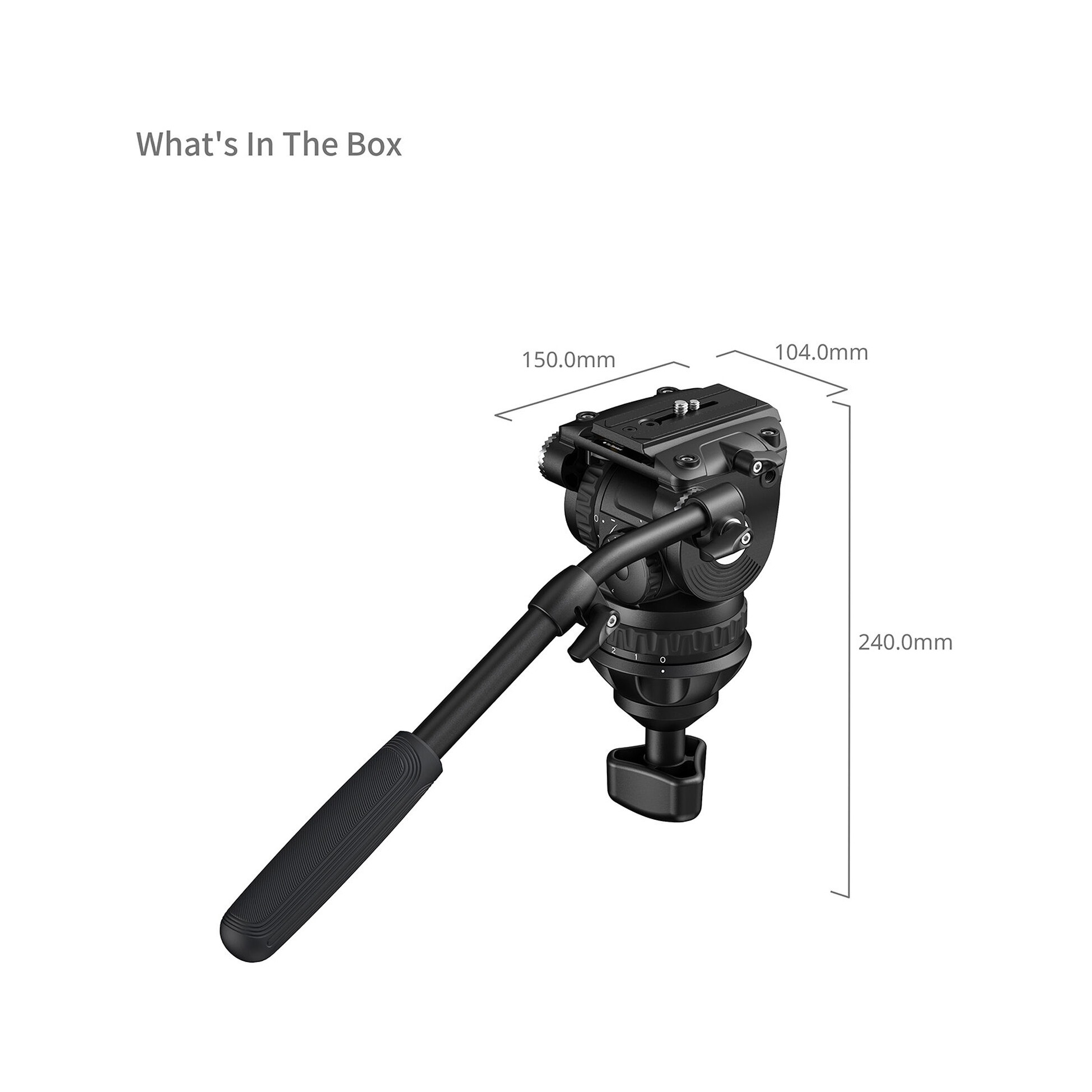

| Dimensions | Height: 9.4" / 240 mm Camera Plate: 5.9 x 4.1" / 150 x 104 mm |
| Accessory Mounting | 1x 1/4"-20 Female Thread |
| Bubble Level | Yes |
| Package Weight | 6.62 lb / 3 kg |
| Box Dimensions (LxWxH) | 16.3 x 8.3 x 6.1" / 41.40 x 21.08 x 15.49 cm |
