Überblick

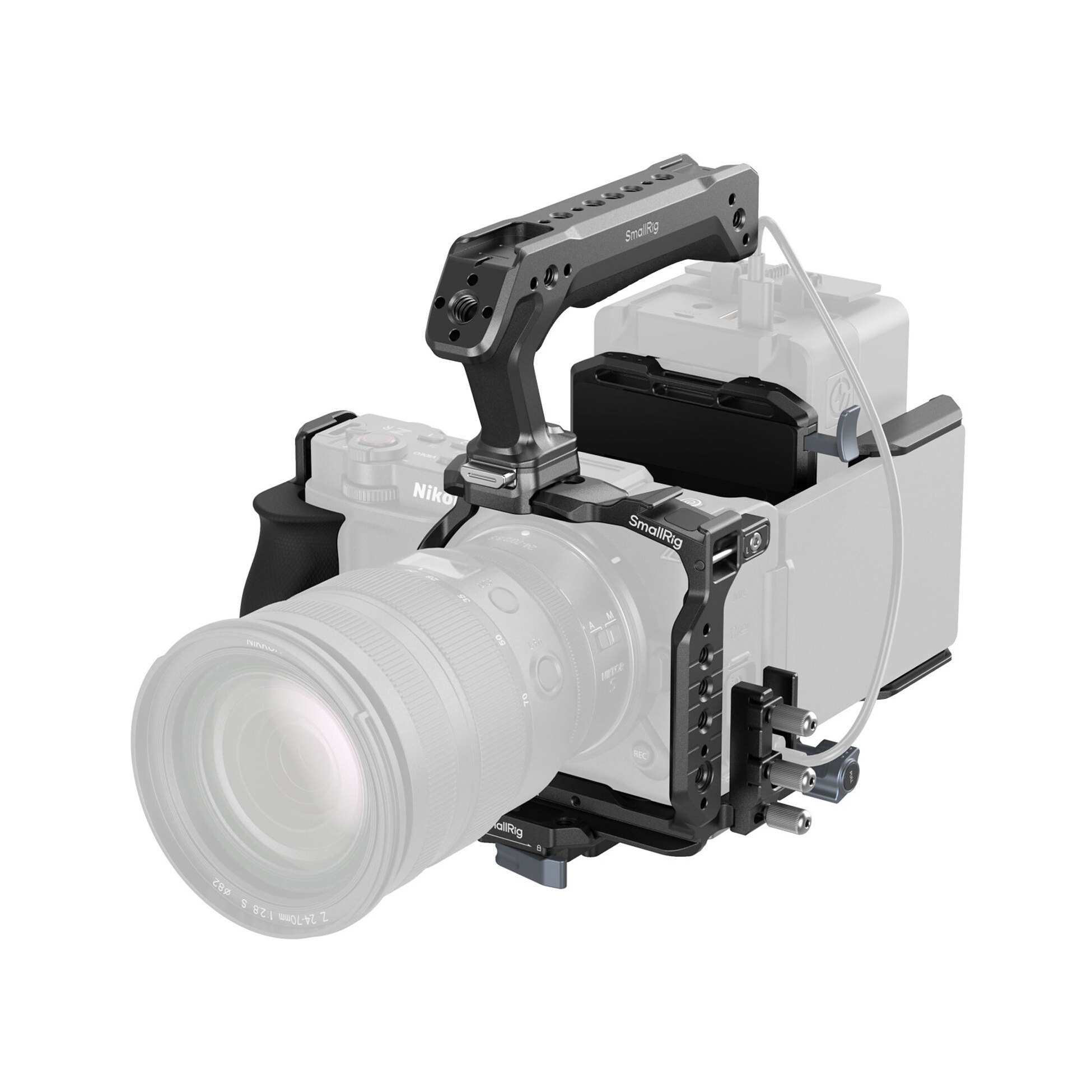

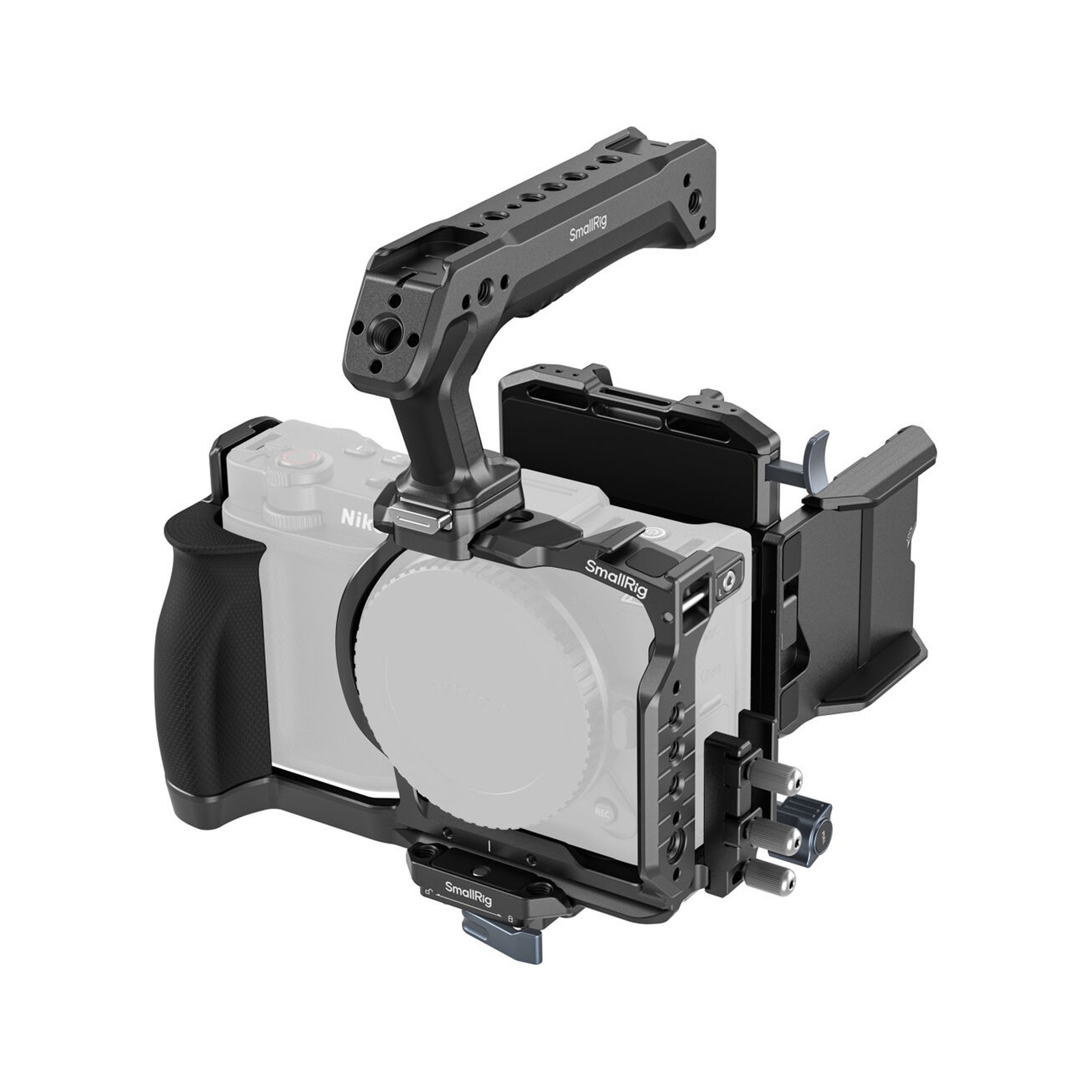

The SmallRig 6113 HawkLock Quick Release Cage Kit for Nikon ZR expands the camera's mounting options for building a camera rig. The kit includes a camera cage, V-mount battery mount plate with an Arca-Swiss receiver, LCD screen protector, and HawkLock H21 quick release top handle with an H21 NATO clamp.

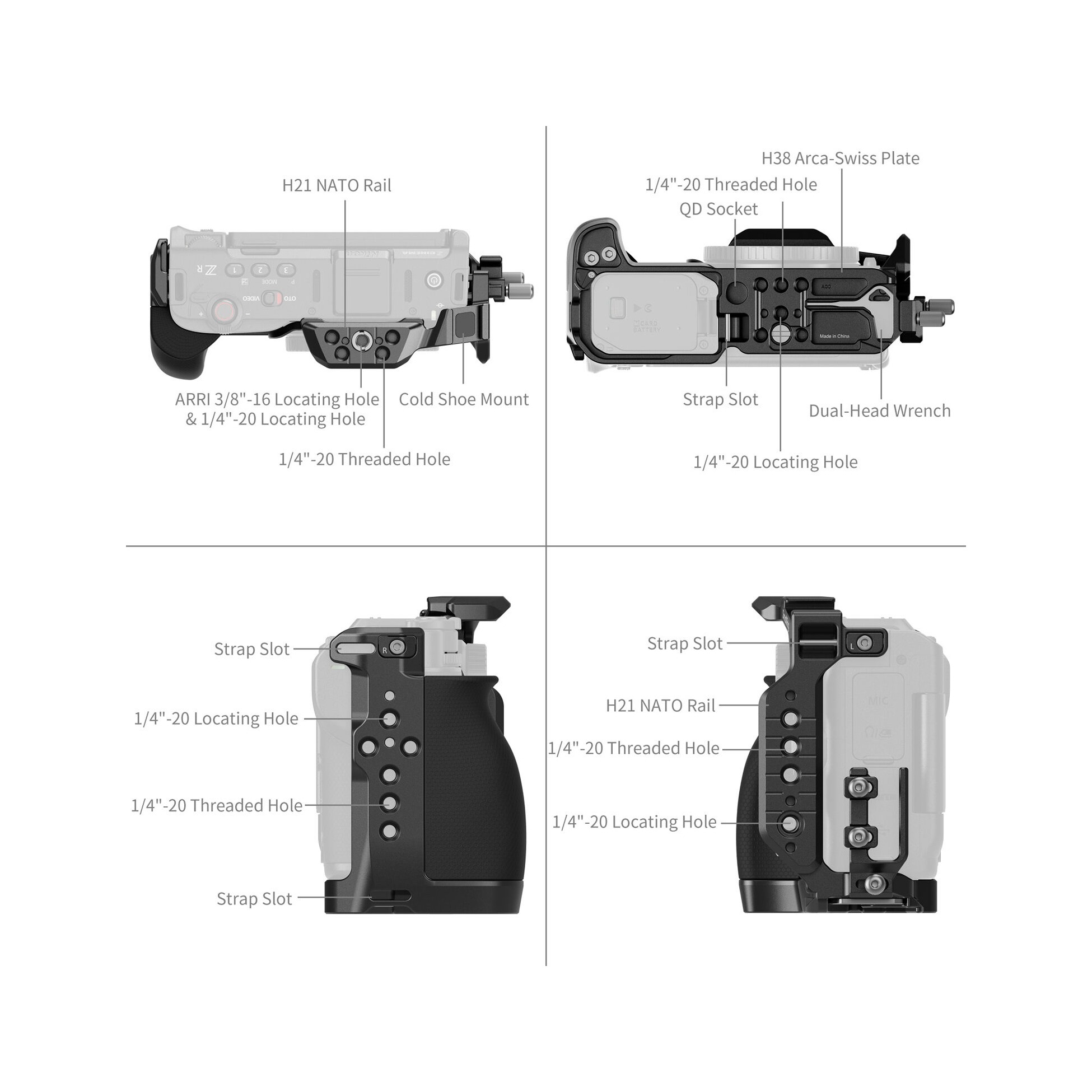

The cage provides multiple 1/4"-20 threads and NATO rails, with access to the camera's hot shoe, ports, and buttons. An integrated cold shoe, QD socket, ergonomic silicone grip, strap slots, aluminum construction, and a dual-head wrench stored in the base are also included in the verified feature set.
Features
- Expands the Nikon ZR's mounting options
- Includes an Arca-Swiss quick release baseplate
- Provides access to the camera's hot shoe, ports, and buttons
- Features an integrated cold shoe and QD socket
- Ergonomic silicone grip
- Multiple strap slots
- Aluminum construction
- Dual-head wrench stores in the base

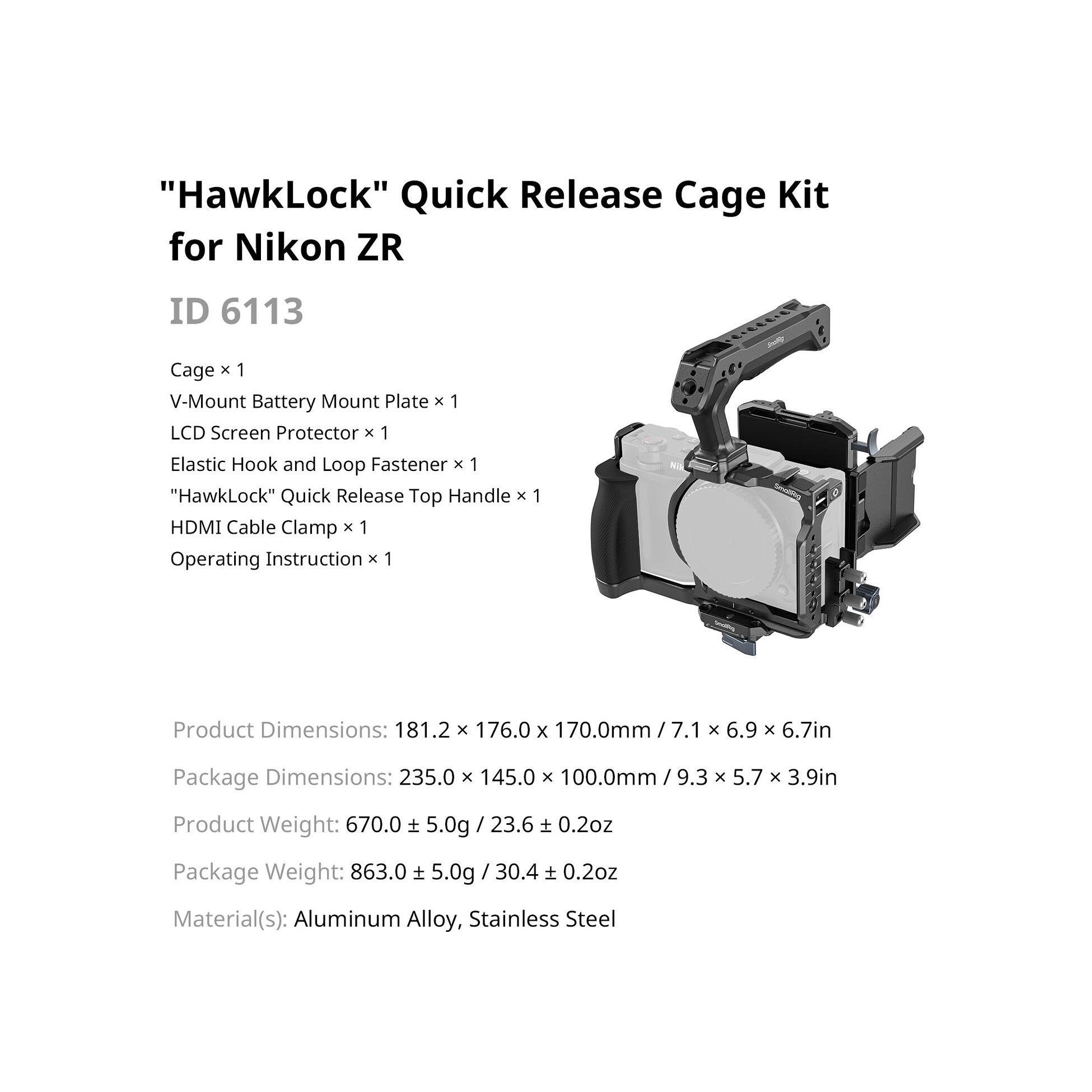

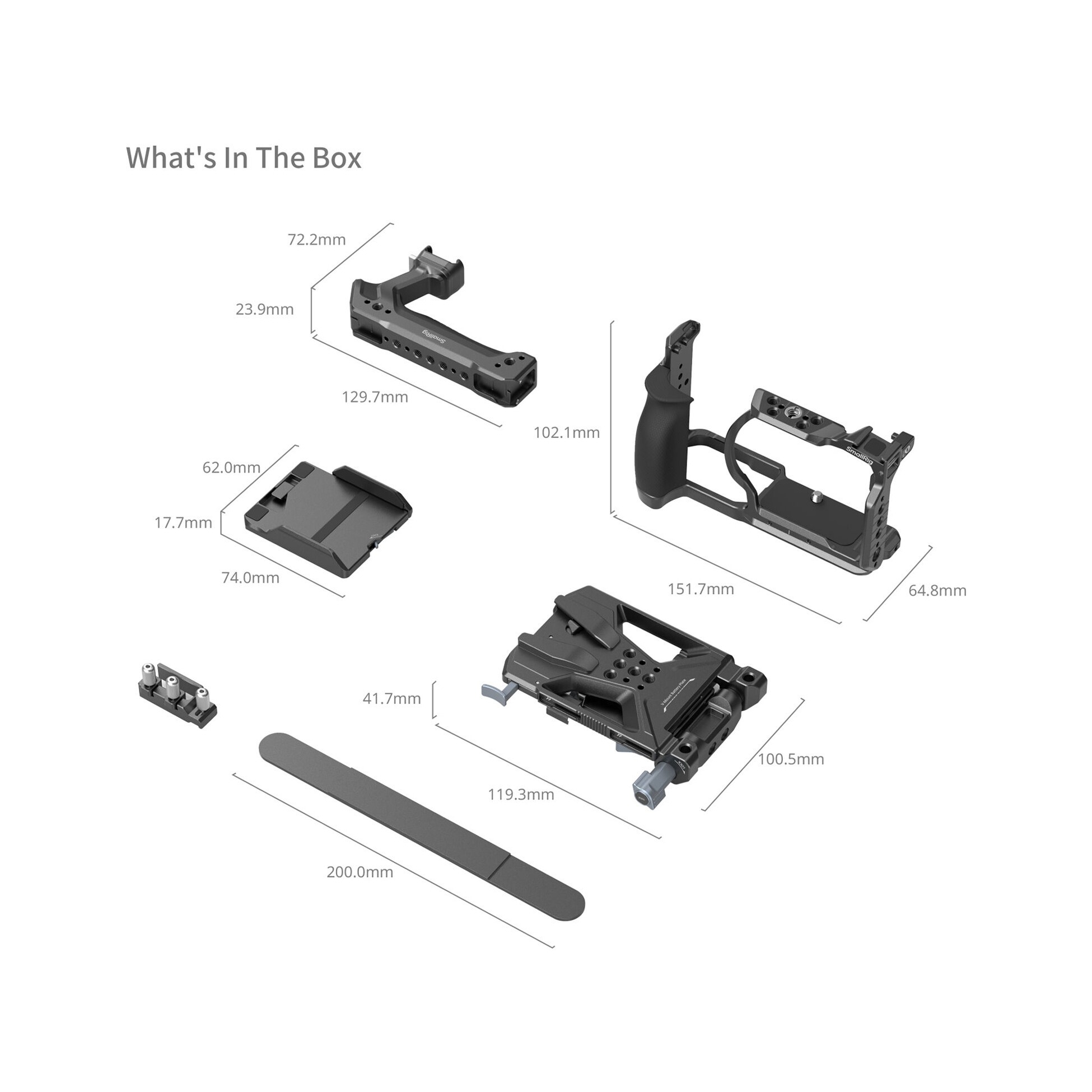

Included
- SmallRig HawkLock Full Camera Cage Pro Power Kit for Nikon ZR
- V-Mount Battery Mount Plate
- LCD Screen Protector
- HawkLock H21 Quick Release Top Handle
- Micro-HDMI and USB-C Cable Clamp
- Dual-Head Wrench
- 3/8"-16 to 1/4"-20 Thread Adapter
- 1/4"-20 Screw
- Hook-and-Loop Fastener
Specifications
| Support Type | Cage |
|---|---|
| Configuration | Battery Mounting Plate |
| Grip Type | Topside Handgrip, Single Handgrip |
| Camera Compatibility | Nikon ZR |
| Battery Plate Type | 1x V-Mount (Included) |
| Accessory Mounting | Cage, Top 1x Anti-Twist 3/8"-16 Female Thread 4x 1/4"-20 Female Thread Cage, Sides 4x Anti-Twist 1/4"-20 Female Thread 6x 1/4"-20 Female Thread Top Handle, Top 1x 1/4"-20 Female Thread 3x Anti-Twist 1/4"-20 Female Thread Top Handle, Sides 4x Anti-Twist 1/4"-20 Female Thread Top Handle, Front 1x 3/8"-16 Female Thread Battery Plate 2x Anti-Twist 1/4"-20 Female Thread 3x 1/4"-20 Female Thread |
| Camera Mounting | 1/4"-20 Male Screw |
| Tripod Mounting | 1/4"-20 Female Thread, Built-In Arca-Type Plate |
| Shoe Mounting | Cage 1x Cold Shoe Top Handle, Front 1x Cold Shoe Top Handle, Rear 2x Cold Shoe |
| Rosettes | No |
| Rail Mounting | Cage, Top 1x NATO Rail Cage, Side 1x NATO Rail Top Handle 1x NATO Rail Clamp |
| Cable Clamp | 1x HDMI Clamp |
| Materials | Aluminum Alloy Stainless Steel Silicone (Camera Cushion) |
| Dimensions | 7.1 x 6.9 x 6.7" / 181.2 x 176 x 170 mm |
| Weight | 23.6 oz / 670 g |
| Package Weight | 1.94 lb / 0.88 kg |
| Box Dimensions (LxWxH) | 9.5 x 6.5 x 4" / 24.13 x 16.51 x 10.16 cm |
